Mangar Archimedes Bath Lift by Joerns – Fixed Upright Back, Waterproof Battery Hand Control, 364 lb Capacity
$528.00
- Rated No. 1 in customer service
- Fast nationwide shipping, delivered to your door
- Manufacturer warranties
- Cash-back rewards on every order
Authorized dealer & provider · Huge selection · Questions? Call 585-505-6665
✔ Fixed Upright Backrest for Extra Support
✔ Lowers to About 2.75″ From the Tub Floor
✔ Fully Waterproof Battery Hand Control
✔ Will Not Lower Without Charge to Lift Back Up
✔ Separates Into 3 Sections, About 22 lb
✔ 364 lb (165 kg) Weight Capacity
-
Fast nationwide shipping, delivered to your door · 30-day returns on eligible products · Shipping & returns details
Share with Friends
- Description
- PRODUCT SPECIFICATION
- Shipping & Returns
- Product PDF downloads
- Reviews (0)
Description
Mangar Archimedes Bath Lift by Joerns – Fixed Upright Back, Waterproof Battery Hand Control, 364 lb Capacity

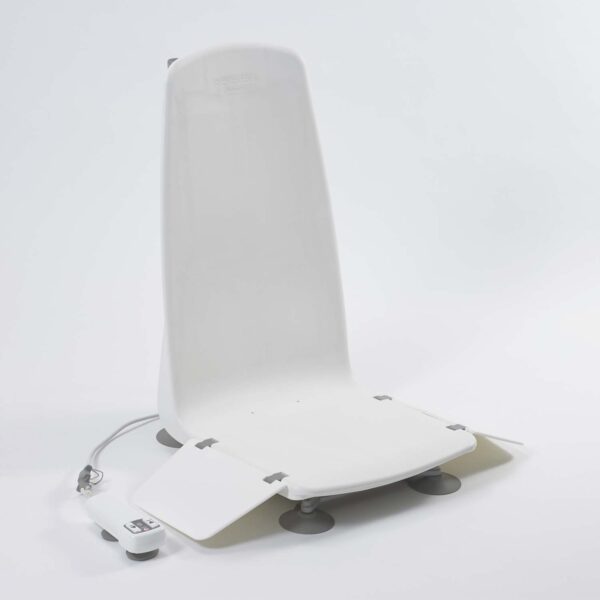

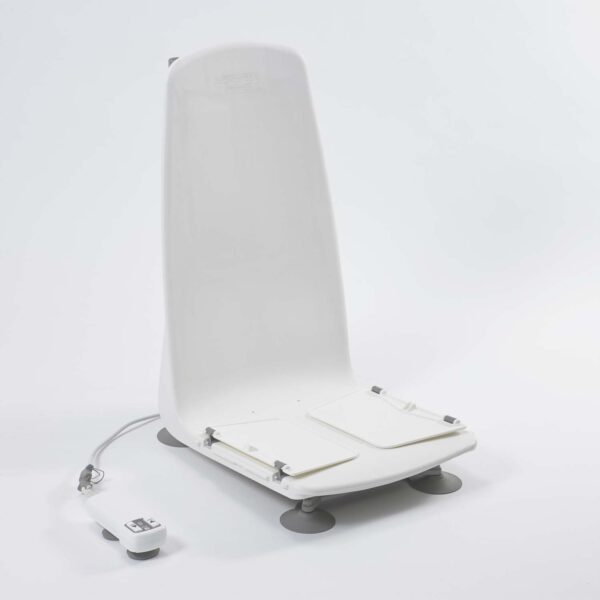

The Mangar Archimedes is a bath lift for people who want a bath but need more back support than a reclining lift gives. Instead of tipping back, the backrest stays upright in a fixed position, so you sit tall and supported the whole way down and back up. That makes it a good choice for users with weak core muscles or anyone who feels unsteady leaning back in water.
Using it is simple. Sit on the seat at the rim of the tub, swing your legs in over the side flaps, and press the button on the hand control. The seat lowers you smoothly to about 2.75″ from the tub floor, and raises you back to about 17″ when you are done so you can transfer out.

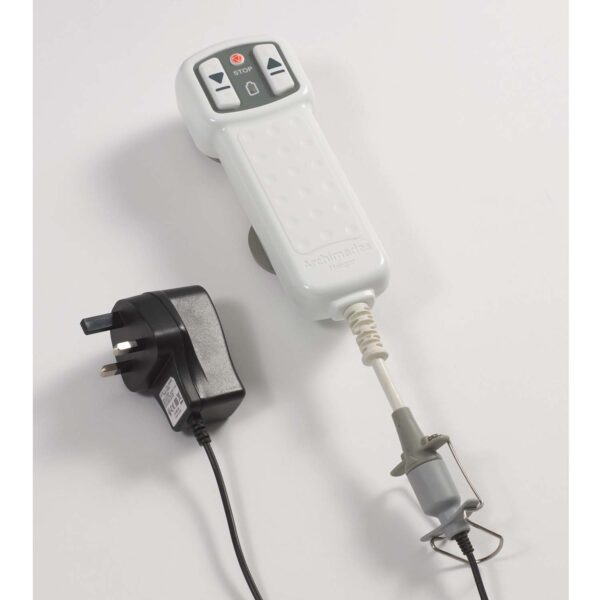

Power comes from a battery in the hand control, so there are no mains cables anywhere near the bath. The hand control is fully waterproof. Mangar also built in a safety check: the lift will only lower you when there is enough charge left to raise you back out again, so nobody gets stuck at the bottom of the tub.

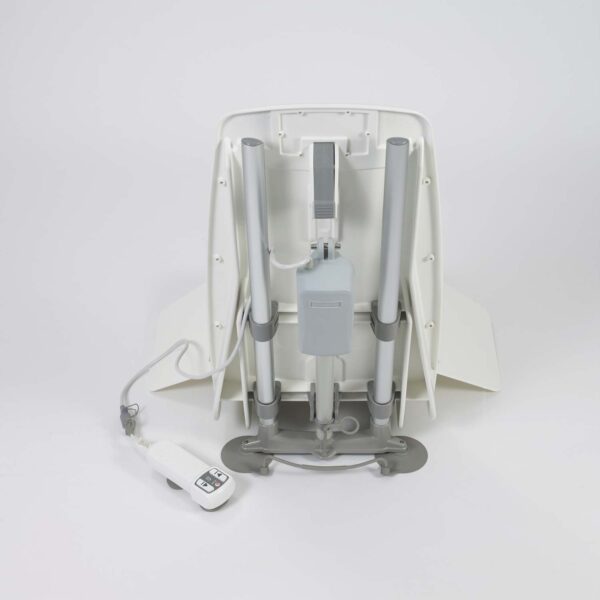

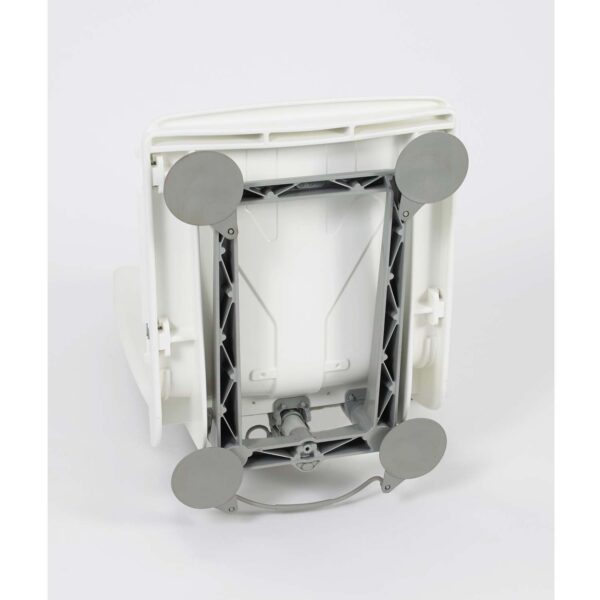

The Archimedes separates into three lightweight sections for fitting and removal, and the full lift weighs about 22 lb. Suction cups under the base hold it in place on the tub floor. It is rated for users up to 165 kg (about 364 lb), which is more than most portable bath lifts.
Mangar Health makes the Archimedes, and it is supplied in the US through Joerns Healthcare under part number LAA3716.
Key Features
- ✔ Fixed Upright Backrest for Extra Support
- ✔ Lowers to About 2.75″ From the Tub Floor
- ✔ Fully Waterproof Battery Hand Control
- ✔ Will Not Lower Without Charge to Lift Back Up
- ✔ Separates Into 3 Sections, About 22 lb
- ✔ 364 lb (165 kg) Weight Capacity
Specifications
| Brand | Mangar Health (Joerns Healthcare) |
| Part number | LAA3716 |
| Backrest | Fixed upright position |
| Lowest seat height | About 2.75″ |
| Highest seat height | About 17″ |
| Seat size | About 15.5″ W x 17″ L |
| Power | Rechargeable battery, waterproof hand control |
| Sections | 3, tool-free |
| Lift weight | About 22 lb |
| Weight capacity | 165 kg / about 364 lb |
Is the Archimedes Right for You?
Pick the Archimedes if sitting upright feels safer than reclining, or if the user needs the higher 364 lb capacity. If you would rather lean back and soak, a reclining bath lift such as the BathLyft or the Aquatec R is the better match. Check that your tub floor is flat and smooth enough for the suction cups to hold.
Questions before you order? Call us at 585-505-6665. We are an online store and ship nationwide.
PRODUCT SPECIFICATION
| Maximum User Weight: | 364lbs |
| Seat Height (min/max): | 2.75″/17″ |
| Seat Length: | 17″ |
| Seat Width: | 15.5″ |
| Weight of Seat Section: | 11.5lbs |
| Weight of Base Section: | 6lbs |
| Weight of Actuator: | 4.5lbs |
