Lumex Powered Bariatric Recliner FR588W – Bariatric Recliner With Power Recline and Drop Arms, 700 lb Capacity
$4,695.00
- Rated No. 1 in customer service
- Fast nationwide shipping, delivered to your door
- Manufacturer warranties
- Cash-back rewards on every order
Authorized dealer & provider · Huge selection · Questions? Call 585-505-6665
✔ 700 lb Weight Capacity
✔ Powered Recline, 4-Function Pendant
✔ Independent Legrest and Backrest
✔ Drop Arms for Lateral Transfers
✔ Battery Backup for Power Outages
✔ 26.5″ Wide Seat, 2 Side Tables
-
Fast nationwide shipping, delivered to your door · 30-day returns on eligible products · Shipping & returns details
Share with Friends
One of the biggest problems customers face after buying medical and mobility equipment through marketplaces like Amazon is discovering that there is nobody to call when they actually need help. Product questions, warranty issues, replacement parts and support can quickly become difficult when there is no dedicated provider behind the purchase.
With MedCare Mobility, you buy from an authorized dealer and a real medical equipment provider — with knowledgeable people you can contact when help matters.- Description
- PRODUCT SPECIFICATION
- Shipping & Returns
- Product PDF downloads
- Videos
- Reviews (0)
Description

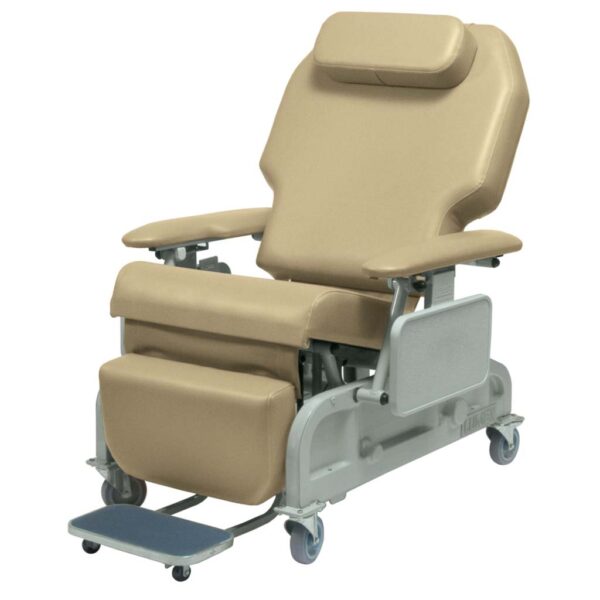

Lumex Powered Bariatric Recliner FR588W – A 700 lb Bariatric Recliner With Power Recline and Drop Arms
The Lumex Powered Bariatric Clinical Care Recliner is a bariatric recliner rated for 700 lbs, evenly distributed. It has a 26½” wide seat, powered recline, drop arms for lateral transfers and a battery backup, so it keeps working if the power goes out.
As a bariatric power recliner, it’s controlled with a four-function hand pendant. The backrest and legrest move independently, and the patient can stop at any position that feels right instead of choosing from fixed stops.
For staff, there’s a quick-release rear hand trigger for the Trendelenburg position, two fold-down side tables, a rear push handle and 5″ casters. A headrest pillow is included. Pick Blue Ridge, Doe Skin, Jade or Rosewood in the dropdown above.
Why Choose the Lumex FR588W?
Lumex designed it for the safety of the care staff assisting bariatric patients, and for the patients themselves. Powered recline takes the effort out of changing positions, drop arms make side transfers easier, and the 700 lb rating covers patients that most medical recliners can’t.
Powered Recline With a 4-Function Pendant
The hand pendant raises and lowers the backrest and the legrest separately. That means the patient can raise their legs while sitting up, or lean back with their feet down, and stop anywhere in between.
Battery Backup
A rechargeable battery pack keeps the chair working during a power failure, so a patient isn’t stuck reclined if the power drops.
Self-Storing Drop Arms
The fully upholstered arms drop down and store out of the way, opening the side of the chair for a safer lateral transfer from a bed, wheelchair or stretcher.
Caregiver-Activated Trendelenburg
A quick-release trigger at the rear of the chair lets a caregiver put it into the Trendelenburg (head lower than the feet) position.
Side Tables, Casters and Push Handle
Two self-storing side tables fold down flush and wipe clean. The chair rolls on 5″ casters, with two rear swivel locking casters and two fixed front wheels, and a rear push handle for steering.
FR588W vs. the Lumex FR587WD
The Lumex FR587WD Extra-Wide Drop-Arm Recliner holds 450 lbs, has a 24″ seat and reclines manually to three positions. The FR588W holds 700 lbs, has a 26½” seat, and reclines with power to any position, with an independent legrest and battery backup. Choose the FR588W for larger patients or when manual recline is hard for staff.
Who Is the FR588W Best For?
Good fits include:
- Patients up to 700 lbs who need a wider, stronger chair
- Bariatric, extended care and clinical care settings
- Patients who transfer sideways and need drop arms
- Caregivers who want powered positioning instead of manual levers
Comparing options? Our geri chair buying guide explains each type of medical recliner.
Who May Need a Different Chair?
- Patients under 450 lbs: the Lumex FR587WD is a smaller, manual option with drop arms.
- Small rooms: the chair is 38″ wide and 59″ deep, and 77″ deep in Trendelenburg. Check your space and doorways.
- Anyone who needs a seat cushion: the 26½” seat is wider than most standard cushions. Call us at 585-505-6665 for help.
Common Problem → FR588W Solution
Problem: Staff struggle to recline and position a heavier patient in a manual chair, and transfers in and out are risky.
Solution: The FR588W reclines with a hand pendant, the legrest moves on its own, and the drop arms open the side for a sliding transfer.
“What if the power goes out?” The battery backup keeps the chair working.
Key Features
✔ 700 lb Weight Capacity
✔ Powered Recline, 4-Function Pendant
✔ Independent Legrest and Backrest
✔ Drop Arms for Lateral Transfers
✔ Battery Backup for Power Outages
✔ 26.5″ Wide Seat, 2 Side Tables
Product Specifications
- Brand / model: Lumex (Graham-Field) Powered Bariatric Clinical Care Recliner, FR588W series
- Weight capacity: 700 lbs, evenly distributed
- Recline: Powered, infinite positions; four-function hand pendant; backrest and legrest move independently
- Power backup: Rechargeable battery pack
- Trendelenburg: Caregiver-activated with a quick-release rear hand trigger
- Arms: Fully upholstered, self-storing drop arms
- Seat width × depth: 26½” × 23½”
- Seat height: 25½”
- Width between arms: 24½”
- Arm height from floor (arm up): 31″
- Back height above seat: 35″
- Overall width: 38″ (48″ with side tables up)
- Overall depth: 59″ upright, 77″ in Trendelenburg
- Overall height: 53″
- Casters: 5″: 2 rear swivel locking, 2 fixed front wheels

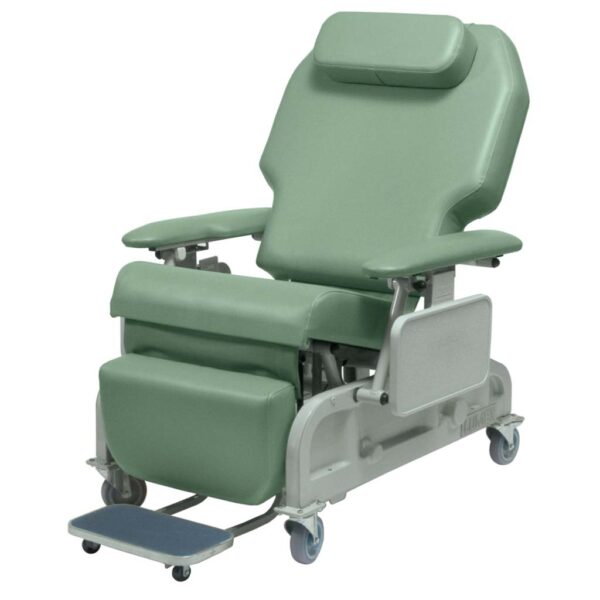

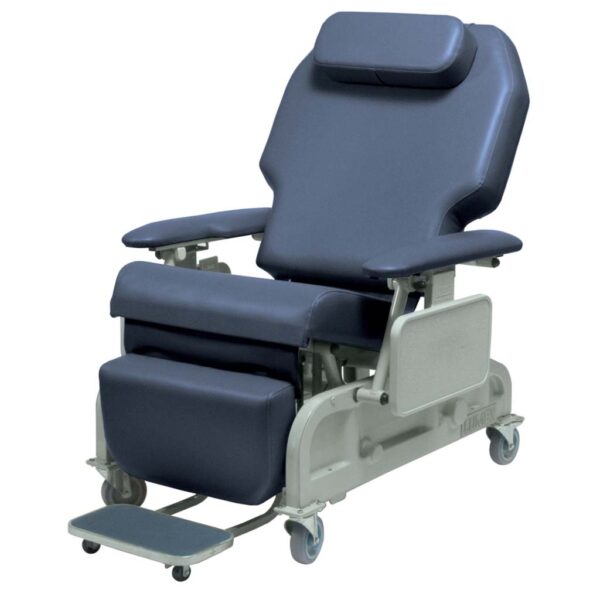

- Colors: Blue Ridge, Doe Skin, Jade, Rosewood
- Included: Headrest pillow, 2 fold-down flush-mount side tables, rear push handle
Frequently Asked Questions
How much weight does this bariatric recliner hold?
Lumex rates the FR588W for 700 lbs, evenly distributed.
Is it a power recliner?
Yes. It reclines with power using a four-function hand pendant, and the backrest and legrest move independently.
What happens in a power outage?
A rechargeable battery pack keeps the chair working if the power fails.
Does it have drop arms?
Yes. The fully upholstered arms drop and store out of the way for safer lateral transfers.
How big is the seat?
26½” wide and 23½” deep, with a 25½” seat height. There are 24½” between the arms.
How much room does it need?
It’s 38″ wide (48″ with side tables up), 59″ deep upright and 77″ deep in Trendelenburg, and 53″ tall.
How is the Trendelenburg position activated?
A caregiver uses the quick-release hand trigger on the rear of the chair.
Does it come with side tables?
Yes. Two self-storing side tables fold down flush with the chair.
Is a headrest pillow included?
Yes, a headrest pillow comes with the FR588W.
What casters does it have?
5″ casters: two rear swivel casters with wheel locks and two fixed front wheels, plus a rear push handle.
What colors are available?
Blue Ridge, Doe Skin, Jade and Rosewood.
How is it shipped?
It ships freight to your door. Call us at 585-505-6665 with delivery questions.
🔗 Medical Recliner Guides, Answers & Related Chairs
Comparing medical recliners? These pages can help, and you can call us at 585-505-6665 with any question.
PRODUCT SPECIFICATION
| Specification | Inches | Centimeters (cm) |
|---|---|---|
| Overall Width | 38.00″ | 96.52 cm |
| Overall Width (Side Tables Up) | 48.00″ | 121.92 cm |
| Overall Depth (Upright) | 59.00″ | 149.86 cm |
| Overall Depth (Trendelenburg) | 77.00″ | 195.58 cm |
| Overall Height | 53.00″ | 134.62 cm |
| Arm Width | 5.00″ | 12.70 cm |
| Width Between Arms | 24.50″ | 62.23 cm |
| Arm Height from Floor | 31.00″ | 78.74 cm |
