Lumex Extra-Wide Drop-Arm Clinical Care Recliner FR587WD – Bariatric Medical Recliner, 450 lb Capacity
$2,135.00
- Rated No. 1 in customer service
- Fast nationwide shipping, delivered to your door
- Manufacturer warranties
- Cash-back rewards on every order
Authorized dealer & provider · Huge selection · Questions? Call 585-505-6665
✔ 450 lb Weight Capacity
✔ Drop Arms for Lateral Transfers
✔ Extra-Wide 24″ Seat
✔ 3 Positions + Caregiver Trendelenburg
✔ 2 Fold-Down Side Tables
✔ 5″ Tente Casters, Push Handle
-
Fast nationwide shipping, delivered to your door · 30-day returns on eligible products · Shipping & returns details
Share with Friends
- Description
- PRODUCT SPECIFICATION
- Shipping & Returns
- Product PDF downloads
- Product Videos
- Reviews (0)
Description

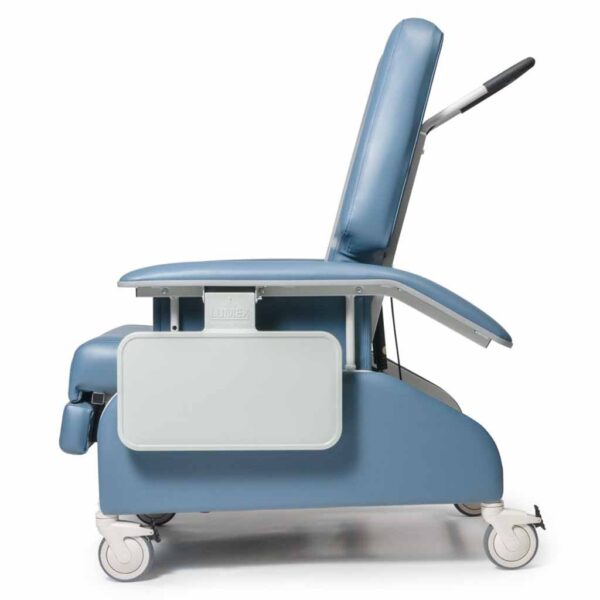

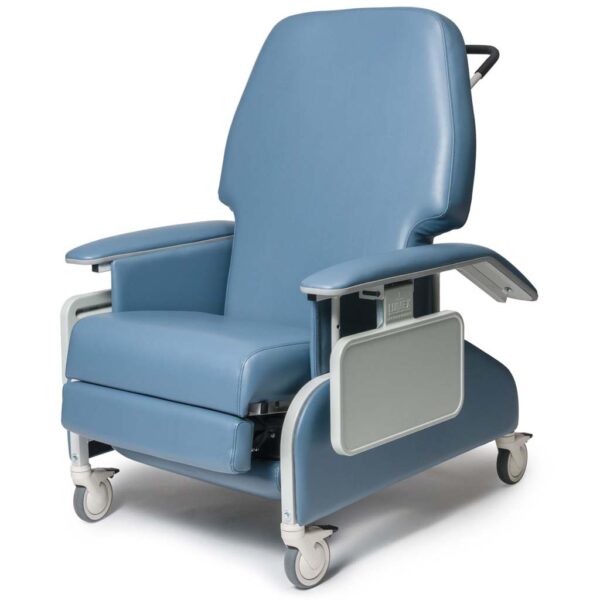

Lumex Extra-Wide Drop-Arm Recliner FR587WD – A Bariatric Medical Recliner Built for Safer Side Transfers
The Lumex Extra-Wide Clinical Care Recliner with drop arms is a bariatric medical recliner for patients who need more room and a safer way in and out. The seat is 24″ wide, the chair holds 450 lbs evenly distributed, and Lumex lists it for both clinical care and bariatric care.
The drop arms are the key feature. Lower the arm and the side of the chair is open for a lateral transfer from a bed, wheelchair or stretcher. That makes this drop arm recliner chair a strong pick for patients who can’t easily stand and pivot.
A higher seat and back let caregivers help without bending as far, and the Trendelenburg position is set from a rear hand trigger with dual gas cylinders for a smooth move. Two side tables fold down flush with the chair, and the side panels are upholstered and removable for cleaning. Pick your color in the dropdown above.
Why Choose the Lumex FR587WD?
It combines three things a larger patient and their caregivers often need in one chair: a 24″ wide seat, a 450 lb capacity and drop arms for side transfers. Lumex also raised the seat and back height so staff can assist more comfortably.

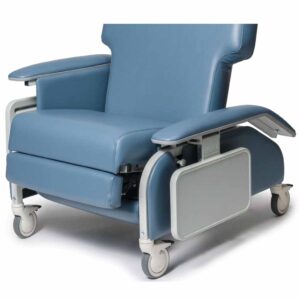

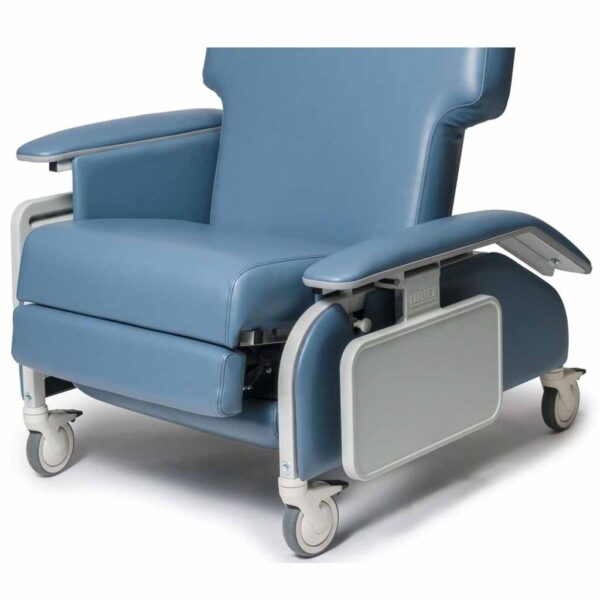

Self-Storing Drop Arms for Safer Lateral Transfers
Release the drop arm and it lowers and stores out of the way, leaving an open side for a sliding transfer. Lumex designed these to be easy to work and to make lateral transfers safer.
Extra-Wide Seat and Back
The seat is 24″ wide and 20½” deep, with 26½” between the arms. The extra width gives a larger patient room to sit comfortably and shift their weight.
3 Positions Plus Caregiver-Activated Trendelenburg

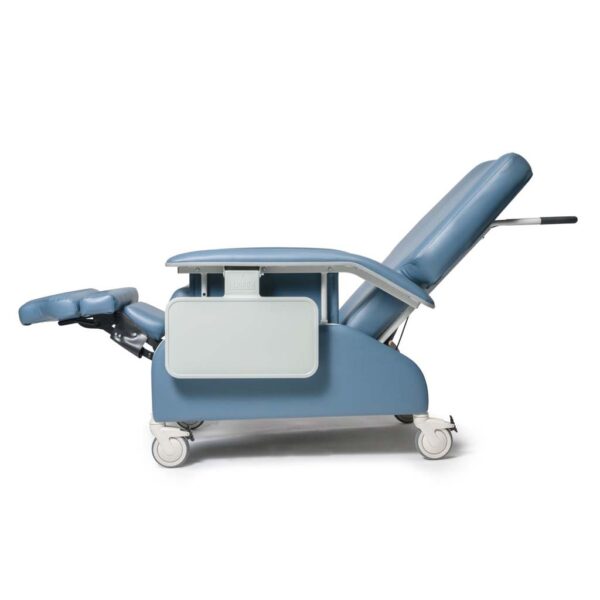

Patients get three positions: upright, first recline and second recline. Staff can put the chair into Trendelenburg (head lower than the feet) with the rear-mounted hand trigger, and dual gas cylinders assist the movement.
Side Tables, Removable Panels and Easy Transport
Two self-storing side tables fold down flush and wipe clean. The upholstered side panels come off for cleaning and maintenance. Four 5″ Tente swivel casters (three total locking, one directional locking) and a rear push handle make the chair easy to move.
FR587WD vs. the Lumex FR587W
Both chairs share the 24″ wide seat and 450 lb capacity. The Lumex FR587W has fixed arms. The FR587WD adds drop arms for lateral transfers. If the patient transfers from the side, get the FR587WD.
Who Is the FR587WD Best For?
Good fits include:
- Larger patients up to 450 lbs who need a wider seat
- Patients who transfer sideways from a bed, wheelchair or stretcher
- Bariatric care, same day surgery and clinical care areas
- Caregivers who want a higher seat to assist with less bending
Comparing options? Our geri chair buying guide covers each type of medical recliner.
Who May Need a Different Chair?
- Users over 450 lbs: the Lumex Powered Bariatric Recliner holds 700 lbs and reclines with a hand pendant.
- Standard-size patients: a 400 lb chair like the Lumex Deluxe Drop-Arm Clinical Care Recliner still has drop arms in a smaller footprint.
- Tight rooms: the chair is 35¾” wide (58¼” with tables up) and 78″ deep in Trendelenburg. Measure doorways and floor space first.
Common Problem → FR587WD Solution
Problem: A larger patient can’t stand and pivot safely, and standard recliner arms block a sliding transfer.
Solution: Drop the arm on the FR587WD, line it up with the bed or wheelchair, and slide across. The 24″ seat gives room to settle in once they’re over.
“Is it hard to work the drop arm?” No. Lumex designed the drop arms to be easy to actuate, and they store themselves.
Key Features
✔ 450 lb Weight Capacity
✔ Drop Arms for Lateral Transfers
✔ Extra-Wide 24″ Seat
✔ 3 Positions + Caregiver Trendelenburg
✔ 2 Fold-Down Side Tables
✔ 5″ Tente Casters, Push Handle
Product Specifications
- Brand / model: Lumex (Graham-Field) Extra-Wide Clinical Care Recliner with Drop Arms, FR587WD series
- Weight capacity: 450 lbs, evenly distributed
- Positions: Upright, first recline, second recline
- Trendelenburg: Caregiver-activated with a rear-mounted hand trigger; dual gas cylinder assist
- Arms: Self-storing drop arms
- Seat width × depth: 24″ × 20½”
- Seat height: 22″
- Width between arms: 26½”
- Arm height from floor (arm up): 27½”
- Back height above seat: 33½”
- Overall width: 35¾” (58¼” with side tables up)
- Overall depth: 44″ upright, 78″ in Trendelenburg
- Overall height: 50″
- Casters: 5″ Tente swivel casters: 3 total locking, 1 directional locking
- Included: 2 fold-down flush-mount side tables, removable upholstered side panels, rear push handle
Frequently Asked Questions
What is a bariatric medical recliner?
It’s a medical recliner with a wider seat and a higher weight rating for larger patients. The FR587WD has a 24″ wide seat and holds 450 lbs, evenly distributed.
How do the drop arms work?
Release the arm and it lowers and stores itself, opening the side of the chair for a lateral (sliding) transfer. Raise it back up when the patient is seated.
How much weight does it hold?
Lumex rates it for 450 lbs, evenly distributed.
How big is the seat?
24″ wide and 20½” deep, with 26½” between the arms. The seat height is 22″.
How much room does it need?
It’s 35¾” wide, or 58¼” with both side tables up. It’s 44″ deep upright and 78″ deep in Trendelenburg, and 50″ tall.
How is the Trendelenburg position activated?
A caregiver uses the rear-mounted hand trigger. Dual gas cylinders help the chair move smoothly.
What positions does it have?
Upright, first recline and second recline, plus the caregiver-activated Trendelenburg position.
Does it come with side tables?
Yes. Two self-storing side tables fold down flush with the chair.
Can the chair be cleaned easily?
Yes. The upholstered side panels are removable for cleaning and maintenance, and the side tables have a smooth surface.
Does it roll?
Yes. It has four 5″ Tente swivel casters (three total locking, one directional locking) and a rear push handle. Lock the casters before a transfer.
What’s the difference between the FR587WD and the FR587W?
They have the same seat size and 450 lb capacity. The FR587WD has drop arms for side transfers; the FR587W has fixed arms.
How is it shipped?
It ships freight to your door. Call us at 585-505-6665 with delivery questions.
🔗 Medical Recliner Guides, Answers & Related Chairs
Comparing medical recliners? These pages can help, and you can call us at 585-505-6665 with any question.
PRODUCT SPECIFICATION
| Specification | Imperial (inches) | Metric (cm) |
|---|---|---|
| Overall Width | 35.75″ | 90.81 cm |
| Overall Width (Side Tables Up) | 58.25″ | 147.96 cm |
| Overall Depth | 44.00″ | 111.76 cm |
| Overall Depth (Trendelenburg) | 78.00″ | 198.12 cm |
| Overall Height | 50.00″ | 127.00 cm |
| Arm Width | 4.50″ | 11.43 cm |
| Width Between Arms | 26.50″ | 67.31 cm |
| Arm Height (Drop-Arm Up, from Floor) | 27.50″ | 69.85 cm |
| Seat Width | 24.00″ | 60.96 cm |
| Seat Depth | 20.50″ | 52.07 cm |
| Seat Height | 22.00″ | 55.88 cm |
| Back Width | 30.50″ | 77.47 cm |
| Back Height (Above Seat, Upright) | 33.50″ | 85.09 cm |
| Legrest Extended (Fully Reclined) | 120° | 125–135 cm angle |
| Weight Capacity (Evenly Distributed) | 450 lbs | 204.12 kg |
