Permobil BodiLink Head Support Basic Pads – Wheelchair Head Support Pad, 6 Sizes, Flip-Down Hardware Option
The Permobil BodiLink Head Support basic pad is a wheelchair head support pad for power and manual wheelchair users who need their head held steady and aligned. Permobil rebuilt the BodiLink Head Support with completely reimagined hardware and a range of pad and cover styles, so durability and comfort don’t have to be traded against each other.
This listing is the basic pad in six sizes: 6″ x 5″, 8″ x 5″, 10″ x 6″, 12″ x 6″, 14″ x 6″ and 18″ x 6″. You pick the pad, a cover, and either “Pad only” or a hardware set with the mounting block for your back.
Not sure which wheelchair head support pad fits your chair? Send us your chair and back model or call 585-505-6665 before you order.
Why Choose the BodiLink Basic Head Support Pad?
The basic pad is the simpler pad style in the BodiLink Head Support line. It mounts to the same BodiLink head support hardware as the premium pad, so you can start with a basic pad and change pads later without changing hardware. If you want the butterfly-shaped pad with hinged wings, see the BodiLink Head Support Premium Pads.
Permobil says the improved BodiLink Head Support gives precise alignment, greater surface contact and more stable head positioning. For a user who tires through the day, or whose head drops forward or to the side, a steadier head position makes it easier to see ahead and stay comfortable in the chair.
Who Is It For?
- Power chair users with tilt or recline who need head support when the seat is tilted back
- Manual and power chair users with reduced head and neck control
- Users on solid backs with head support mounting holes, such as the Acta-Back Contour 8
- Anyone replacing a worn BodiLink pad who already has the hardware (“Pad only”)
Who May Need Something Else?
Choosing Your Pad Size

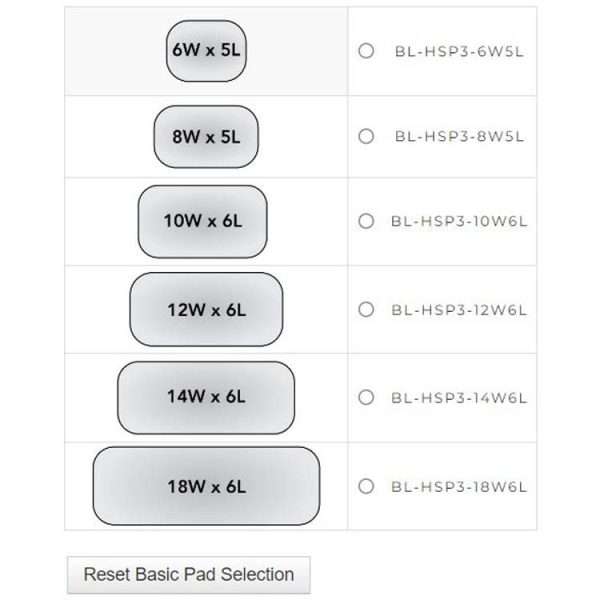

Pad size is width (W) by length (L). Each size has its own Permobil part number.
| Pad Size (W x L) |
Permobil Part No. |
| 6″W x 5″L |
BL-HSP3-6W5L |
| 8″W x 5″L |
BL-HSP3-8W5L |
| 10″W x 6″L |
BL-HSP3-10W6L |
| 12″W x 6″L |
BL-HSP3-12W6L |
| 14″W x 6″L |
BL-HSP3-14W6L |
| 18″W x 6″L |
BL-HSP3-18W6L |
Wider pads cradle more of the back of the head; narrower pads leave more room for neck movement and fit narrow backs. Your therapist or seating provider can confirm the size.

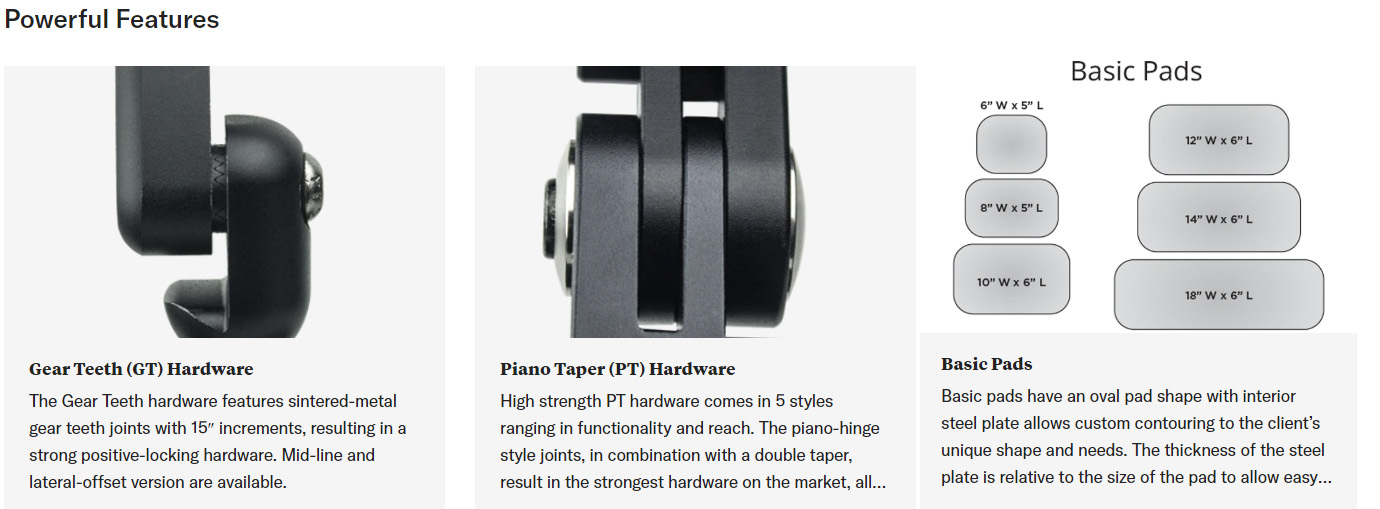

Head Support Hardware: Flip-Down, GT and PT
- Flip-Down hardware: lets the head support pad swing back 120 degrees away from the user’s head, then automatically locks into place when it’s returned to its original position. Handy for transfers.

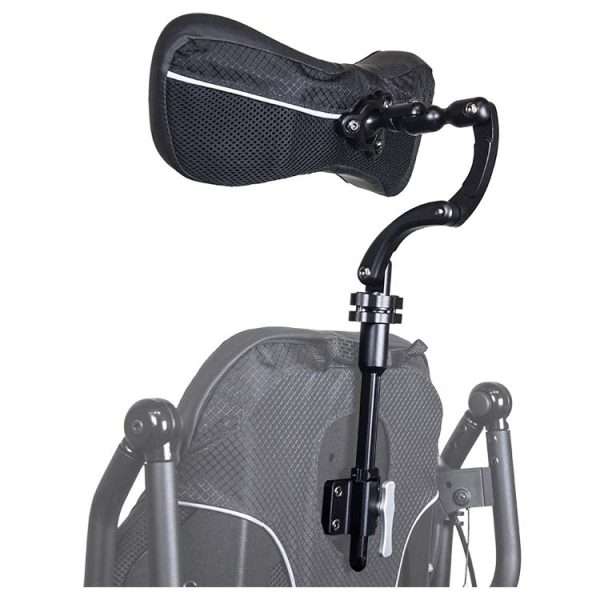

- Gear Teeth (GT) series: sintered-metal gear teeth joints that give strong, positive-locking positioning. Mid-line and lateral-offset versions are available.
- Piano Taper (PT) series: five styles that vary in function and reach. Piano-hinge style joints with a double taper make what Permobil calls the strongest hardware on the market, with the ability to “slip” before any catastrophic failure. PT adds precision link adjustment and a tool-less wing lock option for on-the-spot changes.
Dedicated mid-line hardware styles are available when lateral positioning isn’t needed, and the hardware uses a high-visibility release lever.
Pad Covers
A cover is required and is chosen in the options. Permobil offers BodiLink pads in three cover fabrics: Comfort-Tek, a smooth polyurethane surface made for infection control and as an incontinence barrier that wipes clean with common disinfectants; Stretch-Air, an airy, breathable knit with multi-directional stretch; and GlideWear, which Permobil describes as offering industry-leading protection against pressure injuries caused by shear.
How to Order
- Pick the pad size.
- Pick a cover (required).
- Hardware: pick “Pad only” if you already have BodiLink hardware, or pick one hardware set.
- With hardware, pick the mounting block for the back on your chair, and a stem length for PT1 removable hardware.
Send us your chair and back model if you’re not sure what fits.
Common Problem → Head Support Solution
Problem: a user in a tilt power chair has their head roll to one side whenever the seat tilts back, and the old flat headrest doesn’t hold it.
Solution: a BodiLink head support with the right pad width, set on lateral-offset hardware, keeps the head centered, and Flip-Down hardware swings it back 120 degrees for transfers and locks again on return.
Care & Cleaning
Wipe Comfort-Tek covers with a common disinfectant. Follow Permobil’s care instructions for fabric covers. Check the hardware joints and release lever regularly.
What’s Included
One BodiLink head support basic pad in the size you choose, with the cover and hardware you select in the options.
Key Features
✔ Basic Pad for BodiLink Head Support
✔ 6 Sizes, 6″ x 5″ to 18″ x 6″
✔ Fits GT and PT BodiLink Hardware
✔ Flip-Down Hardware Swings Back 120°
✔ Mid-Line Hardware Options
✔ Cover Required, Picked in Options
Product Specifications
| Brand |
Permobil (Comfort Company), BodiLink accessories |
| Product |
BodiLink Head Support, Basic Pad |
| Pad Sizes (W x L) |
6″ x 5″, 8″ x 5″, 10″ x 6″, 12″ x 6″, 14″ x 6″ and 18″ x 6″ |
| Part Numbers |
BL-HSP3-6W5L, BL-HSP3-8W5L, BL-HSP3-10W6L, BL-HSP3-12W6L, BL-HSP3-14W6L, BL-HSP3-18W6L |
| Foam |
Single basic pad style |
| Pad Shape |
Basic pad |
| Hardware Options |
Flip-Down (swings back 120°, auto-locks), Gear Teeth (GT) series, Piano Taper (PT) series; mid-line and lateral-offset styles; high-visibility release lever |
| Cover |
Required; chosen in the options |
| Also Offered On |
Permobil Corpus seating system |
Frequently Asked Questions
What is a wheelchair head support?
It is a padded support mounted to the top of the wheelchair back that holds the head in an aligned, stable position, especially for users with limited head control or who use tilt and recline.
What does Flip-Down hardware do?
Permobil’s Flip-Down hardware lets the pad swing back 120 degrees away from the head and locks automatically when it is returned to position.
Basic or premium pad: which do I need?
The premium pad has a butterfly shape and, from 10″ wide up, hinged wings for anterior and lateral support. The basic pad is the simpler style. Both use BodiLink head support hardware. Call 585-505-6665 if you want help choosing.
Do I need to buy hardware?
Only if you don’t have it. Pick “Pad only” if the chair already has BodiLink head support hardware.
Will it fit my wheelchair back?
It needs a back with a mounting point for the head support hardware. Pick the mounting block for your back in the options, or send us your chair and back model.
What size pad should I choose?
Pick the width that matches how much of the back of the head needs support. Your therapist or seating provider can confirm the size, or call us.
Is a cover included?
A cover is required and is chosen in the options when you order.
Do you ship nationwide?
Yes, we ship BodiLink parts nationwide. Call 585-505-6665 with any questions.
