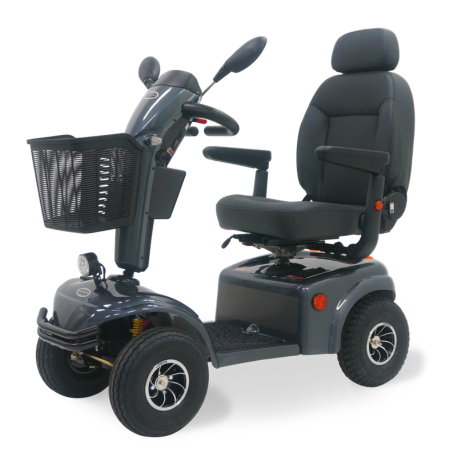

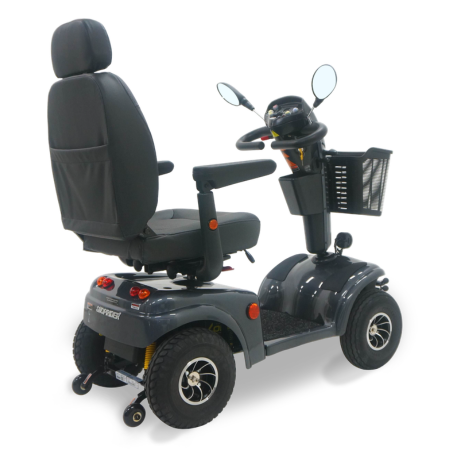

Shoprider Expedition XL4 Heavy Duty Mobility Scooter | 350 lb Capacity

Heavy Duty Mobility Scooter Built for Comfort, Range & Everyday Independence

The Shoprider Expedition XL4 is a full-size heavy duty mobility scooter designed for adults who want a substantial four-wheel mobility platform with comfortable seating, larger pneumatic tires, useful driving range, and everyday convenience features. With a 350 lb weight capacity, maximum speed of 7.5 mph, and range of up to 20 miles, the Expedition XL4 combines practical mobility with the stability and comfort expected from a full-size scooter.

The standard Expedition XL4 features a deluxe captain’s seat, adjustable tiller, 12.5″ pneumatic tires, LED front headlight, built-in USB charging port, and a convenient storage pocket located on the tiller. Its four-wheel configuration and full-size 53.7″ frame make it especially appealing to users who prioritize a substantial, confidence-inspiring scooter over an ultra-compact travel model.

For shoppers comparing a mobility scooter heavy duty enough for regular use, the Expedition XL4 delivers an excellent combination of 350 lb capacity, up to 20 miles of range, 7.5 mph speed, large pneumatic wheels, and configurable seating options.

It is also an unusually customizable platform. Beyond its standard configuration, the Expedition XL4 can be ordered with numerous seating sizes and styles, tire choices, battery configurations, positioning accessories, storage accessories, and other upgrades to better accommodate individual mobility needs.

Why the Shoprider Expedition XL4 Stands Out

The Expedition XL4 is designed for users who need more capability than a lightweight travel scooter. Its full-size four-wheel platform combines a 350 lb user capacity with larger 12.5″ pneumatic tires and a 3″ ground clearance for operation across multiple appropriate surfaces.

• ✔️ 350 lb weight capacity
• ✔️ Up to 20-mile range
• ✔️ 7.5 mph maximum speed
• ✔️ 12.5″ pneumatic tires
• ✔️ Deluxe captain’s seat
• ✔️ Adjustable comfort tiller
• ✔️ Built-in USB charging port
• ✔️ LED front headlight

These characteristics make the Expedition XL4 particularly relevant for adults searching for a heavy duty mobility scooter that emphasizes comfortable seated travel, useful range, and full-size construction.

Customize Your Expedition XL4: The Expedition XL4 is available with multiple seating upgrades and optional configurations beyond the standard model. Available options include different captain’s seat sizes and styles, reclining seats, pan and stadium-style seating, solid tire options, battery options, headrest and positioning accessories, oxygen holders, rear basket, cane and walker holders, cup holder, lap belt, and more. For any customization or special seating requirements, please contact us and a MedCare Mobility specialist will help you configure the Expedition XL4 for your needs.

350 lb Capacity for Full-Size Mobility Support

The Shoprider Expedition XL4 has a manufacturer-listed 350 lb weight capacity, positioning it as a substantial full-size mobility scooter for adult users.

For shoppers searching for heavy duty scooters for adults, capacity is important—but it should not be considered alone. Overall dimensions, seating fit, driving environment, range, terrain, and the user’s positioning requirements all matter when selecting the right scooter.

The Expedition XL4 measures approximately 24.8″ wide and 53.7″ long, with a listed standard unit weight of approximately 222 lbs. Unit weight can vary depending on the options installed.

Up to 20 Miles of Driving Range

The Expedition XL4 provides a manufacturer-listed driving range of up to 20 miles after the initial break-in period of the scooter and batteries.

That extended range makes the scooter well suited to users who expect more than short indoor trips from their mobility equipment. Depending on the environment and individual circumstances, it can provide useful mobility for community outings, larger properties, shopping, appointments, and other everyday activities.

Actual scooter range can vary based on factors such as user weight, battery condition, terrain, inclines, temperature, tire condition, driving habits, and overall scooter care.

7.5 MPH Maximum Speed

With a manufacturer-listed maximum speed of 7.5 mph, the Expedition XL4 provides considerably more capability than mobility scooters designed primarily for slower, short-distance indoor use.

The combination of its 7.5 mph maximum speed and up to 20-mile range helps make the Expedition XL4 a strong choice for users who expect to cover meaningful distances with their scooter.

Speed should always be adjusted appropriately for the environment, surface conditions, turns, inclines, pedestrian traffic, and the user’s ability to safely operate the scooter.

Large 12.5-Inch Pneumatic Tires

The standard Expedition XL4 rides on 12.5-inch pneumatic tires. These large air-filled tires contribute to the scooter’s full-size design and help provide comfortable operation across multiple appropriate surfaces.

The scooter provides approximately 3 inches of ground clearance, while Shoprider lists a safe climbing angle of 6 degrees / 10%.

• ✔️ 12.5″ pneumatic tires
• ✔️ Four-wheel scooter configuration
• ✔️ 3″ ground clearance
• ✔️ 6° safe climbing angle
• ✔️ Designed for multiple terrains

For users who prefer not to use pneumatic tires, the Expedition XL4 order configuration also offers optional solid gray or solid black tires.

Deluxe Captain’s Seat for Everyday Comfort

The Expedition XL4 comes standard with a deluxe captain’s seat designed to accommodate most users comfortably during everyday operation.

What makes this scooter particularly valuable for users with more specific seating requirements is the number of alternative seating configurations available by special order.

Available upgrade configurations include various:

• ✔️ Captain’s seat widths
• ✔️ Captain’s seat depths
• ✔️ Reclining captain’s seats
• ✔️ Pillow-top captain’s seating
• ✔️ Pan-style seating
• ✔️ Stadium-style seating
• ✔️ Black and gray upholstery

Available seating configurations listed by Shoprider range from compact 16″ x 16″ pan seating through captain’s seating as large as approximately 24″ wide x 21.5″ deep, depending on the selected configuration.

Because seat dimensions and compatibility can affect overall fit and comfort, customers requiring a non-standard seat should contact MedCare Mobility before ordering.

Reclining Seat Options Available

Several optional Expedition XL4 captain’s seat configurations are available with manual recline. Shoprider indicates that compatible captain’s seats provide an approximate manual recline range from 95° to 120°.

This allows customers with specific seating preferences to configure the scooter differently from the standard seating package rather than being limited to a single seat.

Reclining functionality depends on the seat configuration selected and should not be assumed to be included with the standard scooter.

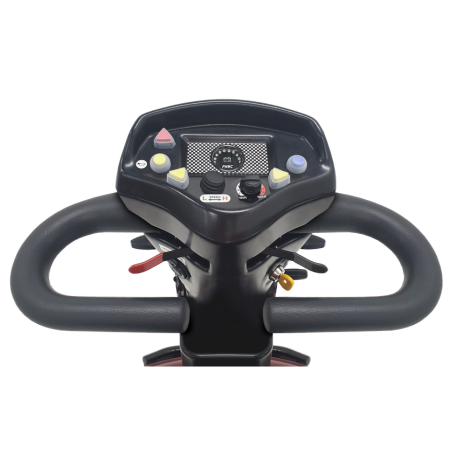

Adjustable Tiller for Personalized Driving Comfort

The Expedition XL4 includes an adjustable tiller, allowing the steering position to be adjusted for improved user comfort and access.

Proper tiller positioning can help the user establish a more natural driving position based on their seating configuration, reach, and personal preferences.

The tiller area also incorporates two particularly useful everyday features: a built-in USB charging port and a cell phone storage pocket.

Built-In USB Charging & Phone Storage

Modern mobility equipment is increasingly used for extended community outings, making access to personal electronics more important. The Expedition XL4 includes a built-in USB charging port that provides a convenient way to keep compatible devices powered while traveling.

A dedicated storage pocket on the tiller also provides an accessible location for a cell phone or another appropriately sized personal item.

• ✔️ Built-in USB charging port
• ✔️ Tiller-mounted storage pocket
• ✔️ Convenient device accessibility
• ✔️ Useful for longer outings

LED Headlight for Added Visibility

The Expedition XL4 comes equipped with a front LED headlight, adding visibility and convenience when operating in appropriate lower-light conditions.

The headlight is especially useful for users who may be returning home later in the day, moving through dimly lit areas, or simply want an additional visibility feature built directly into their mobility scooter.

Battery Options & 5-Amp Off-Board Charger

The Expedition XL4 supports multiple battery configurations. Shoprider lists 12V 36Ah x 2 as a battery option and also lists a 22NF battery configuration. The scooter uses a 5-amp off-board charger.

Battery configuration can influence scooter weight and other operating characteristics. Shoprider lists approximate battery weights of 22 lbs each or 30 lbs each, depending on battery configuration.

Customers interested in a particular battery setup should confirm the selected configuration when ordering.

Available Expedition XL4 Accessories

The Expedition XL4 can be configured with a substantial selection of manufacturer-listed accessories, allowing users to tailor storage and equipment-carrying capabilities to their everyday needs.

Available options include:

• ✔️ Mesh oxygen tank holder
• ✔️ Metal oxygen tank holder
• ✔️ Cup holder
• ✔️ Large rear basket
• ✔️ Armrest storage bag
• ✔️ Cane holder
• ✔️ Walker holder
• ✔️ 66″ lap belt
• ✔️ Headrest mounting accessories
• ✔️ Dimensional gel pads

These are optional accessories unless specifically included with the selected configuration. Contact MedCare Mobility if you need assistance determining which accessories are appropriate and compatible with your Expedition XL4 configuration.

Heavy Duty Mobility Scooter vs. Lightweight Travel Scooter

Shoprider Expedition XL4

• ✔️ Full-size four-wheel platform
• ✔️ 350 lb weight capacity
• ✔️ Up to 20-mile range
• ✔️ 7.5 mph maximum speed
• ✔️ 12.5″ pneumatic tires
• ✔️ Deluxe captain’s seating
• ✔️ Multiple seating upgrades
• ✔️ Extensive accessory options

Typical Lightweight Travel Scooter

• ✔️ Smaller overall footprint
• ✔️ Designed around portability
• ✔️ Usually lighter to transport
• ✔️ Typically smaller wheels
• ✔️ More limited seating options
• ✔️ Often shorter driving range

The Expedition XL4 prioritizes full-size mobility, seating comfort, range, and configuration flexibility. A lightweight travel scooter generally prioritizes disassembly, portability, and easier vehicle transportation instead.

Who Is the Expedition XL4 Best For?

The Shoprider Expedition XL4 is particularly well suited to adults who want a heavy duty mobility scooter with a full-size four-wheel platform rather than a compact travel-oriented design.

It may be an excellent choice for:

• ✔️ Adults needing powered mobility
• ✔️ Users up to 350 lbs
• ✔️ Longer community outings
• ✔️ Users wanting captain’s seating
• ✔️ Users wanting larger tires
• ✔️ Customers needing seating customization
• ✔️ Users needing mobility accessories
• ✔️ Users prioritizing range and comfort

The ability to select from multiple seating configurations makes the Expedition XL4 especially worth considering for users who have difficulty finding an appropriate fit on scooters sold with only one fixed seating package.

Who May Need a Different Mobility Scooter?

A different scooter may be more appropriate for someone who:

• ✔️ Requires over 350 lb capacity
• ✔️ Prioritizes lightweight portability
• ✔️ Frequently transports scooter by car
• ✔️ Needs very tight indoor maneuverability
• ✔️ Requires specialized powered seating
• ✔️ Needs specifications beyond this model

At approximately 222 lbs before variations caused by installed options, the Expedition XL4 is a substantial full-size scooter and should not be confused with a lightweight folding or easily disassembled travel scooter.

Common Mobility Needs the Expedition XL4 Addresses

• ❌ Limited walking endurance → ✔️ Powered seated mobility
• ❌ Short scooter range → ✔️ Up to 20 miles
• ❌ Small scooter wheels → ✔️ 12.5″ pneumatic tires
• ❌ Limited seating choices → ✔️ Multiple seat upgrades
• ❌ Need device charging → ✔️ Built-in USB port
• ❌ Need nighttime visibility → ✔️ LED front headlight
• ❌ Need equipment storage → ✔️ Multiple accessory options
• ❌ Fixed driving position → ✔️ Adjustable tiller

Key Features

• ✔️ 350 lb weight capacity
• ✔️ Four-wheel mobility scooter
• ✔️ Up to 20-mile range
• ✔️ 7.5 mph maximum speed
• ✔️ 12.5″ pneumatic tires
• ✔️ 3″ ground clearance
• ✔️ 6° safe climbing angle
• ✔️ Deluxe captain’s seat
• ✔️ Adjustable tiller
• ✔️ LED front headlight
• ✔️ Built-in USB charging port
• ✔️ Tiller storage pocket
• ✔️ 5A off-board charger
• ✔️ Multiple seating upgrades available
• ✔️ Solid tire options available
• ✔️ Extensive accessory options available

Standard Product Specifications

• Brand: Shoprider
• Model: Expedition XL4
• Model Code: TE9
• HCPCS: K0899
• Product Type: Full-Size Four-Wheel Mobility Scooter
• Weight Capacity: 350 lbs.
• Overall Width: 24.8″
• Overall Length: 53.7″
• Unit Weight: Approximately 222 lbs.*
• Maximum Speed: 7.5 mph
• Maximum Range: Up to 20 miles*
• Ground Clearance: 3″
• Safe Climbing Angle: 6° / 10%
• Front Tires: 12.5″ Pneumatic
• Rear Tires: 12.5″ Pneumatic
• Drive Wheel: 12.5″ Pneumatic
• Suspension: Limited
• Standard Seating: Deluxe Captain’s Seat
• Tiller: Adjustable
• Headlight: LED Front Headlight
• USB Charging: Built-In USB Port
• Storage: Tiller Cell Phone Pocket
• Battery Options: 12V 36Ah x 2 / 22NF
• Battery Weight: Approx. 22 lbs. each / 30 lbs. each*
• Charger: 5A Off-Board
• Standard Tire Type: Pneumatic Black
• Standard Color: Gray

*Unit weight varies depending on installed options. Battery weights are approximate. Maximum range is manufacturer-listed after the initial break-in period and can vary depending on scooter and battery care, operating conditions, user weight, terrain, and other factors.
