Lumex TP332 Deluxe Padded Toileting Sling, 400 lb, Medium or Large | Toilet Sling for Patient Lifts
$199.00
- Rated No. 1 in customer service
- Fast nationwide shipping, delivered to your door
- Manufacturer warranties
- Cash-back rewards on every order
Authorized dealer & provider · Huge selection · Questions? Call 585-505-6665
Graham-Field Lumex TP332/TP333 deluxe padded toileting sling with a 400 lb capacity and padding under the arms and lower back, in medium or large, lets clothing be lowered for toileting, for caregivers using sit-to-stand or sling lifts. Ships nationwide.
✔ 400 lb Capacity, Evenly Distributed
✔ Lets Clothing Be Lowered for Toileting
✔ Padded Under Arms and Lower Back
✔ 4 Connection Points, 2, 4 or 6-Point Bars
✔ Hook and Loop Belt With Buckle Strap
✔ Medium (TP332) or Large (TP333)
-
Fast nationwide shipping, delivered to your door · 30-day returns on eligible products · Shipping & returns details
Share with Friends
- Description
- PRODUCT SPECIFICATION
- Shipping & Returns
- Product PDF downloads
- Reviews (0)
Description
Graham-Field Lumex Deluxe Padded Toileting Sling – Toilet Sling for Patient Lifts, 400 lb
The Graham-Field Lumex padded toileting sling is designed to make toileting transfers easier by allowing clothing to be lowered while the sling is on. It’s well padded under the arms and in the lumbar (lower back) area, and it’s used for seated transfers to and from a chair, wheelchair, toilet or the edge of the bed.
It has four connection points and, per Graham-Field, can be used with a sit-to-stand lift or with 2, 4 or 6-point spreader bars on a floor lift. An included hook and loop belt with a separate buckle strap holds the sling securely in place. Both sizes are rated for 400 lb (181.4 kg), evenly distributed.
Choose Medium (TP332, yellow) or Large (TP333, green) in the dropdown above.
Why Choose This Padded Toileting Sling?
Toileting is the transfer caregivers do most, and a full-body sling gets in the way of it. A toileting sling supports under the arms and around the back but leaves the seat area clear, so pants can come down and the patient can be lowered onto the toilet or commode. The Lumex version adds deluxe padding where the sling bears weight and a belt that keeps it from slipping, which makes it more comfortable for frequent daily use.
Who Is the Lumex Toileting Sling Best For?
This toilet sling for patient lift users is a good fit for:
- Patients who can sit up and have reasonable upper body control
- Frequent toileting and commode transfers at home or in a facility
- Caregivers using a sit-to-stand lift or a floor lift with a 2, 4 or 6-point spreader bar
- Incontinence care where clothing needs to be lowered quickly
Not sure it’s the right type? The sling knowledge base and the sling assessment tool can help.
Who May Need a Different Sling?
- Lifting from lying down: Graham-Field says toileting slings must only be used for transfers to and from a seated position. Use a full-body sling for lifts from bed.
- Patients with poor head or trunk control: a full-body or universal sling with head support gives more support.
- Patients over 400 lb: Graham-Field makes an XXL toileting sling (TP334) rated for 600 lb; call us about it.
- Bathing: a full-body mesh sling drains and dries faster.
400 lb Weight Capacity
Graham-Field rates both the Medium and Large padded toileting sling for 400 lb (181.4 kg), evenly distributed. Check your lift’s rating too and use the lower of the two.
Padded Where It Matters
The sling is well padded under the arms and in the lumbar area, the two places that carry the load in a toileting transfer. That padding is what makes a toileting sling bearable for patients who use it several times a day.
Four Connection Points, Fits Most Lifts
With four connection points, the sling can hang from a sit-to-stand lift or from a floor lift with a 2, 4 or 6-point spreader bar, according to Graham-Field. It pairs well with the Lumex hydraulic patient lift and other Lumex lifts.
Choosing Your Size
Graham-Field sizes the toileting sling by the patient’s body width (around the chest and back):
| Size | Stock Code | Color | Best Fit Body Width | Sling Body (W x L) | Capacity |
| Medium | TP332 | Yellow | 30″ to 48″ | 33.25″ x 11.5″ | 400 lb |
| Large | TP333 | Green | 38″ to 60″ | 36.5″ x 14″ | 400 lb |
If the patient’s measurement falls in both ranges, call us at 585-505-6665 and we’ll help you pick.
Common Problem → Toileting Sling Solution
Problem: every bathroom trip means removing a full-body sling, adjusting clothing and putting the sling back on, and the patient is exposed and uncomfortable.
Solution: the padded toileting sling stays on while clothing is lowered; the patient is lifted, positioned over the toilet or commode and lowered, all in one sling.
Can the patient stand in it? Graham-Field lists it for sit-to-stand lifts as well as floor lifts, and either way it’s for transfers to and from a seated position.
Sizing & Fit
Measure around the patient’s chest and back and compare with the best-fit body width in the table. Fit the sling behind the back with the padding under the arms, fasten the hook and loop belt and buckle strap, and attach the four connection points. Do a short test lift before the full transfer.
Care & Cleaning
Follow the care label in the sling. Inspect the padding, straps, belt and stitching before each use and replace a worn sling.
What’s Included
One Graham-Field Lumex padded toileting sling with hook and loop belt and buckle strap, in the size you choose. The lift is sold separately.
Warranty
Graham-Field covers this sling with a six (6) month limited warranty.
Key Features
✔ 400 lb Capacity, Evenly Distributed
✔ Lets Clothing Be Lowered for Toileting
✔ Padded Under Arms and Lower Back
✔ 4 Connection Points, 2, 4 or 6-Point Bars
✔ Hook and Loop Belt With Buckle Strap
✔ Medium (TP332) or Large (TP333)
Product Specifications
| Brand | Graham-Field (Lumex) |
| Model | Deluxe Padded Toileting Sling |
| Stock Codes | TP332 (Medium, yellow), TP333 (Large, green) |
| Type | Toileting sling, seated transfers only |
| Weight Capacity | 400 lb (181.4 kg), evenly distributed |
| Connection Points | Four |
| Compatible With | Sit-to-stand lifts; 2, 4 or 6-point spreader bars |
| Best Fit Body Width | TP332: 30″ to 48″; TP333: 38″ to 60″ |
| Sling Body (W x L) | TP332: 33.25″ x 11.5″; TP333: 36.5″ x 14″ |
| Included | Hook and loop belt with separate buckle strap |
| Warranty | 6-month limited |
Frequently Asked Questions
What is a toileting sling?
A toileting sling supports the patient under the arms and around the back but leaves the seat area open, so clothing can be lowered for toileting without removing the sling.
Will this toilet sling fit my patient lift?
Graham-Field says it can be used with a sit-to-stand lift or with 2, 4 or 6-point spreader bars. Call us at 585-505-6665 with your lift model and we’ll confirm.
Can I lift someone from bed with a toileting sling?
No. Graham-Field states toileting slings must only be used for transfers to and from a seated position.
What size padded toileting sling do I need?
Measure body width around the chest and back: Medium (TP332) fits 30″ to 48″, Large (TP333) fits 38″ to 60″.
What is the weight capacity?
400 lb (181.4 kg), evenly distributed, for both sizes.
Is there a warranty?
Yes, Graham-Field gives a six (6) month limited warranty.
🔗 Patient Lift Sling Guides, Answers & Tools
Want help choosing a sling? Start with these pages, or call us at 585-505-6665 and we’ll match a sling to your lift.
👉 Patient Lift Sling Knowledge Base
👉 Patient Lift Sling Assessment Tool
PRODUCT SPECIFICATION
| Specification | Details |
|---|---|
| Product Type | Toileting Sling with Open Bottom |
| Material | Polyester with nylon stitching and webbing |
| Function | Ideal for toileting and incontinence care |
| HCPCS Code | E0621 |
| Weight Capacity | 400 lbs (181 kg) |
| Warranty | 6-month limited warranty |
| Stock Code | TP332 (Medium), TP333 (Large) |
| Size Options | Medium and Large |

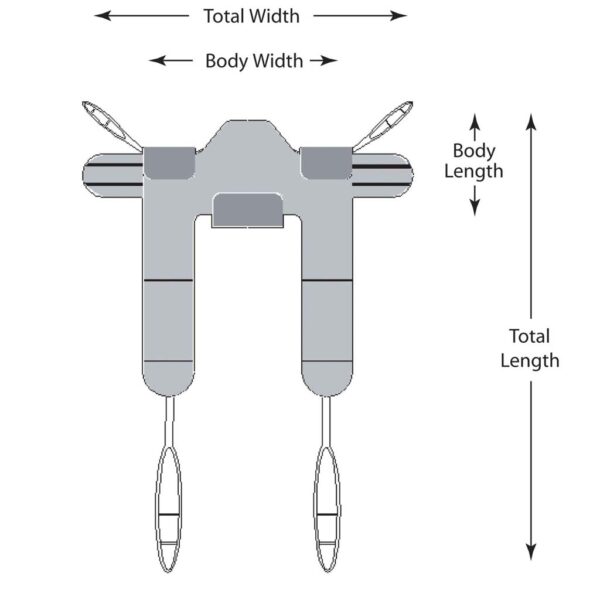

| Body Width (Medium) | 33 ¼” |
| Body Length (Medium) | 11 ½” |
| Total Width (Medium) | 50 ¾” |
| Total Length (Medium) | 56 ¼” |
| Body Width (Large) | 36 ½” |
| Body Length (Large) | 14″ |
| Total Width (Large) | 56 ½” |
| Total Length (Large) | 65 ½” |
