Invacare 9805P Hydraulic Patient Lift with Full Body Sling – Hoyer Lift With Sling Kit, 450 lb Capacity
$598.99
- Rated No. 1 in customer service
- Fast nationwide shipping, delivered to your door
- Manufacturer warranties
- Cash-back rewards on every order
Authorized dealer & provider · Huge selection · Questions? Call 585-505-6665
✔ 450 lb Lift and Sling Capacity
✔ Lightweight Hydraulic Pump Lift
✔ 20″ to 64″ Lift Range, Floor Lifts
✔ Six-Point Bar Swivels 360°
✔ Low-Friction Casters, Rotating Pump
✔ Invacare Reliant Sling Included
You earn -
Fast nationwide shipping, delivered to your door · 30-day returns on eligible products · Shipping & returns details
Share with Friends
- Description
- PRODUCT SPECIFICATION
- Shipping & Returns
- Product PDF downloads
- Reviews (0)
Description

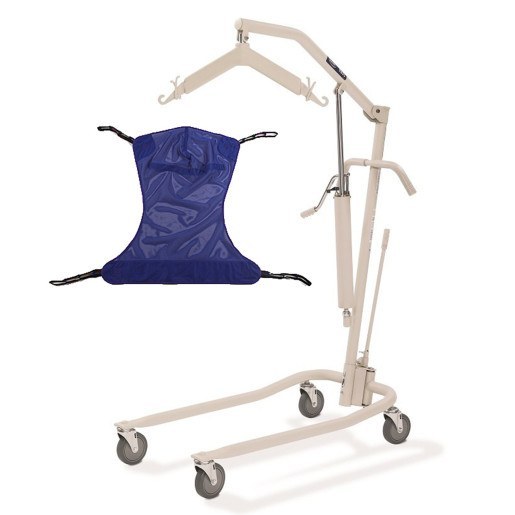

Invacare 9805P Hydraulic Patient Lift With Sling – Complete Hoyer Lift Kit, 450 lb Capacity
This is the Invacare 9805P hoyer lift with sling in one box: Invacare’s lightweight hydraulic patient lift plus one Invacare Reliant full body mesh sling, packaged by Invacare under a single kit code. You pick the sling style and size in the dropdown above, and the lift and sling arrive together so you’re ready for the first transfer.

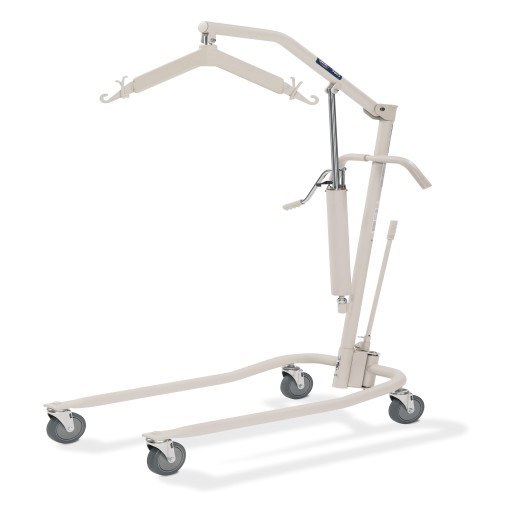

The 9805P is a manual hydraulic patient lift. The caregiver works the pump handle to raise the person, and the handle rotates side to side so you can pump from whichever side is easier. Invacare rates the lift for 450 lbs, and every sling in this kit is rated for 450 lbs too. The lifting range runs from 20″ to 64″, which Invacare says is enough to lift a person up from the floor.
Buying a patient lift with sling as a kit takes the guesswork out of matching parts. Invacare lists the 9805P as compatible with its Premier, Reliant and Standard Series slings, and the Reliant sling in this kit attaches to the lift’s padded six-point swivel bar.
Why Choose the 9805P Lift and Sling Kit?
It’s the simplest way to get a lift that works on day one. Many families order a lift, then find out it doesn’t come with a sling. This kit solves that: one Invacare lift, one Invacare sling, chosen by style and size.
The 9805P itself is built for home care. Invacare describes it as slim and lightweight (the lift weighs 68 lbs without a sling), with simple disassembly so it can be moved and set up quickly, low-friction casters that roll easily, and a design meant to help caregivers avoid back injuries during transfers.
450 lb Capacity for the Lift and the Sling
Invacare rates the 9805P lift for up to 450 lbs. Both Reliant slings in this kit, the mesh full body sling and the full body sling with commode opening, are also rated for 450 lbs, so the kit’s limit is 450 lbs. For anyone heavier, call us about a bariatric lift.
20″ to 64″ Lifting Range, Including Lifts From the Floor
The lift raises the sling’s attachment points from 20″ up to 64″. That range covers transfers between a bed, wheelchair, commode and chair, and Invacare states it lets a caregiver lift a person from the floor after a fall.
Six-Point Swivel Bar That Turns 360°
The padded spreader bar has six attachment points and swivels a full 360 degrees. That lets you turn the person to face the chair or bed you’re lowering them onto, and it lets the bar work with every compatible Invacare sling style. Invacare describes it as 360° patient rotation without side-to-side sway.
Choosing Your Options
There’s one dropdown: Sling. Each choice is the same 9805P lift with a different Invacare Reliant sling. Pick the style first, then the size.

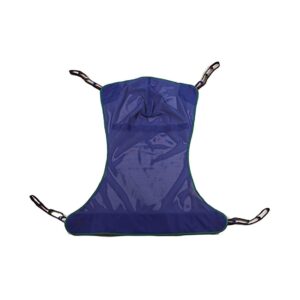

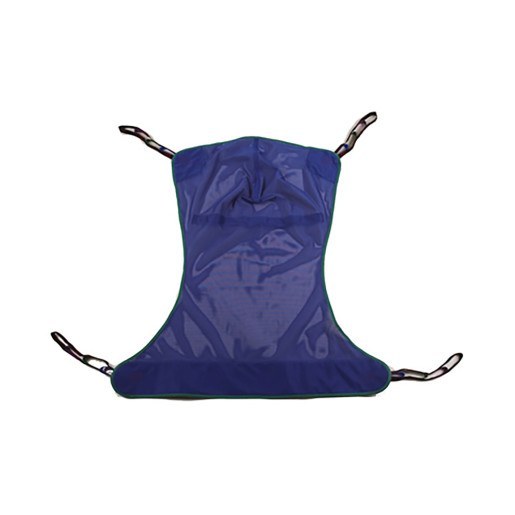

Style. The full body mesh sling (R110, R111) is the everyday sling for transfers between bed, wheelchair and chair. The full body sling with commode opening (R114, R115) has an opening in the seat so the person can be lowered onto a commode or toilet without removing the sling. Both support the head, neck and thighs, both are polyester mesh (the plain full body sling also has a brushed lining that Invacare says helps prevent sliding), and both can be used from an upright seated position to fully reclined.
Size. Invacare makes each style in Medium and Large. Invacare’s product pages list the sizes but don’t print a size chart, so if you’re not sure which one fits, call us at 585-505-6665 with the person’s height and weight before you order.
| Invacare kit code | Sling in the kit | Size | Commode opening |
|---|---|---|---|
| 9805P-R110-KIT | Reliant full body mesh sling | Medium | No |
| 9805P-R111-KIT | Reliant full body mesh sling | Large | No |
| 9805P-R114-KIT | Reliant full body mesh sling with commode opening | Medium | Yes |
| 9805P-R115-KIT | Reliant full body mesh sling with commode opening | Large | Yes |

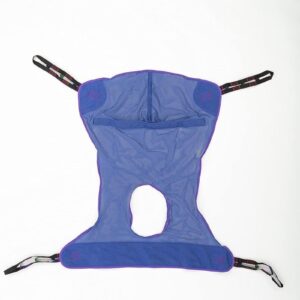

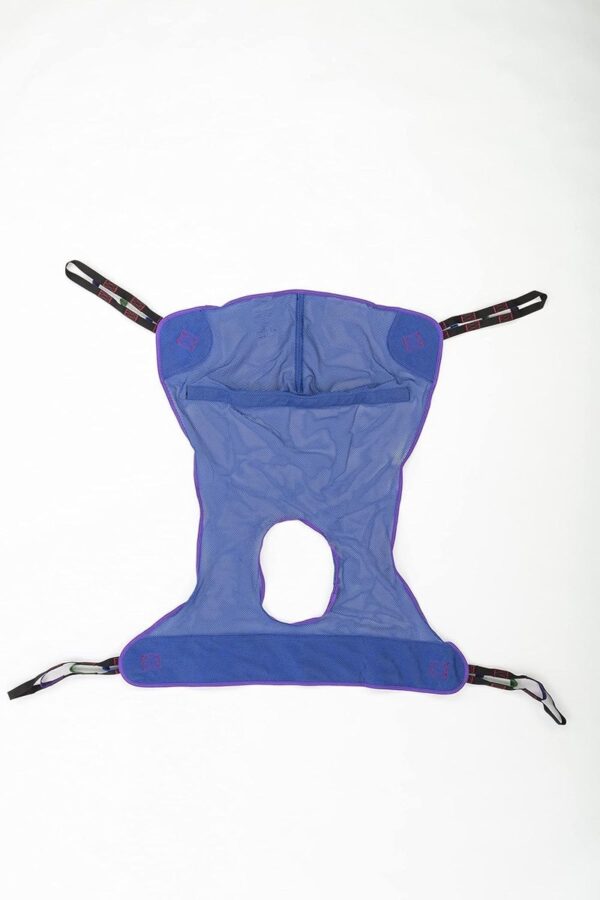

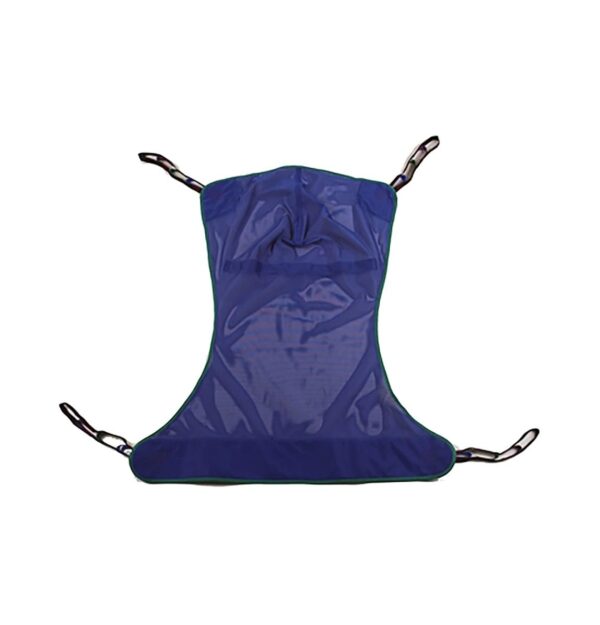

Mesh Full Body Sling vs. Sling With Commode Opening
Choose the plain full body mesh sling if transfers are mostly bed to chair and back. Choose the commode opening sling if the person will be lowered onto a commode or toilet during the day, since that’s what the opening is for. Invacare says both are quick-drying, washable mesh made for wet and dry environments, and both suit people who are fully or partially dependent or have limited head control.
Who Is the 9805P Lift Kit Best For?
This kit is a good fit for:
- Families caring at home for someone who can’t bear weight or stand for a transfer
- Caregivers who want a manual lift with no battery to charge
- Homes where the person may need to be lifted from the floor
- Anyone who needs a lift and a matching sling ordered together
- Toileting routines, with the commode opening sling
New to lifts? Our Patient Lift Knowledge Base answers the common questions, and How to Choose the Best Patient Lift for Transfers walks through the lift types.
Who May Need a Different Lift?
- Anyone over 450 lbs: the kit’s limit is 450 lbs. Call us about a bariatric lift.
- Caregivers who can’t work a pump handle: an electric lift raises the person at the push of a button. See all Hoyer Lifts for Sale.
- Moving someone from room to room: Invacare states the 9805P is for lifting and lowering only, not for transporting a person.
- Tight rooms: the lift is 46.75″ long. Check the space around the bed and chair first (see Sizing & Fit below).
Common Problem → 9805P Lift Kit Solution
Problem: Dad came home from rehab and can’t stand to transfer. Two family members are lifting him from the bed to the wheelchair, and everyone’s back is paying for it.
Solution: The 9805P lift does the lifting. Slide the sling under him in bed, hook it to the six-point bar, pump the handle to raise him, swivel the bar toward the wheelchair and lower him in.
“What if he falls between transfers?” Invacare’s 20″ to 64″ lifting range lets you lift him up from the floor with the same lift and sling.
Sizing & Fit
- Floor space: Invacare lists the lift at 46.75″ long, 22″ to 42.25″ wide (the base legs adjust) and 17″ to 61″ high. Invacare asks you to consider how it will fit between and move around the furniture in your home.
- Lifting range: 20″ to 64″.
- Weight: 450 lbs maximum for the lift and for the sling.
- Sling size: Medium or Large. Call us if you’re between sizes.
Care & Cleaning
The slings are washable. Invacare says to follow the care instructions on the sling label. Before each use, check the sling for wear and make sure every strap is hooked to the bar. For the lift, follow the Invacare owner’s manual that comes with it.
What’s Included
- One Invacare 9805P hydraulic patient lift (beige)
- One Invacare Reliant sling: the style and size you choose in the dropdown
- Invacare owner’s manual
The lift ships in one box (83 lbs, 49″ x 24″ x 14″, per Invacare). Invacare recommends that two people handle and assemble the lift.
Warranty
Ask us for the current Invacare warranty terms on the lift and the sling. Call 585-505-6665 and we’ll help with any claim.
Key Features
✔ 450 lb Lift and Sling Capacity
✔ Lightweight Hydraulic Pump Lift
✔ 20″ to 64″ Lift Range, Floor Lifts
✔ Six-Point Bar Swivels 360°
✔ Low-Friction Casters, Rotating Pump
✔ Invacare Reliant Sling Included
Product Specifications
| Brand | Invacare |
| Model | 9805P Lightweight Hydraulic Patient Lift with Reliant sling |
| Invacare Kit Codes | 9805P-R110-KIT, 9805P-R111-KIT, 9805P-R114-KIT, 9805P-R115-KIT |
| Type | Manual hydraulic full body patient lift (pump handle) |
| Lift Weight Capacity | 450 lbs |
| Sling Weight Capacity | 450 lbs |
| Lifting Range | 20″ to 64″ |
| Overall Length | 46.75″ |
| Overall Width | 22″ to 42.25″ |
| Overall Height | 17″ to 61″ |
| Spreader Bar | Padded six-point swivel bar, swivels 360° |
| Pump Handle | Rotates side to side |
| Casters | 5″ low-friction swivel casters (locking casters optional) |
| Base | Adjustable base legs |
| Lift Color | Beige |
| Slings in This Kit | Reliant full body mesh sling R110 (Medium) or R111 (Large); Reliant full body sling with commode opening R114 (Medium) or R115 (Large) |
| Sling Fabric | Polyester mesh, quick-drying, washable; R110/R111 with brushed lining |
| Sling Compatibility (Invacare) | Invacare lists R110, R111, R114 and R115 for the Reliant 450/600, Jasmine and 9805P lifts |
| Compatible Slings | Invacare Premier, Reliant and Standard Series |
| Lift Weight (Without Sling) | 68 lbs |
| Shipping (Lift) | 1 box, 83 lbs, 49″ x 24″ x 14″ |
| Assembly | Invacare recommends two people handle and assemble the lift |
| Warranty | Ask us for the current warranty terms |
Frequently Asked Questions
What comes in the 9805P lift kit?
One Invacare 9805P hydraulic patient lift and one Invacare Reliant sling, the style and size you choose in the dropdown. Invacare packages the two under one kit code.
How much weight can it lift?
Up to 450 lbs. Invacare rates the 9805P lift for 450 lbs, and both Reliant sling styles in this kit are rated for 450 lbs as well.
Which sling should I choose?
Choose the full body mesh sling (R110 or R111) for everyday bed, chair and wheelchair transfers. Choose the sling with commode opening (R114 or R115) if the person will be lowered onto a commode or toilet.
Medium or Large: how do I pick the sling size?
Call us before you order if you’re not sure. Invacare makes each style in Medium and Large but doesn’t print a size chart on its product pages, so we’ll check the person’s height and weight against Invacare’s sizing guidance with you.
Can it lift someone up from the floor?
Yes. Invacare lists a 20″ to 64″ lifting range and says that range allows a person to be lifted from the floor.
Is this an electric lift?
No. It’s a manual hydraulic lift: the caregiver pumps the handle to raise the person. The pump handle rotates side to side so you can work it from either side.
Can I use it to move someone to another room?
No. Invacare states the 9805P isn’t intended as a transportation device. It’s for lifting and lowering a person between surfaces such as a bed, wheelchair, commode or the floor.
Will it fit in my bedroom?
Measure first. Invacare lists it at 46.75″ long, 22″ to 42.25″ wide with the adjustable base legs and 17″ to 61″ high, and asks you to consider how it will fit between and move around your furniture.
Can I use a different sling with this lift?
Invacare lists the 9805P as compatible with its Premier, Reliant and Standard Series slings. Invacare doesn’t recommend accessories from other makers with its products, because they haven’t been tested by Invacare.
How do I wash the sling?
Follow the care instructions on the sling label. Invacare says the mesh fabric is washable and quick-drying, and that it works in wet and dry environments.
Does it need assembly?
Yes, some. The lift ships in one 83 lb box, and Invacare recommends that two people handle and assemble it. Follow the owner’s manual in the box.
What’s the warranty?
Ask us for the current Invacare warranty terms. Call 585-505-6665 and we’ll help with any warranty question or claim.
🔗 Patient Lift Guides, Answers & Tools
Not sure which lift or sling is right? These pages help you decide, and you can call us at 585-505-6665 any time.
👉 How to Choose the Best Patient Lift for Transfers
👉 Patient Transfer Lift Assessment Tool
PRODUCT SPECIFICATION
| Brand: | Invacare |
| Model: | 9805P Lightweight Hydraulic Patient Lift with Reliant sling |
| Invacare Kit Codes: | 9805P-R110-KIT, 9805P-R111-KIT, 9805P-R114-KIT, 9805P-R115-KIT |
| Type: | Manual hydraulic full body patient lift (pump handle) |
| Lift Weight Capacity: | 450 lbs |
| Sling Weight Capacity: | 450 lbs |
| Lifting Range: | 20″ to 64″ |
| Overall Length: | 46.75″ |
| Overall Width: | 22″ to 42.25″ |
| Overall Height: | 17″ to 61″ |
| Spreader Bar: | Padded six-point swivel bar, swivels 360° |
| Pump Handle: | Rotates side to side |
| Casters: | 5″ low-friction swivel casters (locking casters optional) |
| Base: | Adjustable base legs |
| Lift Color: | Beige |
| Slings in This Kit: | Reliant full body mesh sling R110 (Medium) or R111 (Large); Reliant full body sling with commode opening R114 (Medium) or R115 (Large) |
| Sling Fabric: | Polyester mesh, quick-drying, washable; R110/R111 with brushed lining |
| Sling Compatibility (Invacare): | Invacare lists R110, R111, R114 and R115 for the Reliant 450/600, Jasmine and 9805P lifts |
| Compatible Slings: | Invacare Premier, Reliant and Standard Series |
| Lift Weight (Without Sling): | 68 lbs |
| Shipping (Lift): | 1 box, 83 lbs, 49″ x 24″ x 14″ |
| Assembly: | Invacare recommends two people handle and assemble the lift |
| Warranty: | Ask us for the current warranty terms |
