Joerns RC 750 Bariatric Bed – Expandable 39″ to 54″ Split Frame Electric Bariatric Bed, 750 lb Capacity
$6,710.00
- Rated No. 1 in customer service
- Fast nationwide shipping, delivered to your door
- Manufacturer warranties
- Cash-back rewards on every order
Authorized dealer & provider · Huge selection · Questions? Call 585-505-6665
✔ 750 lb Safe Working Load
✔ Split Frame for Easy Delivery
✔ Expands From 39″ to 54″ Wide
✔ 3-Function Electric, 17″ to 30″ Hi-Low
✔ Padded 3 Position Wing Side Rails
✔ Head & Footboard Included
-
Fast nationwide shipping, delivered to your door · 30-day returns on eligible products · Shipping & returns details
Share with Friends
One of the biggest problems customers face after buying medical and mobility equipment through marketplaces like Amazon is discovering that there is nobody to call when they actually need help. Product questions, warranty issues, replacement parts and support can quickly become difficult when there is no dedicated provider behind the purchase.
With MedCare Mobility, you buy from an authorized dealer and a real medical equipment provider — with knowledgeable people you can contact when help matters.- Description
- PRODUCT SPECIFICATION
- Shipping & Returns
- MANUAL/INSTRUCTIONS
- Reviews (0)
Description

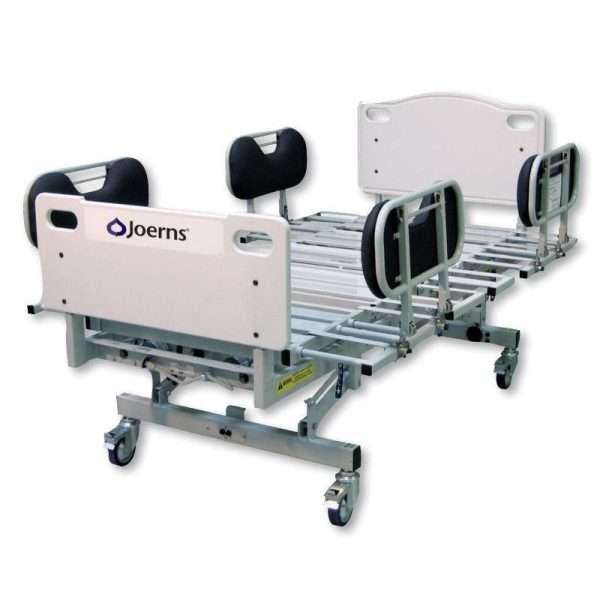

Joerns RC 750 – Expandable Split Frame 750 lb Bariatric Bed
The Joerns RC 750 is a 750 lb bariatric bed made for a person who needs more width and more weight support than a standard home hospital bed gives. It’s an expandable bariatric bed: a simple pull pin system lets a caregiver widen the deck from 39 to 54 inches. A 3-function electric pendant runs hi-low, head and knee, and the deck height ranges from 17 to 30 inches.
It’s also a split frame bariatric bed, so the frame comes apart for easier delivery and storage. With the deck at its narrowest, Joerns rates it to pass through doorways as narrow as 40 inches, which matters in a home with older doors and in a facility that may need to move a resident in an emergency. Each bed comes with a head and footboard and a pair of padded, 3 position, wing-type half-length head rails.
Family caregivers tell us they want a bed that fits the person and still fits the house. Facility buyers want a bariatric frame staff can widen, move and store without a fight. The RC 750 was built with both in mind. As an authorized dealer & provider, we’re Rated No. 1 in customer service, offer fast nationwide shipping and have it delivered to your door. Questions about fit? Call us at 585-505-6665.
Why Choose the Joerns RC 750 Bariatric Bed?
The RC 750 covers what a 750 lb bariatric bed has to get right. It holds up to 750 lb, the deck widens to 54 inches so a larger person isn’t pressed against the rails, and the split frame and narrow 39-inch setting make it possible to get the bed into the room in the first place.
The controls stay simple. Three electric functions (hi-low, head and knee) handle the positions most people need every day, and the padded wing-type rails, IV pole and Foley bag holder cover the basics caregivers reach for. It’s backed by a 5-year warranty on workmanship and materials and 1 year on the electrical system.
Who Is the RC 750 Best For?
The RC 750 is a good fit for a person up to 750 lb who needs a wider sleeping surface, regular head and knee positioning, and a bed that can be raised for care. It suits families setting up a bedroom at home and nursing homes, home health agencies and other care facilities that want a 750 lb bariatric bed they can widen, narrow and store as needs change.
If you’re still comparing bed types, our Hospital Bed Buying Guide walks through the options, and the Hospital Bed Knowledge Base covers room fit, upkeep and how long a bed lasts.
Who May Need a Different Bed?
- Weight over 750 lb: look at a bariatric bed with a higher safe working load.
- High fall risk: the RC 750’s lowest deck height is 17 inches. A low bed that sits closer to the floor may be the safer choice.
- Can’t bear weight to transfer: the bed won’t do the lifting. Pair it with a patient lift, such as a Hoyer lift, for safe transfers.
- Needs more positions than hi-low, head and knee: ask us about the advanced version or a bed with more positioning functions.
- Doesn’t need bariatric width or capacity: a standard full-electric home hospital bed is smaller and easier to fit in a tight room.
750 lb Safe Working Load
The RC 750 is rated for a 750 lb safe working load. Keep in mind that a safe working load generally counts everything the bed carries, so if the person is close to the limit, call us and we’ll talk through the numbers with you.

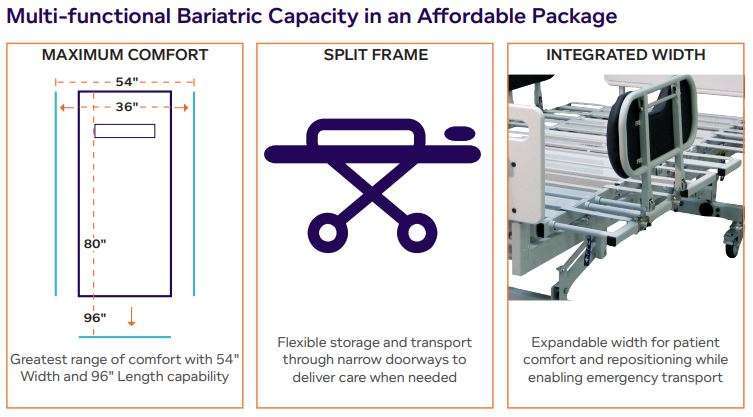

Expandable Bariatric Bed: 39″ to 54″ Wide With a Pull Pin
The deck widens from 39 to 54 inches using a pull pin system, so a caregiver can set the width to fit the person’s body instead of buying a different bed. The overall frame measures 39.5 inches wide at its narrowest and 56.5 inches at its widest. Narrow it to move the bed, then open it back up once it’s in place.
Will It Fit Through a 40″ Doorway?
Joerns rates the RC 750 to pass through doorways as narrow as 40 inches with the deck at its narrowest setting. Since the frame is 39.5 inches wide at that point, there’s only about half an inch to spare. Measure every doorway, hallway turn and the bedroom entry before delivery day, and call us if any spot is close.
Split Frame Bariatric Bed for Delivery and Storage
The bed weighs 483 lb in total, which is a lot to move as one piece. The split frame comes apart so it’s easier to bring through a house, set up in the room and store when it isn’t in use.
What Does the 3-Function Electric Control Do?
The RC 750’s pendant controls three things:
- Hi-low: raises and lowers the whole bed.
- Head (Fowler): raises the head section so the person can sit up to eat, read or watch TV.
- Knee gatch: raises the knee section for comfort and to help keep the person from sliding down.
Joerns also lists standard or advanced functionality for this bed. Ask us which version fits your needs.
17″ to 30″ Deck Height Range
The deck moves from 17 inches up to 30 inches. Lower it for getting in and out of bed, then raise it so caregivers can bathe, change and reposition the person without bending over as far.
84″ Deck, 96″ With the Optional Extender
The standard deck is 84 inches long, and the overall frame is 88 inches long. For a taller person, an optional extender brings the deck to 96 inches. Plan the room for the longer length if you’ll add it.
3 Position Padded Wing Side Rails
Each bed comes with one pair of half-length head rails. They’re padded, wing type and adjust to 3 positions, and mattress stops are included to help keep the mattress in place.
IV Pole and Foley Bag Holder
The RC 750 has an IV pole and Foley bag holder, so the supplies a caregiver uses most can stay at the bedside.
Room, Power and Home vs. Facility Use
Joerns built the RC 750 for alternate care settings, and it works just as well in a home bedroom. For the room, plan on a frame 88 inches long and 39.5 to 56.5 inches wide, plus space beside the bed for caregivers and transfers. The bed runs on 115 VAC, 60 Hz power and draws 10.5 amps, so plug it into a suitable outlet and avoid sharing the circuit with other heavy appliances.
RC 750 vs. a Standard Home Hospital Bed
A standard home hospital bed is narrower and rated for less weight. That’s fine for many people, but a larger person can feel cramped and the bed may not be rated for them. The RC 750 adds a 750 lb safe working load and a deck that widens to 54 inches, while the split frame and 39-inch narrow setting keep it practical to deliver. If the person doesn’t need the extra width or capacity, a standard bed takes up less room.
Common Problem → RC 750 Solution
Problem: Bariatric beds are wide and heavy, and many homes have doorways that a one-piece bariatric frame just won’t clear.
Solution: The RC 750’s split frame comes apart for delivery, and the deck narrows to 39 inches so it’s rated to pass through doorways as narrow as 40 inches. Once it’s in the room, the pull pins let you widen it back out to as much as 54 inches.
“Can we get a bariatric bed into an older house with narrow doors?” Often, yes. Measure your tightest doorway first, and call us at 585-505-6665 if it’s close.
Mattresses, Rails & Accessories for the Joerns RC 750
- Mattress: the RC 750 accepts mattresses 37, 39, 42, 48 or 54 inches wide on an 84-inch deck. Choose a wide bariatric mattress sized to the deck width you’ll use. Shop our hospital bed mattresses.
- Rails and add-ons: half-length head rails come with the bed. For anything more, see our bed rails & accessories and ask us which fit this frame.
- Trapeze: a trapeze is an option for the RC 750. Browse our trapeze bars and ask us which fit this frame.
Joerns RC 750 Warranty
Joerns lists a 5-year warranty on workmanship and materials and a 1-year warranty on the electrical system. If something comes up, call us and we’ll help you work with the manufacturer.
Key Features
✔ 750 lb Safe Working Load
✔ Split Frame for Easy Delivery
✔ Expands From 39″ to 54″ Wide
✔ 3-Function Electric, 17″ to 30″ Hi-Low
✔ Padded 3 Position Wing Side Rails
✔ Head & Footboard Included
Product Specifications
| Brand | Joerns |
| Model | RC 750 |
| SKU | RC750BED |
| Safe Working Load | 750 lb |
| Bed Deck Length | 84″ (96″ with optional extender) |
| Deck Width | 39″ to 54″, pull pin expansion |
| Overall Frame Size | 39.5″ to 56.5″ W x 88″ L |
| Deck Height | 17″ to 30″ |
| Head/Footboard Width | 38″ |
| Mattress Widths Accepted | 37″, 39″, 42″, 48″ or 54″ |
| Functions | Hi-low, head (Fowler), knee gatch |
| Control | 3-function electric pendant |
| Frame | Split frame |
| Side Rails | Half-length head rails, 1 pair, 3 position, wing type, padded, mattress stops included |
| Head & Footboard | Included |
| IV Pole and Foley Bag Holder | Yes |
| Options | Trapeze, deck length extender |
| Doorway Transport | Doorways as narrow as 40″ |
| Total Weight | 483 lb |
| Power Requirements | 115 VAC, 60 Hz, 10.5 amp |
| Warranty | 5 years workmanship and materials, 1 year electrical system |
Frequently Asked Questions
What is the Joerns RC 750?
The Joerns RC 750 is a 750 lb bariatric bed with a split frame and a deck that expands from 39 to 54 inches wide. It has a 3-function electric pendant for hi-low, head and knee, and the deck height ranges from 17 to 30 inches.
How much weight can the RC 750 hold?
The RC 750 has a 750 lb safe working load. If the person is close to that number, ask us about a bed with a higher rating.
Will the RC 750 fit through my doorway?
At its narrowest setting the deck is 39 inches wide and the overall frame is 39.5 inches, so Joerns rates it to pass through doorways as narrow as 40 inches. That leaves only about half an inch, so measure every doorway and hallway turn on the way to the room before delivery day.
How much floor space does the RC 750 take up?
The overall frame measures 88 inches long and 39.5 to 56.5 inches wide, depending on how far you expand the deck. Leave extra room beside the bed for caregivers and transfers, and allow more length if you add the optional extender, which makes the deck 96 inches long.
What mattress fits the RC 750?
Joerns lists the RC 750 for mattresses 37, 39, 42, 48 or 54 inches wide on an 84-inch deck (96 inches with the optional extender). Pick a bariatric mattress that matches the deck width you’ll actually use, and ask us if you’re not sure which one fits.
What comes with the RC 750, and what’s optional?
Each bed comes with a head and footboard and one pair of half-length head rails (3 position, wing type, padded, with mattress stops). The trapeze and the 96-inch length extender are optional, so ask us to confirm the mattress and any extras that ship with your order.
What does the 3-function control do?
The electric pendant controls hi-low (raising and lowering the whole bed), the head section (Fowler) and the knee gatch. That lets the person sit up, bend the knees for comfort, and have the bed set at a working height for care or a lower height for getting in and out.
Is the RC 750 hard to deliver and set up?
The bed weighs 483 lb in total, but its split frame comes apart for easier delivery and storage. That’s what makes a bariatric frame this size workable to bring into a home or store when it’s not in use.
Can the RC 750 be used at home and in a facility?
Yes. Joerns built it for alternate care settings like care facilities, and it runs on 115 VAC, 60 Hz power (10.5 amps), so it also works in a home bedroom with a suitable outlet.
What warranty does the RC 750 have?
Joerns lists a 5-year warranty on workmanship and materials and a 1-year warranty on the electrical system. Keep your paperwork, and call us if anything comes up so we can help you work with the manufacturer.
Can I add a trapeze to the RC 750?
Yes, a trapeze is available as an option for the RC 750. A trapeze gives the person something to pull on when shifting position in bed, and we can help you find one that fits this frame.
Does Medicare cover a bariatric bed?
Medicare Part B may help cover a hospital bed as durable medical equipment when your doctor prescribes it; coverage depends on your plan and the supplier. Check with Medicare or your plan about your own situation before you order.
🔗 Hospital Bed Guides, Answers & Accessories
Still comparing beds, or planning the room? These pages cover it, and you can call us at 585-505-6665 any time.
👉 Hospital Bed Buying Guide: Choosing the Right Bed by Condition
👉 Hospital Bed Knowledge Base: Features, Upkeep & Room Fit
👉 Shop All Bariatric Hospital Beds
👉 Hospital Bed Mattresses (Foam, Low Air Loss & Alternating Pressure)
PRODUCT SPECIFICATION
| Bed Deck Length: | 80″ (96″ with optional extender) |
| Overall Frame Size: | 39.9″ to 56.5″ W to 88″ L |
| Mattress Size: | Minimum: 37″
Maximum: 54″ |
| Bed Deck Height: | Minimum: 17″
Maximum: 30″ |
| Head/Foot Panel Width: | 38″ |
| Safe Working Load: | 750 lbs |
| Power Requirements: | 115 VAC, 60 Hz, 10.5 AMP |
| Warranty: | Structural: 5 years
Electrical System: 1 year |
