Lumex FR577RG Clinical Care Recliner Chair with Tray & Wheels – Comfort, Mobility & Versatility in One Chair
$1,650.00
- Rated No. 1 in customer service
- Fast nationwide shipping, delivered to your door
- Manufacturer warranties
- Cash-back rewards on every order
Authorized dealer & provider · Huge selection · Questions? Call 585-505-6665
✔ 350 lb Weight Capacity
✔ 3 Positions + Caregiver Trendelenburg
✔ Articulating Headrest Section
✔ 2 Fold-Down Side Tables
✔ Removable Side Panels
✔ 5″ Tente Casters, Push Handle
-
Fast nationwide shipping, delivered to your door · 30-day returns on eligible products · Shipping & returns details
Share with Friends
- Description
- PRODUCT SPECIFICATION
- Shipping & Returns
- Product PDF downloads
- Reviews (0)
Description

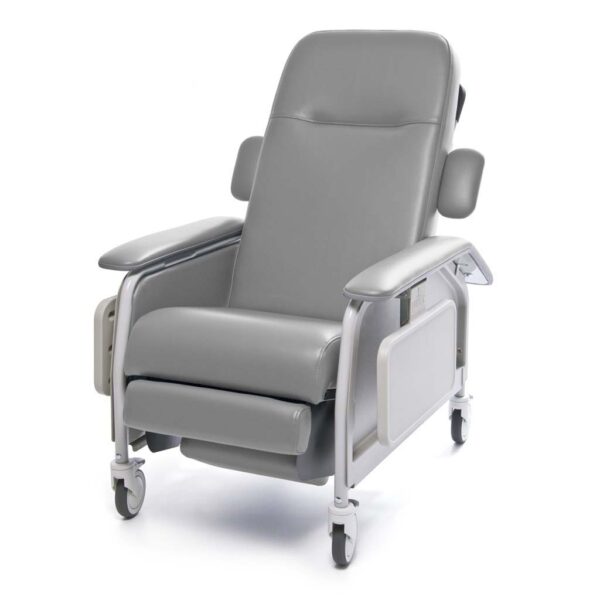

Lumex FR577RG Clinical Care Recliner – A Recliner Chair With Fold-Down Tables and Wheels
The Lumex FR577RG is a clinical care recliner chair with wheels and two fold-down side tables, so a patient always has a spot for a meal, a drink or a book. It works in extended care, clinical care and home care, and it holds 350 lbs, evenly distributed.

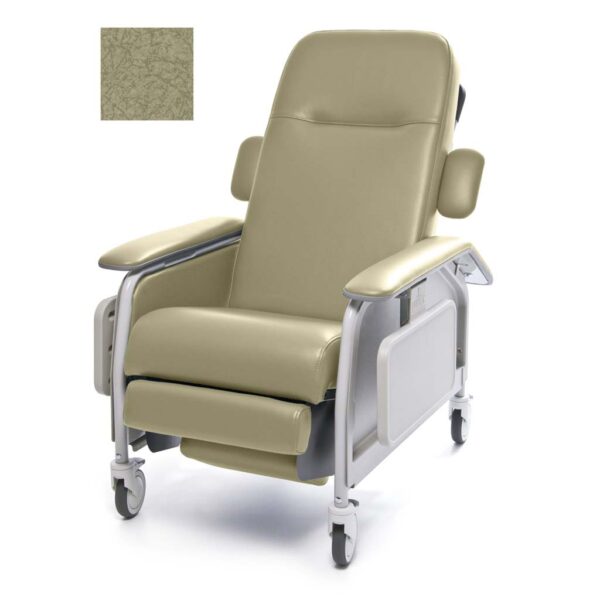

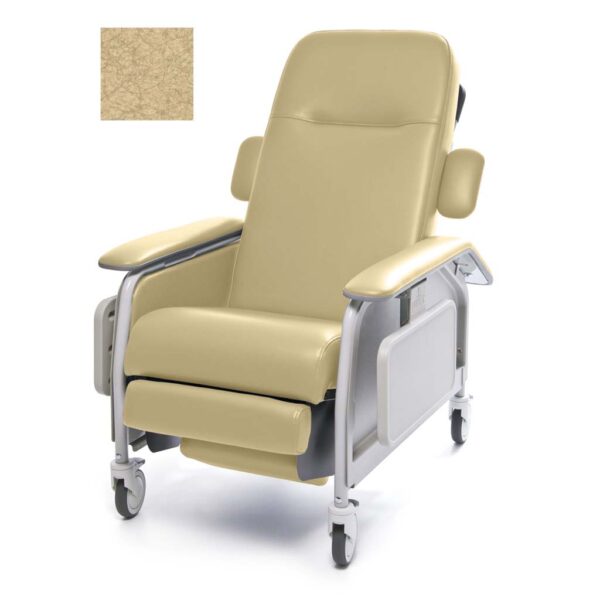

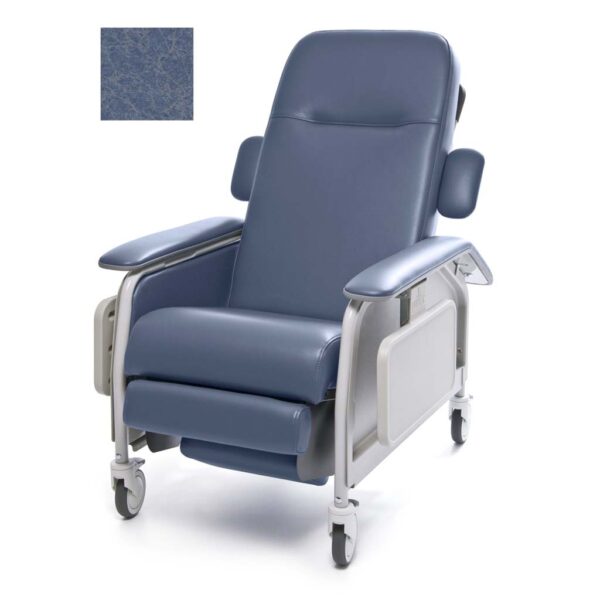

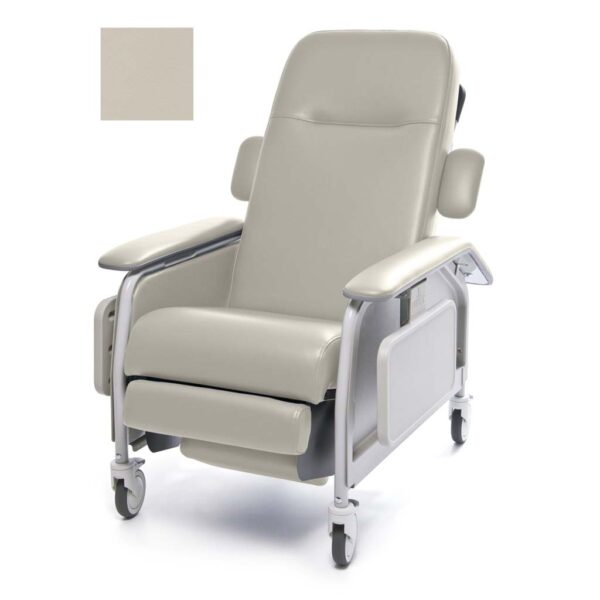

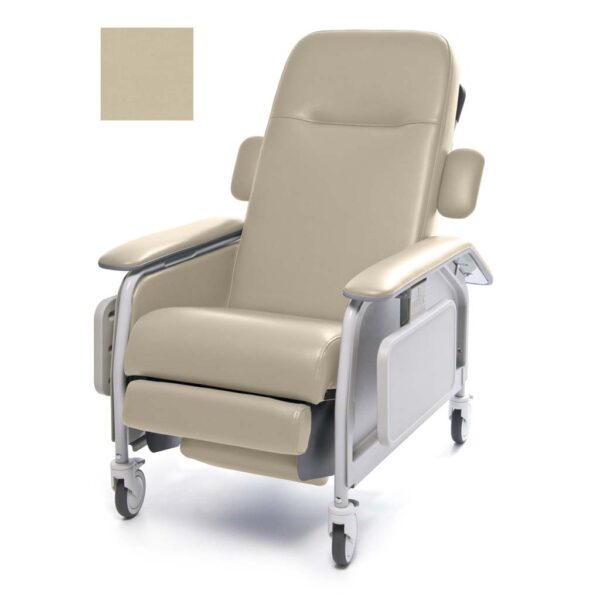

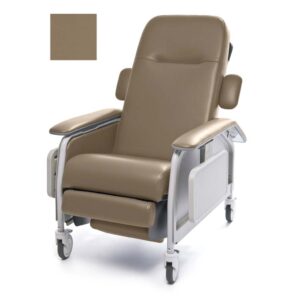

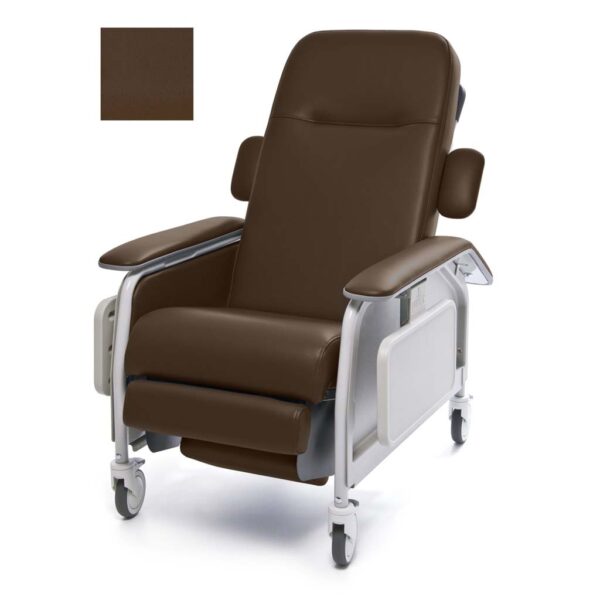

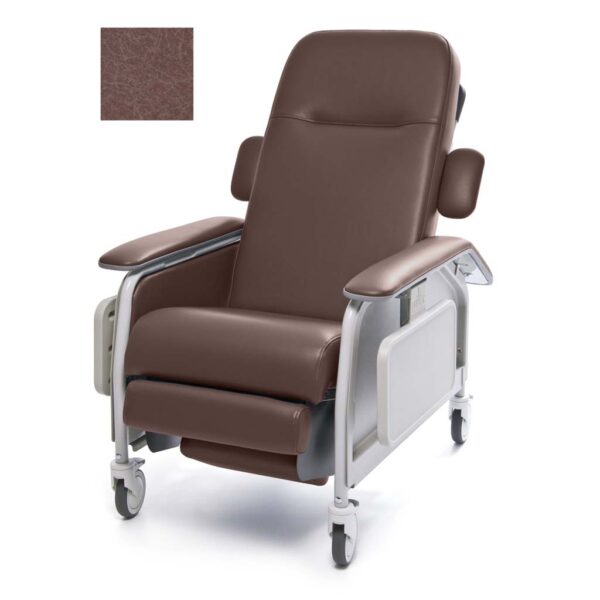

It has three comfort positions, an articulating headrest section that moves forward, and a caregiver-activated Trendelenburg position. Pick your color in the dropdown above. Want heat and massage? See the Lumex FR577RG with heat and massage option.
A Recliner Chair With Tray Space Built In
Instead of a single front tray, the FR577RG has two self-storing side tables that fold down flush when you don’t need them and lift up when you do. The smooth surface wipes clean. Lumex also makes a swing-away folding table for this chair; call us if you want one quoted.

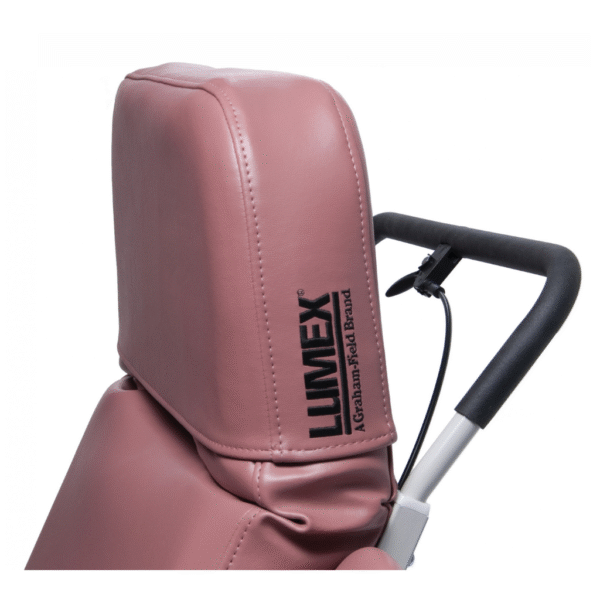

Articulating Headrest and Arm Pads
The headrest section moves forward for better head position, and back-mounted arm pads add side support. The soft, wide armrests have Wallsaver caps that protect walls from marks.

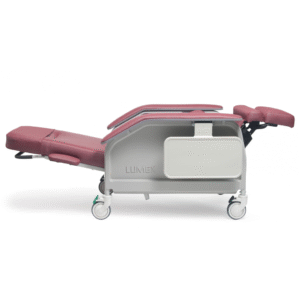

3 Positions Plus Caregiver-Activated Trendelenburg
Upright, first recline and second recline for the patient. A caregiver uses the rear-mounted hand trigger for Trendelenburg, with gas cylinders for a smooth assist.
Wheels and Push Handle
Four 5″ Tente swivel casters (three total locking, one directional locking) and a rear push handle make this recliner chair with wheels easy to move between rooms. Lock the casters before the patient gets in or out.
Who Is the FR577RG Best For?
Good fits include:
- Extended care residents who eat and read in their chair
- Clinical care and treatment areas that need a Trendelenburg position
- Home care users who want a full-featured clinical recliner
Comparing options? See our geri chair buying guide.
Who May Need a Different Chair?
- Users over 350 lbs: the Lumex FR587W holds 450 lbs.
- Patients who transfer from the side: the Lumex FR566DG has drop arms.
Key Features
✔ 350 lb Weight Capacity
✔ 3 Positions + Caregiver Trendelenburg
✔ Articulating Headrest Section
✔ 2 Fold-Down Side Tables
✔ Removable Side Panels
✔ 5″ Tente Casters, Push Handle
Product Specifications
- Brand / model: Lumex (Graham-Field) Clinical Care Recliner, FR577RG series
- Weight capacity: 350 lbs, evenly distributed
- Positions: Upright, first recline, second recline
- Trendelenburg: Caregiver-activated with a rear-mounted hand trigger; gas cylinder assist
- Headrest: Articulating headrest section moves forward
- Seat width × depth: 21½” × 19½”
- Seat height: 20½”
- Width between arms: 21½”
- Arm height from floor: 27½”
- Back height above seat: 34″
- Overall width: 31½” (52″ with side tables up)
- Overall depth: 40½” upright, 73½” in Trendelenburg
- Overall height: 48″
- Casters: 5″ Tente swivel casters: 3 total locking, 1 directional locking
- Included: 2 fold-down side tables, removable side panels, back-mounted arm pads, rear push handle
Frequently Asked Questions
Is this a recliner chair with a tray?
It has two fold-down side tables instead of a front tray. They store flush against the chair and lift up for meals or personal items. A swing-away folding table is a separate Lumex accessory.
Is it a recliner chair with wheels?
Yes. It rolls on four 5″ Tente swivel casters (three total locking, one directional locking) with a rear push handle.
How much weight does it hold?
Lumex rates it for 350 lbs, evenly distributed.
What positions does it have?
Upright, first recline and second recline, plus a caregiver-activated Trendelenburg position.
How big is the seat?
21½” wide and 19½” deep, with a 20½” seat height.
How much room does it need?
It’s 31½” wide (52″ with side tables up), 40½” deep upright and 73½” deep in Trendelenburg, and 48″ tall.
Is there a heat and massage version?
Yes. The FR577RGH adds heat and massage and is listed separately.
Is it easy to clean?
The side panels are smooth and removable, and the side tables have a smooth surface.
How is it shipped?
It ships freight to your door. Call us at 585-505-6665 with questions.
🔗 Medical Recliner Guides, Answers & Related Chairs
Comparing medical recliners? These pages can help, and you can call us at 585-505-6665 with any question.
PRODUCT SPECIFICATION
| Specification | Inches | Centimeters (cm) |
|---|---|---|
| Overall Width | 31.5″ | 80.01 cm |
| Overall Width (Side Tables Up) | 52.0″ | 132.08 cm |
| Overall Depth | 40.5″ | 102.87 cm |
| Overall Depth (Trendelenburg) | 73.5″ | 186.69 cm |
| Overall Height | 48.0″ | 121.92 cm |
| Arm Width | 4.5″ | 11.43 cm |
| Width (Between Arms) | 21.5″ | 54.61 cm |
| Arm Height (from Floor) | 27.5″ | 69.85 cm |
| Seat Width | 21.5″ | 54.61 cm |
| Seat Depth | 19.5″ | 49.53 cm |
| Seat Height (from Floor) | 20.5″ | 52.07 cm |
| Back Width | 21.5″ | 54.61 cm |
| Back Height (Above Seat) | 34.0″ | 86.36 cm |
| Back Angle – Upright | 120° | — |
| Back Angle – Reclined | 125° | — |
| Back Angle – Fully Reclined | 135° | — |
| Weight Capacity (Evenly Distributed) | 350 lbs | 158.76 kg |
