Deluxe Drop-Arm Clinical Care Recliner – Medical Chair Recliner for Comfort & Safety
$2,045.00
- Rated No. 1 in customer service
- Fast nationwide shipping, delivered to your door
- Manufacturer warranties
- Cash-back rewards on every order
Authorized dealer & provider · Huge selection · Questions? Call 585-505-6665
✔ 400 lb Weight Capacity
✔ Self-Storing Drop Arms for Transfers
✔ 3 Positions + Caregiver Trendelenburg
✔ Integrated Leg and Footrest
✔ 2 Fold-Down Side Tables
✔ 5″ Tente Casters, Push Handle
-
Fast nationwide shipping, delivered to your door · 30-day returns on eligible products · Shipping & returns details
Share with Friends
- Description
- PRODUCT SPECIFICATION
- Shipping & Returns
- Product PDF downloads
- Videos
- Reviews (0)
Description

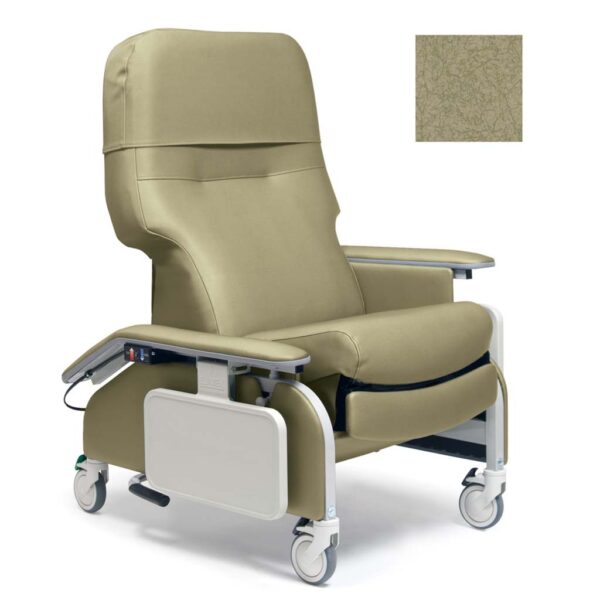

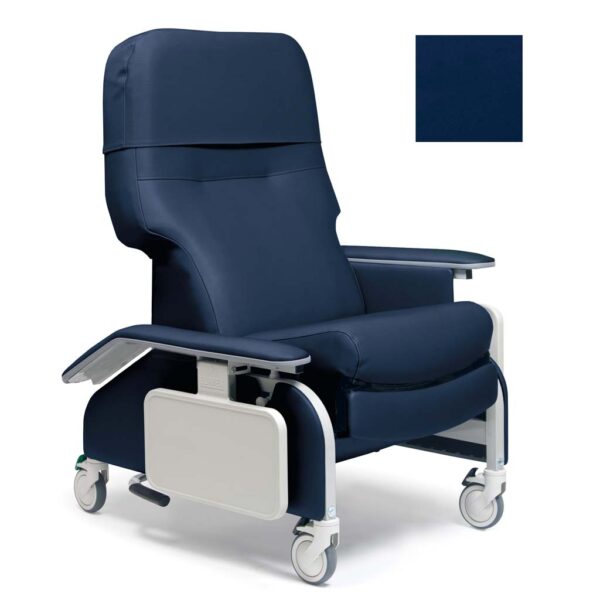

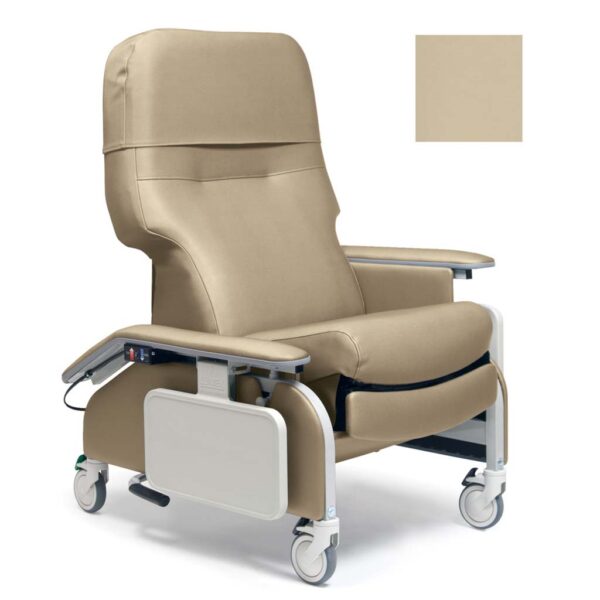

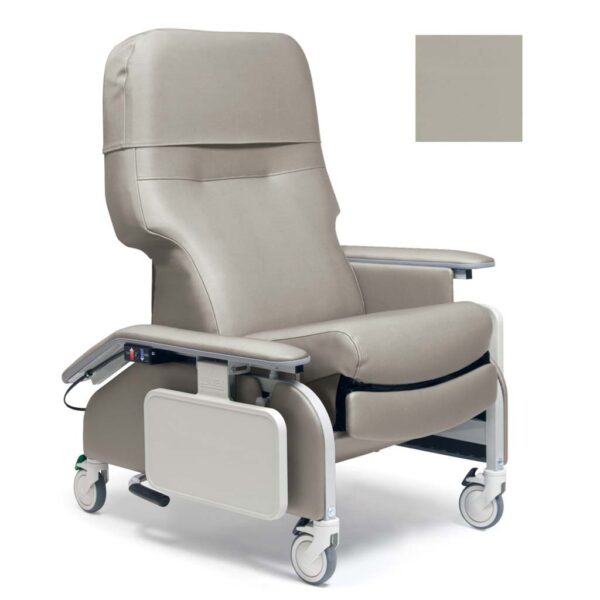

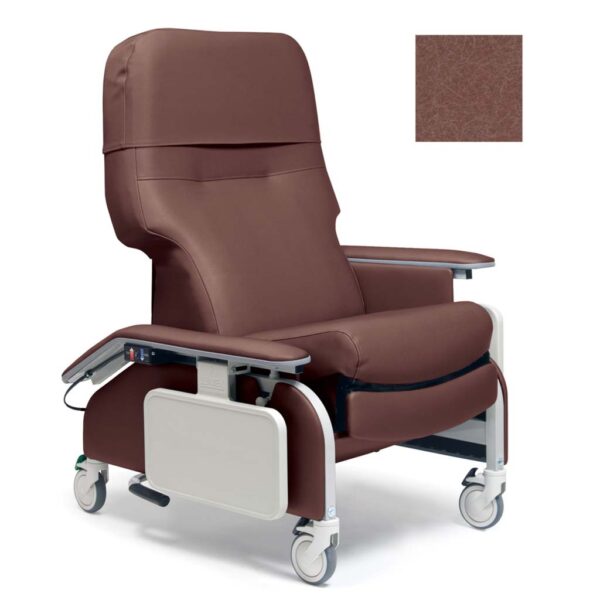

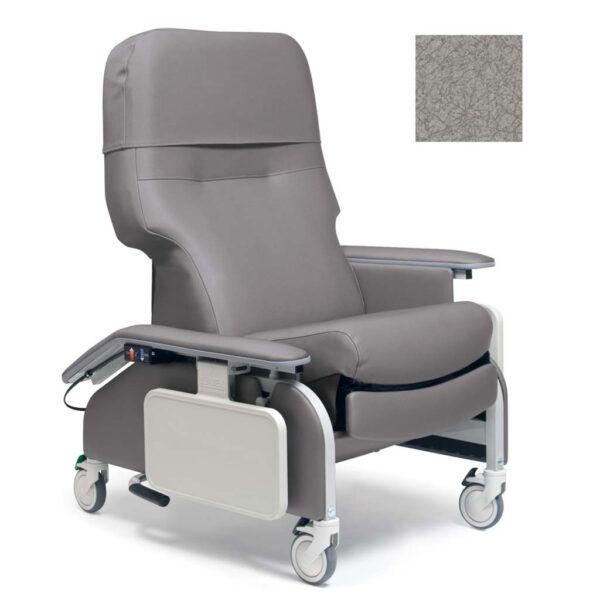

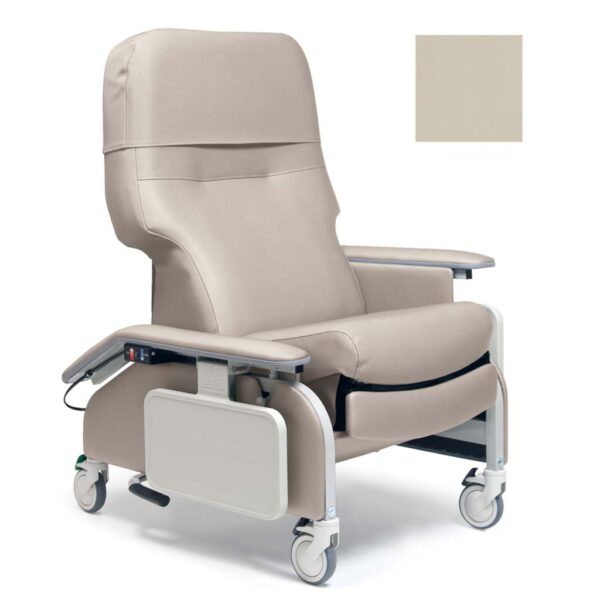

Lumex Deluxe Drop-Arm Clinical Care Recliner FR566DG – A Medical Chair Recliner Built for Side Transfers
The Lumex Deluxe Drop-Arm Clinical Care Recliner is a medical chair recliner for clinical care, with self-storing drop arms that make lateral transfers safer for patients and staff. It holds 400 lbs, evenly distributed.
It has three comfort positions plus a caregiver-activated Trendelenburg position on a side pedal, a wide contoured seat and back, and an integrated leg and footrest. The higher seat and back height let caregivers assist with less bending. Choose your color in the dropdown above.
Why Choose the Lumex FR566DG?
It’s the drop-arm version of the Lumex FR566G. You get the same comfort and 400 lb rating, plus arms that lower out of the way so a patient can slide across from a bed or wheelchair.
Self-Storing Drop Arms
Release the arm and it drops and stores itself, opening the side of the chair for a lateral transfer. Lumex designed the drop arms to be easy to actuate.
3 Positions Plus Caregiver-Activated Trendelenburg

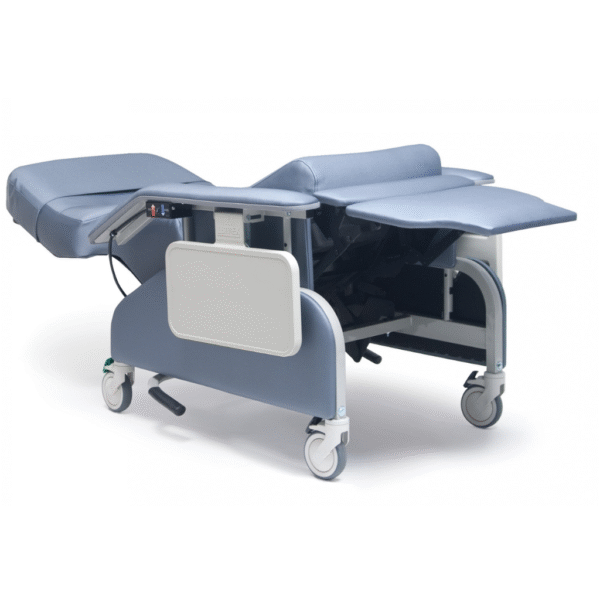

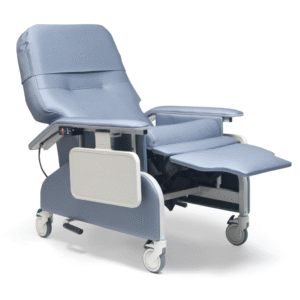

Patients can sit upright or use the first and second recline. A caregiver can put the chair into Trendelenburg (head lower than the feet) with the side pedal.
Side Tables, Removable Panels and Push Handle
Two self-storing side tables fold down flush and wipe clean. The upholstered side panels are removable for cleaning. Four 5″ Tente swivel casters (three total locking, one directional locking) and a rear push handle make it easy to move. Wallsaver armrest caps protect walls from marks.
Who Is the FR566DG Best For?
Good fits include:
- Patients who transfer sideways from a bed, wheelchair or stretcher
- Clinical care, same day surgery and treatment areas
- Caregivers who want a higher seat for easier assisting
Comparing options? See our geri chair buying guide.
Who May Need a Different Chair?
- Users over 400 lbs: the Lumex FR587WD Extra-Wide Drop-Arm Recliner holds 450 lbs.
- Patients who don’t need drop arms: the Lumex FR566G is the same chair with fixed arms.
Key Features
✔ 400 lb Weight Capacity
✔ Self-Storing Drop Arms for Transfers
✔ 3 Positions + Caregiver Trendelenburg
✔ Integrated Leg and Footrest
✔ 2 Fold-Down Side Tables
✔ 5″ Tente Casters, Push Handle
Product Specifications
- Brand / model: Lumex (Graham-Field) Deluxe Drop-Arm Clinical Care Recliner, FR566DG series
- Weight capacity: 400 lbs, evenly distributed
- Positions: Upright, first recline, second recline
- Trendelenburg: Caregiver-activated with a side pedal
- Arms: Self-storing drop arms with Wallsaver armrest caps
- Seat width × depth: 20½” × 19″
- Seat height: 22½”
- Width between arms: 22″
- Arm height from floor (arm up): 28″
- Back height above seat: 30″
- Overall width: 32½” (52½” with side tables up)
- Overall depth: 38″ upright, 75″ in Trendelenburg
- Overall height: 50½”
- Casters: 5″ Tente swivel casters: 3 total locking, 1 directional locking
- Included: Integrated leg and footrest, 2 fold-down side tables, removable upholstered side panels, rear push handle
Frequently Asked Questions
Who is this medical chair recliner best for?
Patients who need a comfortable clinical recliner and transfer from the side. The drop arms open the side of the chair for a sliding transfer.
How much weight does it hold?
Lumex rates it for 400 lbs, evenly distributed.
What positions does it have?
Upright, first recline and second recline, plus a caregiver-activated Trendelenburg position.
How is Trendelenburg activated?
A caregiver uses the side pedal.
How big is the seat?
20½” wide and 19″ deep, with a 22½” seat height and 22″ between the arms.
How much room does it need?
It’s 32½” wide (52½” with side tables up), 38″ deep upright and 75″ deep in Trendelenburg, and 50½” tall.
Does it come with side tables?
Yes, two self-storing side tables fold down flush with the chair.
Is it easy to clean?
The upholstered side panels are removable for cleaning, and the side tables have a smooth surface.
Does it roll?
Yes. Four 5″ Tente swivel casters (three total locking, one directional locking) and a rear push handle.
How is it shipped?
It ships freight to your door. Call us at 585-505-6665 with questions.
🔗 Medical Recliner Guides, Answers & Related Chairs
Comparing medical recliners? These pages can help, and you can call us at 585-505-6665 with any question.
PRODUCT SPECIFICATION
| Specification | Inches | Centimeters (cm) |
|---|---|---|
| Overall Width | 32.50″ | 82.55 cm |
| Overall Width (Side Tables Up) | 52.50″ | 133.35 cm |
| Overall Depth (Upright) | 38.00″ | 96.52 cm |
| Overall Depth (Trendelenburg) | 50.50″ | 128.27 cm |
| Overall Height | 50.50″ | 128.27 cm |
| Arm Width | 4.50″ | 11.43 cm |
| Width Between Arms | 22.00″ | 55.88 cm |
| Arm Height (from Floor) | 28.00″ | 71.39 cm |
| Seat Width | 20.50″ | 52.07 cm |
| Seat Depth | 19.00″ | 48.26 cm |
| Seat Height (from Floor) | 22.50″ | 57.15 cm |
| Back Width | 27.50″ | 69.85 cm |
| Back Height (Above Seat) | 30.00″ | 76.20 cm |
| Back Angle (Upright to Fully Reclined) | 120° – 150° | — |
| Weight Capacity (Evenly Distributed) | 400 lbs | 181.44 kg |
