Lumex Liberty Full-Length Bed Rail – Telescoping Full Rail for Patriot and WhisperLite II Homecare Beds, Pair, GF6570B-1
$100.99
- Rated No. 1 in customer service
- Fast nationwide shipping, delivered to your door
- Manufacturer warranties
- Cash-back rewards on every order
Authorized dealer & provider · Huge selection · Questions? Call 585-505-6665
✔ Lumex Liberty Full Length Bed Rail, Pair
✔ Telescopes 44.5″ to 62″ for Head-to-Foot Coverage
✔ Built to FDA Entrapment Guidance, Zones 1 to 4
✔ Fits Lumex Patriot and WhisperLite II Beds
✔ Spring-Loaded Crossbraces with Safety Tabs
✔ Tool-Free Install, One-Hand Raise and Lower
-
Fast nationwide shipping, delivered to your door · 30-day returns on eligible products · Shipping & returns details
Share with Friends
- Description
- PRODUCT SPECIFICATION
- Shipping & Returns
- Product PDF downloads
- Reviews (0)
Description
Lumex Liberty Full-Length Bed Rail – Telescoping Full Rail for Patriot and WhisperLite II Homecare Beds, Pair, GF6570B-1

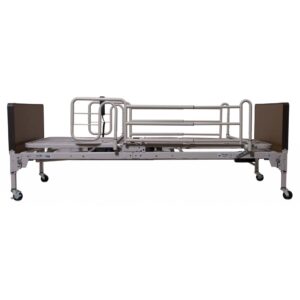

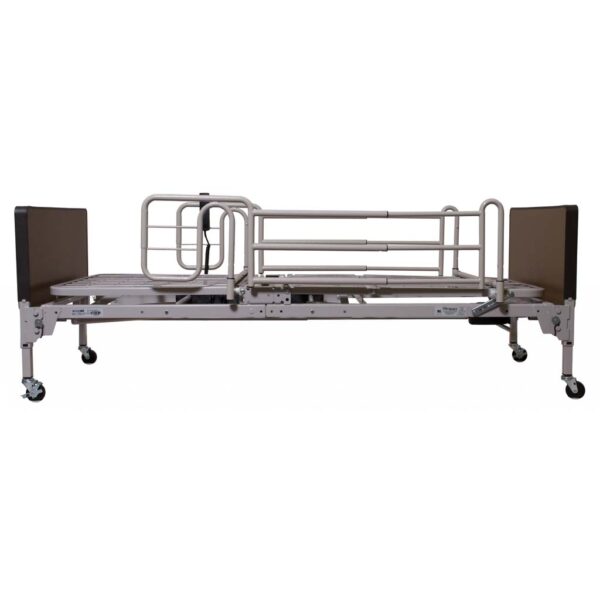

The Lumex Liberty full length bed rail (Graham-Field part GF6570B-1) is the full rail made for the Lumex Patriot and WhisperLite II homecare beds. It telescopes from 44.5 inches to 62 inches, so it covers the sleep surface from the head section to the foot section and keeps that coverage when the bed articulates. You get a pair, one rail for each side.
Graham-Field designed the Liberty rails around the FDA Hospital Bed System Dimensional Guidance for entrapment zones 1 to 4. The crossbars are spaced tighter than on older Lumex rails, the rail sits in fixed slots on the Patriot deck, and spring-loaded crossbraces carry safety tabs that stop the rail from disengaging if someone bumps it.
It is a rail for one family of beds, not a universal clamp-on. If your bed is a Patriot full-electric or Patriot semi-electric, this is the matching full rail. Not sure what you have? Call 585-505-6665 with the label on the bed frame and we will confirm before you order.
Why Choose the Lumex Liberty Full Length Bed Rail?
A full rail does one job better than any other rail: it keeps a person in bed along the whole length of the mattress. The Lumex Liberty full length bed rail does that with real engineering behind it. It extends to 62 inches at full extension, stands 13.5 inches tall, and weighs 21.5 lb per rail according to Graham-Field, so it feels solid without being hard for a caregiver to raise and lower.
Because it telescopes, the rail follows the bed when the head section comes up. Older fixed rails can open a gap at the head or foot when the deck bends; the Liberty design was built to close those gaps. For families who want full coverage on a Patriot bed and do not want to guess about fit, it is the straightforward choice.
Who Is a Full-Length Rail Best For?
A full-length rail makes sense for:
- People who roll toward the edge in their sleep or have rolled out before
- Users who are confused at night and should not get up without help
- Patients recovering from surgery who need a barrier on both sides for a period of time
- Caregivers who want a firm handhold along the whole bed during turns and changes
- Homes and facilities that already own a Lumex Patriot or WhisperLite II bed
If you are unsure whether full rails are right, our guide to bed rails for seniors walks through the trade-offs.
Who May Need a Different Rail?
- Users who get up on their own: a full rail can be climbed over. A shorter rail that leaves the foot end open, like the Liberty Half No-Gap rail or the Liberty Quarter rail, is usually the safer pick.
- Owners of other beds: the Liberty rails mount in the Patriot deck slots. For a standard 36″ steel-frame bed, look at clamp-on rails such as the Proactive BP-FR full rails.
- Anyone wanting a chrome finish: see the Lumex chrome telescoping full rails for Patriot beds.
Built Around FDA Entrapment Guidance, Zones 1 to 4
Entrapment happens when a body part slips into a gap between the rail bars, between the rail and the mattress, or between the rail and the headboard or footboard. The FDA guidance sets limits for those gaps, and Graham-Field built the Lumex Liberty full length bed rail to follow it for zones 1 to 4: tighter crossbar spacing, a rail length that closes the end gaps at full articulation, and fixed slots so the rail cannot slide out of position.
A rail is only as safe as the mattress beside it. Use a mattress that fits the Patriot deck snugly, and if the mattress is shorter than the deck, close the gap with a mattress extension so there is no opening at the end.
Telescoping Length That Follows the Bed
Collapsed, the rail is 44.5 inches long. Extended, it reaches 62 inches. That range is what lets one rail cover the bed whether the head is flat or raised, and it is the reason the Lumex Liberty full length bed rail does not leave the open end gaps that a short fixed rail can.
Tool-Free Installation and One-Hand Operation
There is nothing to bolt on. The rail drops into the slots on the Patriot deck, the spring-loaded crossbraces lock in, and it is ready. To lower it for a transfer, bed making or a bath, the caregiver releases it with one hand, then raises it again until it locks. Check that both ends are locked every time the rail goes back up.
Fit and Compatibility
The GF6570B-1 is made for the Lumex Patriot full-electric and semi-electric homecare beds and the WhisperLite II bed. It is sold as a pair. The Liberty family also includes the half no-gap head rail and the quarter rail, which use the same mounting.
Common Problem → Lumex Liberty Full Rail Solution
Problem: a parent sleeping in a Patriot bed at home keeps drifting to the edge, and the family worries about a fall at night.
Solution: fit a pair of Lumex Liberty full length bed rail sections (one per side). They cover the whole side of the mattress on both sides, stay in place when the head of the bed is raised, and drop down with one hand when it is time to help the parent up.
Care and Safety Tips
- Wipe the rail with a mild soap or disinfectant solution and dry it; avoid harsh abrasive cleaners on the powder coat
- Check the crossbraces and safety tabs regularly and stop using a rail that does not lock
- Keep the rail raised and locked whenever the user is in bed and a caregiver is not at the bedside
- Pair the rails with a properly sized mattress and close any end gap with an extender
What’s Included
Two Lumex Liberty full-length telescoping bed rails, part GF6570B-1. The bed and mattress are sold separately.
Key Features
✔ Lumex Liberty Full Length Bed Rail, Pair
✔ Telescopes 44.5″ to 62″ for Head-to-Foot Coverage
✔ Built to FDA Entrapment Guidance, Zones 1 to 4
✔ Fits Lumex Patriot and WhisperLite II Beds
✔ Spring-Loaded Crossbraces with Safety Tabs
✔ Tool-Free Install, One-Hand Raise and Lower
Product Specifications
| Brand | Lumex (Graham-Field) |
| Part Number | GF6570B-1 |
| Type | Full-length telescoping bed rail |
| Overall Length | 44.5″ collapsed, 62″ at full extension (Graham-Field) |
| Overall Height | 13.5″ (Graham-Field) |
| Product Weight | 21.5 lb (Graham-Field) |
| Fits | Lumex Patriot full-electric and semi-electric beds, WhisperLite II |
| Mounting | Fixed rail slots on the bed deck, tool-free |
| Standard | FDA Hospital Bed System Dimensional Guidance, zones 1 to 4 |
| Sold As | Pair |
Frequently Asked Questions
Will the Lumex Liberty full length bed rail fit my bed?
It fits the Lumex Patriot full-electric and semi-electric beds and the WhisperLite II. It is not a clamp-on rail for other frames. Send us the bed label or call 585-505-6665 and we will confirm.
How long is the Lumex Liberty full length bed rail?
Graham-Field lists 44.5 inches collapsed and 62 inches at full extension, with an overall height of 13.5 inches.
Do I get one rail or two?
Two. The GF6570B-1 is sold as a pair, one for each side of the bed.
Do I need tools to install it?
No. The rail drops into the slots on the Patriot deck and the crossbraces lock without tools.
Does it help prevent entrapment?
Graham-Field designed the Liberty rails to follow the FDA dimensional guidance for zones 1 to 4. Pair them with a mattress that fits the deck so no gap opens beside or at the end of the mattress.
Should I choose full rails or half rails?
Full rails are for users who should stay in bed unless someone helps. Half or quarter rails leave the foot end open and suit users who get up on their own.
Can I buy the rails without the bed?
Yes. The rails are sold on their own. If you need the bed too, see the Patriot full-electric bed. We ship nationwide; call 585-505-6665 with questions.
🔗 Hospital Bed Guides, Answers & Tools
Need help choosing rails or a bed? Start with these pages, or call us at 585-505-6665 and we will match the parts to your bed.
PRODUCT SPECIFICATION
| Specification | Detail |
|---|---|
| Overall Length | 44.5″ (extends to 62″) |
| Overall Height | 13.5″ |
| Product Weight | 21.5 lb |
| Compatibility | Patriot™ & WhisperLite™ II beds |
| Construction | Heavy-duty powder-coated steel |
| Warranty | 3-Year Limited Warranty |
| Reimbursement Code (HCPCS) | E0310 |
