Lumex Sit and Stand Lift – Safe, Efficient, and Patient-Engaging Transfers

$2,319.00

  • Rated No. 1 in customer service
  • Fast nationwide shipping, delivered to your door
  • Manufacturer warranties
  • Cash-back rewards on every order

Authorized dealer & provider · Huge selection · Questions? Call 585-505-6665

✔ 500 lb Safe Working Load
✔ Steel Frame, Power or Manual Base
✔ 4″ Locking Front, 3″ Rear Casters
✔ Adjustable Knee Pad, Quick-Release Footplate
✔ Emergency Stop and Manual Lowering
✔ LCD Control Box and Hand Pendant

You earn  231-259 Points - a total of $231.00-$259.00 Cashback
You earn  231-259 Points - a total of $231.00-$259.00 Cashback

Slings

Subtotal:

Add-ons total:

+

Total:

-

Fast nationwide shipping, delivered to your door · 30-day returns on eligible products · Shipping & returns details

Share with Friends

Trustindex star 1Trustindex star 2Trustindex star 3Trustindex star 4Trustindex star 5
4.5
verified by Trustindex
Trustindex verifies that the company has a review score above 4.5, based on reviews collected on Trustindex over the past 12 months, qualifying it to receive the Top Rated Certificate.
Why Customers Choose MedCare Mobility Real Support Matters After the Sale.

One of the biggest problems customers face after buying medical and mobility equipment through marketplaces like Amazon is discovering that there is nobody to call when they actually need help. Product questions, warranty issues, replacement parts and support can quickly become difficult when there is no dedicated provider behind the purchase.

With MedCare Mobility, you buy from an authorized dealer and a real medical equipment provider — with knowledgeable people you can contact when help matters.
Price Match Competitive pricing
30-Day Returns On eligible products
Fast Shipping Nationwide processing
Brand Warranties Manufacturer backed
US-Based Support Real people to help
Authorized Dealer A provider behind you

Description

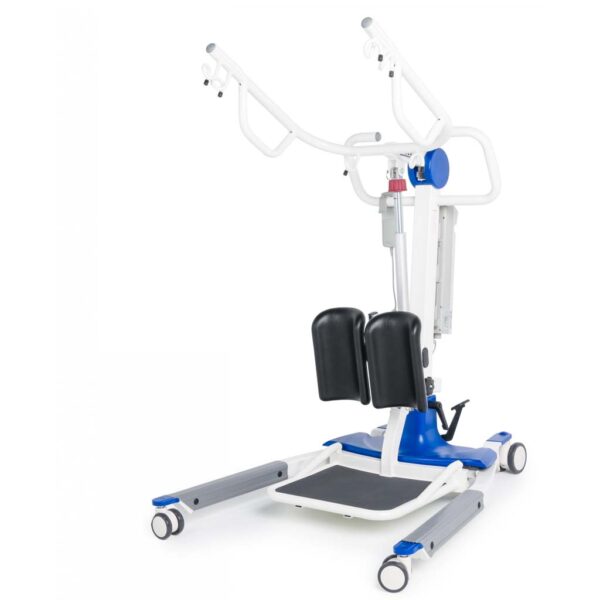

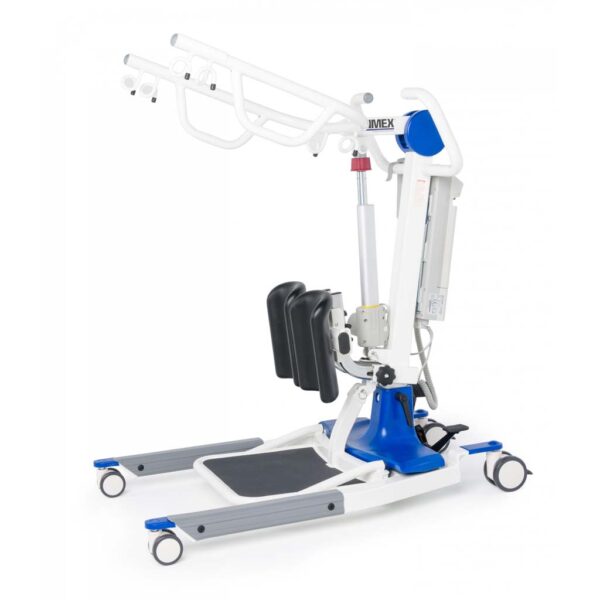

Lumex STS500 Sit and Stand Lift – Electric or Manual Base, 500 lb Capacity

The Lumex sit and stand lift helps a person go from sitting to standing with a caregiver’s help when they can bear some of their own weight. It’s made for someone who can’t quite get up alone but can still hold on and take part in the lift. It’s built from heavy-gauge steel with a white powder-coat finish and has a 500 lb safe working load, evenly distributed.

You can pick the electric-base Lumex STS500 or the manual-base Lumex STS500M. The STS500 has power-assisted high/low and opens and closes its base legs with power. The STS500M opens its legs with a foot pedal, so the caregiver’s hands stay free. Both versions have an LCD control box with a hand pendant, sling hooks on the spreader bar, an adjustable knee pad unit, a quick-release foot platform and a quiet 24V DC motor.

Families and facility buyers usually ask about fit first. This stand assist lift has a base that closes to about 25.6 inches wide and opens to about 39.4 inches. It’s 40.6 inches long, and the spreader bar adjusts from 19.3 to 74.8 inches. It rolls on 4-inch locking front casters and 3-inch rear casters, and the low, rubber-coated base legs help protect walls and furniture.


Why Choose the Lumex STS500?

A sit and stand lift fills the gap between lifting someone by hand and using a full-body lift. The person stays involved: their feet are on the platform, their knees rest against the pad, and they hold on while the lift does the heavy part. That helps them stay engaged and confident, and it takes strain off the caregiver’s back.

The STS500 adds what caregivers actually use day to day: a 500 lb rating, easy-to-read LCD controls, a hand pendant that hangs on a hook, sling hooks that make strap placement simple, and a manual lowering device in case the power fails. We’re an authorized dealer and provider, Rated No. 1 in customer service, with fast nationwide shipping. It’s delivered to your door.


500 lb Safe Working Load

The Lumex STS500 is rated for a 500 lb safe working load, evenly distributed. That covers a wide range of users, including heavier residents and patients. If the person is over 500 lbs, ask us about a lift with a higher rating.


STS500 vs. STS500M: Electric Base or Manual Base?

The difference is how the base works.

STS500 (electric base): power-assisted high/low and powered base open/close. The caregiver presses a button to spread the legs around a chair or wheelchair. It’s a good pick for busy facilities or caregivers who’d rather not use a pedal.

STS500M (manual base): the base legs open and close with a foot pedal, so your hands stay on the person and the lift. It’s a simple choice for home care or for staff who prefer a manual base.


Adjustable Knee Pad and Quick-Release Foot Platform

The knee pad unit adjusts, so you can set it to the person’s leg length and give them steady support as they rise. The foot platform is quick-release. Together they let you fit the lift to the person and support gait training as part of rehab. Talk with the person’s therapist about the right setup.

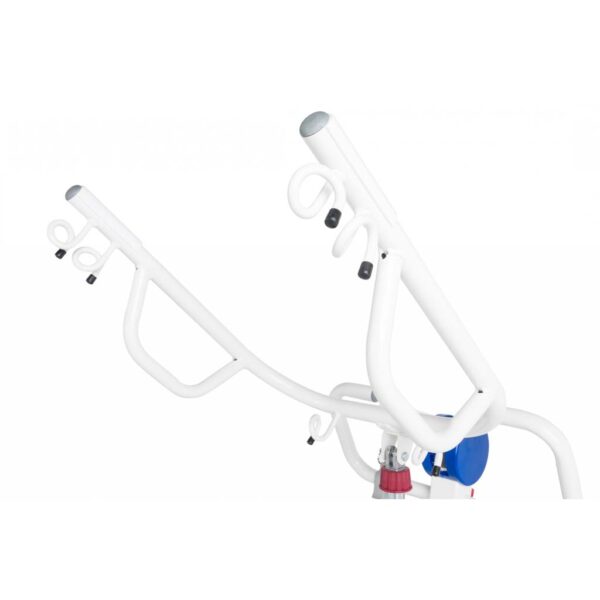

Spreader Bar Adjusts From 19.3 to 74.8 Inches, With Sling Hooks

The spreader bar height adjusts from about 19.3 to 74.8 inches, so you can work with different user heights and transfer surfaces, such as a bed, chair, wheelchair or commode. Sling hooks on the spreader bar hold the sling’s shoulder straps securely, so setting up a transfer is quicker and steadier.

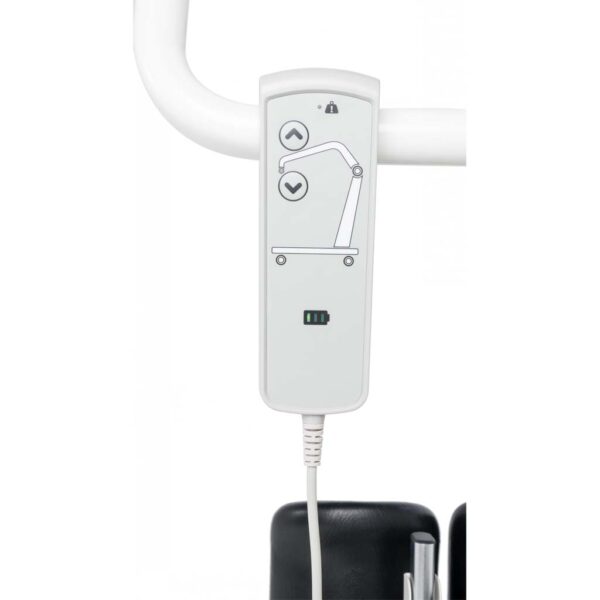

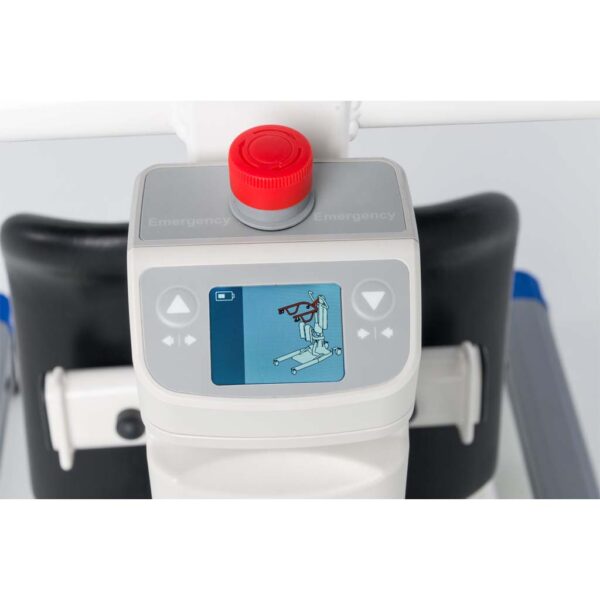

LCD Control Box, Hand Pendant and 24V DC Motor

You can run the lift from the control box with its LCD display or from the hand pendant, which hangs on a hook when you’re not using it. The 24V DC motor is smooth and quiet, which helps keep an anxious person calm during the lift.


What Happens If the Power Goes Out?

The STS500 has a manual lowering device, so the caregiver can bring the person down safely even during a power failure. There’s also an easy-access emergency stop button, and audible and visual alarms warn you about low battery or an overload before they become a problem.


Will It Fit Through My Doorways and Rooms?

With the base closed, the lift is about 25.6 inches wide on the outside, so measure your narrowest doorway and make sure it’s wider than that. Open, the base spreads to about 39.4 inches, and the lift is 40.6 inches long. Leave room beside the bed or chair to open the legs and turn. The 4-inch front casters lock, and the 3-inch rear casters roll freely, which makes it easy to move on different floor types.


Home Care or Facility Use?

Both. The STS500 is built for home care and clinical settings. At home, it lets one family caregiver help a loved one stand without lifting them by hand. In nursing homes, rehab units and home health agencies, the heavy-gauge steel frame holds up to daily use, and the rubber-coated low base legs help protect walls and furniture.


Who Is the Lumex STS500 Best For?

This sit and stand lift is best for people who can bear some of their own weight, hold on with their hands and follow simple directions, but can’t stand up from a chair, bed or wheelchair on their own. It’s a good fit for family caregivers who want to protect their backs, and for facilities that need a dependable lift for residents up to 500 lbs. If you’re still comparing options, our Sit-to-Stand Lift Buying Guide and Patient Lift Knowledge Base walk through the differences.


Who May Need a Different Lift?

If the person can’t bear any weight on their legs, can’t hold on or can’t follow directions, a full-body patient lift (often called a Hoyer lift) is the safer choice. If they only need a little help getting up and can mostly stand on their own, a simpler stand assist device may be enough. If they weigh more than 500 lbs, ask us about a bariatric lift with a higher rating. Call us at 585-505-6665 and we’ll help you sort it out.


Common Problem → Lumex STS500 Solution

Problem: Helping someone stand from a chair or wheelchair by hand is hard on your back, and it’s risky for both of you if they lose their balance.

Solution: The STS500 does the lifting while the person keeps their feet on the platform and their knees against the adjustable pad. The caregiver guides the transfer with the hand pendant, and the manual lowering device and emergency stop are there if something goes wrong.

“My mom can stand once she’s up, but I can’t get her out of the chair anymore. Is this the right kind of lift?” If she can bear some weight and hold on, a lift like this is usually the right fit. Call us and we’ll talk it through.


Slings & Accessories for the Lumex STS500

A sling isn’t listed as included with this lift, so plan on getting one separately. Ask us which sling fits this lift before you order. You can browse our sit-to-stand slings and check sizing in the Patient Lift Sling Knowledge Base. The spreader bar’s sling hooks hold the sling’s shoulder straps.


Lumex STS500 Warranty

The lift comes with the full manufacturer warranty:

  • Frame and spreader bar: 3-year limited warranty
  • Actuator: 2-year limited warranty
  • Batteries: 1-year limited warranty

Key Features

✔ 500 lb Safe Working Load
✔ Steel Frame, Power or Manual Base
✔ 4″ Locking Front, 3″ Rear Casters
✔ Adjustable Knee Pad, Quick-Release Footplate
✔ Emergency Stop and Manual Lowering
✔ LCD Control Box and Hand Pendant


Product Specifications

Models STS500 (electric base), STS500M (manual base)
Safe Working Load 500 lbs (226.8 kg), evenly distributed
Spreader Bar Height Range 19.3″ to 74.8″ (49 to 190 cm)
Base Width (Outside) 25.6″ closed to 39.4″ open (65 to 100 cm)
Overall Length 40.6″ (103 cm)
Floor Clearance 4.3″ (11 cm)
Product Weight Approx. 116.8 lbs
Casters 4″ locking front, 3″ non-locking rear
Frame Heavy-gauge steel, white powder coat
Base Legs Low, rubber-coated
Motor 24V DC
Controls LCD control box and hand pendant with hook
Base Operation STS500: power-assisted high/low and power base open/close; STS500M: manual base with foot pedal
Patient Support Adjustable knee pad unit, quick-release foot platform
Sling Attachment Sling hooks on spreader bar for shoulder straps
Safety Emergency stop button, manual lowering device, low battery and overload audible and visual alarms
Warranty Frame and spreader bar 3-year limited; actuator 2-year limited; batteries 1-year limited

Frequently Asked Questions

What is the Lumex sit and stand lift?

It’s a stand assist lift that helps a person who can bear some weight and hold on rise from sitting to standing with a caregiver’s help. It comes with an electric base (STS500) or a manual base (STS500M) and is rated for 500 lbs.

How much weight can the Lumex STS500 lift?

It has a 500 lb safe working load, evenly distributed. If the person weighs more than that, ask us about a lift with a higher rating.

What’s the difference between the STS500 and the STS500M?

The STS500 has power-assisted high/low and opens and closes its base legs with power. The STS500M has a manual base that opens with a foot pedal, so the caregiver’s hands stay free.

Will the Lumex STS500 fit through my doorways?

The base measures about 25.6 inches wide on the outside when closed, so a doorway wider than that should let it through. The base opens to about 39.4 inches and the lift is 40.6 inches long, so leave room to turn and to open the legs around a chair or wheelchair.

Does the Lumex STS500 come with a sling?

A sling isn’t listed as included, so plan on getting one separately. Ask us which sit-to-stand sling fits this lift; the spreader bar has hooks for the sling’s shoulder straps.

What happens if the power goes out during a transfer?

The lift has a manual lowering device, so the caregiver can still bring the person down safely. There’s also an easy-access emergency stop button and audible and visual alarms for low battery and overload.

Can the Lumex STS500 be used for gait training?

Yes, the adjustable knee pad unit and quick-release foot platform are designed to support gait training as part of rehab. Talk with the person’s therapist about how to set it up for them.

Is it made for home use or for facilities?

Both. It’s built for home care and clinical settings, and its rubber-coated low base legs help protect furniture and walls.

What warranty comes with the Lumex STS500?

The frame and spreader bar have a 3-year limited warranty, the actuator has a 2-year limited warranty and the batteries have a 1-year limited warranty.

Who shouldn’t use a sit-to-stand lift?

Someone who can’t bear any weight on their legs, can’t hold on, or can’t follow simple directions usually needs a full-body patient lift instead. If you’re not sure, ask the person’s doctor or therapist.

Does Medicare help pay for a stand assist lift?

Medicare Part B may help cover a patient lift as durable medical equipment when your doctor prescribes it; coverage depends on your plan and the supplier.

🔗 Sit-to-Stand Guides, Answers & Slings

Still deciding which lift fits the person and the room? These pages cover it, and you can call us at 585-505-6665 any time.

👉 Sit-to-Stand Lift Buying Guide: Matching the Lift to the Person

👉 Hoyer Lift & Patient Lift Knowledge Base

👉 Shop All Stand Assist & Sit-to-Stand Lifts

👉 Sit-to-Stand Slings & Standing Belts

👉 Patient Lift Sling Knowledge Base: Sizing & Fit

PRODUCT SPECIFICATION

Specification STS500 (Powered Base) STS500M (Manual Base)
Model Description Sit-to-Stand Lift with Powered Base Sit-to-Stand Lift with Manual Base
Stock Code STS500 STS500M
Floor Clearance 4.3″ 4.3″
Spreader Bar Height – Min 36.2″ 19.3″
Spreader Bar Height – Max 70″ 74.8″
Overall Length 40.6″ 40.6″
Base Width (Minimum – Outside) 26″ 25.6″
Base Width (Maximum – Outside) 38.6″ 39.4″
Safe Working Load (Evenly Distributed) 500 lb (226.8 kg) 500 lb (226.8 kg)
Product Weight Contact Manufacturer Contact Manufacturer
Frame Construction Heavy-Gauge Steel, Powder Coated Heavy-Gauge Steel, Powder Coated
Casters 4” Locking (Front), 3” Non-Locking (Rear) Same
Electronics Premium LCD, Hand Pendant or Control Box Same
Base Operation Powered Open/Close + High/Low Manual Foot Pedal Mechanism
Knee Pad Adjustable Adjustable
Foot Platform Quick-Release, Removable Quick-Release, Removable
Sling Hook Style Sling Shoulder Strap Hooks Sling Shoulder Strap Hooks
Emergency Lowering Feature Yes – Manual Lowering on Actuator Shaft Yes – Manual Lowering on Actuator Shaft
Battery Warning Visual + Audible Indicator Visual + Audible Indicator
Power Source 24V DC Motor 24V DC Motor
HCPCS Code E0635 Compliant E0635 Compliant

Warranty Information

Component Warranty Coverage
Frame & Spreader Bar 3-Year Limited Warranty
Actuator 2-Year Limited Warranty
Batteries 1-Year Limited Warranty
