Protekt Protopia EXP PMLTC36EXP Hospital Bed, 550 lb, Expands 36″ to 48″, 7″ to 31″ Height | Home Care Bed
$1,325.00
- Rated No. 1 in customer service
- Fast nationwide shipping, delivered to your door
- Manufacturer warranties
- Cash-back rewards on every order
Authorized dealer & provider · Huge selection · Questions? Call 585-505-6665
Protekt Protopia EXP home care hospital bed (PMLTC36EXP) expands from 36″ to 48″ wide with a 7″ to 31″ height range, a welded steel frame and tool-free length adjustment, for home care patients and caregivers. Ships nationwide.
✔ 550 lb Weight Capacity
✔ Heavy-Duty Welded Steel Frame
✔ Eight 3-Inch Casters, 4 Locking
✔ Expands 36″ to 48″ Wide
✔ Low 7″ to 31″ Height Range
✔ Tool-Free Length, 80″ to 88″
-
Fast nationwide shipping, delivered to your door · 30-day returns on eligible products · Shipping & returns details
Share with Friends
- Description
- PRODUCT SPECIFICATION
- Shipping & Returns
- Product PDF downloads
- Reviews (0)
Description
Protekt Protopia EXP Expandable Home Care Hospital Bed – 550 lb Capacity, 36″ to 48″ Width

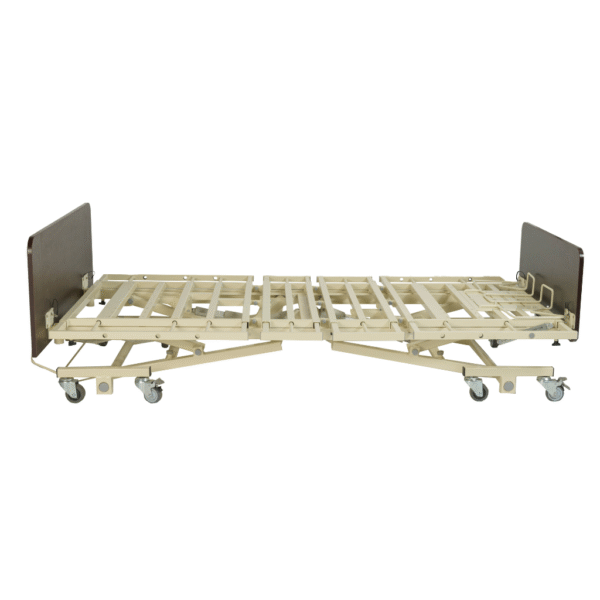

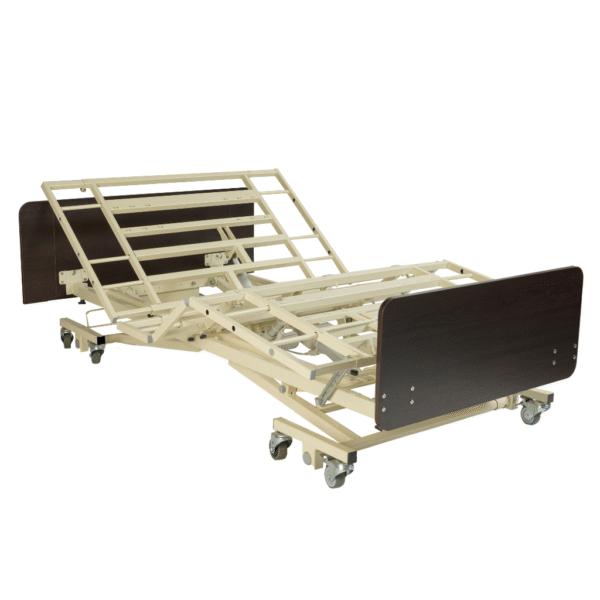

The Protekt Protopia EXP is an expandable home care hospital bed that changes size with the person in it. The width sets to 36, 42 or 48 inches and the length sets to 80, 84 or 88 inches, all without tools. It lowers to 7 inches, raises to 31 inches, sits on a heavy-duty welded steel frame and supports up to 550 lbs.
It’s an adjustable hospital bed you run from an 8-function electric hand pendant with Auto Contour. Quick-release head and foot boards give fast access in an emergency. A wall-saving bumper bar and mattress retainers keep things in place, and eight 3-inch casters (4 locking, 4 swivel) let you roll the bed into position and hold it there.
Families choose it as a hospital bed for elderly parents who are at risk of falls or need more room to turn over. In a long-term care room, one frame can be reset to fit the next resident. Head and foot boards come in Mahogany, Amber Cherry or Oak, and you can add one of four optional rails when you order.
Why Choose the Protekt Protopia EXP?
With a fixed-size bed, you’re stuck with the width and length you bought. The Protopia EXP lets you start at 36 inches wide and 80 inches long, then widen or lengthen it later if the user needs more room. That’s a big deal in a home care hospital bed, because needs often change after the bed is already in the room.
You also get a 7-inch low height for fall concerns, a 550 lb capacity, tool-free setup and a 15-year frame warranty. As an authorized dealer and provider, we offer fast nationwide shipping with the bed delivered to your door, and we’re Rated No. 1 in customer service. Questions before you order? Call us at 585-505-6665.
Who Is This Home Care Hospital Bed Best For?
The Protopia EXP is a good fit for:
- Older adults at risk of falling out of bed or falling while getting up at night
- Larger users up to 550 lbs who feel cramped on a narrow bed
- Taller users who need the length extended to 84 or 88 inches
- Family caregivers who want a bed they can resize later without tools
- Nursing homes, long-term care rooms and home health agencies that reset beds for different residents
If you’re still comparing bed types, our Hospital Bed Buying Guide lays out the options, and the Hospital Bed Knowledge Base covers upkeep, lifespan and room fit.
Who May Need a Different Hospital Bed?
- Users over 550 lbs: choose a bariatric hospital bed with a higher weight rating.
- People who can’t bear weight or help with transfers: the bed won’t move them in and out on its own. Pair the bed with a Hoyer-style patient lift for safe transfers.
- Care plans that call for specific positions, such as Trendelenburg, or a battery backup: those features aren’t listed for this bed, so call us before you order and we’ll point you to a bed that has them.

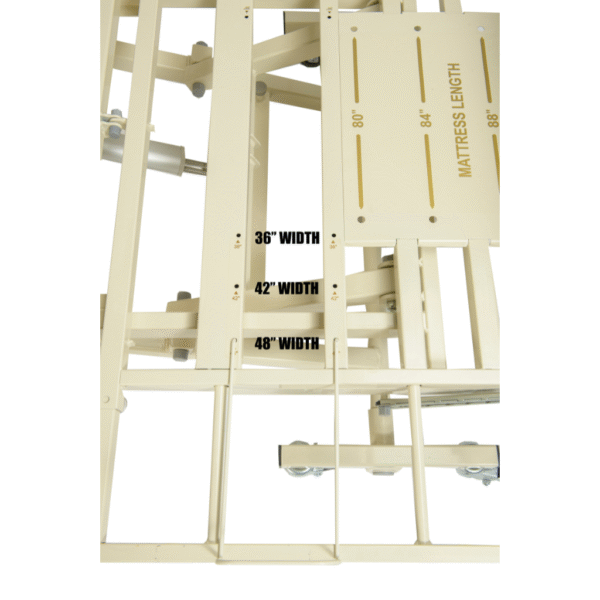

Expandable Width: 36″, 42″ or 48″
The Protopia EXP sets to three widths: 36, 42 or 48 inches. A 36-inch setting suits most users and smaller rooms. The 42 and 48-inch settings give a larger person room to turn and reposition, and they can help a caregiver who needs space to work. You change the width without tools.

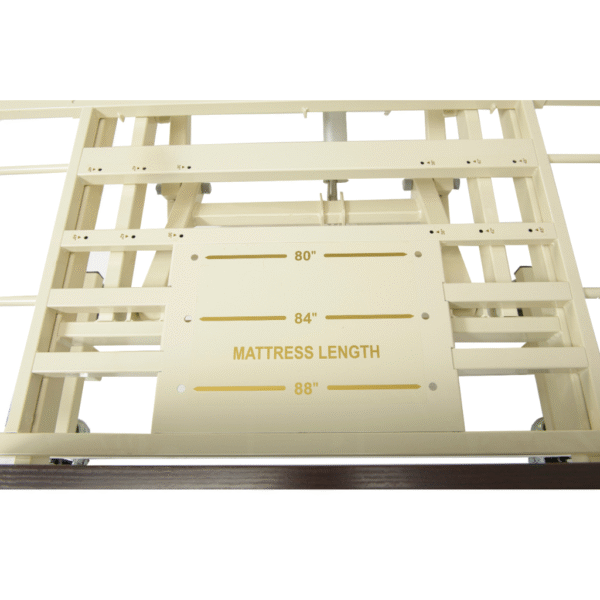

Length Settings From 80″ to 88″ for Taller Users
The length sets to 80, 84 or 88 inches, also without tools. If feet hang off the end or press into the footboard, adding 4 or 8 inches can make the bed much more comfortable for a taller user.
How Low Does It Go? A 7″ to 31″ Height Range
The bed lowers to 7 inches and raises to 31 inches. At the low end, there’s less distance to the floor if someone rolls out or slips while getting up. At the high end, caregivers can work at a better height for changing linens, bathing or repositioning without bending as far.
550 lb Weight Capacity on a Welded Steel Frame
The Protopia EXP is built on a heavy-duty welded steel frame with a 550 lb weight capacity. Paired with the 48-inch width setting, that makes it an option for many bariatric users. If the user is close to or over 550 lbs, call us about a bed with a higher rating.
What Does the 8-Function Pendant With Auto Contour Do?
The bed runs from an 8-function electric hand pendant. One of those functions is Auto Contour, which Protekt includes for smooth repositioning. If you’d like to know exactly what each of the eight buttons does, call us and we’ll walk you through them.
100% Tool-Free Setup and Adjustment
You don’t need tools to set up the Protopia EXP or to change its width and length. That helps families who set up the bed themselves, and it helps facilities that resize beds between residents.
Quick-Release Head and Foot Boards, Bumper Bar and Mattress Retainers
The head and foot boards are quick-release, so caregivers can get them out of the way fast in an emergency. A wall-saving bumper bar and mattress retainers help keep the bed and mattress where they belong.
Eight 3″ Casters: 4 Locking, 4 Swivel
The bed rolls on eight 3-inch casters. Four swivel so you can steer the bed into place, and four lock so it stays put once it’s there. Lock the casters before anyone gets in or out of bed.
Will the Protopia EXP Fit My Room and Doorways?
Plan floor space for the size you’ll use, up to 48 inches wide and 88 inches long at the largest setting. Leave room on at least one side for a caregiver, a wheelchair or a lift. Overall outside and boxed dimensions aren’t listed for this bed, so give us your narrowest doorway, hallway and bedroom measurements and we’ll check before you order.
Mahogany, Amber Cherry or Oak Finish
Head and foot boards come in three finishes: Mahogany, Amber Cherry and Oak. The residential look helps the bed feel like part of a bedroom, not a hospital room.
Protopia EXP vs. a Fixed-Width Hospital Bed
A fixed-width hospital bed stays the size you bought. If the user later needs more room, you’re shopping for a new bed. The Protopia EXP resets from 36 to 42 or 48 inches wide and from 80 to 84 or 88 inches long without tools. If you’re sure the user will never need more than a standard width and you’re tight on space, a simpler fixed-width bed may be all you need. Call us and we’ll help you compare.
Common Problem → Protopia EXP Solution
Problem: Dad gets up at night and has already slipped off a standard-height bed once. He’s also a bigger man and feels cramped on a narrow mattress.
Solution: The Protopia EXP lowers to 7 inches, so he’s closer to the floor, and widens to 42 or 48 inches for more room to turn. Four locking casters keep the bed from rolling, and you can add a quarter side rail or an assist bar when you order.
“Can we start at 36 inches so it fits his bedroom now, and widen it later if he needs more room?” Yes. The width changes without tools, so you can widen it later.
Mattresses, Rails & Accessories for the Protopia EXP
Mattress: pick one that matches the width and length you set the bed to. At 42 or 48 inches, that means a wide or bariatric mattress sized to the deck. A mattress isn’t listed with this bed, so browse our hospital bed mattresses and ask us which fit this frame.
Rails: you can order the bed with no rail, a Quarter Side Rail, a Pivot Assist Bar, a Qbar Assist Bar or a SoftTouch Swing Rail. For other bed rails and hospital bed accessories, ask us which fit this frame.
Trapeze: if the user pulls up to reposition, see our trapeze bars and ask us which fit this frame.
Protekt Protopia EXP Warranty
The Protopia EXP comes with a full manufacturer warranty: 15 years on the frame, 5 years on electrical parts and 1 year on other parts.
Key Features
✔ 550 lb Weight Capacity
✔ Heavy-Duty Welded Steel Frame
✔ Eight 3-Inch Casters, 4 Locking
✔ Expands 36″ to 48″ Wide
✔ Low 7″ to 31″ Height Range
✔ Tool-Free Length, 80″ to 88″
Product Specifications
| Brand | Protekt |
| Model | Protopia EXP |
| Bed Type | Expandable home care hospital bed |
| Height Range | 7″ to 31″ |
| Width Settings | 36″, 42″, 48″ (tool-free) |
| Length Settings | 80″, 84″, 88″ (tool-free) |
| Weight Capacity | 550 lbs |
| Frame | Heavy-duty welded steel |
| Hand Pendant | 8-function electric, with Auto Contour |
| Casters | Eight 3″ casters: 4 locking, 4 swivel |
| Head and Foot Boards | Quick-release, for emergency access |
| Other Features | Wall-saving bumper bar, mattress retainers |
| Assembly | 100% tool-free setup |
| Optional Rails | None, Quarter Side Rail, Pivot Assist Bar, Qbar Assist Bar, SoftTouch Swing Rail |
| Head and Foot Board Colors | Mahogany, Amber Cherry, Oak |
| Warranty | Frame 15 years, electrical 5 years, other parts 1 year |
Frequently Asked Questions
What is the Protekt Protopia EXP?
It’s an expandable electric hospital bed that adjusts in width from 36 to 48 inches and in length from 80 to 88 inches, all without tools. It lowers to 7 inches, raises to 31 inches, supports up to 550 lbs and runs from an 8-function hand pendant with Auto Contour.
How much weight can the Protopia EXP hold?
The Protopia EXP has a 550 lb weight capacity. If the user is over 550 lbs, call us about a bariatric bed with a higher rating.
What width and length settings does it have?
The width sets to 36, 42 or 48 inches and the length sets to 80, 84 or 88 inches. Both changes are tool-free, so you can resize the bed if the user’s needs change.
How low does the bed go?
The bed’s height range is 7 to 31 inches. The low end shortens the distance to the floor for someone at risk of falls, and the high end gives caregivers a better working height.
Will the Protopia EXP fit through my doorways and in my room?
Plan floor space for the size you’ll use, up to 48 inches wide and 88 inches long at the largest setting. Overall outside and boxed dimensions aren’t listed for this bed, so give us your narrowest doorway and hallway measurements and we’ll check before you order.
What’s included, and what’s sold separately?
The bed comes with its 8-function hand pendant, quick-release head and foot boards, wall-saving bumper bar, mattress retainers and eight 3-inch casters, plus the rail option you pick (or none). A mattress isn’t listed as included, so ask us to confirm and to match one to the width you’ll use.
What mattress fits the Protopia EXP?
Choose a mattress that matches the width and length you set the bed to, from 36 inches wide up to 48 inches wide and from 80 to 88 inches long. A specific mattress isn’t named for this frame, so ask us which of our hospital bed mattresses fit before you buy.
Which rail option should I choose?
You can order the bed with no rail or with a Quarter Side Rail, Pivot Assist Bar, Qbar Assist Bar or SoftTouch Swing Rail. The right choice depends on how the person gets in and out of bed and on the policies of the care setting, so call us and we’ll help you pick.
Is this home care hospital bed for home use or facility use?
It’s made for both, from a bedroom at home to a long-term care room. The tool-free width and length changes let one frame be reset to fit the next resident.
Do I need tools to set up or adjust the bed?
No. Setup and the width and length adjustments are 100% tool-free.
What warranty comes with the Protopia EXP?
The Protopia EXP has a 15-year frame warranty, a 5-year warranty on electrical parts and a 1-year warranty on other parts. Ask us if you’d like the full warranty terms.
Does Medicare cover a hospital bed?
Medicare Part B may help cover a hospital bed as durable medical equipment when your doctor prescribes it; coverage depends on your plan and the supplier. Ask your doctor and your plan what applies to you.
🔗 Hospital Bed Guides, Answers & Accessories
Still comparing beds, or planning the room? These pages cover it, and you can call us at 585-505-6665 any time.
👉 Hospital Bed Buying Guide: Choosing the Right Bed by Condition
👉 Hospital Bed Knowledge Base: Features, Upkeep & Room Fit
👉 Shop All Hospital Beds for Home Use
👉 Hospital Bed Mattresses (Foam, Low Air Loss & Alternating Pressure)
PRODUCT SPECIFICATION
| Feature | Details |
|---|---|
| Bed Type | Home Care Hospital Bed |
| Height Range | 7” – 31” |
| Expandable Width | 36”, 42”, 48” (Tool-Free Adjustment) |
| Adjustable Length | 80”, 84”, 88” (Tool-Free) |
| Weight Capacity | 550 lbs |
| Frame Material | Heavy-Duty Welded Steel |
| Hand Pendant | 8-Function with Auto Contour |
| Mobility | (8) 3” Casters – 4 Locking, 4 Swivel |
| Assembly | 100% Tool-Free Setup |
| Optional Rails | Quarter, Pivot, QBar, SoftTouch Swing Rail |
| Color Options | Mahogany, Amber Cherry, Oak |
| Warranty – Electrical | 5 Years |
| Warranty – Frame | 15 Years |
| Warranty – Other Parts | 1 Year |
