Lumex 30″ Bariatric Shower Commode Chair – PVC Commode Bath Chair, 700 lb Capacity
$1,052.99
- Rated No. 1 in customer service
- Fast nationwide shipping, delivered to your door
- Manufacturer warranties
- Cash-back rewards on every order
Authorized dealer & provider · Huge selection · Questions? Call 585-505-6665
✔ 700 lb Weight Capacity
✔ Health Care Grade PVC Frame
✔ 5″ Heavy-Duty Casters
✔ 30″ Seat, 30″ Between Arms
✔ Curved Arms with Anti-Slip Grips
✔ Optional Sliding Footrest
-
Fast nationwide shipping, delivered to your door · 30-day returns on eligible products · Shipping & returns details
Share with Friends
- Description
- PRODUCT SPECIFICATION
- Shipping & Returns
- Reviews (0)
Description

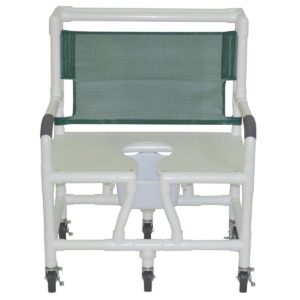

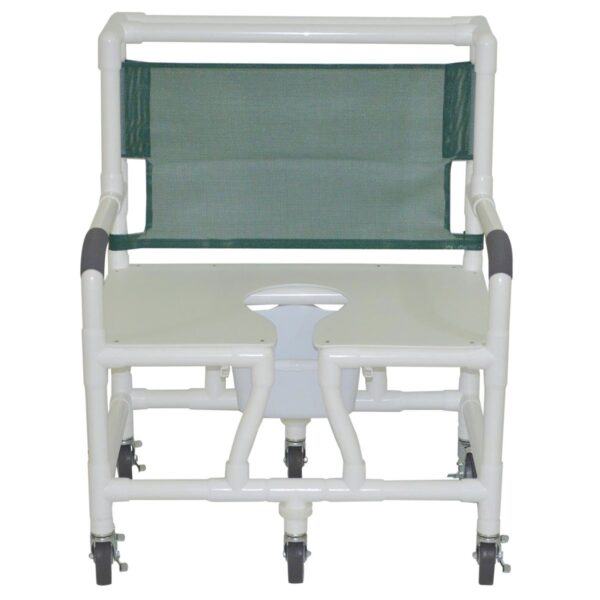

Lumex 30″ Bariatric PVC Commode Bath Chair – 30 Inch Bariatric Shower Commode Chair, 700 lb Capacity
The Lumex 30″ Bariatric PVC Commode Bath Chair is the largest chair in the Lumex PVC shower line: a 30 inch bariatric shower commode chair rated by Graham-Field for 700 lb. It gives the user 30″ between the arms, a 21 1/2″ deep elongated open-front seat and a frame of health care grade PVC that won’t rust in the shower.
A caregiver rolls the user into the shower on 5″ heavy-duty casters, the biggest casters in the Lumex PVC range. The open-front seat leaves room for washing and hygiene care while the user stays seated, which is why GF calls it a bariatric commode bath chair. One thing to know up front: Graham-Field states that this chair cannot be used over a toilet.
Choose it with or without the sliding footrest; the dropdown explains the difference. Like every Lumex PVC chair it has a quick-drying removable mesh back and curved arms with anti-slip handgrips. If you’ve been searching for a 30 inch shower commode because a 26″ chair is too tight, this is the step up.
Why Choose the Lumex 30″ Bariatric Commode Bath Chair?
When a large user is squeezed into a chair that’s too narrow, every shower turns into a struggle: the arms dig in, the user perches on the edge, and the caregiver can’t reach to wash. The 30″ chair fixes the fit first. There’s 30″ of room between the arms and a 30″ wide seat, and the 700 lb rating leaves a real margin.
Graham-Field adds dual reinforcement where the casters fit into the frame, threaded stem casters, and an extra heavy-duty contoured seat. The PVC frame is health care grade and the mesh back dries fast. We’re an authorized dealer and provider with fast nationwide shipping, delivered to your door. Want us to check the measurements with you first? Call 585-505-6665.
Who Is the 30″ Bariatric Commode Bath Chair Best For?
It’s the right size for:
- Users up to 700 lb who need to sit for the whole shower
- Users whose hips are too wide for a 26″ chair
- Caregivers and facilities who roll the user from the bedroom into a roll-in shower
- People who need an open-front seat for washing and hygiene care
- Homes with a curbless or roll-in shower and doorways wider than 34″
Our guide to choosing the best shower commode chair for elderly users walks through sizes, casters and footrests if you’re still deciding.
Who May Need a Different Shower Commode Chair?
Because it can’t be used over a toilet, this chair isn’t the answer if you want one chair for the shower and the toilet. It also needs room: it’s 34″ wide and 28 1/4″ deep overall, so measure every doorway and the shower entrance on the route. If the user fits comfortably in 26″ between the arms, the Lumex 26″ bariatric PVC shower commode chair (425 lb) is narrower. For an average-size user, the Lumex 22″ PVC shower commode chair (375 lb) is the standard pick.
Choosing Your Options

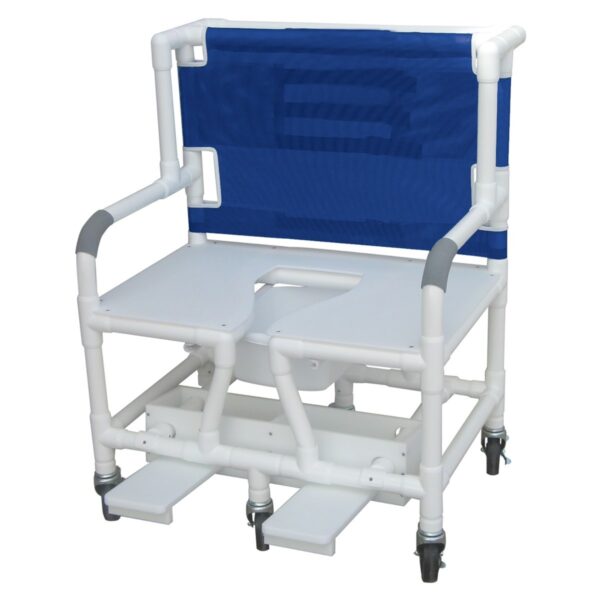

There’s one dropdown: Footrest. Both versions are the same 30″ chair with the same measurements and the same 700 lb rating; the only difference is the footrest.
| Footrest | Graham-Field code | Pick it when |
|---|---|---|
| Without footrest | 89350 | The user can lift their feet clear of the floor while the caregiver rolls the chair, or the chair is only moved a short way, such as across the bathroom. |
| With sliding footrest | 89351 | The user is rolled farther, from a bedroom to the shower, or can’t hold their feet up. The footrest slides in or out, so it can be pushed back out of the way when the user gets on or off. |
How to choose: a user’s feet must never drag on the floor while the chair is moving. If they can’t keep them up on their own for the whole trip, choose the sliding footrest. Not sure? Call us at 585-505-6665.
700 lb Weight Capacity
This is the highest weight rating in the Lumex PVC shower chair line, according to Graham-Field’s own chart: 700 lb, evenly distributed. The user should sit back and centered on the seat, not on the front edge.
30″ Seat, 30″ Between the Arms
The seat is 30″ wide and 21 1/2″ deep, with 30″ between the arms, so a large user can sit square and the caregiver can reach the user’s sides. The arms are curved, with no sharp edges, and the anti-slip handgrips give the user something solid to hold while sitting down.
Elongated Open-Front Commode Seat
GF describes the seat as deluxe, elongated, extra heavy-duty and contoured, with an open front. The opening gives a caregiver access for washing and personal care without the user standing up. Graham-Field’s spec sheet says the 30″ chairs can’t be placed over a toilet, so plan on using it in the shower. GF doesn’t list a commode pail for this chair; ask us if you need one.
5″ Heavy-Duty Threaded Stem Casters
The 30″ chair rides on 5″ heavy-duty casters, a size up from the 4″ casters on the 26″ chair. Larger casters roll more easily over a shower threshold or grout lines with a heavy load. The casters screw into reinforced fittings (threaded stem), which GF calls out as an added safety feature. Ask us which casters lock before you order if that matters for your set-up.

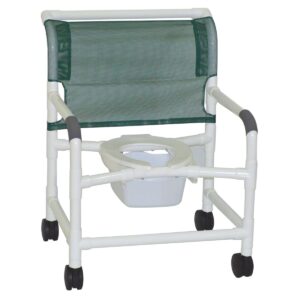

30″ Bariatric vs. 26″ Bariatric PVC Shower Commode Chair
Both are Lumex bariatric PVC chairs with open-front seats, mesh backs and an optional sliding footrest. The 26″ chair is rated for 425 lb, is 30″ wide overall, has a 20″ seat height and 4″ casters. The 30″ chair is rated for 700 lb, is 34″ wide overall, has a 23″ seat height and 5″ casters, and Graham-Field says it can’t go over a toilet. Choose the 26″ if the user fits in it; choose the 30″ for more width and the higher weight rating.
Common Problem → 30″ Bariatric Commode Bath Chair Solution
Problem: A home care agency has a client who weighs close to 500 lb. The 26″ shower chair they tried pinches at the hips, so he showers once a week at most and the aides worry about him sliding off the front.
Solution: The 30″ chair gives him 30″ between the arms and a 21 1/2″ deep seat, so he sits all the way back. The aides roll him into the roll-in shower on the 5″ casters with his feet on the sliding footrest, and the open front lets them wash him without asking him to stand.
“Will it go through his bathroom door?” The chair is 34″ wide overall, so the doorway needs to be wider than that. Measure first, or call us and we’ll go over it with you.
Sizing & Fit
- Weight: up to 700 lb, evenly distributed.
- Hips: 30″ between the arms. Measure the user’s hips while seated; there should be some room on each side.
- Seat: 30″ wide, 21 1/2″ deep, 23″ from the floor.
- Doorways and shower entry: the chair is 34″ wide, 28 1/4″ deep and 43″ tall overall. Every doorway on the route has to be wider than 34″.
- Toilet: cannot be used over a toilet (Graham-Field).
Colors
Graham-Field ships this chair with Royal Blue mesh as standard. Forest Green and Mauve, in anti-bacterial mesh or anti-bacterial solid vinyl, are made to order through Graham-Field, so ask us before you buy if you want a different color or a vinyl back. A positioning belt (Lumex item 89301) is sold separately.
Care & Cleaning
Wipe the PVC frame with a non-abrasive cleanser and never use solvents. Rinse soap off the mesh back and let it air dry; it’s made to dry quickly. Keep the casters free of hair and mop threads, and check them and the frame fittings regularly. Graham-Field’s PVC chair instructions say not to use a chair whose casters are rusted or stiff or whose fittings are cracked. If you have the sliding footrest, brush soap build-up off the sliding surface so it keeps moving freely.
30″ Bariatric Commode Bath Chair Warranty
Graham-Field lists a one (1) year limited warranty on the PVC frame and a six (6) month limited warranty on all other materials. Call us at 585-505-6665 for the full terms.
Key Features
✔ 700 lb Weight Capacity
✔ Health Care Grade PVC Frame
✔ 5″ Heavy-Duty Casters
✔ 30″ Seat, 30″ Between Arms
✔ Curved Arms with Anti-Slip Grips
✔ Optional Sliding Footrest
Product Specifications
| Brand | Lumex by Graham-Field |
| Model | 30″ Bariatric Commode Bath Chair |
| Options (Graham-Field code) | Without footrest (89350); With sliding footrest (89351) |
| UPC | 89350: 717076097673; 89351: 717076097680 |
| Type | Bariatric rolling PVC shower commode chair (shower use; cannot be used over a toilet) |
| Weight Capacity | 700 lb (317.51 kg), evenly distributed |
| Seat Width | 30″ |
| Seat Depth | 21 1/2″ |
| Width Between Arms | 30″ |
| Seat Height | 23″ |
| Overall Height | 43″ |
| Overall Width | 34″ |
| Overall Depth | 28 1/4″ |
| Seat | Deluxe elongated, extra heavy-duty, contoured open-front seat |
| Frame | Health care grade PVC, dual-reinforced caster fittings |
| Casters | 5″ heavy-duty, threaded stem |
| Back | Quick-drying removable mesh back |
| Arms | Ergonomic curved arms with anti-slip handgrips |
| Footrest | Sliding (telescoping) footrest on 89351 only |
| Color | Royal Blue mesh standard; Forest Green or Mauve, mesh or solid vinyl, by special order (ask us) |
| Accessory | Positioning belt, Lumex 89301, sold separately |
| Warranty | 1 year limited on PVC frame; 6 months limited on all other materials |
| Product Weight | Ask us |
Frequently Asked Questions
What is the Lumex 30″ bariatric commode bath chair?
It’s the widest Lumex PVC shower commode chair: 30″ between the arms, a 21 1/2″ deep open-front seat and a 700 lb weight capacity. A caregiver rolls the user into the shower on 5″ heavy-duty casters.
How much weight does it hold?
Graham-Field rates it for 700 lb (317.51 kg), evenly distributed. Both the with-footrest and without-footrest versions carry the same rating.
Can it be used over a toilet?
No. Graham-Field states that the 89350 and 89351 cannot be used over a toilet. If you need a chair that rolls over the toilet, call us and we’ll help you pick one.
What does the footrest option change?
Only the footrest. Code 89351 adds a sliding footrest that moves in or out; code 89350 has none. The seat, frame, casters and weight rating are the same.
Do I need the sliding footrest?
If the user can’t keep their feet off the floor for the whole roll, yes. Feet must never drag while the chair moves, and the footrest gives them a place to rest.
How wide is the chair?
It’s 34″ wide, 28 1/4″ deep and 43″ tall overall, with 30″ between the arms. Doorways on the route need to be wider than 34″.
What is the seat height?
The seat is 23″ from the floor. Graham-Field doesn’t list a height adjustment for this chair.
What size are the casters?
It rolls on 5″ heavy-duty casters with threaded stems that screw into reinforced fittings. Ask us which casters lock if you need that detail before ordering.
Does it come with a commode pail?
Graham-Field doesn’t list a pail for this chair. Call us and we’ll confirm what’s in the box before you order.
What colors are available?
It ships with Royal Blue mesh as standard. Forest Green and Mauve, in mesh or solid vinyl, are a special order through Graham-Field, so ask us.
How do I clean it?
Wipe the PVC frame with a non-abrasive cleanser and no solvents, rinse the mesh and let it air dry, and keep the casters clear of hair and threads. Stop using the chair if a caster is rusted or a fitting is cracked.
What warranty does it have?
Graham-Field gives a one-year limited warranty on the PVC frame and six months on all other materials.
