Graham-Field Lumex SURELIFT Universal Sling – Divided Leg Sling for 2, 4 or 6-Point Spreader Bars, Padded or Mesh, 400 to 600 lb
$89.00
- Rated No. 1 in customer service
- Fast nationwide shipping, delivered to your door
- Manufacturer warranties
- Cash-back rewards on every order
Authorized dealer & provider · Huge selection · Questions? Call 585-505-6665
✔ 400 lb Capacity, 600 lb XX-Large
✔ Seated, Supine and Floor Transfers
✔ Fits 2, 4 or 6-Point Spreader Bars
✔ Padded Fabric or Bathing Mesh
✔ Reinforced Back, Adjustable Straps
✔ Machine Washable, 6-Month Warranty
-
Fast nationwide shipping, delivered to your door · 30-day returns on eligible products · Shipping & returns details
Share with Friends
- Description
- PRODUCT SPECIFICATION
- Shipping & Returns
- Product PDF downloads
- Reviews (0)
Description
Graham-Field Lumex SURELIFT Universal Sling – Divided Leg Sling for 2, 4 or 6-Point Spreader Bars
The Graham-Field Lumex SURELIFT is a universal sling for patient lift users, also called a divided leg sling. Graham-Field calls universal slings the easiest sling to use when transferring a resident from a seated position, and they can also lift from a supine position, so one sling covers most lifting situations.
It’s used for transfers from bed to chair, wheelchair or toilet, chair to chair, or from the floor to a bed or chair, for residents who are totally or partially dependent, non-weight bearing or bariatric. The large opening accommodates toileting. Lumex universal slings have four or six connection points and work with 2, 4 or 6-point spreader bars.
Choose padded fabric (Medium, Large or XX-Large bariatric) or mesh (Medium or Large) in the dropdown above. This version has no head support; for head support, see the SURELIFT universal sling with full head support.
Why Choose a Universal Sling for Patient Lift Transfers?
A universal sling goes on without rolling the patient: the back section slides behind them and the two leg pieces pass under each thigh. That’s why caregivers reach for it first for seated transfers. The SURELIFT adds a reinforced back for support, padding on the legs and back of the non-mesh version, height-adjustable straps and six-point connectivity designed to improve positioning and safety. It’s machine washable and backed by a six month limited warranty.
Who Is This Universal Sling for Patient Lift Use Best For?
The SURELIFT universal sling is a good fit for:
- Residents who are totally or partially dependent or non-weight bearing
- Bed to chair, wheelchair or toilet transfers, chair to chair, and floor to bed or chair
- Bariatric users (choose the XX-Large padded, rated 600 lb)
- Bathing transfers (choose the mesh version)
Compare sling types in our sling knowledge base or use the sling assessment tool.
Who May Need a Different Sling?
- Limited head control: Graham-Field says these users should use a universal sling with head support, like the SURELIFT with full head support.
- Lifting from lying down as the main use: a full-body sling is the easiest sling from a supine position.
- Patients who can bear weight: a sit-to-stand lift and sling may suit them better.
- Clothing removal for toileting only: a padded toileting sling is cut for that.
400 lb Capacity, 600 lb in XX-Large
Graham-Field rates this universal sling for patient lift transfers at 400 lb (181.4 kg) in Medium and Large (padded and mesh), and the XX-Large bariatric padded sling for 600 lb (272.2 kg), evenly distributed. Your lift also has a rating, so use the lower number.
Fits 2, 4 or 6-Point Spreader Bars
The SURELIFT has four or six connection points, so it can hang from a 2, 4 or 6-point spreader bar. Graham-Field designs the six-point connectivity to improve positioning and safety. It works with Lumex floor lifts such as the Lumex hydraulic patient lift and the Lumex electric floor lift.
Padded or Mesh
Non-mesh versions of this universal sling for patient lift use have padding on the legs and back for comfort during dry transfers. Graham-Field recommends mesh slings for bathing because they drain and dry quickly.
Universal Sling Sizes

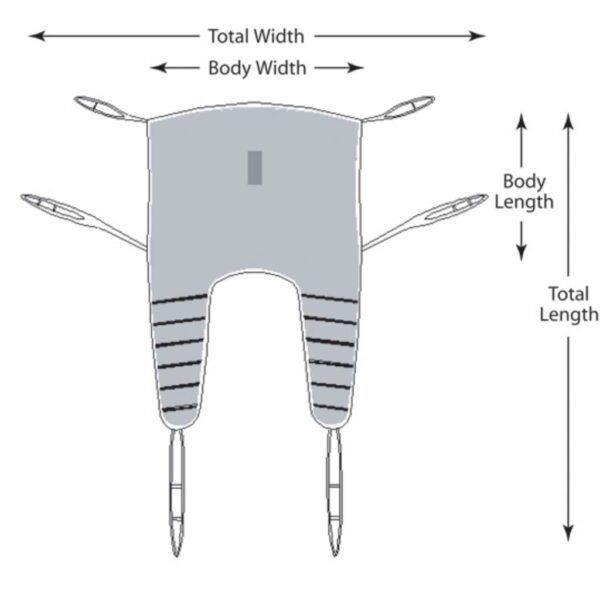

Each version has its own Graham-Field stock code. Body width and length per the Graham-Field product sheet:
| Stock Code | Size | Material | Body Width x Length | Capacity |
| UP892 | Medium | Padded fabric | 40″ x 25.6″ | 400 lb |
| UP893 | Large | Padded fabric | 43.5″ x 23.8″ | 400 lb |
| UP894 | XX-Large (bariatric) | Padded fabric | 46.75″ x 28.8″ | 600 lb |
| MS882 | Medium | Mesh | 40.5″ x 25.8″ | 400 lb |
| MS883 | Large | Mesh | 45″ x 24.75″ | 400 lb |
If you’re between sizes, call us at 585-505-6665.
Common Problem → Universal Sling Solution
Problem: a non-weight-bearing patient sits in a wheelchair all day, and getting a full-body sling under them for a toilet trip means standing them up or tipping them.
Solution: slide the universal sling behind the back, pass the leg pieces under each thigh, attach to the spreader bar and lift. The large opening allows toileting.
Can I use it from the floor after a fall? Yes. Graham-Field lists floor to bed or chair transfers.
Sizing & Fit
On a universal sling for patient lift transfers, the back section should support from the lower back upward, and the leg pieces should sit under the mid-thigh, not behind the knees. Use the height-adjustable straps to set how upright the patient sits. Follow Graham-Field’s universal sling application instructions and do a test lift first.
Care & Cleaning
This universal sling for patient lift use is machine washable. Follow the care label, and inspect straps, loops and stitching before every use.
What’s Included
One Graham-Field Lumex SURELIFT universal sling in the material and size you choose. The lift and spreader bar are sold separately.
Warranty
Graham-Field covers this sling with a six (6) month limited warranty.
Key Features
✔ 400 lb Capacity, 600 lb XX-Large
✔ Seated, Supine and Floor Transfers
✔ Fits 2, 4 or 6-Point Spreader Bars
✔ Padded Fabric or Bathing Mesh
✔ Reinforced Back, Adjustable Straps
✔ Machine Washable, 6-Month Warranty
Product Specifications
| Brand | Graham-Field (Lumex) |
| Model | SURELIFT Universal Sling (no head support) |
| Stock Codes | UP892, UP893, UP894 (padded); MS882, MS883 (mesh) |
| Type | Universal (divided leg) sling |
| Weight Capacity | 400 lb (181.4 kg); UP894 XX-Large: 600 lb (272.2 kg) |
| Connection Points | Four or six; fits 2, 4 or 6-point spreader bars |
| Materials | Padded fabric or mesh |
| Features | Reinforced back, padded legs and back (non-mesh), height-adjustable straps, large toileting opening |
| Care | Machine washable |
| Warranty | 6-month limited |
Frequently Asked Questions
What is a universal sling for a patient lift?
It’s a divided leg sling that’s easy to fit from a seated position and can also be used from lying down. Graham-Field calls it suitable for most lifting situations.
Will this universal sling for patient lift use fit my lift?
It has four or six connection points and fits 2, 4 or 6-point spreader bars. Call us at 585-505-6665 with your lift model to confirm.
What is the weight capacity?
400 lb for Medium and Large (padded or mesh), and 600 lb for the XX-Large bariatric padded sling.
Should I choose mesh or padded?
Mesh for bathing because it drains and dries quickly; padded fabric for everyday dry transfers.
Does it have head support?
No. For head support, choose the SURELIFT universal sling with full head support.
Can I wash it?
Yes, it’s machine washable. Follow the care label.
🔗 Patient Lift Sling Guides, Answers & Tools
Want help choosing a sling? Start with these pages, or call us at 585-505-6665 and we’ll match a sling to your lift.
👉 Patient Lift Sling Knowledge Base
👉 Patient Lift Sling Assessment Tool
PRODUCT SPECIFICATION
| Stock Code | Description | Sling Size | Body Width | Body Length |
|---|---|---|---|---|
| MS882 | Universal Mesh Sling with Head Support | Medium | 40.5″ | 25.8″ |
| MS883 | Universal Mesh Sling with Head Support | Large | 44.5″ | 24.75″ |
| UP892 | Universal Padded Sling with Head Support | Medium | 40″ | 25.6″ |
| UP893 | Universal Padded Sling with Head Support | Large | 43.5″ | 23.8″ |
| UP894 | Universal Padded Sling with Head Support | XX-Large (Bariatric) | 48.5″ | 28.8″ |
