Invacare 9000 XT Wheelchair – Dual Axle, Adjustable Center of Gravity, Space Saver Desk Arms, 16″, 18″ or 20″ Seat
$585.00
- Rated No. 1 in customer service
- Fast nationwide shipping, delivered to your door
- Manufacturer warranties
- Cash-back rewards on every order
Authorized dealer & provider · Huge selection · Questions? Call 585-505-6665
✔ 250 lb Capacity, 16″, 18″ or 20″ Seat
✔ Adjustable Center of Gravity (Offset Axle)
✔ Dual Axle: 19.5″ Adult or 17.5″ Hemi
✔ Space-Saver Desk or Full-Length Arms
✔ 31 lb Chair, Folds to 12″ Wide
✔ Back Height Adjusts 15″ to 19″
-
Fast nationwide shipping, delivered to your door · 30-day returns on eligible products · Shipping & returns details
Share with Friends
- Description
- PRODUCT SPECIFICATION
- Shipping & Returns
- MANUAL/INSTRUCTIONS
- Reviews (6)
Description
Invacare 9000 XT Wheelchair – Dual Axle, Adjustable Center of Gravity, Space-Saver Arms, 16″, 18″ or 20″ Seat
The Invacare 9000 XT Wheelchair is the most adjustable chair in Invacare’s 9000 series. On top of a dual axle for seat height, it has an offset axle that moves the rear wheels for center-of-gravity adjustment, so the chair can be set to push and turn easier for an active user or to sit more stable for a less steady one. It weighs about 31 lb without front rigging, folds to 12″ wide and carries users up to 250 lb.
This model comes with fixed-height space-saver arms (desk length, or full length on the 18″ chair) and a 16″ deep seat in 16″, 18″ or 20″ widths. Urethane rear tires on “no flex” wheels and urethane casters give a light, smooth roll, and black nylon upholstery with heavy-duty inner liners keeps its shape. Footrests or elevating legrests are chosen in the options above.
Comparing chairs? Our most comfortable wheelchair guide shows where an adjustable chair like the 9000 XT fits against standard, lightweight and reclining models, and the Manual Wheelchair Knowledge Base explains seat height, center of gravity and sizing. See all our manual wheelchairs to compare.
Why Choose the Invacare 9000 XT Wheelchair?
Most standard wheelchairs are set one way at the factory. The 9000 XT lets you fit the chair to the user: the dual axle sets the seat height, the offset axle sets the balance point, and the back height adjusts from 15″ to 19″. A chair with the wheels set forward takes less effort to push and turn; set back, it resists tipping. Invacare pairs that with low-maintenance dual-sealed precision bearings, and the parts interchange with other 9000 series and Tracer series chairs, so service is simple for years.
Who Is the Invacare 9000 XT Best For?
The 9000 XT is a good fit for:
- Users who spend much of the day in the chair and push themselves
- Users who need the balance tuned for easier pushing or more stability
- Shorter users or foot propellers who need the 17.5″ hemi seat height
- Narrow homes, thanks to the space-saver arms
- Users up to 250 lb in a 16″, 18″ or 20″ seat
Choose something else if the user needs:
- A simpler chair at a lower cost: see the Invacare Tracer EX2 or Invacare 9000 SL
- The lightest chair to lift into a car: see our lightweight wheelchairs
- A capacity over 250 lb: see our heavy duty wheelchairs
Invacare 9000 XT Specifications
| Model numbers | 9XT_PTO_29154 (16″ x 16″, desk arms); 9XT_PTO_29153 (18″ x 16″, desk arms); 9XT_PTO_29155 (18″ x 16″, full arms); 9XT_PTO_33131 (20″ x 16″, desk arms) |
|---|---|
| Weight capacity | 250 lb |
| Seat width | 16″, 18″ or 20″ |
| Seat depth | 16″ |
| Seat to floor height | 17.5″ hemi or 19.5″ adult (dual axle) |
| Center of gravity | Adjustable (offset axle) |
| Back height | 15″ to 19″, adjustable in 1″ steps |
| Overall width | 23″ (16″ seat); 25″ (18″ seat); 27″ (20″ seat) |
| Overall height | 36″ |
| Overall depth (without riggings) | 28″ |
| Folded width | 12″ |
| Arms | Space-saver, fixed height; desk length or full length |
| Rear wheels | 24″ urethane on “no flex” wheels |
| Front casters | Urethane |
| Chair weight | 31 lb without front rigging (18″ x 16″) |
| Shipping weight | 41.5 lb |
| Carton | 32″ x 13″ x 37″ |
| Upholstery | Black nylon, heavy-duty inner liners |
| Bearings | Dual-sealed precision |
Specs from Invacare’s 9000 XT Series product sheet (form 11-227), 9000 Series user manual (part 1056953) and Invacare Standard Manual Wheelchairs stock chart (form 19-089).
Sizing and Fit
Measure across the hips while seated and add about 2″ for the seat width. All three widths are 16″ deep. Overall width runs about 23″ on the 16″ chair, 25″ on the 18″ and 27″ on the 20″, so check the narrowest door at home. Choose the 19.5″ adult seat height for most users and 17.5″ for shorter users or foot propelling. Center of gravity is best set with the user in the chair: start with the more stable rear position and move the wheels forward only as the user’s skill allows. Call 585-505-6665 if you are between sizes.
Cushions and Accessories
Most daily users add a wheelchair cushion to the sling seat. For an Invacare chair we recommend Invacare’s own Matrx cushions first: the Matrx PSP for everyday comfort or the Matrx Vi for skin protection. Invacare’s T94HAP swing-away elevating legrests fit this chair for users who need their legs raised (see Complete Your Chair below).
Care and Maintenance
- Wipe the nylon upholstery with mild soap and water and let it dry before folding
- Check that the wheel locks hold and the arms and footrests latch before each use
- Check tires and casters, and keep the axles clean so the chair rolls straight
- Have axle or center-of-gravity changes made per the Invacare manual
❓ Invacare 9000 XT Wheelchair FAQ
What is the weight capacity of the Invacare 9000 XT Wheelchair?
250 lb, on every seat width.
How much does the 9000 XT weigh?
About 31 lb without front rigging for an 18″ x 16″ chair, per Invacare. Shipping weight is about 41.5 lb.

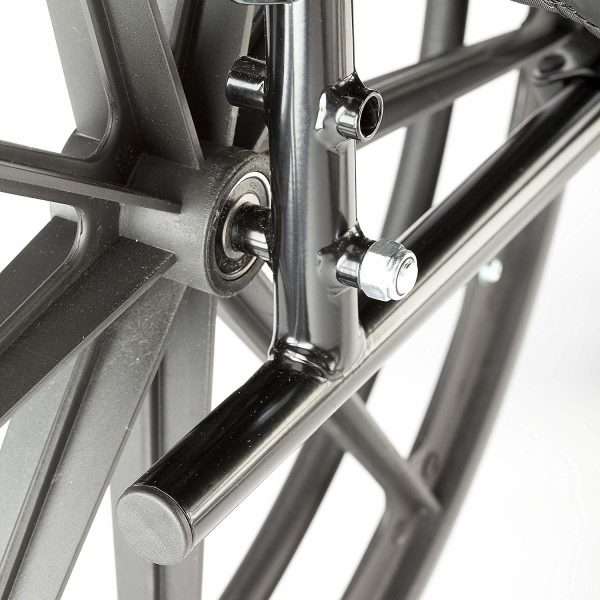

What does the adjustable center of gravity do?
An offset axle moves the rear wheels forward or back. Forward makes the chair easier to push and turn; back makes it more stable.
What seat sizes are available?
16″ x 16″, 18″ x 16″ and 20″ x 16″.
Can the seat height be lowered?
Yes. The dual axle gives a 19.5″ adult or 17.5″ hemi seat height.
How wide is it folded?
12″.
Are legrests included?
Footrests or elevating legrests are chosen in the options above. Invacare’s T94HAP elevating legrests fit this chair.
Do you ship nationwide?
Yes, we ship the Invacare 9000 XT nationwide. Call 585-505-6665 for help with sizing or legrests.
🔗 Wheelchair Guides, Answers & Tools
Want help choosing? Start with these guides, or call us at 585-505-6665.
👉 Most Comfortable Wheelchair (2026): 22 Picks by Need
👉 Manual Wheelchair Knowledge Base
👉 Manual Wheelchair Assessment Tool
PRODUCT SPECIFICATION
| Back Height | 15″-19″ |
| Family | 9000 Series |
| Folded Width | 12 Inches |
| Overall Depth | 28″ |
| Overall Height | 36″ |
| Overall Width | 23″ | 25″ | 27 |
| Product Weight | 31 lb. w/out Front Riggings |
| Seat Depth | 16″ |
| Seat Width | 16″ | 18″ | 20″ |
| Type | High-Strength Lightweight (K0004) |
| Warranty | Limited Warranty – 5 year on frame & crossbraces, 1 Year on all components |
| Weight Capacity | 250 lbs. |
