Matrix 6200 Electric Hospital Bed – Premium APS Model with Ultimate Comfort, Safety, and Expandable Options
$1,559.99
- Rated No. 1 in customer service
- Fast nationwide shipping, delivered to your door
- Manufacturer warranties
- Cash-back rewards on every order
Authorized dealer & provider · Huge selection · Questions? Call 585-505-6665
✔ One-Button Cardiac Chair Position
✔ Straight-Line Hi-Lo Height Travel
✔ 36″ Deck Expands to 39″ or 42″
✔ Ultra-Quiet Sealed Ball Bearings
✔ Two-Stage Safety Lockouts
✔ Tool-Free Assembly, USB Charging Ports
-
Fast nationwide shipping, delivered to your door · 30-day returns on eligible products · Shipping & returns details
Share with Friends
- Description
- PRODUCT SPECIFICATION
- Shipping & Returns
- Product PDF downloads
- Videos
- Reviews (0)
Description
Matrix 6200 Electric Hospital Bed – One-Button Cardiac Chair, 36″ or 42″ Width
The Matrix 6200 is an electric hospital bed built around the Advanced Positioning System (APS). One button moves the bed into a Cardiac Chair or Comfort Chair position, so the person in bed can sit up without the caregiver adjusting section by section. It also has patent-awarded straight-line Hi-Lo travel, ultra-quiet sealed ball bearings, two-stage safety lockouts and USB charging ports.
You can order the deck in a 36-inch or 42-inch width, and optional extension kits widen a 36-inch deck to 39 or 42 inches. Trendelenburg and Reverse Trendelenburg are available as options. It’s made for hospitals, nursing homes, long-term care and home care, and it goes together without tools.
Buying for a parent at home or outfitting a care facility? Call us at 585-505-6665 before you order. We’ll confirm the specs you need, like room fit and the right mattress, with you directly.
Choosing Your Options
Pick the three options at the top of the page and the price updates as you go. Only the combinations Graham-Field builds are offered, so anything greyed out is not available for the deck you picked. Here is what each choice means.
- Deck. The 36 in. deck is the standard hospital-bed width and takes a standard 36 in. wide hospital-bed mattress. The 42 in. deck gives a larger resident a wider sleep surface and takes a 42 in. wide mattress. The 42 in. frame takes the 42 in. wide board sets.

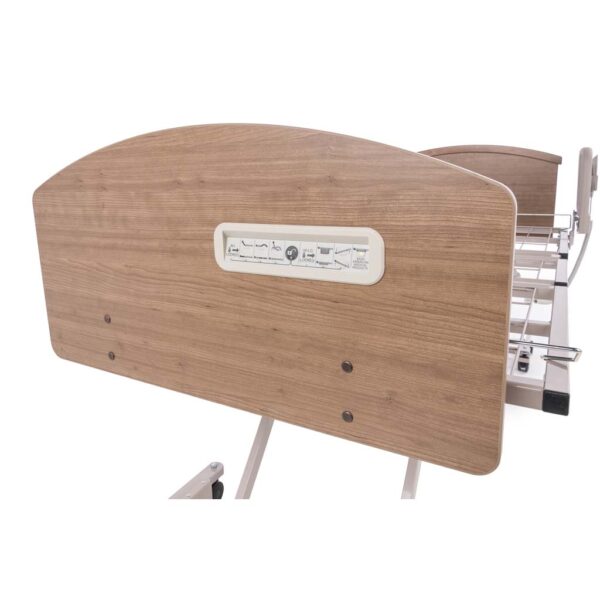

- Head and footboards. The bed frame ships without boards, so this is where you pick a finish. Center Crown boards come in Wild Cherry or Windsor Mahogany; Rectangular boards come in Solar Oak or Cocobala. Whichever you pick, a matched head and footboard set ships with the bed. “None (frame only)” is the bare frame with no head or footboard, which suits a facility that already has boards it wants to reuse.

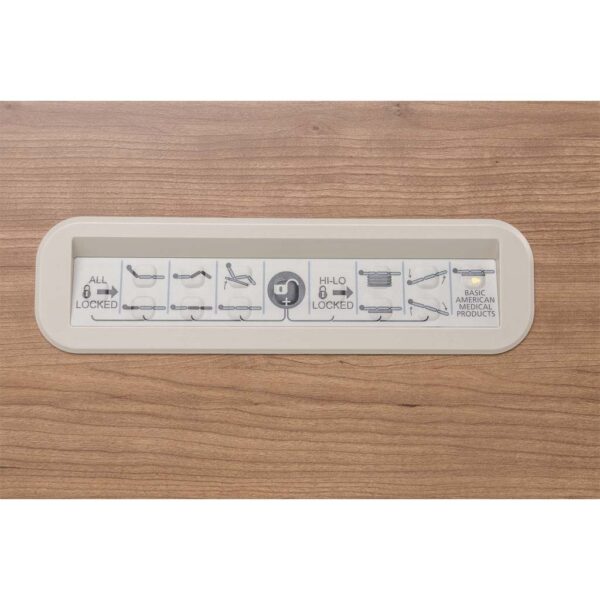

- Staff control. A staff control is a caregiver panel built into the footboard, so it is only available when you choose a board set. “No staff control” means every function runs from the hand pendant. “Standard staff control” adds the caregiver panel in the footboard, so staff can run the bed from the foot end. “Advanced Positioning staff control” adds Trendelenburg and reverse Trendelenburg on top of that; Graham-Field notes that T/RT is only available when the bed is ordered with the embedded staff control, so pick this one if you need those positions.
- What ships. The Matrix 6200 APS frame with its hand pendant, plus the head and footboard set and staff control you picked. Mattresses, assist bars, the trapeze adaptor, extension kit and under-bed light are sold separately; you can add them from the Optional Add Ons list below the price.
Not sure which combination you need? Call us at 585-505-6665 and we will match the bed to the resident and the room.
Why Choose the Matrix 6200?
Most families and staff want the same thing from an electric hospital bed: get the person sitting up, get the bed to a safe height for transfers, and keep it quiet and easy to keep up. The Matrix 6200 does the sitting-up part with one button. Its Hi-Lo system raises and lowers the bed in a straight line, so the bed doesn’t creep toward the wall or nightstand.
The sealed ball bearings are maintenance-free and run quietly, which matters at 2 a.m. The two-stage lockouts help prevent the bed from moving by accident. The antimicrobial SilverSolutions finish is there for infection control, and the Plug & Play electronics use 66% less power at idle.
Who Is the Matrix 6200 Best For?
This electric hospital bed is a good fit for:
- Nursing homes, long-term care facilities and hospitals that want one-button chair positioning and lockouts on every bed
- Home care patients who spend much of the day in bed and need to sit up often for meals, breathing or therapy
- Family caregivers who want to reposition a loved one without straining their back
- Care teams who want low-maintenance, quiet bearings and a frame that sets up without tools
If you’re still comparing bed types, our Hospital Bed Buying Guide walks through the differences. For upkeep, lifespan and room-fit questions, check the Hospital Bed Knowledge Base.
What Is the Advanced Positioning System (APS)?
APS is what lets the Matrix 6200 move into preset positions with a single button press, instead of you adjusting the head and foot sections one at a time. It reduces caregiver strain and helps with therapy, breathing and circulation for the person in bed.
What Are the Cardiac Chair and Comfort Chair Positions?
Both bring the person up into a seated, chair-like position in bed, and on the Matrix 6200 each one takes one button. They’re useful for eating, visiting, reading, breathing treatments and getting ready to stand. For someone who sits up many times a day, one button instead of several adjustments adds up fast for the caregiver.
Optional Trendelenburg & Reverse Trendelenburg
Trendelenburg tilts the whole bed so the head is lower than the feet. Reverse Trendelenburg tilts it the other way, head higher than feet. On the Matrix 6200, both are options, not standard features. They’re used for circulation and respiratory support, so if the care plan calls for them, tell us when you order.
Straight-Line Hi-Lo Travel: Why It Matters for Transfers
Many beds swing slightly forward or back as they go up and down. The Matrix 6200’s patent-awarded straight-line Hi-Lo system raises and lowers the bed without shifting its footprint. The bed stays where you put it, next to the wall, the nightstand or the wheelchair, which makes transfers and repositioning steadier for the person and the caregiver.
36″ or 42″ Width, Expandable to 39″ or 42″
The Matrix 6200 comes in two deck widths: 36 inches or 42 inches. If you start with a 36-inch deck, optional deck extension kits can widen it to 39 or 42 inches later. That helps when someone needs more room to turn. A wider deck needs a mattress sized to match, so plan both together.
Ultra-Quiet Sealed Ball Bearings
The bearings are sealed and maintenance-free, so there’s nothing to grease and the bed runs smoothly and quietly. That’s easier on a light sleeper at home and on a full hallway of residents at night.
Plug & Play Electronics With 66% Lower Idle Power
The Matrix 6200 uses Plug & Play electronics that draw 66% less power at idle. They’re also upgrade-ready, so the bed can take on new options later. For a facility running many beds, lower idle power is a real day-to-day difference.
Two-Stage Safety Lockouts & Tested Stability
Two-stage safety lockouts help prevent the bed from being moved by accident, whether by a curious hand or a pillow resting on the control. The bed is ANSI/AAMI ES60601 certified for medical electrical equipment, and it’s load and stability tested to twice its operating capacity.
USB Charging Ports & Underbed Lighting
USB charging ports keep a phone or tablet charged within reach. That’s a small thing that matters a lot to someone who spends most of the day in bed. Multi-level underbed lighting helps light the floor at night for safer trips to the bathroom. Underbed lighting is also listed as an add-on, so ask us whether it comes standard on the bed you order.
Antimicrobial SilverSolutions Finish
The frame has an antimicrobial SilverSolutions finish for infection control and long-lasting durability. It’s a plus for facilities that clean between residents and for homes caring for someone with a weakened immune system.
Tool-Free Assembly
The Matrix 6200 goes together without special tools. That makes setup quicker at home and makes it easier for facility staff to move or reconfigure a room.
Matrix 6200 vs. a Basic Home Care Bed
Many basic home care beds raise the head and knees and go up and down, but you adjust each section yourself. The Matrix 6200 adds one-button Cardiac Chair and Comfort Chair, straight-line Hi-Lo travel and two-stage lockouts. It also has USB charging, quiet sealed bearings and an antimicrobial finish. If the person sits up often or the bed gets heavy daily use, those differences matter. If you only need simple head and foot adjustment for a short recovery, a basic bed may be all you need.
Who May Need a Different Hospital Bed?
- Larger or heavier users: Graham-Field rates the Matrix 6200 for a 450 lb safe working load (resident, mattress and accessories together). Above that, look at a bariatric hospital bed with a higher capacity.
- High fall risk: the deck lowers to 8.95 inches. If falls out of bed are the main worry, ask us about a low bed that sits closer to the floor.
- Can’t bear weight: a bed alone won’t handle transfers. Pair a bed with a Hoyer lift for people who can’t stand or pivot.
- Short-term, simple needs: a basic home care bed may be enough if you don’t need chair positions or lockouts.
Common Problem → Matrix 6200 Solution
Problem: Getting someone sitting up for meals or breathing treatments several times a day wears out a caregiver’s back, and adjusting one section at a time takes longer than it should.
Solution: The Matrix 6200’s one-button Cardiac Chair and Comfort Chair positions bring the person up in a single step. The straight-line Hi-Lo keeps the bed in place while you set a comfortable working height.
“Can my mom sit up for lunch without me fighting the bed every time?”
Room, Doorway & Home vs. Facility Notes
The deck travels from 8.95 to 27 inches, and the sleep surface adjusts from 80 to 84 inches long. Overall assembled dimensions aren’t listed here, so ask us for them before you measure. At home, check doorways, hallway turns and the space beside the bed. Leave room on at least one side for a caregiver, a wheelchair or a lift. Facilities should plan for the deck width they order (36 or 42 inches) plus any extension kit.
Mattresses, Rails & Accessories for the Matrix 6200
Choose one of our hospital bed mattresses to match the deck width you order. The sleep surface adjusts from 80 to 84 inches long, so match the mattress length to the setting you use. You’ll also find bed rails and hospital bed accessories and trapeze bars. For a trapeze or rail, ask us which ones fit this frame.
Add-ons listed for the Matrix 6200:
- Underbed Light (multi-intensity)
- Side Wall Bumper, protects walls and the bed frame
- Pivot Assist Rail Device, helps with repositioning or standing
- Counter-Rotating Assist Device, helps with mobility transitions
- Fixed Assist Device, steady support for transfers
- Trapeze & Adapter, for repositioning in bed
- Plastic Pan Deck Kit, easy-clean support surface
- Edema Foot Ratchet Kit, foot elevation for edema relief
- Deck Extension Kits, widen a 36″ deck to 39″ or 42″
Head and foot panel colors and other options can be customized. Call 585-505-6665 and we’ll put the right setup together.
Buying From MedCare Mobility
We’re an authorized dealer & provider, Rated No. 1 in customer service, with a huge selection of hospital beds. Your bed comes with the full manufacturer warranty, fast nationwide shipping and cash-back rewards, and it’s delivered to your door. Questions about sizing, options or facility orders? Call 585-505-6665.
Key Features
✔ One-Button Cardiac Chair Position
✔ Straight-Line Hi-Lo Height Travel
✔ 36″ Deck Expands to 39″ or 42″
✔ Ultra-Quiet Sealed Ball Bearings
✔ Two-Stage Safety Lockouts
✔ Tool-Free Assembly, USB Charging Ports
Product Specifications
| Model | Matrix 6200 with Advanced Positioning System (APS) |
| SKU | M6AF (36″: MZ6AF35, 42″: MZ6AF42) |
| Bed Width Options | 36″ or 42″ |
| Height Range | 8.95″ to 27″ |
| Sleep Surface Length | 80″ to 84″ |
| Deck Expansion | Optional kits widen a 36″ deck to 39″ or 42″ |
| Chair Positions | One-button Cardiac Chair and Comfort Chair |
| Trendelenburg | Optional Trendelenburg and Reverse Trendelenburg |
| Height Adjustment | Patent-awarded straight-line Hi-Lo travel |
| Bearings | Ultra-quiet sealed ball bearings, maintenance-free |
| Electronics | Plug & Play, 66% lower idle power use, upgrade-ready |
| Safety | Two-stage safety lockouts |
| Charging | USB charging ports |
| Underbed Lighting | Multi-level (ask us if standard or add-on) |
| Finish | Antimicrobial SilverSolutions |
| Assembly | Tool-free |
| Electrical Standard | ANSI/AAMI ES60601 certified |
| Load Testing | Tested to twice the operating capacity |
| Custom Options | Head and foot panel colors |
| Weight Capacity | 450 lb safe working load (400 lb max. patient weight, evenly distributed) |
Frequently Asked Questions
What is the Matrix 6200?
The Matrix 6200 is a hospital bed with the Advanced Positioning System (APS), which moves it into Cardiac Chair or Comfort Chair with one button. It also has straight-line Hi-Lo travel, sealed ball bearings, two-stage safety lockouts, USB charging ports and a 36-inch or 42-inch deck.
How much weight can the Matrix 6200 hold?
Graham-Field rates the Matrix 6200 for a 450 lb safe working load, which counts the resident, mattress, head and footboards and accessories together. The maximum patient weight, evenly distributed, is 400 lb.
What widths does the Matrix 6200 come in?
You can order it with a 36-inch or a 42-inch deck. Optional deck extension kits can also widen a 36-inch deck to 39 or 42 inches.
Will the Matrix 6200 fit through my doors and in my room?
The sleep surface is 80 to 84 inches long, but the overall assembled dimensions aren’t listed here, so ask us for them before you measure. Check your doorways, hallway turns and the floor space beside the bed, and leave room on at least one side for a caregiver.
What does the Cardiac Chair position do?
It brings the person up into a seated, chair-like position in bed with one button press. That helps with breathing, circulation and therapy, and it takes strain off the caregiver.
Does the Matrix 6200 have Trendelenburg?
Trendelenburg and Reverse Trendelenburg are optional on the Matrix 6200, not standard. Ask us to add them when you order if the care plan calls for tilting the whole bed.
What’s included, and what’s sold separately?
Deck extension kits, the trapeze and adapter, the assist rail and assist devices, the side wall bumper, the plastic pan deck kit and the edema foot ratchet kit are add-ons. A mattress isn’t listed with the bed, and the underbed light shows up both as a feature and as an add-on, so ask us to confirm before you order.
Which mattress fits the Matrix 6200?
Pick a hospital bed mattress that matches the deck width you order, 36 or 42 inches, or the wider width if you add an extension kit. The sleep surface adjusts from 80 to 84 inches long, so match the mattress length to the setting you use.
Does the Matrix 6200 come with side rails?
Full side rails aren’t listed with this bed. The Pivot Assist Rail Device, Counter-Rotating Assist Device and Fixed Assist Device are optional add-ons, and we can tell you which one suits your setup.
Is the Matrix 6200 for home use or for facilities?
It works for both. It’s built for hospitals, nursing homes and long-term care, and its quiet bearings, tool-free assembly and USB charging ports make it easy to live with at home too.
Is the Matrix 6200 hard to set up?
No. It’s designed for tool-free assembly, so it goes together without special tools.
Does Medicare cover an electric hospital bed?
Medicare Part B may help cover a hospital bed as durable medical equipment when your doctor prescribes it; coverage depends on your plan and the supplier. Check with your doctor and your plan before you order.
🔗 Hospital Bed Guides, Answers & Accessories
Still comparing beds, or planning the room? These pages cover it, and you can call us at 585-505-6665 any time.
👉 Hospital Bed Buying Guide: Choosing the Right Bed by Condition
👉 Hospital Bed Knowledge Base: Features, Upkeep & Room Fit
👉 Shop All Hospital Beds for Sale
👉 Hospital Bed Mattresses (Foam, Low Air Loss & Alternating Pressure)
PRODUCT SPECIFICATION
| Feature | Details |
|---|---|
| Bed Type | Full-Electric Hospital Bed with Advanced Positioning System (APS) |
| Primary Keyword Optimization | electric hospital bed |
| Positions | One-Button Cardiac Chair & Comfort Chair Positions |
| Trendelenburg Functions | Optional via APS Staff Control (Trendelenburg & Reverse Trendelenburg) |
| Hi-Lo Travel | Patent-awarded straight-line motion for improved stability |
| Height Range | 8.95” to 27” |
| Safe Working Load | 450 lb (resident, mattress, head/footboards and accessories); 400 lb max. patient weight, evenly distributed |
| Sleep Surface Length | 80” to 84” |
| Deck Width Options | 36” or 42” fixed; a 36” deck expands to 39” or 42” with optional pin-on kits |
| Deck Surface | Grid sleep surface with cross braces – prevents sagging |
| Assembly | Tool-free assembly for quick setup |
| Electronics | Smart ‘Plug and Play’ system, uses 66% less power at idle, upgrade-ready |
| Lighting | Multi-intensity underbed lighting for nighttime safety |
| USB Charging | Integrated patient-accessible USB power ports |
| Finish | Antimicrobial SilverSolutions™ powder coat for infection control |
| Mobility Certification | CMS Transport Device Approved – certified for patient transport in emergencies |
| Safety Certification | ANSI/AAMI ES60601 Certified (meets medical electrical equipment standards) |
| Load Capacity | Tested to twice the operating capacity for added safety |
| Locking Mechanism | Intuitive two-pedal locking system, centrally located, accessible at all heights |
| Movement | Ultra-quiet, maintenance-free sealed ball bearings |
| Power Plug | Right-angle hospital-grade grounded plug |
| Frame Design | US-patented high/low mechanism housed in mainframe tubes (no bacteria-harboring holes) |
| Country of Manufacture | USA – Fond du Lac, Wisconsin |
| Warranty | Main Frame & Welds: 15 years Control Box & Actuator Motors: 4 years Hand Control Pendant & Cabling: 3 years Staff Control & Cabling: 3 years |
| Available Accessories | Underbed Light (SKU: ZA86200), Side Wall Bumper (SKU: ZA94700), Pivot Assist Rail Device (SKU: ZA91300), Counter-Rotating Assist Device (SKU: ZA87800), Fixed Assist Device (SKU: ZA96000), Trapeze & Adapter (SKU: ZA86200), Plastic Pan Deck Kit (SKU: ZA86200), Edema Foot Ratchet Kit ($47.00), Deck Extension Kits (to 39” or 42”) |
Shipping & Returns
SHIPPING:
Our goal is to offer you the best shipping options, no matter where you live. Every day, we deliver to hundreds of customers across the US, ensuring that we provide the very highest levels of responsiveness to you at all times.
(Please note that shipping to Hawaii and Alaska may be more expensive. if there is any changes in shipping rates for these two locations upon processing your order, we will contact you to further advise of your options.)
The time frame for order delivery is divided into two parts:
1: processing time.
Order verification, quality check, and packaging. Processing time usually takes 24-48 hours.
2: shipping time.
Once an order has shipped (24 to 72 hours) You will receive an email with the tracking number and the package should deliver to you within 5 business days.
For whichever reason you did not receive a tracking number within 72 hours, feel free to contact us at: info@medcaremobility.com
RETURNS:
We offer a 30-day return policy if you are not 100% satisfied with your product.
These are the products included in the 30-day return policy:
- Electric wheelchairs.
- Manual wheelchairs.
- Lightweight wheelchairs.
- All other Wheelchairs
- All Electric scooters.
- All Power lifts.
- All Walkers.
- All Rollators.
- All Patient Lifts
- All Wheelchair Ramps
- Walkers & Rollators
- All Hospital/Home Care Beds
- All Mattresses
- All Geri Recliner Chairs
- All Overbed tables
- All Bathroom Benches, Shower Benches, And Shower Chairs
To qualify for a return you will need to contact us first and obtain a RA# and return address at Info@medcaremobility.com and or simply open up a chat with a live agent on the website at anytime.
All items must come back in their original packaging and in good/unused condition and must be received back at the warehouse prior to 30 days of order placed. (Please be sure to request within 3 weeks so we can have it back within the time window)
There is a 15% restocking fee for all returns and the customer is responsible for all shipping fees on the order.
We do not currently offer returns for:
- Wheelchair cushions & support accessories
- Custom orders (products stated to be a custom Item)
- Any Parts
- Any Accessories
- Slings for lifts
in case you receive your Item damaged, we require that you get in touch with us within 48 hours of delivery to report the damages in order to consider it damage upon delivery.
If the package is refused at the time of delivery, then the customer will still be responsible for the restocking and shipping fees as any regular return to ensure that we don’t suffer the losses.
Additional Notes:
It is Important to take note that while we do offer free shipping on many items above $99 however in the recent months the healthcare Industry has shifted and Manufacturers started placing high shipping costs on us giving us no choice to add shipping charges to all such brands. however, we only add 60% of the shipping charges to you. in addition we have also added many great discounts available as well as cash back rewards on every purchase which can later be used in your account for future purchases.
Please note that certain brands may experience a slight additional delay from the general shipping terms seasonally especially if Items are specialty items. your kind patience is much appreciated.
** Custom Items / Orders **
by ordering any item stated to be a custom product Please note that we are unfortunately unable to cancel such orders after 48 hours of placing the order (when production begins) and we cannot unfortunately accept any returns on custom products. in case of any damages and or defects we will work closely with you to get the product to work and send out the proper parts and we will ensure that things get resolved quick for you to be able to enjoy the product!
Please note that all returns must be shipped back to us within 72 hours of receiving the return label or the return authorization. If the item is not sent out within 72 hours of return approval, especially if the item comes back after the 30 days expires we will no longer be able to accept the return and the customer will be required to arrange for the item to be picked back up from us.
Videos
- -Optional Add OnsOptional accessories for the Matrix 6200 Electric Hospital Bed — add any to your order
See all accessories →
Graham-Field Overbed Table With Wood Top – Cocobala Wood-Grain Overbed Table, Low or Standard Rise
$190.99
Drive Medical 13049SV Free-Standing Trapeze – Floor Base Bed Trapeze With Adjustable Chain, Silver Vein, 1000 lb
Original price was: $959.00.$800.00Current price is: $800.00.
New arrivals

Reviews
There are no reviews yet
