Permobil Comfort ACTA-BACK Deep 7″ Wing Wheelchair Back Support – Angle and Width Adjustable Wings, Moldable Stays, 12″–24″ Wide
$502.73
- Rated No. 1 in customer service
- Fast nationwide shipping, delivered to your door
- Manufacturer warranties
- Cash-back rewards on every order
Authorized dealer & provider · Huge selection · Questions? Call 585-505-6665
✔ 7″ Deep Side Wings
✔ Wings Adjust in Angle and Width, Up to 2″
✔ Patented Moldable Aluminum Stays
✔ Three-Layer Foam With Visco Top
✔ Compass or Power Mount Hardware
✔ 12″ to 24″ Wide, 400 lb Max User Weight
-
Fast nationwide shipping, delivered to your door · 30-day returns on eligible products · Shipping & returns details
Share with Friends
- Description
- PRODUCT SPECIFICATION
- Shipping & Returns
- MANUAL/INSTRUCTIONS
- Videos
- Reviews (0)
Description
Permobil Comfort ACTA-BACK Deep 7″ Wing Wheelchair Back Support – Angle and Width Adjustable Wings, Moldable Stays, 12″–24″ Wide
The Permobil Comfort ACTA-BACK Deep 7″ is a 7 inch deep wheelchair back support with 7-inch side wings that wrap the trunk and hold the user centered. It is the deepest option in the line, for users who need the most side support and immersion. The wings adjust in angle and width up to 2″ and have a thin profile for a greater range of motion.
Like every ACTA-BACK, it uses patented moldable aluminum stays that conform to the user’s back, three-layer foam with a Visco surface layer and an aluminum shell. It mounts with Compass or Power Mount hardware and is rated for a 400 lb maximum user weight.
Pick your size (width x height) in the dropdown. Questions about the 7 inch deep wheelchair back? Call 585-505-6665.
Why Choose a 7 Inch Deep Wheelchair Back?
Side wings do what a flat back can’t: they give the trunk something to lean against on both sides, so a user who drifts or leans stays in the middle of the chair. Permobil describes the ACTA-BACK Deep shell as contoured in depths of 3″, 5″ and 7″ that allow greater immersion into the backrest for optimal stability.
The 7″ depth sets how much the wings wrap. Deeper wings wrap more of the trunk; shallower wings leave more freedom of movement. Compare the Acta-Back Deep 3″ and the Acta-Back Deep 5″ if you are between depths.
Who Is the ACTA-BACK Deep 7″ Best For?
- Manual and power wheelchair users who drift or lean sideways during the day
- Users who need side support plus a back shaped to their spine
- Users who fit a 7″ wing depth, as measured by their therapist or seating provider
- Users up to 400 lbs
Who May Need a Different Back?
- A different wing depth: the Acta-Back Deep 3″ or Acta-Back Deep 5″.
- Separate lateral pads instead of wings: the Acta-Back LTS or add BodiLink Lateral Trunk Support Basic Pads.
- Support low on the trunk only: the Acta-Back Contour 5 or Acta-Back Contour 8.
- A chair that has to fold with the back on: the Comfort Elements Back.
7″ Adjustable Wings
The wings adjust in both angle and width, up to 2″. That lets the fitter bring them in closer for a narrow user or open them up for a wider one, and angle them to meet the trunk where it needs support. The thin wing profile keeps arm movement free for propelling, reaching and daily tasks.

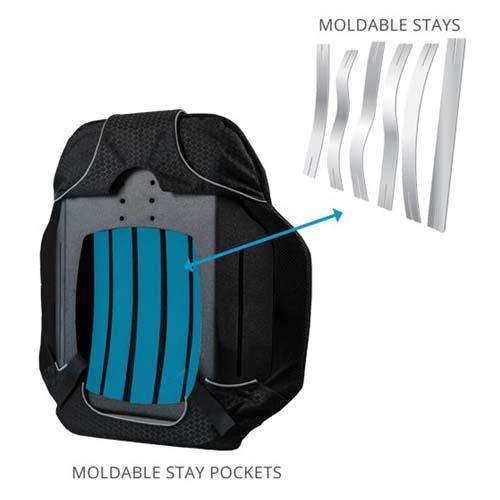

Moldable Aluminum Stays
The patented moldable aluminum stays can be bent on the spot to follow different spinal curves, including kyphosis. The back conforms to the user instead of the user conforming to the back, and the stays can be reshaped if posture changes.
Three-Layer Foam and Aluminum Shell
A durable aluminum shell carries three-layer foam with a comfortable Visco surface layer. The cover is available in Comfort-Tek (smooth, wipes clean, made for infection control and incontinence) or Stretch-Air (breathable, multi-directional stretch).
Compass and Power Mount Hardware
Comfort Compass hardware is strong, light and independently adjustable in height, depth and angle of recline. It needs only 1.5″ of space on each back cane and fits 3/4″, 7/8″ and 1″ tubing. Adjustments can be made while the user stays seated, and a quick-release lets the back lift straight off. Power Mount hardware integrates ACTA-BACK series backs with power seating systems including Quantum TRU-Balance 3, Permobil Corpus 3G, Quickie 3.7 and Rovi with Motion Concepts.
Choosing Your Size
Backs are sized by width x height. Match the width to the wheelchair seat width, then choose the height that suits the user’s trunk.
| Back Width | Heights Offered |
| 12″ | 16″, 18″ |
| 14″ | 16″, 18″, 20″ |
| 16″ | 12″, 14″, 16″, 18″, 20″, 22″ |
| 18″ | 12″, 14″, 16″, 18″, 20″, 22″ |
| 20″ | 14″, 16″, 18″, 20″, 22″ |
| 22″ | 16″, 18″, 20″, 22″ |
| 24″ | 18″, 20″, 22″ |
Each size has its own Permobil part number in the dropdown (ABD7-BS[width]W[height]L). Your therapist can measure, or call 585-505-6665 and we’ll help.
Common Problem → ACTA-BACK Deep 7″ Solution
Problem: a user slides toward one armrest over the day, and a flat back gives them nothing to stop against.
Solution: the 7″ wings give side contact on both sides, the stays are molded to their back, and the thin wing profile leaves their arms free.
Care & Cleaning
Wipe a Comfort-Tek cover with a common disinfectant; launder or clean a Stretch-Air cover per the care label. Check the hardware and quick-release regularly.
What’s Included
One Permobil Comfort ACTA-BACK Deep 7″ in the size you choose, with moldable stays and mounting hardware.
Warranty
Permobil lists 6 months on the cover and 60 months on the back shell, hardware and foam.
Key Features
✔ 7″ Deep Side Wings
✔ Wings Adjust in Angle and Width, Up to 2″
✔ Patented Moldable Aluminum Stays
✔ Three-Layer Foam With Visco Top
✔ Compass or Power Mount Hardware
✔ 12″ to 24″ Wide, 400 lb Max User Weight
Product Specifications
| Brand | Permobil (Comfort Company) |
| Model | Comfort ACTA-BACK Deep 7″ (ABD7 series) |
| Type | Positioning back with posterior lateral wings |
| Wing Depth | 7″ |
| Wing Adjustment | Angle and width, up to 2″ |
| Widths | 12″ to 24″ |
| Heights | 12″ to 22″ (see dropdown) |
| Shell | Aluminum, patented moldable aluminum stays |
| Foam | Three-layer with Visco surface layer |
| Cover Options | Comfort-Tek or Stretch-Air |
| Hardware | Compass (fits 3/4″, 7/8″, 1″ canes) or Power Mount |
| Maximum User Weight | 400 lbs |
| Warranty | Cover 6 months; shell, hardware and foam 60 months |
Frequently Asked Questions
How deep are the wings?
7″.
Do the wings adjust?
Yes, in angle and width up to 2″.
What is the weight limit?
400 lbs maximum user weight.
What sizes are available?
Widths from 12″ to 24″ and heights from 12″ to 22″; see the size table for which heights come in each width.
Will it fit my wheelchair?
Compass hardware fits 3/4″, 7/8″ and 1″ back canes and needs 1.5″ of space on each cane. Power Mount fits several power seating systems. Send us your chair model to confirm.
Can the back be shaped to my spine?
Yes. The moldable aluminum stays can be bent to follow the user’s spinal curve.
Should I choose 3″, 5″ or 7″ wings?
Deeper wings give more side support and immersion; shallower wings leave more freedom of movement. A therapist can help you decide.
Do you ship nationwide?
Yes. We ship Permobil backs nationwide. Call 585-505-6665 with questions.
