Graham-Field 9702 Series Physician Stool – Aluminum Base Exam Stool, 350 lb Capacity
$285.99
- Rated No. 1 in customer service
- Fast nationwide shipping, delivered to your door
- Manufacturer warranties
- Cash-back rewards on every order
Authorized dealer & provider · Huge selection · Questions? Call 585-505-6665
✔ 350 lb Weight Capacity
✔ 24″ Aluminum Base, Toe Caps
✔ 2″ Hard Wheel Casters
✔ 16″ Seat, Backrest Option
✔ Pneumatic D-Handle Release
✔ Footring & Lab Height Options
You earn -
Fast nationwide shipping, delivered to your door · 30-day returns on eligible products · Shipping & returns details
Share with Friends
- Description
- PRODUCT SPECIFICATION
- Shipping & Returns
- Product PDF downloads
- Reviews (0)
Description

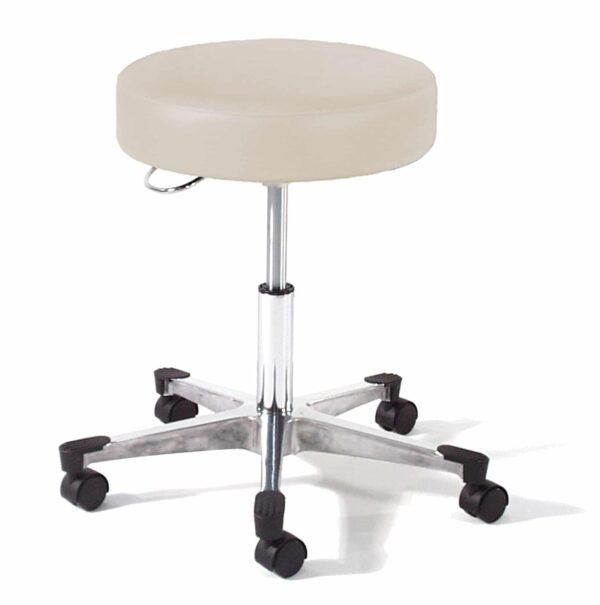

Graham-Field 9702 Series Physician Stool With Aluminum Base and D-Handle Release
The Graham-Field 9702 Series is a physician stool with aluminum base: a 24″ aluminum base with toe caps, a pneumatic seat you adjust with a D-handle release, 2″ hard wheel casters, a 16″ seat and a 350 lb weight capacity, evenly distributed. It’s the step-up model for practices that want a metal finish in the exam room.
As an aluminum base exam stool, it gives the room a metal finish instead of a plastic base. The D-handle physician stool release is a D-shaped handle that’s easy to find and grip. The standard seat adjusts from 17.5″ to 23″, and the lab/counter version from 23.5″ to 34″. Choose it plain, with a backrest, a footring, both, or lab height, in any of Graham-Field’s 24 industry-standard vinyl upholstery colors.
Want a lower-priced stool with a black composite base? See the Graham-Field 9501 Series Physician Stool.
Why Choose the Graham-Field 9702 Aluminum Base Stool?
First impressions in an exam room come from the furniture as much as the décor. The 9702’s aluminum base gives a clean, finished look that goes well with stainless and chrome fixtures, and the legs are finished with toe caps. Underneath the looks, you get the same Graham-Field stool basics: pneumatic height adjustment, a 16″ seat on a 3/4″ composite substrate with a steel reinforcement plate, a wide 24″ base on hard wheel casters and a 350 lb rating.
The D-handle release is the other reason people choose it. Instead of a small lever, you reach for a D-shaped handle, which is easy to find when you adjust the height many times a day. Every configuration comes in all 24 colors, too.
Who Is the 9702 Aluminum Base Stool Best For?
Graham-Field designs it as a medical-room or clinical stool for professional use. It’s a good fit for:
- Practices that want exam room stools with a metal base to match stainless or chrome fixtures
- Specialty, dermatology, dental and surgical offices where the room’s look matters to patients
- Providers who adjust seat height often and want an easy-to-grab D-handle release
- Labs and counters (the lab/counter configuration, 23.5″ to 34″)
- Clinics that want matching stools in their own upholstery color
Setting up a full exam room? See our exam tables and exam lamps, or every option in Medical Stools.
Who May Need a Different Stool?
- Users over 350 lbs: Graham-Field rates the 9702 for 350 lbs, evenly distributed. Call us about higher-capacity seating.
- Practices on a tighter budget: the 9501 Series has the same capacity, seat, configurations and colors with a black nylon composite base and single lever release.
- Home or patient use: Graham-Field intends this stool for professional use in medical rooms and clinics. It isn’t a patient chair or a transfer aid.
24″ Aluminum Base With Toe Caps
Graham-Field builds the 9702 on an aluminum base with toe caps on the ends of the legs. It measures 24″ across with the casters, a wide footprint Graham-Field chose for greater stability, and rolls on 2″ hard wheel casters.
D-Handle Pneumatic Release
Seat height adjusts on a pneumatic gas cylinder, and the release is a D-handle rather than a small lever, so it’s easy to find and grip. Graham-Field’s instructions: pull up to raise the stool, push down to lower it.
Seat Height: 17.5″ to 23″ Standard, 23.5″ to 34″ Lab/Counter
The standard configurations adjust from 17.5″ to 23″, a good range for working at a standard exam table or desk. The lab/counter stool with backrest and footring adjusts from 23.5″ to 34″ for counters, lab benches and tall work surfaces. With a backrest at standard height, the stool stands 32.5″ to 37.5″ overall.
350 lb Weight Capacity
Graham-Field rates the 9702 Series for a maximum of 350 lbs (159 kg), evenly distributed, in every configuration.
16″ Steel-Reinforced Seat in 24 Colors
The 16″ round seat, which Graham-Field says comfortably fits most users, is built on a 3/4″ thick composite substrate with a steel reinforcement plate and covered in Graham-Field’s Esprit vinyl. All 24 colors are available in every 9702 configuration.
Choosing Your Options
Pick a Configuration first, then an Upholstery color:
| Configuration | What it adds and who it’s for | Height (Graham-Field) | Graham-Field code |
|---|---|---|---|

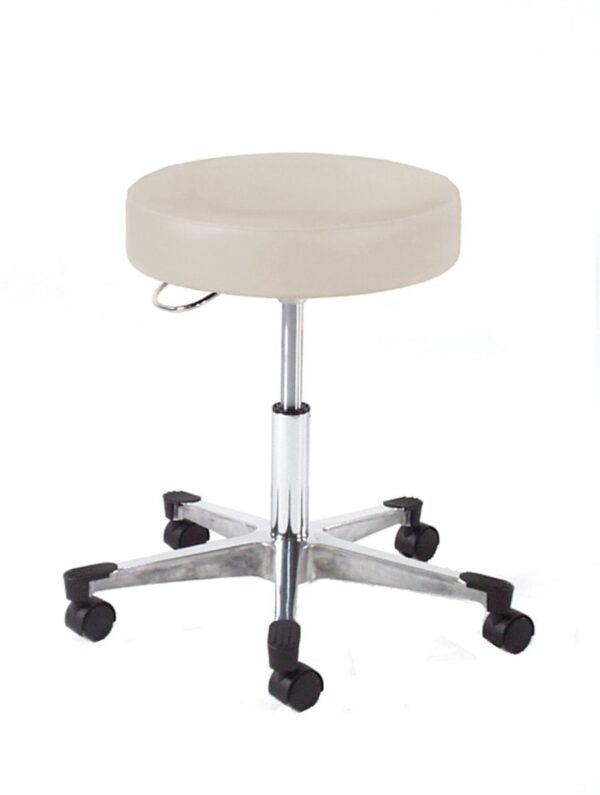

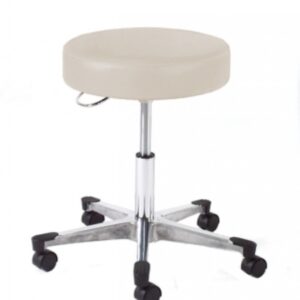

| Standard | No backrest, no footring. The simplest, most compact stool. | 17.5″ to 23″ seat height | 9702-xx |
| With backrest | Adds a backrest for lower-back support during longer exams, procedures or charting. | 17.5″ to 23″ seat height; 32.5″ to 37.5″ overall | 9702-B-xx |
| With footring | Adds an 18″ footring around the column to rest your feet on when the seat is set high. | 17.5″ to 23″ seat height | 9702-FR-xx |
| With backrest and footring | Both: back support plus a place for your feet. A good all-day setup. | 17.5″ to 23″ seat height; 32.5″ to 37.5″ overall | 9702-BFR-xx |

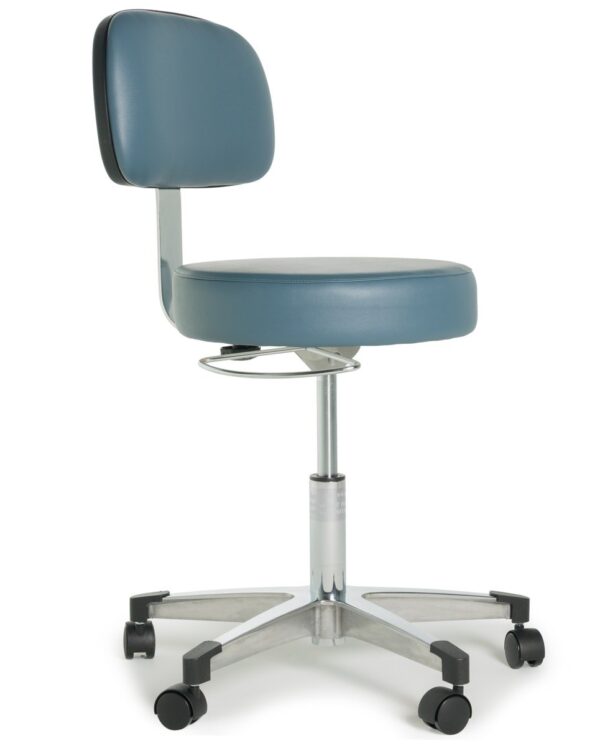

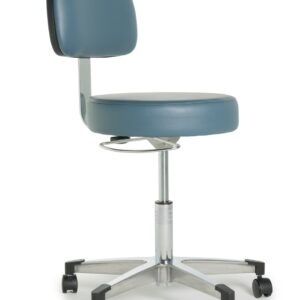

| Lab height with backrest and footring | A taller lab/counter stool with backrest and footring, for lab benches, high counters and tall work surfaces. | 23.5″ to 34″ seat height | 9702-10BFR-xx |
- Footring: when the seat is raised high, your feet can’t reach the floor. The 18″ footring gives them a place to rest so they don’t dangle, which takes pressure off the backs of your thighs, and it gives you a step for getting on and off. Graham-Field has you set the footring at the height you want on the cylinder during assembly.
- Backrest: worth it for anyone who sits for long stretches, such as longer procedures, therapy sessions or charting. Skip it if you mostly perch for a few minutes at a time and want the smallest stool.
- Lab height: pick it when you work at a counter, lab bench or high exam table instead of a standard-height table. The seat goes up to 34″, and it comes with the backrest and footring because at that height you’ll want both.
- Not sure? Backrest and footring is the most versatile setup. Standard is the most compact.
Upholstery color: Graham-Field makes every 9702 configuration in all 24 of its industry-standard Esprit vinyl colors: Alabaster (AL), Aqua Green (AQ), Artichoke (AR), Black (BL), British Tan (BT), Blue (BU), Dusty Blue (DB), Doe (DO), Gray (GR), Moss (MO), Navy (NA), Northwoods (NO), Ocean Gray (OG), Pearl (PL), Palm (PM), Plum (PU), Shadow (SH), Saddle Tan (ST), Teal (TE), Tea Leaf (TL), Violet (VI), Warm Gray (WG), White (WH), Wedgewood (WW). The two letters at the end of each Graham-Field code are the color. Colors on screen can look slightly different from the finished vinyl.
9702 Series vs. 9501 Series
The two share the basics: pneumatic height adjustment, a 16″ seat, a 24″ base, 2″ hard wheel casters, a 350 lb rating, five configurations and 24 colors. The 9702 adds an aluminum base with toe caps and a D-handle release, and its standard seat sits a little lower (17.5″ to 23″ vs. 18.5″ to 24″). The 9501 uses a black nylon composite base and a single lever release and costs less. If the look of the room or an easy-grip release matters, go with the 9702.
Common Problem → 9702 Solution
Problem: A dermatology office just renovated its exam rooms with new cabinetry and stainless fixtures, and the old black plastic stools look out of place. The providers also complain the small levers are hard to find.
Solution: The 9702’s aluminum base suits the new fixtures, the D-handle release is easy to find, and the office picks one upholstery color for every room, with a lab/counter stool (23.5″ to 34″) for the procedure counter.
“Will the lab stool work at our counter?” Measure from the floor to the counter top and call us at 585-505-6665. With the seat adjustable from 23.5″ to 34″, we’ll tell you whether it’s the right fit.
Sizing & Fit
- Seat height: standard configurations 17.5″ to 23″; lab/counter 23.5″ to 34″.
- Overall height with backrest: 32.5″ to 37.5″ (standard height).
- Footprint: 24″ across the base with casters. Make sure there’s room to roll between the exam table, cabinets and the door.
- Seat: 16″ diameter. Footring: 18″ diameter.
- Weight: under 350 lbs, evenly distributed.
Care & Cleaning
Graham-Field’s instructions: clean the stool by hand with warm water and a mild soap or detergent, rinse with clear water and let it air dry. To disinfect, use a diluted solution of 10% (or less) household bleach, rinse with clear water and air dry. Don’t use abrasive cleaners or scouring pads on any part of the stool. Check the stool for damage before each use, and if it has a backrest, check every three months that the backrest screws are tight. The user manual also covers stain removal for the vinyl upholstery.
What’s Included
The stool ships unassembled and goes together without tools. Graham-Field’s instructions list the base, the casters (they press into the base), the gas cylinder and the seat, plus the backrest and footring on configurations that include them. Assembly and operation instructions come in the box.
Warranty
Graham-Field’s Lumex limited warranty on stools covers the frame for 5 years, mechanical components for 3 years, and the casters and upholstered seat for 1 year, for the original purchaser from the date of shipment. Labor isn’t included. As an authorized Graham-Field dealer, we’ll handle a claim with you.
Key Features
✔ 350 lb Weight Capacity
✔ 24″ Aluminum Base, Toe Caps
✔ 2″ Hard Wheel Casters
✔ 16″ Seat, Backrest Option
✔ Pneumatic D-Handle Release
✔ Footring & Lab Height Options
Product Specifications
| Brand | Graham-Field (Lumex stool line) |
| Model | 9702 Series Physician Stool |
| Graham-Field Codes | 9702-xx, 9702-B-xx, 9702-FR-xx, 9702-BFR-xx, 9702-10BFR-xx (xx = color) |
| Type | Pneumatic physician exam stool, professional use |
| Weight Capacity | 350 lbs (159 kg), evenly distributed |
| Height Adjustment | Pneumatic, D-handle release |
| Seat Height, Standard | 17.5″ to 23″ (44 to 58 cm) |
| Seat Height, Lab/Counter | 23.5″ to 34″ (60 to 86 cm) |
| Overall Height With Backrest | 32.5″ to 37.5″ (83 to 95 cm) |
| Seat Diameter | 16″ (41 cm) |
| Seat Construction | 3/4″ composite substrate with steel reinforcement plate |
| Base | Aluminum with toe caps, 24″ (61 cm) diameter with casters |
| Casters | 2″ hard wheel |
| Footring Diameter | 18″ (46 cm), on footring configurations |
| Configurations | Standard; with backrest; with footring; with backrest and footring; lab height with backrest and footring |
| Upholstery | Esprit vinyl (PVC), 24 industry-standard colors |
| Assembly | No tools required |
| Warranty | Frame 5 years; mechanical components 3 years; casters and upholstered seat 1 year (labor not included) |
| Shipping Weight | 22 lbs (approx.) |
Frequently Asked Questions
What is the Graham-Field 9702 physician stool?
It’s a pneumatic exam room stool with a 24″ aluminum base with toe caps, a D-handle release, 2″ hard wheel casters, a 16″ seat and a 350 lb weight capacity. It comes in five configurations and 24 upholstery colors.
How much weight can it hold?
Graham-Field rates the 9702 for a maximum of 350 lbs (159 kg), evenly distributed.
What is a D-handle release?
It’s a D-shaped handle that releases the pneumatic cylinder so you can raise or lower the seat. It’s easy to find and grip. Pull up to raise the stool, push down to lower it.
What is the seat height range?
Standard configurations adjust from 17.5″ to 23″. The lab/counter stool adjusts from 23.5″ to 34″.
Which configuration should I choose?
For a standard exam room, the plain stool or the backrest-and-footring version. Add a backrest for long sitting, a footring if your feet won’t reach the floor, and choose lab height for counters and lab benches.
What does the footring do?
It gives your feet a place to rest when the seat is raised high, so they don’t dangle, and it doubles as a step for getting on and off. It’s 18″ across and you set its height during assembly.
Do I need the backrest?
If you sit for long procedures, therapy sessions or charting, yes. If you only perch briefly and want the smallest stool, you can skip it.
What colors does it come in?
All 24 Graham-Field Esprit vinyl colors, in every 9702 configuration, from Alabaster and Black to Teal, Plum and Wedgewood.
Does it need tools to assemble?
No. Graham-Field’s instructions list no tools: the casters press into the base, the cylinder goes into the base, and the seat sets onto the cylinder.
How do I clean and disinfect it?
Wash by hand with warm water and a mild soap, rinse and air dry. To disinfect, Graham-Field allows a diluted solution of 10% or less household bleach, then a clear-water rinse. Don’t use abrasive cleaners or scouring pads.
What’s the warranty?
Graham-Field covers the frame for 5 years, mechanical components for 3 years, and the casters and upholstered seat for 1 year. Labor isn’t included.
How is the 9702 different from the 9501?
The 9702 has an aluminum base with toe caps, a D-handle release and a 17.5″ to 23″ standard seat height. The 9501 has a black nylon composite base, a single lever release and an 18.5″ to 24″ standard seat height, and costs less.
🔗 Exam Room Furniture & Professional Care
Finishing an exam room or opening a new clinic? Start here, and call us at 585-505-6665 for help with a multi-room order.
👉 Graham-Field 9501 Series Physician Stool
PRODUCT SPECIFICATION
| Brand: | Graham-Field (Lumex stool line) |
| Model: | 9702 Series Physician Stool |
| Graham-Field Codes: | 9702-xx, 9702-B-xx, 9702-FR-xx, 9702-BFR-xx, 9702-10BFR-xx (xx = color) |
| Type: | Pneumatic physician exam stool, professional use |
| Weight Capacity: | 350 lbs (159 kg), evenly distributed |
| Height Adjustment: | Pneumatic, D-handle release |
| Seat Height, Standard: | 17.5″ to 23″ (44 to 58 cm) |
| Seat Height, Lab/Counter: | 23.5″ to 34″ (60 to 86 cm) |
| Overall Height With Backrest: | 32.5″ to 37.5″ (83 to 95 cm) |
| Seat Diameter: | 16″ (41 cm) |
| Seat Construction: | 3/4″ composite substrate with steel reinforcement plate |
| Base: | Aluminum with toe caps, 24″ (61 cm) diameter with casters |
| Casters: | 2″ hard wheel |
| Footring Diameter: | 18″ (46 cm), on footring configurations |
| Configurations: | Standard; with backrest; with footring; with backrest and footring; lab height with backrest and footring |
| Upholstery: | Esprit vinyl (PVC), 24 industry-standard colors |
| Assembly: | No tools required |
| Warranty: | Frame 5 years; mechanical components 3 years; casters and upholstered seat 1 year (labor not included) |
| Shipping Weight: | 22 lbs (approx.) |
