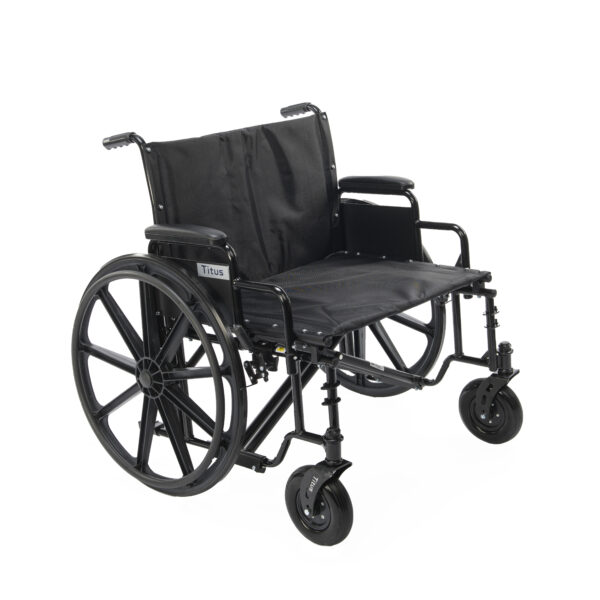

Titus Extra Wide Wheelchair – Heavy Duty Wheelchair for Bariatric Support
$395.00
- Rated No. 1 in customer service
- Fast nationwide shipping, delivered to your door
- Manufacturer warranties
- Cash-back rewards on every order
Authorized dealer & provider · Huge selection · Questions? Call 585-505-6665
✔ 22″, 24″, 26″, 28″ or 30″ Seat Widths
✔ 500 lb (22″, 24″) or 700 lb (26″ to 30″) Capacity
✔ Heavy-Duty Slide Tube Steel Frame
✔ Dual Axle Hemi Height on 22″ and 24″

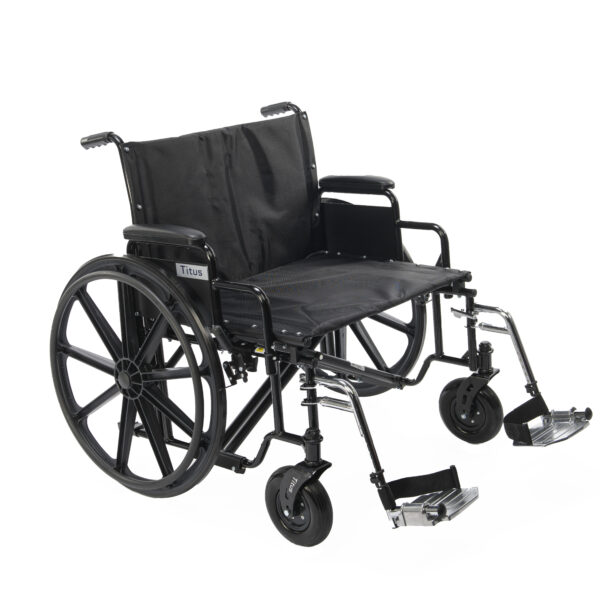

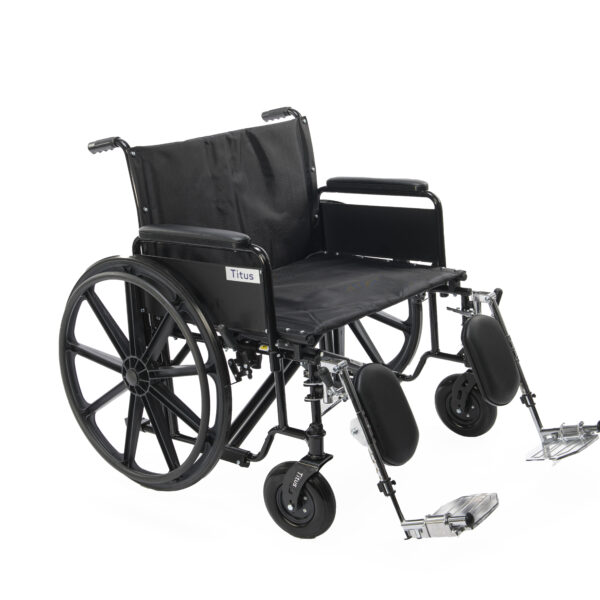

✔ Swing-Away Footrests or Elevating Legrests
✔ Removable Padded Desk or Full Arms
-
Fast nationwide shipping, delivered to your door · 30-day returns on eligible products · Shipping & returns details
Share with Friends
One of the biggest problems customers face after buying medical and mobility equipment through marketplaces like Amazon is discovering that there is nobody to call when they actually need help. Product questions, warranty issues, replacement parts and support can quickly become difficult when there is no dedicated provider behind the purchase.
With MedCare Mobility, you buy from an authorized dealer and a real medical equipment provider — with knowledgeable people you can contact when help matters.- Description
- PRODUCT SPECIFICATION
- Shipping & Returns
- Product PDF downloads
- Reviews (0)
Description
Proactive Medical Titus Extra Wide Wheelchair – Heavy Duty, 22″ to 30″ Seat, 500 to 700 lb Capacity
The Proactive Medical Titus is an extra wide wheelchair made for users who need more room and more strength than a standard chair offers. It comes in five seat widths from 22″ to 30″ on a heavy-duty slide tube steel frame, and it is rated for 500 lb (22″ and 24″ seats) or 700 lb (26″, 28″ and 30″ seats).
Choose your seat width, removable padded desk-length or full-length arms, and swing-away footrests or elevating legrests in the options above. The 22″ and 24″ chairs have a dual axle for a lower hemi seat height, and the 28″ and 30″ chairs come with extra wide aluminum footplates.
Comparing chairs? Our most comfortable wheelchair guide shows where a heavy duty wheelchair like the Titus fits against standard, reclining and lightweight models, and the Manual Wheelchair Knowledge Base explains how to measure for seat width, depth and height.
Why Choose the Titus Extra Wide Wheelchair?
A bariatric user in a seat that is too narrow sits on the side rails and gets pressure at the hips; a chair that is too weak flexes and wears out fast. The Titus answers both: the seat goes all the way to 30″, the frame is heavy-duty steel, and the two larger groups of widths carry up to 700 lb. Front casters are 8″ x 2″ semi-pneumatic for a softer roll and adjust in 3 positions, the 24″ rear wheels have urethane tires and hand rims for self-propelling, and the elevating legrests use a pneumatic piston so they hold any angle. For a caregiver or facility, that means one model family covers almost every bariatric size, from 22″ to 30″.
Who Is This Heavy Duty Wheelchair Best For?
The Titus is a good fit for:
- Users who need a seat 22″ to 30″ wide
- Users up to 500 lb (22″ or 24″ seat) or up to 700 lb (26″ to 30″ seat)
- Users who self-propel and want full-size 24″ rear wheels
- Users who need elevating legrests for swelling or leg support
- Hospitals, bariatric units and nursing homes that need a durable heavy duty wheelchair
Choose something else if the user needs:
- A seat 20″ wide or less: see standard wheelchairs
- A lighter chair to lift into a car: see the lightweight wheelchairs
- Recline for all-day sitting: see high back reclining wheelchairs
- Other bariatric models to compare: see all heavy duty wheelchairs
Titus Extra Wide Wheelchair Specifications
| Model numbers | WCK722, WCK724, WCK726, WCK728, WCK730 (22″ to 30″ seat); DA = desk arms, FA = full arms; SF = swing-away footrests, ELR = elevating legrests |
|---|---|
| Weight capacity | 500 lb (22″, 24″ seat); 700 lb (26″, 28″, 30″ seat) |
| Seat width | 22″, 24″, 26″, 28″ or 30″ |
| Seat depth | 18″ (22″, 24″ seat); 20″ (26″ to 30″ seat) |
| Seat to floor height | 20.5″; 18.5″ hemi (dual axle on 22″ and 24″ chairs) |
| Back height | 16″ or 18″ by model, fixed back |
| Overall width (with arms) | 30″ / 32″ / 36″ / 38″ / 40″ (22″ / 24″ / 26″ / 28″ / 30″ seat) |
| Chair weight | 56 / 57 / 59 / 61 / 64 lb (22″ to 30″ seat) |
| Shipping weight | 62 / 63 / 66 / 68 / 70 lb |
| Arms | Removable, padded; desk length or full length |
| Front rigging | Swing-away footrests, or tool-free padded elevating legrests with a pneumatic piston; extra wide aluminum footplates on 28″ and 30″ chairs |
| Rear wheels | 24″ urethane with hand rims |
| Front casters | 8″ x 2″ semi-pneumatic, adjustable in 3 positions |
| Wheel locks | Push-to-lock |
| Frame | Heavy-duty slide tube steel, silver vein finish |
| Upholstery | Heavy-duty padded; vinyl on 22″ and 24″ seats, nylon on 26″ to 30″ seats |
Specs from Proactive Medical’s Titus Bariatric Wheelchair product page and product sheet.
Sizing and Fit
Measure across the widest part of the hips or thighs while seated and add about 2″ to choose the seat width. Overall width is 8″ more than the seat (30″ for a 22″ chair, 40″ for a 30″ chair), so measure your doorways and halls before ordering: a standard 32″ door clears only the 22″ and 24″ chairs. Users who need the lower 18.5″ hemi height should choose the 22″ or 24″ seat, which have the dual axle.
Cushions and Accessories
A sling seat at bariatric widths sags without support, so a cushion is worth adding. For a Proactive Medical chair we recommend Proactive’s own Protekt bariatric cushions first: the Protekt Gel Bariatric Cushion and the Protekt Supreme Bariatric Cushion, plus the Protekt Back Cushion, made from 16″ to 30″ wide. Check each cushion’s own weight rating for users over 500 lb (see Complete Your Chair below).
Care and Maintenance
- Wipe the upholstery with mild soap and water and let it dry before folding
- Check that the wheel locks hold and the arms and footrests latch before each use
- Check the tires and keep the axles clean so the chair rolls straight
- Follow the Proactive owner’s manual in the Product PDF downloads tab for adjustments
❓ Extra Wide Wheelchair FAQ
What seat widths does the Titus come in?
22″, 24″, 26″, 28″ and 30″.
What is the weight capacity of the Titus?
500 lb for the 22″ and 24″ seats and 700 lb for the 26″, 28″ and 30″ seats, per Proactive Medical.
How wide is the Titus overall?
About 8″ wider than the seat: 30″, 32″, 36″, 38″ or 40″ with arms.
How much does it weigh?
56 lb for the 22″ chair up to 64 lb for the 30″ chair.
Does the Titus have a hemi height?
Yes, on the 22″ and 24″ chairs. Their dual axle lowers the seat from 20.5″ to 18.5″.
What is the seat depth?
18″ on the 22″ and 24″ chairs and 20″ on the 26″, 28″ and 30″ chairs.
Is this a heavy duty wheelchair for facilities?
Yes. The heavy-duty steel frame, padded removable arms and pneumatic elevating legrests suit hospitals, bariatric units and long-term care as well as home use.
Do you ship nationwide?
Yes, we ship the Titus nationwide. Call 585-505-6665 for help choosing the seat width.
🔗 Wheelchair Guides, Answers & Tools
Want help choosing? Start with these guides, or call us at 585-505-6665.
👉 Most Comfortable Wheelchair (2026): 22 Picks by Need
👉 Manual Wheelchair Knowledge Base
👉 Manual Wheelchair Assessment Tool
👉 Home Medical Equipment Knowledge Base
PRODUCT SPECIFICATION
| Feature | Details |
|---|---|
| Seat Widths | 22″, 24″, 26″, 28″, 30″ |
| Seat Depth | 18″ (22″/24″) • 20″ (26″/28″/30″) |
| Seat-to-Floor Height | 20.5″ standard • 18.5″ hemi |
| Back Height | Fixed: 16″ or 18″ |
| Armrest Options | Desk-Length or Full-Length, Removable |
| Legrest Options | Swing-Away or Elevating with Pneumatic Piston |
| Wheel Size | 24” rear urethane • 8” x 2” semi-pneumatic front |
| Frame Finish | Powder-Coated Silver Vein Steel |
| Weight Capacity | 500–700 lbs depending on size |
| Chair Weight | 56–64 lbs depending on configuration |
| Warranty | 3-Year Limited |
| Medicare Code | K0007 / K0195 |
