Invacare Tracer IV Heavy Duty Wheelchair – Bariatric Wheelchair With 20″, 22″ or 24″ Seat, Dual Axle, 350 to 450 lb
$475.00
- Rated No. 1 in customer service
- Fast nationwide shipping, delivered to your door
- Manufacturer warranties
- Cash-back rewards on every order
Authorized dealer & provider · Huge selection · Questions? Call 585-505-6665
✔ 350 lb, or 450 lb on T4X Heavy-Duty Models
✔ 20″, 22″ or 24″ Wide x 18″ Deep Seat
✔ Reinforced Chrome-Plated Steel Frame
✔ Dual Axle: 19.5″ or 17.5″ Seat Height
✔ Removable Desk or Full-Length Arms
✔ 42 lb Chair, Folds to 13″ Wide
-
Fast nationwide shipping, delivered to your door · 30-day returns on eligible products · Shipping & returns details
Share with Friends
One of the biggest problems customers face after buying medical and mobility equipment through marketplaces like Amazon is discovering that there is nobody to call when they actually need help. Product questions, warranty issues, replacement parts and support can quickly become difficult when there is no dedicated provider behind the purchase.
With MedCare Mobility, you buy from an authorized dealer and a real medical equipment provider — with knowledgeable people you can contact when help matters.- Description
- PRODUCT SPECIFICATION
- Shipping & Returns
- MANUAL/INSTRUCTIONS
- Reviews (2)
Description
Invacare Tracer IV Heavy Duty Wheelchair – 20″, 22″ or 24″ Seat, Dual Axle, 350 to 450 lb
The Invacare Tracer IV is a heavy duty wheelchair built on a reinforced, triple chrome-plated carbon steel frame with gusseted sides, reinforced caster journals and dual cross-braces. Choose a 20″, 22″ or 24″ wide seat, all 18″ deep, with desk-length or full-length arms. The chair weighs 42 lb without front rigging and folds to 13″ wide.
Capacity depends on the model: the T420, T422 and T424 are rated 350 lb, and the heavy-duty T4X22 and T4X24 are rated 450 lb, per Invacare’s stock chart. The dual axle sets the seat at 19.5″ for adults or 17.5″ for shorter users and foot propellers. The T4X versions, listed as “Heavy Duty Inner Liners” in the options above, add liners that keep the seat and back from stretching.
Comparing chairs? Our most comfortable wheelchair guide shows where a heavy duty chair fits against reclining, lightweight and standard models, and the Manual Wheelchair Knowledge Base explains how to measure seat width, depth and height. For more wide seat wheelchair options, see our bariatric and heavy duty wheelchairs.
Why Choose the Invacare Tracer IV Heavy Duty Wheelchair?
A wide seat wheelchair takes more stress at the frame joints, the casters and the seat sling than a standard 18″ chair. Invacare reinforces the Tracer IV at exactly those points: gusseted side frames, reinforced caster journals and two cross-braces under the seat. The wheels run on dual-sealed precision bearings mounted on “no flex” wheels, and the dual-embossed upholstery is made for daily use. It is a long-lasting, low-maintenance chair that still folds like a standard wheelchair for the car or a closet.
Who Is This Heavy Duty Wheelchair Best For?
The Tracer IV is a good fit for:
- Users who need a 20″, 22″ or 24″ seat for hip room, the wide seat wheelchair sizes most standard chairs skip
- Users up to 350 lb, or up to 450 lb on the heavy-duty T4X22 and T4X24 models
- Shorter users or foot propellers who need the 17.5″ hemi seat height
- Families and facilities that want a durable, low-maintenance bariatric wheelchair
- Users who need removable arms for side transfers
Choose something else if the user needs:
- A capacity over 450 lb: the Graham-Field Traveler HD is rated for 500 lb, and the Karman KM-BT10 goes higher
- A lighter wide chair to lift into a car: see the Karman KM-8520X
- Recline for all-day sitting: see high back reclining wheelchairs

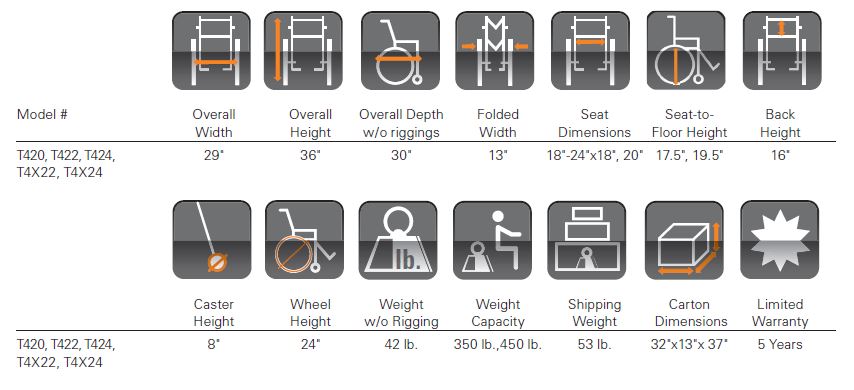

Invacare Tracer IV Specifications
| Model numbers | T420RDAP / T422RDAP / T424RDAP (desk arms); T420RFAP / T422RFAP / T424RFAP (full arms); T4X22RDAP / T4X24RDAP (desk arms with heavy-duty inner liners) |
|---|---|
| Weight capacity | 350 lb (T420, T422, T424); 450 lb (T4X22, T4X24 heavy duty) |
| Seat width | 20″, 22″ or 24″ |
| Seat depth | 18″ |
| Seat to floor height | 19.5″ adult or 17.5″ hemi (dual axle) |
| Back height | 16″, fixed |
| Overall width | 26.25″ (18″ frame) to 32.25″ (24″ frame) |
| Overall depth (without riggings) | 30″ |
| Overall height | 36″ |
| Folded width | 13″ |
| Rear wheels | 24″ |
| Front casters | 8″ |
| Chair weight | 42 lb without front rigging (22″ chair) |
| Shipping weight | 53 lb |
| Carton | 32″ x 13″ x 37″ |
| Frame | Triple chrome-plated carbon steel; gusseted sides, reinforced caster journals, dual cross-braces |
| Arms | Removable, fixed height, desk length or full length |

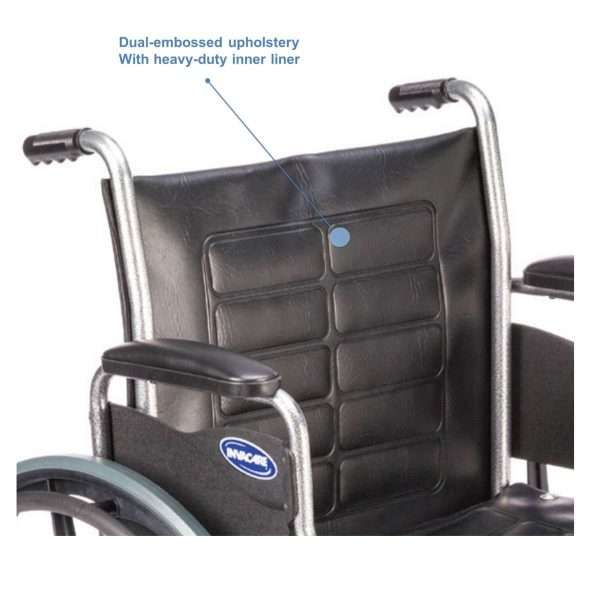

| Upholstery | Dual-embossed vinyl; heavy-duty inner liners on T4X models |
| Wheel locks | Push to lock (adult) |
| Bearings | Dual-sealed precision bearings |
Specs from Invacare’s Tracer IV product sheet (form 11-228), Tracer IV user manual (part 1110558) and order form (form 95-29), and the Invacare Standard Manual Wheelchairs stock chart (form 19-089).
Sizing and Fit
Measure across the hips while seated and add about 2″ to choose the seat width: up to about 18″ of hips fits the 20″ seat, and wider users move to 22″ or 24″. All three widths are 18″ deep. Invacare lists overall width from 26.25″ on its 18″ frame to 32.25″ on the 24″ frame, so measure the narrowest door the chair must pass, usually the bathroom. Most users ride at the 19.5″ adult seat height; the 17.5″ hemi height helps shorter users reach the floor with their feet. The Manual Wheelchair Assessment Tool can help if you are between sizes.
Cushions and Accessories
The Tracer IV has a sling seat, so anyone sitting more than a couple of hours a day should add a pressure-relief wheelchair cushion sized to the seat. Invacare’s Matrx cushions on our site are rated to 300 lb, so for a bariatric chair we recommend wide ProActive Protekt cushions: the Protekt Gel Bariatric Cushion and the Protekt Supreme Bariatric Cushion, both rated to 500 lb, plus the Protekt Back Cushion for lumbar support (see Complete Your Chair below). Footrests or elevating legrests are chosen in the options above.
Care and Maintenance
- Wipe the vinyl with mild soap and water and let it dry before folding
- Check that the wheel locks hold and the arms and footrests latch before each use
- Check the tires and casters, and keep the axles clean so the chair rolls straight
- See Wheelchair Problems and Solutions for common fixes, and follow the Invacare manual for adjustments
❓ Heavy Duty Wheelchair FAQ
What is the weight capacity of the Invacare Tracer IV?
350 lb on the T420, T422 and T424 (20″, 22″ and 24″ seats), and 450 lb on the heavy-duty T4X22 and T4X24 (22″ and 24″ seats with heavy-duty inner liners), per Invacare.
What seat sizes are available?
20″, 22″ or 24″ wide, all 18″ deep.
How much does the Tracer IV weigh?
42 lb without front rigging, per Invacare (based on a 22″ chair). Shipping weight is 53 lb.
Can the seat height be lowered?
Yes. The dual axle sets the seat at 19.5″ adult height or 17.5″ hemi height.
Does it fold?
Yes. It folds to 13″ wide for storage and travel.
Are the arms removable?
Yes. Desk-length and full-length arms both remove for side transfers.
What is the T4X version?
The T4X22 and T4X24 add heavy-duty inner liners that keep the seat and back from stretching.
Do you ship nationwide?
Yes, we ship the Invacare Tracer IV nationwide. Call 585-505-6665 for help with sizing or cushions.
🔗 Wheelchair Guides, Answers & Tools
Want help choosing? Start with these guides, or call us at 585-505-6665.
👉 Most Comfortable Wheelchair (2026): 22 Picks by Need
👉 Manual Wheelchair Knowledge Base
👉 Manual Wheelchair Assessment Tool
👉 Wheelchair Seat Cushion Knowledge Base
👉 Wheelchair Problems and Solutions
PRODUCT SPECIFICATION
| Back Height | 16″ |
| Family | Tracer Series |
| Folded Width | 13 Inches |
| Frame Type | 18″ or 20″ |
| Overall Depth | 30″ |
| Overall Height | 36″ |
| Overall Width | 29″ |
| Product Weight | 42 lb. w/out Front Riggings |
| Seat Depth | 18″ | 20″ |
| Seat Width | 20″ | 22″ | 24″ |
| Type | Heavy Duty/Bariatric (K0007) |
| Warranty | Limited Warranty – 5 year on frame & crossbraces, 1 Year on all components |
| Weight Capacity | 350 – 450 lbs. |
