EV Rider Heartway Spring Manual Tilt in Space Wheelchair – Tilt and Recline to 30°, Contoured Rehab Seat, Elevating Leg Rests, 16″, 18″ or 22″ Seat, 300 lb
$1,895.00
- Rated No. 1 in customer service
- Fast nationwide shipping, delivered to your door
- Manufacturer warranties
- Cash-back rewards on every order
Authorized dealer & provider · Huge selection · Questions? Call 585-505-6665
✔ Manual Tilt in Space up to 30°
✔ 300 lb Capacity, 16″, 18″ or 22″ Seat
✔ Contoured Rehab Seat, 4″ Cushion
✔ Elevating Leg Rests Standard
✔ 84 lb Aluminum Frame
✔ 24″ Quick-Release Wheels, Solid Tires
-
Fast nationwide shipping, delivered to your door · 30-day returns on eligible products · Shipping & returns details
Share with Friends
- Description
- PRODUCT SPECIFICATION
- Shipping & Returns
- MANUAL/INSTRUCTIONS
- Reviews (1)
Description

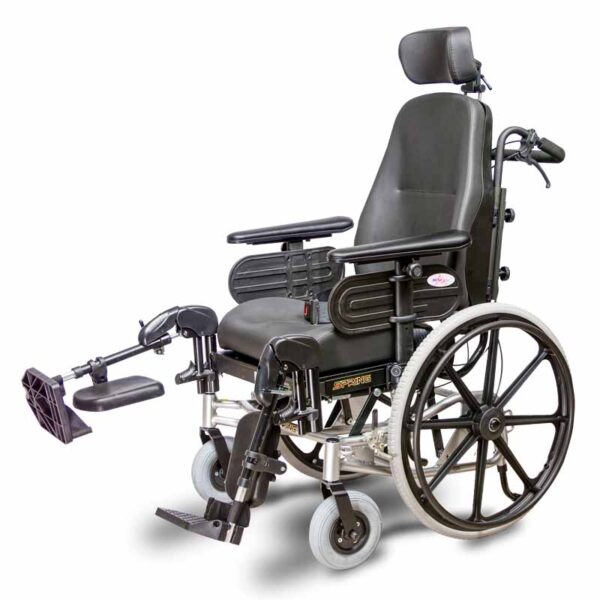

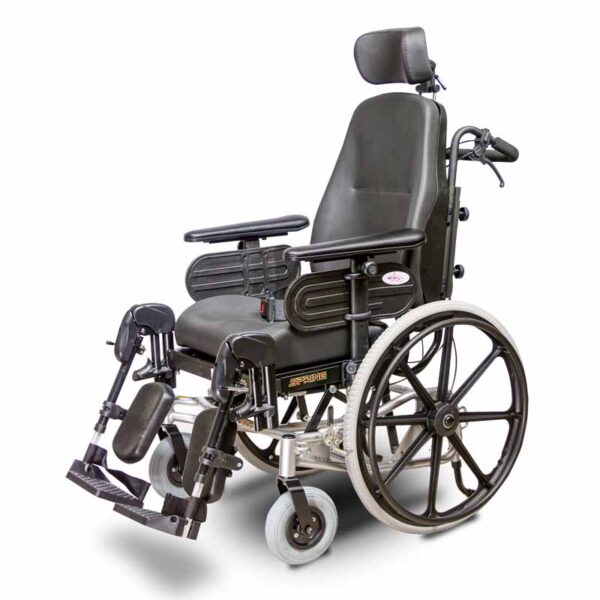

Heartway Spring by EV Rider – Manual Tilt in Space Wheelchair, 30° Tilt, Contoured Rehab Seat, 300 lb

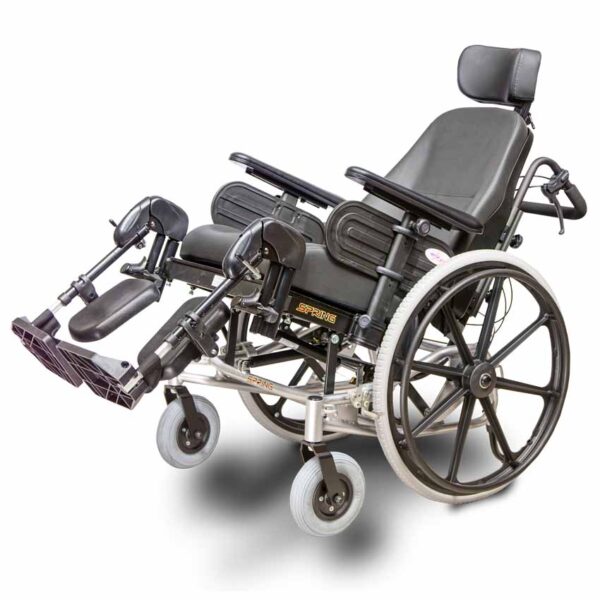

The Heartway Spring, sold by EV Rider, is a manual tilt in space wheelchair on a lightweight aluminum frame. Its Tilt ‘N Space seating tips the user back up to 30°, so a caregiver can shift weight off the hips and pelvis during the day, change posture and ease pressure points. It weighs 84 lb and carries users up to 300 lb.
A contoured rehab seat with a 4″ cushion and an 18″ seat depth keeps the user secure on long days, and elevating leg rests come standard. The 24″ drive wheels quick-release for loading into a car trunk. Choose the seat width in the options above.
Comparing chairs? Our most comfortable wheelchair guide explains when tilt in space beats a plain recliner, and the Manual Wheelchair Knowledge Base covers tilt, recline and seat sizing. See all our manual wheelchairs and wheelchairs to compare.
Why Choose the Heartway Spring Tilt in Space Wheelchair?
A tilt and recline wheelchair usually means a large, costly rehab chair. The Spring gives you manual tilt in space on an aluminum frame that is far easier to handle, with quick-release wheels for the car. Tilting keeps the hip angle the same, so the user is less likely to slide forward than in a recline-only chair, and the weight moves from the seat onto the back. Solid tires front and rear mean nothing to pump up.
Who Is This Tilt in Space Wheelchair Best For?
The Spring is a good fit for:
- Users who sit most of the day and need regular pressure relief
- People who can’t shift their own weight in the chair
- Users who need their legs raised (elevating leg rests standard)
- Users up to 300 lb, with seats up to 22″ wide
- Caregivers who want a tilt chair that comes apart for the car
Choose something else if the user needs:
- A folding tilt chair for car trips: see the Karman VIP-515-TP tilt in space transport chair
- Recline only, in a light transport chair: see the Karman KM-5000 TP
- A reclining back for all-day sitting: see our high back reclining wheelchairs
Heartway Spring Specifications
| Model | Heartway Spring HW1 |
|---|---|
| Weight capacity | 300 lb |
| Tilt | Manual Tilt ‘N Space, up to 30° |
| Seat width | 16″, 18″ or 22″ |
| Seat depth | 18″ |
| Seat cushion | 4″ contoured rehab seat |
| Seat height (cushion to floor) | 22″ |
| Seatback height | 22″ (18″ seat); 24″ (22″ seat) |
| Overall length | 45″ |
| Overall width | 27″ (18″ seat); 31″ (22″ seat) |
| Turning radius | 39″ |
| Chair weight | 84 lb |
| Frame | Aluminum, silver |
| Rear wheels | 24″ x 1 3/8″, solid tires, quick release |
| Front casters | 8″ x 2″, solid |
| Leg rests | Elevating, standard |
| Max recommended climbing angle | 6° |
Specs from EV Rider’s Spring Manual Tilt-in-Space Wheelchair product page.
Sizing and Fit
Measure across the hips while seated and add about 2″ for the seat width. The seat is 18″ deep with a 22″ seat height (cushion to floor), so check that the user’s feet reach the leg rests comfortably. The chair is 27″ wide with the 18″ seat and 31″ with the 22″ seat, and 45″ long, with a 39″ turning radius, so measure doorways and turning space at home. Call 585-505-6665 if you are between sizes.
Cushions and Accessories
The Spring comes with a 4″ contoured rehab cushion. EV Rider doesn’t make wheelchair cushions, so for extra skin protection we recommend ProActive and Comfort Company: the ProActive Protekt O2 adjustable air cushion, the Comfort Company Ascent and the Comfort M2 (see Complete Your Chair below). More options are in our wheelchair cushions.
Care and Maintenance
- Wipe the upholstery with mild soap and water
- Check the tilt mechanism, wheel locks and leg rest latches before each use
- Keep the quick-release axles clean and fully seated
- Stay within EV Rider’s 6° maximum recommended climbing angle
❓ Manual Tilt in Space Wheelchair FAQ
How far does the Heartway Spring tilt?
Up to 30°, per EV Rider. The tilt is manually operated.
What is the weight capacity?
300 lb.
How much does the chair weigh?
84 lb, per EV Rider.
Are elevating leg rests included?
Yes. Elevating leg rests come standard.
Do the wheels come off for the car?
Yes. The 24″ drive wheels are quick release.
What is the difference between tilt in space and recline?
Recline opens the angle between the seat and back. Tilt in space tips the whole seat back and keeps the hip angle the same, which helps users who slide when reclined.
What seat sizes are available?
16″, 18″ or 22″ wide, all 18″ deep.
Do you ship nationwide?
Yes, we ship the Heartway Spring nationwide. Call 585-505-6665 with sizing questions.
🔗 Wheelchair Guides, Answers & Tools
Want help choosing? Start with these guides, or call us at 585-505-6665.
👉 Most Comfortable Wheelchair (2026): 22 Picks by Need
👉 Manual Wheelchair Knowledge Base
👉 Manual Wheelchair Assessment Tool
PRODUCT SPECIFICATION
| Length | 45″ |
| Width | 26″ (16″ seat width) 27″ (18″ seat width) 31″ (22″ seat width) |
| Seatback Height | 22″ (16″ & 18″ seat widths) 24″ (22″ seat width) |
| Overall Height – at Minimum Tiller Height | N/A |
| Legroom – Floorboard Length x Width | 16-20″ |
| Deck Height – Floorboard to Floor | 4-8″ |
| Turning Radius | 39″ |
| Weight | 84 lbs |
| Seat Type | Rehab Seat |
| Seat – Width & Depth & Height | 16″ / 18″ / 22″ |
| Seat – Cushion Thickness | 4″ |
| Seat Height – Cushion to Deck | 16″ |
| Seat Height – Cushion to Floor | 22″ |
| Tire Type | Solid Tires |
| Rim Type Rear | Industrial Plastic |
| Rim Type Front | Industrial Plastic |
| Outside Diameter Rear | 24″ in |
| Tire Width Rear | 1-3/8″ |
| Outside Diameter Front | 8″ |
| Tire Width Front | 2″ |
| Climbing Angle – Maximum Recommended | 6 degree |
| Load Capacity | 300 lbs |
| Colors | Silver |
| Elevating Leg Rests | Standard |
