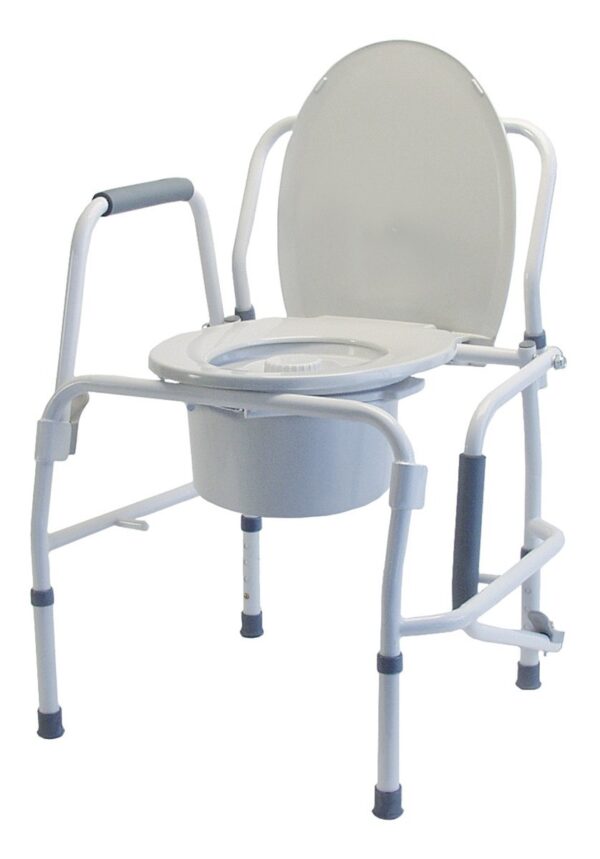

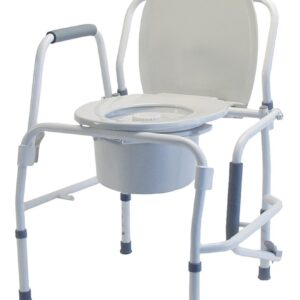

Lumex Silver Collection Drop Arm Commode – Steel 3-in-1 Bedside Commode, 300 lb Capacity
$159.99
- Rated No. 1 in customer service
- Fast nationwide shipping, delivered to your door
- Manufacturer warranties
- Cash-back rewards on every order
Authorized dealer & provider · Huge selection · Questions? Call 585-505-6665
✔ 300 lb Weight Capacity
✔ All-Welded Grey-Coated Steel Frame
✔ Drop Arms Lock When Raised
✔ 18.75″ to 22.75″ Seat Height
✔ Cushioned Armrests, 18″ Between Arms
✔ Pail, Cover & Splash Shield Included
You earn 15 Points - a total of $15.00 Cashback-
Fast nationwide shipping, delivered to your door · 30-day returns on eligible products · Shipping & returns details
Share with Friends
- Description
- PRODUCT SPECIFICATION
- Shipping & Returns
- Reviews (0)
Description
Lumex Silver Collection 3-in-1 Steel Drop Arm Commode – Drop Arm Bedside Commode, 300 lb Capacity
The Lumex Silver Collection 3-in-1 Steel Drop Arm Commode is the everyday lumex drop arm commode for people who move on and off the toilet by sliding sideways. Push a release lever and the arm on that side folds down below the seat. The user slides across from the bed or wheelchair, and when the arm is lifted back up it locks on its own. Lumex rates it for 300 lb, evenly distributed.
It’s a steel drop arm commode with an all-welded, grey-coated frame, cushioned armrests and a plastic seat that snaps on. The seat height adjusts from 18 3/4″ to 22 3/4″ in 1″ steps, and there’s 18″ of room between the arms.
Use it as a drop arm bedside commode with the pail, cover and splash shield that come in the box, or take off the backbar and stand it over the toilet as a raised toilet seat or a toilet safety frame. Graham-Field lists a three-year limited warranty.
Why Choose the Lumex Silver Collection Drop Arm Commode?
Standing up, turning around and sitting back down is the riskiest part of using a commode for someone with weak legs, and it’s the part that hurts a caregiver’s back. A drop arm takes that step away. With one arm down, the user stays seated and shifts across, the same way they’d move from a bed to a wheelchair with a transfer board.
Graham-Field built the release so that a person with limited hand strength or dexterity can work it, and the arm can’t stay half-up: it locks automatically when it’s raised. The rest is plain, sturdy and easy to keep clean. We’re an authorized dealer and provider, we ship fast nationwide and we deliver to your door. Questions before you order? Call us at 585-505-6665.
Who Is the Silver Collection Drop Arm Commode Best For?
It’s a good match for:
- Users up to 300 lb who transfer sideways from a bed, wheelchair or chair
- Caregivers who help with toileting and want to avoid a stand-and-pivot
- People home after surgery, a fall or a hospital stay who are told not to stand and turn on their own
- Users with stiff or weak hands, since the drop-arm release is made to be easy to operate
- Small homes that need one commode for the bedside at night and the toilet during the day
Still comparing styles? Our guide to choosing the best shower commode chair for elderly users explains where a bedside commode fits and where a rolling shower commode makes more sense.
Who May Need a Different Commode?
If the user weighs more than 300 lb, or needs more than 18″ between the arms, step up to the Lumex Imperial Collection bariatric drop arm commode. Graham-Field rates it for 600 lb, with a 23″ seat and 25″ between the arms. If nobody needs to slide in from the side, a standard steel commode such as the Graham-Field Silver Collection 3-in-1 Steel Commode may be all you need.
This commode stands on four legs with rubber tips. It has no wheels, so it’s not made for rolling a seated person to the bathroom or into the shower. For that, look at our shower commode chairs, or call us and we’ll point you to the right one.
Drop Arms That Release Easily and Lock When Raised
Each arm drops on its own, so the user can transfer out on the left or the right, whichever side the bed or wheelchair is on. To lower an arm, push its release lever inward. To bring it back, lift it to the upright position and make sure the push button pops fully out of the locking hole.
One safety point from Lumex’s instructions is worth repeating: lean straight down on the armrest, not on the very front of it. Pressing on the front of the arm can make it drop when you don’t expect it.
18 3/4″ to 22 3/4″ Seat Height in 1″ Steps
All four legs telescope. Press the button, slide the leg up or down until the button clicks into the hole you want, and repeat on the other three legs at the same hole. That gives you five settings from 18 3/4″ to 22 3/4″.
Set it so the user’s feet rest flat on the floor and the knees sit about level with the hips. Over a toilet, the commode has to clear the toilet bowl, so measure your toilet before choosing the setting.
Three Ways to Use It
- Bedside commode: put the pail on the pail supports under the seat opening, use it, then cover the pail with its lid before you carry it away to empty it.
- Raised toilet seat: remove the backbar, take out the pail, set the splash shield on the pail supports and stand the commode over the toilet with the toilet seat lifted.
- Toilet safety frame: the same set-up over the toilet gives the user armrests on both sides to push up from.
The backbar slides out of its channel guides and clicks back in, so switching between bedroom and bathroom takes a minute.
Silver Collection vs. Imperial Collection Drop Arm Commode
Both are Lumex 3-in-1 steel drop arm commodes with arms that lock when raised, a pail, a cover and a splash shield. The Silver Collection is the standard size: 300 lb capacity, a 14″ wide seat, 18″ between the arms and 23 3/4″ overall width, so it fits next to most beds and toilets. The Imperial Collection is the bariatric size: 600 lb, a 23″ seat, 25″ between the arms and 31″ overall width. Pick the Silver for an average-size user in a tight bathroom; pick the Imperial when the user needs the extra width or weight rating.
Common Problem → Silver Collection Drop Arm Commode Solution
Problem: After his hip surgery, Dad is told not to stand and twist. The trip from his bed to the bathroom at night is the hardest part of the day, and his daughter is the one helping him up.
Solution: The commode goes right next to the bed with the near arm dropped. Dad slides across from the mattress without standing, the arm goes back up and locks, and he has armrests on both sides. In the morning the backbar comes off and the same commode sits over the toilet as a raised seat.
“Will it fit beside the bed in a small room?” It’s 23 3/4″ wide overall, so measure the space beside the bed and leave room for the caregiver to stand.
Sizing & Fit
- Weight: up to 300 lb, evenly distributed. The user should sit centered.
- Seat: 14″ wide and 16 3/4″ deep.
- Between the arms: 18″. If the user’s hips are close to that, look at the Imperial (25″).
- Seat height: 18 3/4″ to 22 3/4″, in 1″ steps.
- Space needed: 23 3/4″ overall width, plus room for the transfer on the drop-arm side.
Care & Cleaning
Lumex’s instructions say to wash the commode with a mild soap and water solution, rinse it with clear water and dry it with a soft cloth. Don’t use organic solvents, abrasive cleaners or scouring pads. Clean the seat and pail (or seat and splash shield, when it’s over the toilet) with disinfectant after each use, and check every nut, bolt and knob weekly. Replace any rubber tip that is torn, cracked, worn or missing right away; Lumex sells replacement tips as item 9290, four per bag.
What’s Included
Frame, seat, lid, back bar, commode pail, pail cover and splash shield, plus Lumex’s instructions. It ships as one unit.
Silver Collection Drop Arm Commode Warranty
Graham-Field lists a three (3) year limited warranty for this commode. The warranty statement printed in Lumex’s instructions lists the frame for five (5) years and the tips, wheels/casters and handgrips for three (3) months. Call us at 585-505-6665 and we’ll confirm the terms that apply to your order.
Key Features
✔ 300 lb Weight Capacity
✔ All-Welded Grey-Coated Steel Frame
✔ Drop Arms Lock When Raised
✔ 18.75″ to 22.75″ Seat Height
✔ Cushioned Armrests, 18″ Between Arms
✔ Pail, Cover & Splash Shield Included
Product Specifications
| Brand | Lumex by Graham-Field |
| Model | Silver Collection 3-in-1 Steel Drop Arm Commode |
| Item Number | 6433A |
| UPC | 717076194723 |
| Type | 3-in-1 drop-arm commode: bedside commode, raised toilet seat or toilet safety frame |
| Weight Capacity | 300 lb (136.08 kg), evenly distributed |
| Seat Width | 14″ |
| Seat Depth | 16 3/4″ |
| Width Between Arms | 18″ |
| Overall Width | 23 3/4″ |
| Seat Height | 18 3/4″ to 22 3/4″ (47.63 to 57.79 cm), in 1″ (2.5 cm) increments |
| Frame | All-welded steel, grey-coated |
| Arms | Drop independently below seat level, lock automatically when raised, cushioned armrests |
| Seat | Plastic, snaps on; with lid |
| Backbar | Removable |
| Legs | Four height-adjustable legs with rubber tips (no wheels) |
| What’s Included | Frame, seat, lid, back bar, commode pail, cover and splash shield |
| Replacement Parts | 9290 replacement tips (4 per bag) |
| Warranty | Three (3) year limited per Graham-Field; ask us for full terms |
| Overall Depth / Height | Ask us |
| Product Weight | Ask us |
Frequently Asked Questions
What is the Lumex Silver Collection drop arm commode?
It’s a standard-size 3-in-1 steel commode with arms that drop below the seat, rated by Lumex for 300 lb. You can use it as a bedside commode, a raised toilet seat or a toilet safety frame.
How much weight does it hold?
Graham-Field rates it for a maximum of 300 lb (136.08 kg), evenly distributed. For a heavier user, the Lumex Imperial Collection drop arm commode is rated for 600 lb.
How do the drop arms work?
Push the release lever inward and the arm drops below seat level. Lift it back to upright and it locks automatically; check that the push button sticks fully out of the locking hole before anyone leans on it.
Can someone with weak hands work the arm release?
Yes, that’s what it was designed for. Graham-Field says the drop arm mechanism may be operated by patients lacking manual dexterity.
Can both arms be down at the same time?
Each arm drops independently, so you can lower one side or both. For a transfer, most people lower only the arm on the side they’re moving from.
What is the seat height?
The seat adjusts from 18 3/4″ to 22 3/4″ in 1″ steps. All four legs must be set to the same hole.
How wide is it?
There’s 18″ between the arms and the commode is 23 3/4″ wide overall. The seat itself is 14″ wide and 16 3/4″ deep.
Can it go over my toilet?
Yes. Take off the backbar, remove the pail, put the splash shield on the pail supports and set the commode over the toilet with the toilet seat raised. Measure your toilet so you can pick a seat height that clears it.
Does it come with a pail?
Yes. It comes with a commode pail, a pail cover and a splash shield, along with the seat and lid.
Does it have wheels?
No. It stands on four height-adjustable legs with rubber tips that must touch the floor at all times. If you need to roll the user, ask us about a shower commode chair with casters.
How do I clean it?
Wash it with mild soap and water, rinse with clear water and dry with a soft cloth, as Lumex’s instructions say. Disinfect the seat and pail after each use and skip solvents, abrasive cleaners and scouring pads.
What warranty does it have?
Graham-Field lists a three-year limited warranty. Lumex’s instructions show five years on the frame and three months on tips and handgrips, so ask us and we’ll confirm the terms for your order.
🔗 Bath Safety Guides, Answers & Related Products
Setting up a safer bedside or bathroom routine? These pages help, and you can call us at 585-505-6665 any time.
👉 Shop All Commodes & Potty Chairs
👉 Ultimate Guide to Choosing the Best Shower Commode Chair for Elderly
👉 Types of Bathroom and Shower Chairs for the Elderly

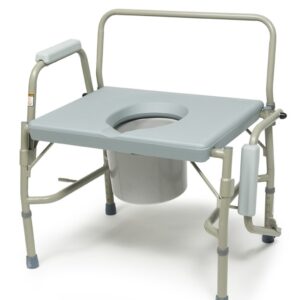

👉 Lumex Imperial Collection Bariatric Drop Arm Commode (600 lb)
