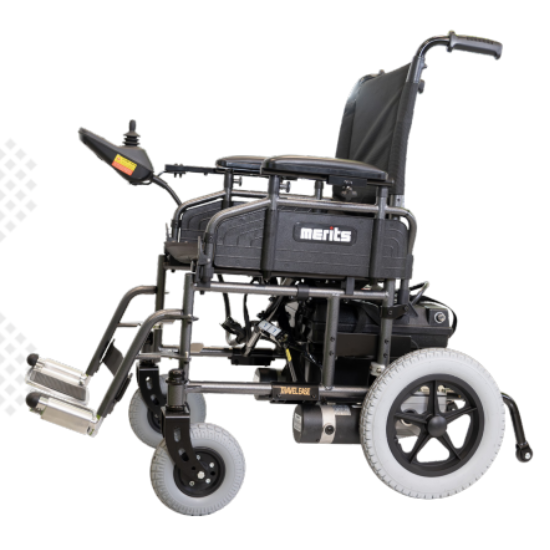

Merits Travel-Ease P101 Folding Power Wheelchair – 300 lb Compact Electric Wheelchair

Merits Travel-Ease P101 Folding Power Wheelchair – 300 lb Compact Electric Wheelchair

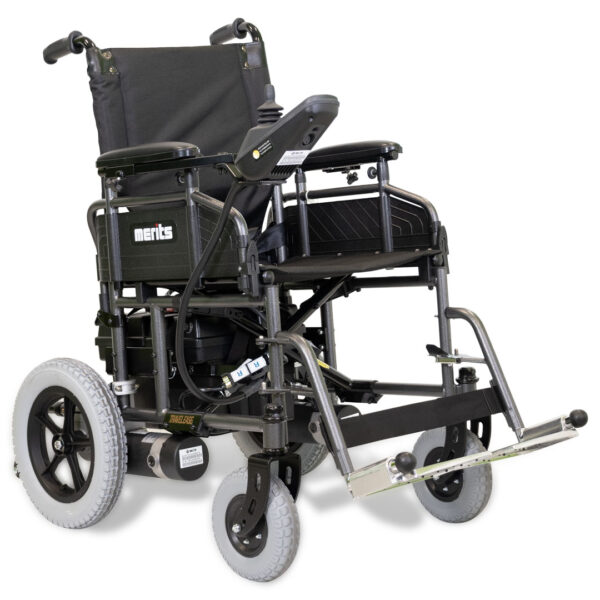

The Merits Travel-Ease P101 folding power wheelchair combines the familiar profile and folding convenience of a manual-style wheelchair with the powered performance of a Group 2 electric wheelchair. Designed for adults who need dependable powered mobility without moving to a bulky captain-seat power chair, the Travel-Ease provides a 300 lb weight capacity, up to 18 miles of driving range, 4 mph maximum speed, rear-wheel drive, and a compact 23-inch turning radius.

What makes the Travel-Ease especially useful is the way its specifications balance mobility, storage, and everyday performance. The chair folds for improved storage and transportation, yet uses substantial 12.5-inch foam-filled drive wheels, offers approximately 4.5 inches of ground clearance, and is powered by dual 33Ah U1 AGM batteries. This makes it a very different type of travel chair from ultra-lightweight electric wheelchairs built primarily around minimum carrying weight.

For someone comparing a folding power wheelchair, compact electric wheelchair, or power wheelchair from Merits, the Travel-Ease is particularly worth considering when driving range, ground clearance, a traditional wheelchair-style seating platform, and foldable storage are more important than having the lightest possible chair. Its 18-inch standard seating configuration can also be configured with a 20-inch seat, allowing buyers to better match the chair to individual seating needs.

Why Choose the Merits Travel-Ease Folding Power Wheelchair?

Many buyers looking for a folding power wheelchair are trying to solve two needs at once: they want powered mobility for daily use, but they also want a chair that is easier to store or transport than a conventional full-size power wheelchair.

The Travel-Ease addresses that need with a foldable wheelchair-style frame combined with a rear-wheel-drive power system. It supports up to 300 lbs and provides up to approximately 18 miles of range per charge, giving it considerably more substance than a chair designed only for occasional short-distance transportation.

Its 23-inch turning radius, 4.5-inch ground clearance, 12.5-inch foam-filled drive wheels, and 10-degree gradient specification also make the Travel-Ease useful for buyers who want more than a minimal indoor travel chair.

Most importantly, the Travel-Ease should be chosen for what it actually does well. At approximately 150 lbs total with an 86 lb heaviest piece, it is not an ultra-lightweight power wheelchair. Its advantage is the combination of folding storage, substantial batteries, extended range, useful ground clearance, compact maneuverability, and traditional wheelchair-style seating.

A Folding Power Wheelchair with Full-Size Performance

The Travel-Ease is designed to fold for improved storage and transportation while retaining the performance characteristics expected from a more substantial powered wheelchair.

That distinction matters because folding does not necessarily mean lightweight. The Travel-Ease weighs approximately 150 lbs and has a heaviest individual component of approximately 86 lbs. Buyers who expect to manually lift a power chair into a vehicle should carefully consider these weights before ordering.

For the right user, however, folding provides another important benefit: reducing the chair’s storage footprint without requiring the entire powered mobility system to be designed around extremely low weight.

This can make the Travel-Ease particularly appealing when the chair needs to be stored between uses, transported using appropriate vehicle equipment, or accommodated in locations where a non-folding power chair would be less practical.

Is the Travel-Ease a Compact Electric Wheelchair?

The Travel-Ease combines a traditional wheelchair-style frame with compact maneuverability. Its overall width ranges from approximately 24 to 26 inches depending on seat configuration, while its turning radius is approximately 23 inches.

That tight turning radius can be valuable in many accessible homes, apartments, elevators, stores, medical offices, restaurants, and other indoor environments where turning space is limited.

At approximately 43 inches long, however, buyers should not interpret the term compact electric wheelchair to mean exceptionally short or ultra-light. The Travel-Ease is better understood as a foldable, maneuverable power wheelchair that retains substantial drive wheels, batteries, range, and ground clearance.

Before purchasing for indoor use, measure the narrowest doorways and passages the chair will need to navigate. Overall chair width should always be compared with the actual clear opening while allowing sufficient clearance for the rider’s hands, joystick, approach angle, and safe maneuvering.

Up to 18 Miles of Driving Range

One of the strongest specifications of the Travel-Ease is its up to 18-mile driving range per charge.

For someone who expects to use a power wheelchair throughout the day, range can be just as important as portability. The Travel-Ease uses two 33Ah U1 AGM batteries, providing the battery capacity needed to support its extended manufacturer-listed driving range.

This makes the chair relevant for more than simply moving from a vehicle into a destination. It can support many everyday mobility routines involving home use, appointments, shopping, community activities, and longer outings where a very short-range travel chair may be less practical.

Actual driving distance varies with rider weight, terrain, slopes, battery age and condition, temperature, driving speed, repeated stopping and starting, and other operating conditions. Users planning longer outings should maintain an appropriate battery reserve rather than assuming every trip will achieve the maximum listed range.

4 MPH Rear-Wheel-Drive Performance

The Travel-Ease uses a rear-wheel-drive system powered by a DC 24V / 180W motor and controlled by a PG VSI 50 controller. Maximum speed is approximately 4 mph.

Rear-wheel drive gives the Travel-Ease the traditional powered-wheelchair configuration buyers may prefer when looking for a straightforward everyday mobility chair rather than a mobility scooter or highly specialized power base.

Its performance specifications are especially meaningful when considered together: up to 4 mph speed, up to 18 miles of range, 4.5 inches of ground clearance, a 10-degree gradient specification, and 12.5-inch drive wheels.

That combination helps explain where the Travel-Ease fits within the power wheelchair market: it emphasizes practical everyday mobility and useful outdoor capability while retaining a foldable wheelchair-style design.

12.5-Inch Foam-Filled Drive Wheels

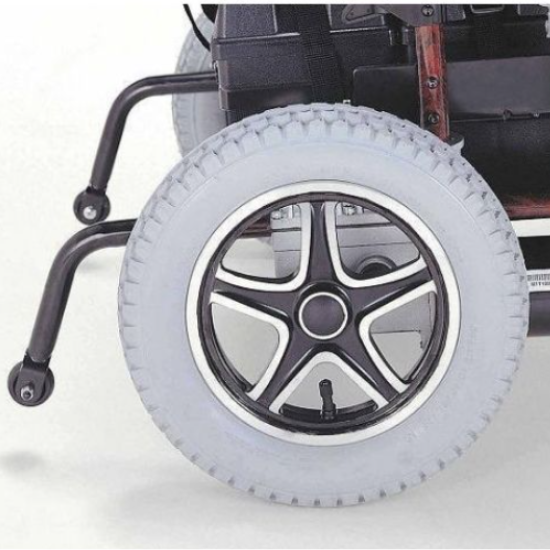

The Travel-Ease uses substantial 12.5-inch foam-filled rear drive wheels, paired with 8-inch foam-filled front wheels and rear anti-tip wheels.

Larger drive wheels can be particularly important for buyers who expect their power wheelchair to transition between common indoor and outdoor surfaces. The foam-filled construction also eliminates the routine air-pressure maintenance associated with pneumatic tires.

This wheel configuration is one of the characteristics that separates the Travel-Ease from very small travel-focused electric wheelchairs with compact wheels and minimal ground clearance.

It should still not be treated as an unrestricted all-terrain wheelchair. Surface conditions, obstacles, slopes, traction, ground clearance, and the chair’s operating limits should always be considered before proceeding.

4.5-Inch Ground Clearance for Everyday Obstacles

Ground clearance is easy to overlook when comparing electric wheelchairs, but it can make a significant difference when transitioning between surfaces or encountering smaller obstacles.

The Travel-Ease provides approximately 4.5 inches of ground clearance. Combined with its 12.5-inch drive wheels, this gives the chair more clearance underneath its frame than many compact travel-oriented power chairs.

For someone comparing a compact electric wheelchair for both indoor and appropriate outdoor use, ground clearance should be evaluated alongside turning radius, wheel size, overall width, and drivetrain—not just speed and battery range.

Ground clearance does not mean every obstacle is safe to cross. Users should still avoid obstacles, terrain, slopes, and surfaces outside the chair’s intended operating capabilities.

23-Inch Turning Radius for Indoor Maneuverability

Despite its substantial battery system and large rear drive wheels, the Travel-Ease maintains a tight 23-inch turning radius.

This is particularly relevant for buyers who expect to maneuver around furniture, navigate accessible hallways, enter elevators, reposition in rooms, or make tighter turns in community environments.

The chair’s actual overall width depends on seating configuration, ranging from approximately 24 inches with an 18-inch seat to 26 inches with a 20-inch seat configuration.

Turning radius and overall width should therefore be evaluated together when determining whether the Travel-Ease will work in a particular home or other indoor environment.

300 lb Weight Capacity

The Merits Travel-Ease supports a maximum rider weight of 300 lbs.

This allows the chair to provide a standard adult power-wheelchair capacity while retaining its folding frame and relatively compact maneuvering characteristics.

Weight capacity is only one part of proper wheelchair selection. Buyers should also consider seat width, seat depth, backrest height, seat-to-floor height, overall chair dimensions, positioning requirements, and the user’s individual mobility needs.

For users who need capacity beyond 300 lbs, the standard Travel-Ease should not be selected simply because its other specifications are attractive. A higher-capacity model should be considered instead.

18-Inch or 20-Inch Sling Seat Options

The Travel-Ease uses a traditional sling-style wheelchair seat rather than the captain-style seating commonly found on larger power chairs.

Seat width is available in approximately 18-inch and 20-inch configurations, with a 16-inch seat depth. Backrest height ranges from approximately 15 to 19 inches, and seat-to-floor height is approximately 20 inches.

This traditional wheelchair-style seating arrangement contributes to the Travel-Ease’s familiar profile and folding design. It can also be appealing to users who prefer a power wheelchair that looks and functions more like a conventional wheelchair than a scooter or large captain-seat power chair.

Seat width should be selected based on the intended rider rather than simply choosing the widest option. Proper fit affects positioning, comfort, maneuverability, and the chair’s overall width.

18-Inch vs. 20-Inch Travel-Ease: What Changes?

The Travel-Ease can be configured with either an 18-inch or 20-inch seat width. This choice affects both rider space and the overall width of the wheelchair.

The chair’s listed overall width ranges from approximately 24 to 26 inches, corresponding to its seating configuration. Buyers who need to navigate narrower doorways should pay particular attention to this difference.

The narrower configuration may provide additional clearance in tighter indoor environments, while the wider seat may be appropriate for a rider who requires additional seating width.

When deciding between the two, consider the rider’s actual body dimensions and seating requirements along with the narrowest spaces the wheelchair must navigate.

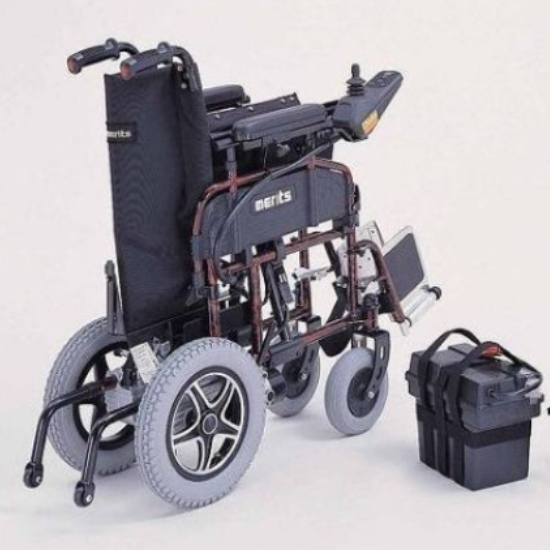

Foldable for Storage and Transportation

The Travel-Ease’s folding frame is one of its defining features. Folding allows the chair to occupy less space for storage and can make transportation more practical than with a rigid, non-folding power wheelchair.

However, buyers searching for the best electric wheelchair for travel should look beyond the word “folding.” The Travel-Ease weighs approximately 150 lbs total, and its heaviest individual piece weighs approximately 86 lbs.

That means this chair is better suited to a buyer who values a foldable frame plus substantial power-chair performance than someone whose number-one requirement is lifting an extremely lightweight electric wheelchair into a vehicle by hand.

Depending on the user, caregiver, and vehicle, appropriate assistance, a wheelchair lift, ramp, or other loading solution may still be necessary.

Is the Travel-Ease the Best Electric Wheelchair for Travel?

There is no single best electric wheelchair for travel for every user because “travel” can mean very different things. Some buyers need the lowest possible lifting weight. Others need a folding chair with longer range, larger wheels, greater ground clearance, or more substantial everyday performance.

The Travel-Ease is particularly compelling for the second type of buyer. Its strengths include a foldable frame, up to 18-mile range, 12.5-inch drive wheels, 4.5-inch ground clearance, 300 lb capacity, and 23-inch turning radius.

A substantially lighter electric wheelchair may be preferable when frequent manual lifting into a vehicle is the highest priority. The Travel-Ease may be the stronger match when the user wants a folding design without giving up the larger batteries, useful range, wheel size, and clearance associated with a more substantial power chair.

The right travel wheelchair should therefore be selected around the user’s actual transportation method—not simply whether the product can fold.

Travel-Ease vs. Lightweight Portable Electric Wheelchairs

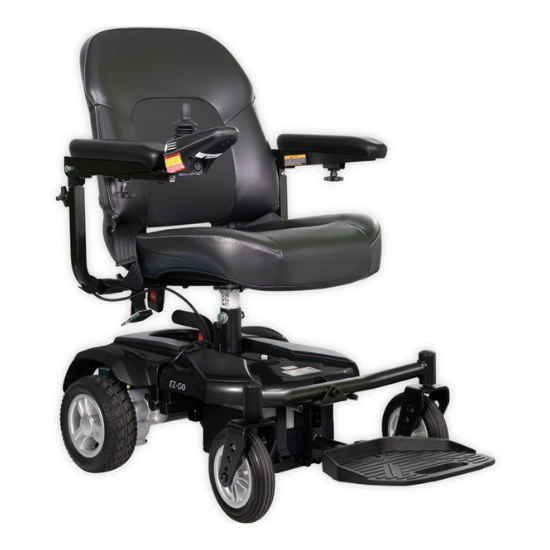

A lightweight portable electric wheelchair and the Merits Travel-Ease can both be designed for easier transportation, but they solve the problem differently.

Very lightweight chairs generally prioritize minimum product weight and compact handling. The Travel-Ease prioritizes a folding wheelchair frame combined with longer-range Group 2 power-chair performance.

At 150 lbs, the Travel-Ease is significantly heavier than many lightweight travel chairs. In return, it provides dual 33Ah AGM batteries, up to 18 miles of range, a 180W motor, 12.5-inch drive wheels, 4.5 inches of ground clearance, and a 300 lb capacity.

For buyers comparing these categories, the key question is not simply “Which chair weighs less?” It is “Which combination of transportability, range, seating, wheel size, clearance, and everyday performance best matches how I will actually use the wheelchair?”

Dual 33Ah AGM Batteries and 5A Off-Board Charger

The Travel-Ease is powered by two 33Ah U1 AGM batteries and uses a 5A off-board charger.

The larger battery configuration supports the chair’s manufacturer-listed range of up to approximately 18 miles per charge and is an important reason the Travel-Ease provides more extended driving capability than many compact travel-oriented chairs.

Battery size also contributes to overall chair weight, which is why buyers should consider range and transport weight together. A larger battery system can provide greater operating range while making the complete mobility device heavier to transport.

For airline, cruise, rail, or other commercial transportation, users should confirm the carrier’s current requirements for powered wheelchairs and batteries before traveling.

Standard, Optional, and Accessory Configurations

The Travel-Ease can be configured beyond its standard setup to better accommodate different users and everyday routines.

Available options include height-adjustable armrests with swing-away footrests and elevating leg rests (E0990). Available accessories include a USB charger, oxygen tank holder, swing-away joystick, cup holder, side bag, and other compatible items.

These components should not be confused with the standard chair configuration. The appropriate seating and accessory setup depends on the individual user’s positioning, transfer, storage, and everyday mobility requirements.

For help selecting available options or accessories for your Travel-Ease, call 585-505-6665 or chat with a live agent before ordering.

Who Is the Merits Travel-Ease Best For?

The Travel-Ease is particularly well suited to an adult who wants the maneuverability and familiar design of a wheelchair-style mobility device but needs powered propulsion for everyday mobility.

It is especially relevant for users who value folding storage, up to 18 miles of range, larger 12.5-inch drive wheels, 4.5-inch ground clearance, a tight 23-inch turning radius, and a 300 lb capacity.

It may also appeal to someone who prefers a sling-seat wheelchair design over a larger captain-seat power chair or mobility scooter.

A different electric wheelchair may be more appropriate for someone whose highest priority is ultra-low lifting weight, one-piece lightweight vehicle loading, a capacity above 300 lbs, highly specialized seating or positioning, or aggressive all-terrain use.

What Should You Compare Before Buying a Folding Power Wheelchair?

When comparing a folding power wheelchair, the most useful specifications extend far beyond whether the frame folds. Buyers should compare total weight, heaviest-piece weight, folded storage requirements, seat dimensions, overall width, turning radius, rider capacity, range, battery size, drive-wheel size, ground clearance, maximum gradient, drivetrain, and transportation method.

For the Merits Travel-Ease, the major numbers are clear: 300 lb capacity, approximately 150 lb total weight, 86 lb heaviest piece, 18-inch or 20-inch seat width, 23-inch turning radius, 4.5-inch ground clearance, 4 mph maximum speed, and up to 18 miles of range.

Those specifications help answer the questions that matter before purchasing: Will the seat fit the rider? Will the chair fit through the required spaces? Is the range sufficient? Can it handle the surfaces where it will be used? How will it be transported? And can the person responsible for loading it safely manage the chair’s weight?

Common Power Wheelchair Problem → Travel-Ease Solution

Problem: A rigid power wheelchair occupies too much space when it needs to be stored.

Travel-Ease Solution: The foldable wheelchair-style frame reduces its storage footprint and can make transportation more practical.

Problem: A small travel chair does not provide enough driving range.

Travel-Ease Solution: Dual 33Ah AGM batteries provide a manufacturer-listed driving range of up to approximately 18 miles per charge.

Problem: A compact power chair has very little ground clearance.

Travel-Ease Solution: Approximately 4.5 inches of ground clearance provides useful clearance for appropriate everyday surfaces and smaller obstacles.

Problem: A wheelchair is difficult to maneuver in tighter indoor areas.

Travel-Ease Solution: A compact 23-inch turning radius helps reduce the amount of space needed for turns and repositioning.

Problem: A travel-oriented power chair uses very small drive wheels.

Travel-Ease Solution: The chair uses substantial 12.5-inch foam-filled rear drive wheels paired with 8-inch foam-filled front wheels.

Key Features of the Merits Travel-Ease P101

• ✔ Foldable power wheelchair frame
• ✔ 300 lb maximum weight capacity
• ✔ Up to 18-mile driving range
• ✔ 12.5-inch foam-filled drive wheels
• ✔ 4.5-inch ground clearance
• ✔ Tight 23-inch turning radius
• ✔ 18-inch or 20-inch seating
• ✔ Dual 33Ah AGM batteries
• ✔ Rear-wheel-drive mobility system
• ✔ Optional elevating leg rests

Frequently Asked Questions About the Merits Travel-Ease
