Chariot IV XTC Pediatric Wheelchair – Lightweight Mobility, Built for Growing Kids
$399.00
- Rated No. 1 in customer service
- Fast nationwide shipping, delivered to your door
- Manufacturer warranties
- Cash-back rewards on every order
Authorized dealer & provider · Huge selection · Questions? Call 585-505-6665
✔ 12″ or 14″ Child-Size Seat
✔ 32 lb Without Front Rigging
✔ Back Height Adjusts 16″ to 18″
✔ Flip-Back Padded Arms for Transfers
✔ Elevating Legrests and Flip-Up Anti-Tippers
✔ 20″ Wheels with Hand Rims, 250 lb Capacity
-
Fast nationwide shipping, delivered to your door · 30-day returns on eligible products · Shipping & returns details
Share with Friends
- Description
- PRODUCT SPECIFICATION
- Shipping & Returns
- Product PDF downloads
- Reviews (0)
Description
Proactive Medical Chariot IV XTC Pediatric Wheelchair – 12″ or 14″ Seat, 32 lb, Adjustable Back, Flip-Back Arms, 250 lb

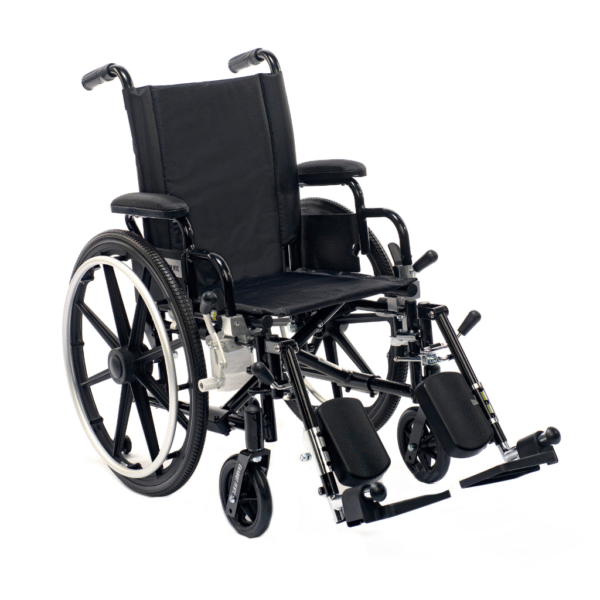

The Proactive Medical Chariot IV XTC Pediatric is a pediatric wheelchair with a 12″ or 14″ seat on a carbon steel frame that weighs 32 lb without front rigging. It comes ready to use with flip-back padded arms, elevating legrests with heel loops, flip-up anti-tippers and push-to-lock wheel locks, and it carries up to 250 lb.
Pick the 12″ or 14″ seat in the options above. The back adjusts from 16″ to 18″ high, a dual axle gives two seat heights (15.75″ and 16.75″), and the 20″ mag wheels have aluminum hand rims so a child can push the chair on their own.
Comparing chairs? Our most comfortable wheelchair guide covers the main wheelchair types, and the Manual Wheelchair Knowledge Base explains how to measure seat width, depth and height.
Why Choose the Chariot IV XTC Pediatric Wheelchair?
A child in an adult chair sits too wide, too deep and too high: the arms are out of reach of the wheels and the feet hang. This wheelchair for kids is sized down in every direction, with a 12″ or 14″ seat that is just as deep, 20″ rear wheels a child can reach, and a seat as low as 15.75″. The back height adjusts from 16″ to 18″ as the child grows, and the open frame has no seat guides, so it takes custom backs and accessories. The anti-tippers flip up instead of coming off, so they stay on the chair. If the child needs to recline, look at the Chariot IV XTC-RC Pediatric reclining wheelchair.
Who Is This Pediatric Wheelchair Best For?
The Chariot IV XTC Pediatric is a good fit for:
- Children who need a 12″ or 14″ seat
- Children who push themselves (20″ wheels with aluminum hand rims)
- Children who need side transfers (flip-back arms)
- Families who lift the chair into a car (32 lb without front rigging)
- Schools, therapy clinics and hospitals that need a durable child-size chair
Choose something else if the user needs:
- Recline for rest or positioning: see the Chariot IV XTC-RC Pediatric
- Another child-size option to compare: see the Drive Viper Pediatric Wheelchair
- An adult seat of 16″ or more: see the lightweight wheelchairs
- A caregiver-pushed chair: see transport chairs
Chariot IV XTC Pediatric Specifications
| Model numbers | WCK4X12DAELR (12″ seat), WCK4X14DAELR (14″ seat) |
|---|---|
| Weight capacity | 250 lb |
| Seat width | 12″ or 14″ |
| Seat depth | 12″ or 14″ (matches seat width) |
| Seat to floor height | 15.75″ / 16.75″ (dual axle) |
| Back height | Adjusts 16″ to 18″ |
| Length with riggings | 36″ |
| Chair weight | 32 lb, without front rigging |
| Shipping weight | 37 lb |

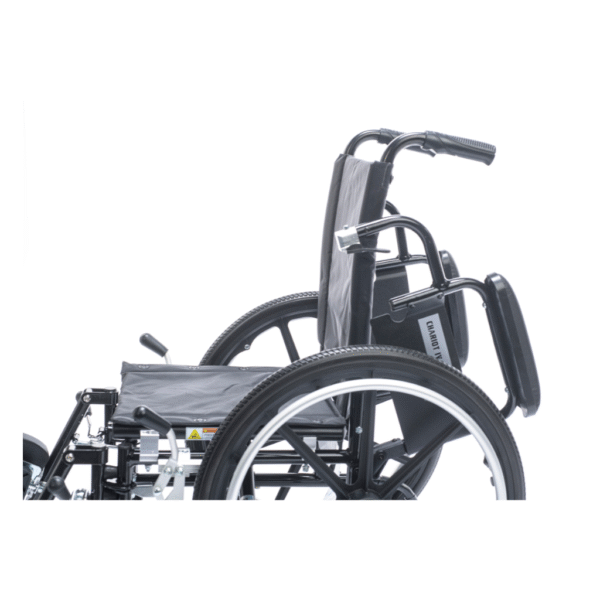

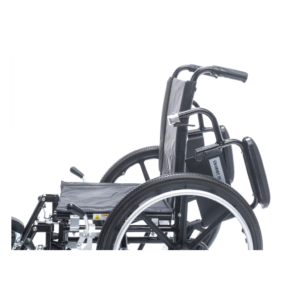

| Arms | Padded nylon, flip-back desk arms with front release lever |

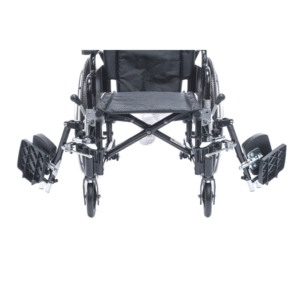

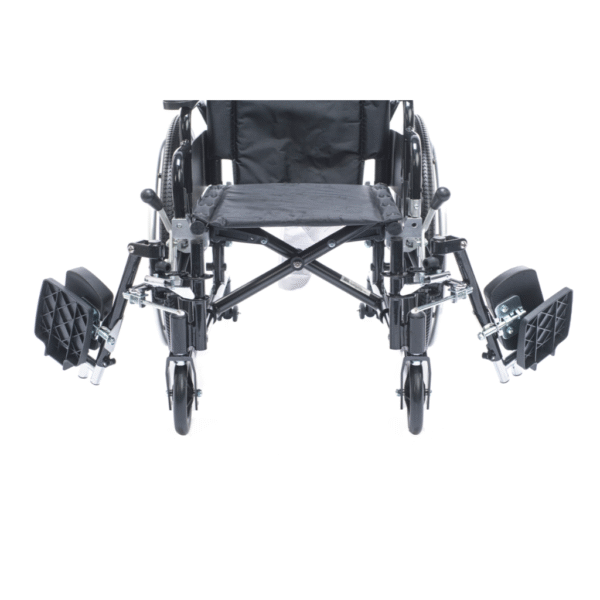

| Front rigging | Elevating legrests, tool-free adjustable length, composite footplates with heel loops |

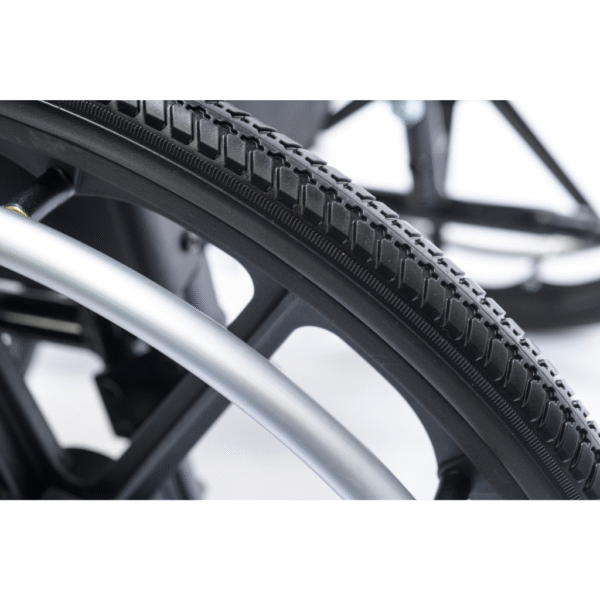

| Rear wheels | 20″ composite mag, aluminum hand rims, urethane tires, sealed bearings |
| Front casters | 6″ urethane, 3 height positions |

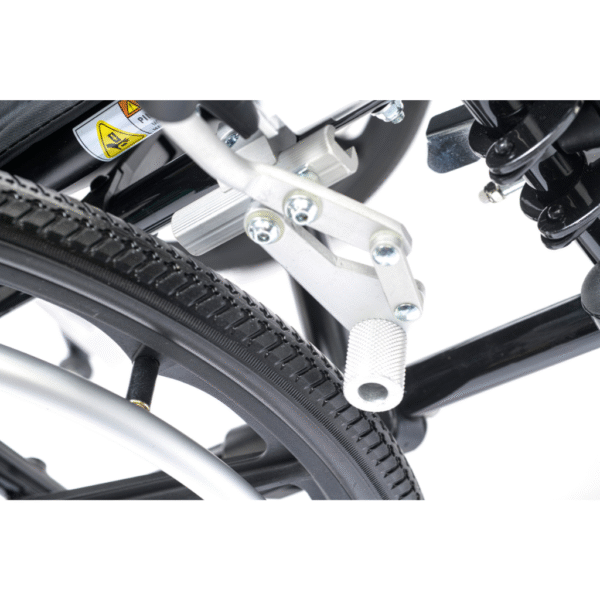

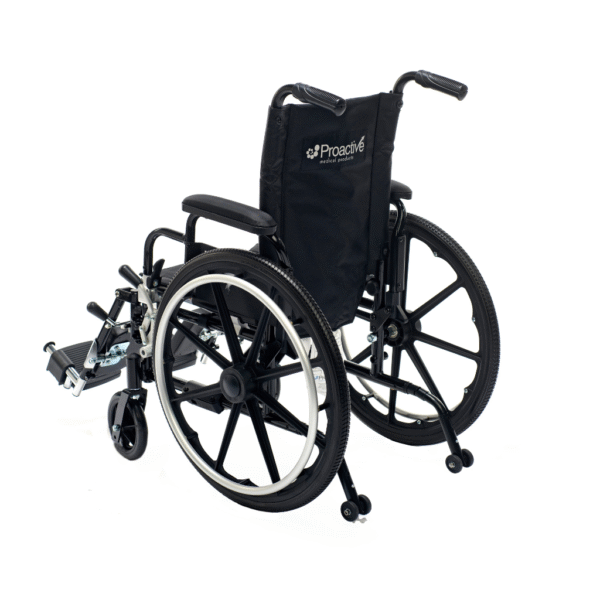

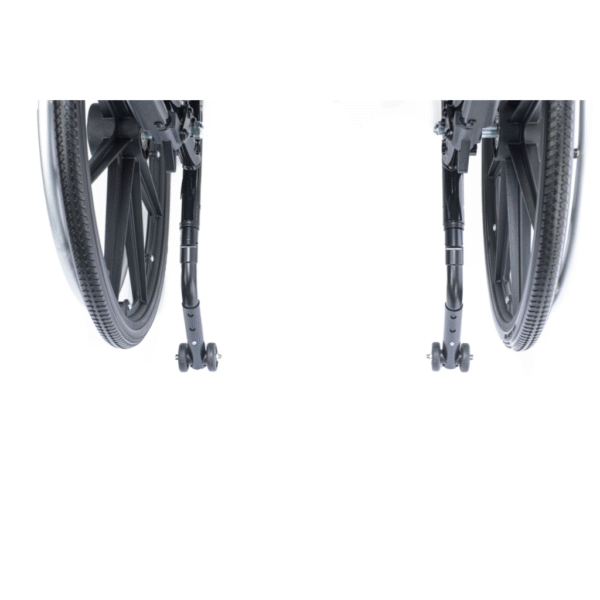

| Safety | Flip-up anti-tippers; push-to-lock wheel locks |
| Frame | Carbon steel, black powder coat, double coated |
| Upholstery | Flame retardant nylon, resists mildew and bacteria |
Specs from Proactive Medical’s Chariot IV XTC Pediatric 12″/14″ product page and product sheet.
Sizing and Fit
Measure across the child’s hips while seated and add about 1″ to 2″: up to about 11″ to 12″ across fits the 12″ seat, up to about 13″ to 14″ fits the 14″ seat. Seat depth equals seat width on this chair, so check that the child’s thigh, from the back of the hips to the back of the knee, is a little longer than the seat. With a child who is growing, the 14″ seat and the adjustable back give more room to grow.
Cushions and Accessories
A pediatric chair needs a cushion in a child size, so check the size before you add one. Handy extras for the 12″ and 14″ chairs are a Diestco seatback bag (12″ x 12″) for school things, a Diestco WeatherBreaker canopy made in pediatric sizes, and a folding wheelchair cover for storage (see Complete Your Chair below). Call us for a child-size cushion.
Care and Maintenance
- Wipe the nylon with mild soap and water and let it dry before folding
- Check that the wheel locks hold and the arms lock into their receivers before each use
- Keep the anti-tippers down when the child is in the chair
- Follow the Proactive owner’s manual in the Product PDF downloads tab for adjustments
❓ Pediatric Wheelchair FAQ
What sizes does the Chariot IV XTC Pediatric come in?
A 12″ or 14″ seat, each with a seat depth that matches the width.
What is the weight capacity?
250 lb, per Proactive Medical.
How much does this pediatric wheelchair weigh?
32 lb without the front rigging. Shipping weight is 37 lb.
Can it grow with my child?
The back height adjusts from 16″ to 18″, and the frame takes custom backs and accessories. For a bigger change in size, choose the 14″ seat.
Can a child push it by themselves?
Yes. It has 20″ rear wheels with aluminum hand rims, sized for a child to reach.
Are elevating legrests included?
Yes. Elevating legrests with heel loops come standard.
Do you ship nationwide?
Yes, we ship the Chariot IV XTC Pediatric nationwide. Call 585-505-6665 for help choosing the size.
🔗 Wheelchair Guides, Answers & Tools
Want help choosing? Start with these guides, or call us at 585-505-6665.
👉 Most Comfortable Wheelchair (2026): 22 Picks by Need
👉 Manual Wheelchair Knowledge Base
👉 Manual Wheelchair Assessment Tool
👉 Home Medical Equipment Knowledge Base
👉 Browse Lightweight Wheelchairs
PRODUCT SPECIFICATION
| Feature | Details |
|---|---|
| Seat Widths | 12″, 14″ |
| Seat Depths | 12″, 14″ |
| Seat-to-Floor Heights | 15.75″, 16.75″ |
| Back Height | Adjustable: 16″–18″ |
| Chair Weight | 32 lbs |
| Weight Capacity | 250 lbs |
| Frame Material | Carbon Steel – Black Powder-Coated |
| Rear Wheels | 20″ Composite Mag-Style |
| Front Casters | 6″ with 3 Height Adjustments |
| Leg Rests | Elevating with Composite Foot Plates & Heel Loops |
| Arm Style | Flip-Back Desk-Length, Padded |
| Upholstery | Flame Retardant, Mildew-Resistant Nylon |
| Anti-Tippers | Standard with Flip-Up Wheels |
| Warranty | Limited Lifetime |
