Chariot IV XTC Adjustable Height Wheelchair – Lightweight Custom-Fit Manual Wheelchair for Adults
$399.00
- Rated No. 1 in customer service
- Fast nationwide shipping, delivered to your door
- Manufacturer warranties
- Cash-back rewards on every order
Authorized dealer & provider · Huge selection · Questions? Call 585-505-6665
✔ 19.5″ or 17.5″ Hemi Seat Height (Dual Axle)
✔ Seat Depth Adjusts 16″ to 18″
✔ Back Height 17″ to 19″, Back Angle 5° to 20°
✔ 34 lb Aluminum Frame, Quick-Release Wheels
✔ Height-Adjustable Flip-Back Desk Arms
✔ 300 lb (16″, 18″) or 350 lb (20″, 22″) Capacity
-
Fast nationwide shipping, delivered to your door · 30-day returns on eligible products · Shipping & returns details
Share with Friends
- Description
- PRODUCT SPECIFICATION
- Shipping & Returns
- Product PDF downloads
- Reviews (0)
Description

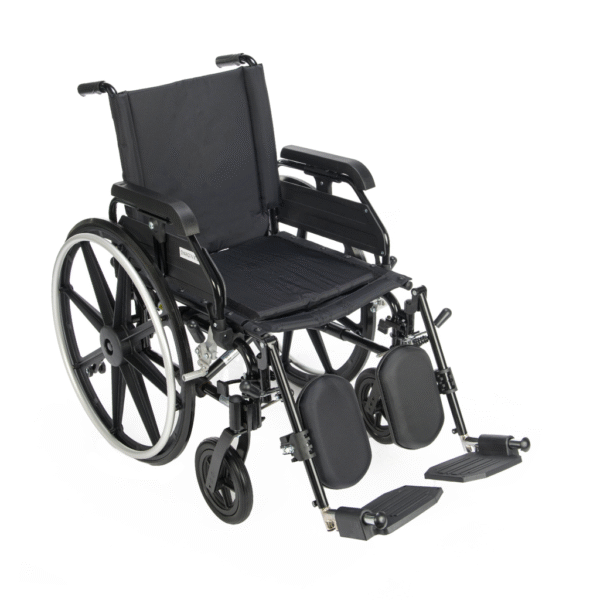

Proactive Medical Chariot IV XTC Adjustable Height Wheelchair – 34 lb Aluminum, Hemi Height, Adjustable Depth and Back, 300 to 350 lb
The Proactive Medical Chariot IV XTC is an adjustable height wheelchair on a lightweight aluminum frame. A dual axle sets the seat at 19.5″ or a 17.5″ hemi height, the seat depth extends from 16″ to 18″, and the back adjusts in both height (17″ to 19″) and angle (5° to 20°). It weighs 34 lb without front rigging (35 lb for the 22″ seat) and carries 300 lb (16″, 18″) or 350 lb (20″, 22″).
Choose a 16″, 18″, 20″ or 22″ seat and swing-away footrests or elevating legrests in the options above. Every chair has height-adjustable, flip-back, removable padded desk arms, quick-release 24″ mag wheels and adjustable anti-tippers.
Comparing chairs? Our most comfortable wheelchair guide shows where an adjustable wheelchair like the XTC fits against standard, reclining and transport models, and the Manual Wheelchair Knowledge Base explains how to set seat height, depth and back angle.
Why Choose the Chariot IV XTC Adjustable Wheelchair?
Most everyday chairs are fixed: one seat height, one depth, one back. That is fine until the user slides forward, sits too high to reach the floor, or needs more back support. The XTC adjusts at each of those points, so one chair can be set to the user and reset later if needs change. It is also a lightweight wheelchair for adults at 34 lb, with quick-release rear wheels that come off without tools to make it lighter to lift into a car. If you only need a lower seat and no other adjustment, the steel Chariot II hemi wheelchair is a simpler option; if the user needs full recline, look at the Chariot IV XTC-RC reclining wheelchair.
Who Is This Adjustable Height Wheelchair Best For?
The Chariot IV XTC is a good fit for:
- Users who need a chair set to their body: seat height, depth and back
- Users who propel with their feet (17.5″ hemi height)
- Users who need side transfers (flip-back, removable arms)
- Caregivers who lift the chair into a car (34 lb, quick-release wheels)
- Users up to 300 lb in a 16″ or 18″ seat, or 350 lb in a 20″ or 22″ seat
Choose something else if the user needs:
- Full recline for all-day sitting: see high back reclining wheelchairs
- A caregiver-pushed chair with small rear wheels: see transport chairs
- A simpler, lower-cost everyday chair: see standard wheelchairs
- More lightweight models to compare: see the lightweight wheelchairs
Chariot IV XTC Specifications
| Model numbers | WCK4X16AHDASF / WCK4X18AHDASF / WCK4X20AHDASF / WCK4X22AHDASF (swing-away footrests); same with ELR for elevating legrests |
|---|---|
| Weight capacity | 300 lb (16″, 18″); 350 lb (20″, 22″) |
| Seat width | 16″, 18″, 20″ or 22″ |
| Seat depth | 16″, adjustable to 18″ (built-in seat rail extensions) |
| Seat to floor height | 19.5″; 17.5″ hemi (dual axle) |
| Back height | Adjusts 17″ to 19″ in 1″ steps |
| Back angle | Adjusts 5° to 20° |
| Overall width (with arms) | 24″ / 25″ / 27″ / 29″ (16″ / 18″ / 20″ / 22″ seat) |
| Chair weight | 34 lb (16″ to 20″); 35 lb (22″), without front rigging |
| Shipping weight | 40 lb (16″ to 20″); 41 lb (22″) |
| Arms | Height-adjustable, flip-back, removable, padded desk arms |
| Front rigging | Tool-free adjustable swing-away footrests or elevating legrests |
| Rear wheels | 24″ quick-release composite mag wheels, urethane tires, sealed bearings |
| Front casters | Urethane, angle-adjustable forks with 3 height positions |
| Safety | Adjustable anti-tippers with flip-up wheels; push-to-lock wheel locks |
| Frame | Lightweight aluminum |
| Upholstery | Heavy-gauge flame retardant nylon with hook and loop flaps |
Specs from Proactive Medical’s Chariot IV XTC product page and product sheet.
Sizing and Fit
Measure across the hips while seated and add about 2″ for the seat width. Measure from the back of the hips to the back of the knee and subtract 2″ to 3″ for seat depth; anything from 16″ to 18″ can be matched with the seat extension. For foot propulsion, measure from the back of the knee to the floor with shoes on; about 17″ to 18″ suits the 17.5″ hemi setting. Overall width runs 24″ to 29″, so the 16″ to 20″ chairs fit most 28″ to 30″ doors.
Cushions and Accessories
The XTC has a nylon sling seat, so most daily users add a cushion. For a Proactive Medical chair we recommend Proactive’s Protekt cushions first: the Protekt Supreme foam cushion for everyday comfort, the Protekt Ultra Gel Seat Cushion for more pressure relief, and the Protekt Back Cushion for lumbar support (see Complete Your Chair below). A thinner cushion keeps the hemi seat low.
Care and Maintenance
- Wipe the nylon with mild soap and water and let it dry before folding
- Check that the wheel locks hold, the quick-release axles click in, and the arms latch before each use
- After changing the axle position, reset the caster angle so the seat stays level
- Follow the Proactive owner’s manual in the Product PDF downloads tab for adjustments
❓ Adjustable Height Wheelchair FAQ
What makes the Chariot IV XTC an adjustable height wheelchair?
Its dual axle lets you set the seat at 19.5″ or a lower 17.5″ hemi height, and the arms are height adjustable too.
How much does the Chariot IV XTC weigh?
34 lb for the 16″, 18″ and 20″ chairs and 35 lb for the 22″ chair, without front rigging.
What is the weight capacity?
300 lb for the 16″ and 18″ seats and 350 lb for the 20″ and 22″ seats, per Proactive Medical.
Can the seat depth be adjusted?
Yes. Built-in seat rail extensions and extendable upholstery take it from 16″ to 18″.
Does the back adjust?
Yes. Back height adjusts from 17″ to 19″ in 1″ steps, and back angle from 5° to 20°.
Do the rear wheels come off?
Yes. The 24″ mag wheels are quick release, which makes the chair lighter to lift and easier to store.
Is this a good lightweight wheelchair for adults?
Yes. At 34 lb it is light for a full-size adjustable chair, and it fits adults up to 350 lb in the 20″ and 22″ seats.
Do you ship nationwide?
Yes, we ship the Chariot IV XTC nationwide. Call 585-505-6665 for help setting it up for the user.
🔗 Wheelchair Guides, Answers & Tools
Want help choosing? Start with these guides, or call us at 585-505-6665.
👉 Most Comfortable Wheelchair (2026): 22 Picks by Need
👉 Manual Wheelchair Knowledge Base
👉 Manual Wheelchair Assessment Tool
👉 Home Medical Equipment Knowledge Base
👉 Browse Lightweight Wheelchairs
👉 Best Lightweight Wheelchairs Guide
PRODUCT SPECIFICATION
📏 Product Specifications
| Seat Width | Overall Width | Weight | Weight Capacity | Best Fit |
|---|---|---|---|---|
| 16″ | 24″ | 34 lbs | 300 lbs | Compact / smaller users |
| 18″ | 25″ | 34 lbs | 300 lbs | Standard adult fit |
| 20″ | 27″ | 34 lbs | 350 lbs | Wider seating & higher capacity |
| 22″ | 29″ | 35 lbs | 350 lbs | Bariatric / extra room |
- Product Type: Adjustable height lightweight manual wheelchair
- Frame Material: Lightweight aluminum
- Seat Width Options: 16″, 18″, 20″, 22″
- Seat Depth: Adjustable 16″ to 18″
- Seat-to-Floor Height: 19.5″ standard / 17.5″ hemi height
- Back Height: Adjustable 17″ to 19″
- Back Angle: Adjustable 5° to 20°
- Back Style: Detachable
- Armrests: Flip-back, removable, height-adjustable padded arms
- Footrests: Tool-free swing-away footrests
- Rear Wheels: 24″ composite mag-style wheels
- Wheel Type: Quick-release rear wheels
- Tires: Urethane flat-free tires
- Front Casters: Adjustable angle caster forks with 3 height positions
- Wheel Bearings: Precision sealed front & rear
- Drive Type: Self-propelled or caregiver-assisted
- Safety Features:
- Push-to-lock wheel brakes
- Adjustable anti-tippers with flip-up wheels
- Upholstery: Heavy-gauge flame-retardant nylon with hook & loop fastening
- Product Weight: 34–35 lbs (excluding front rigging)
- Weight Capacity: 300 lbs (16”–18”) / 350 lbs (20”–22”)

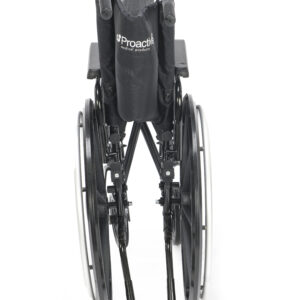

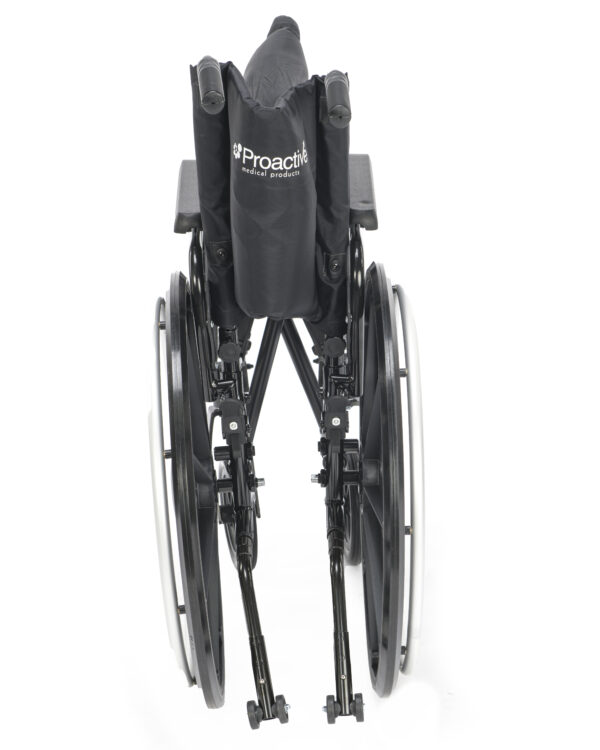

- Folding Type: Folding frame for transport & storage
- Shipping Weight: 40–41 lbs
- HCPCS Codes:
- 16”–20” Models: K0004 + K0195 or E0990 + E0973
- 22” Models: K0007 + K0195 or E0990 + E0973
- Warranty: Limited Lifetime Warranty
