Chariot IV XTC-RC – Lightweight Wheelchair Reclining System with Full Back Support & Adjustable Comfort
$539.00
- Rated No. 1 in customer service
- Fast nationwide shipping, delivered to your door
- Manufacturer warranties
- Cash-back rewards on every order
Authorized dealer & provider · Huge selection · Questions? Call 585-505-6665
✔ Hydraulic Recline to 180°, Any Angle
✔ Padded Detachable Headrest
✔ Swing-Away Elevating Legrests Included
✔ Seat Depth 16″ to 18″, Hemi 17.5″ Seat
✔ Flip-Back Removable Desk or Full Arms
✔ 300 lb Capacity, 16″, 18″ or 20″ Seat
-
Fast nationwide shipping, delivered to your door · 30-day returns on eligible products · Shipping & returns details
Share with Friends
- Description
- PRODUCT SPECIFICATION
- Shipping & Returns
- Product PDF downloads
- Reviews (0)
Description

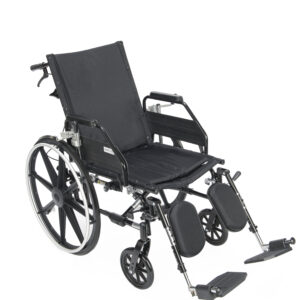

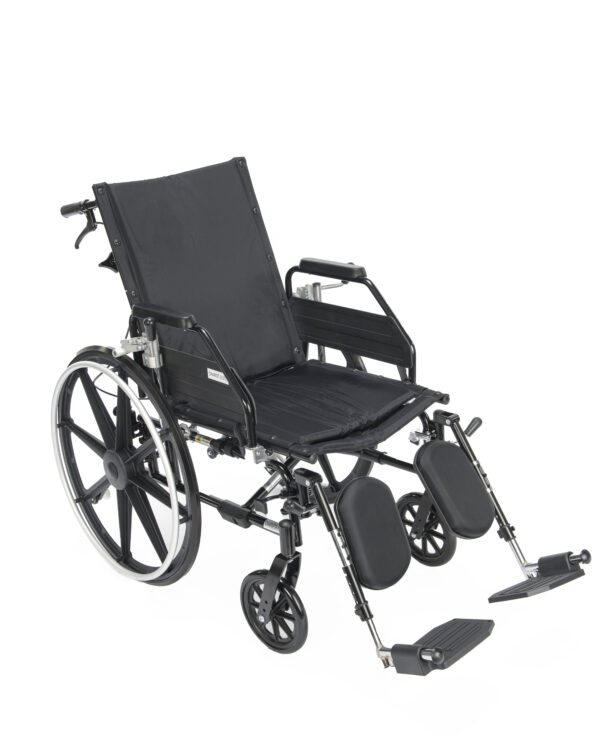

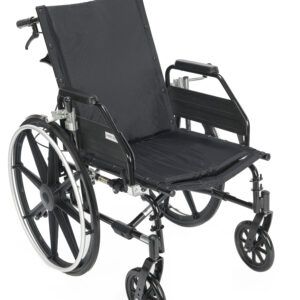

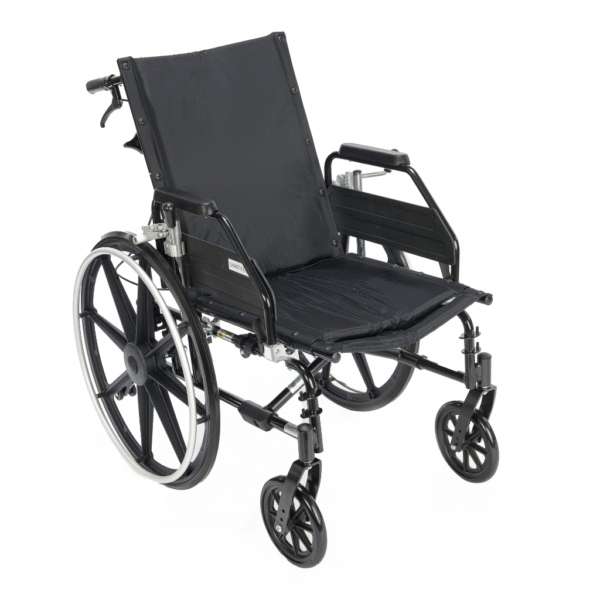

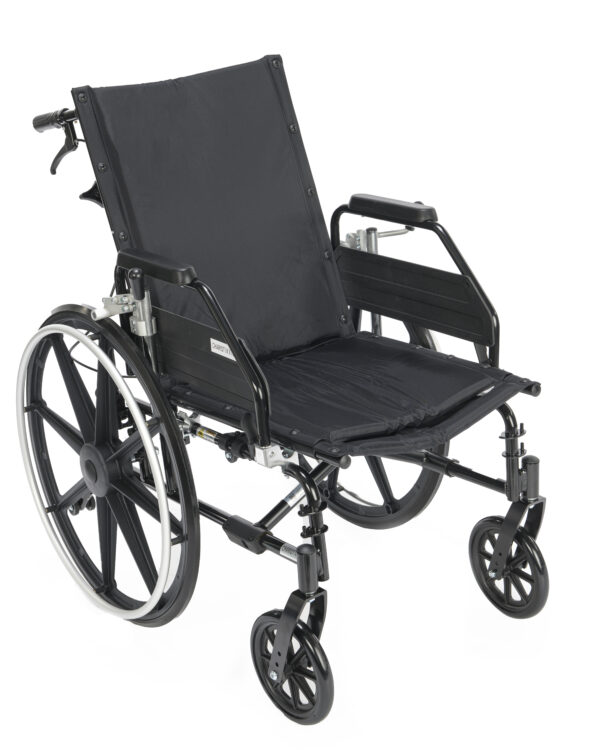

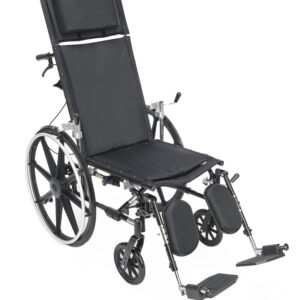

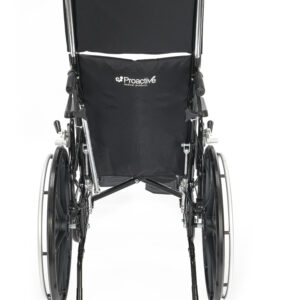

Proactive Medical Chariot IV XTC-RC Recline Wheelchair – Hydraulic Recline to 180°, Adjustable Seat Depth, 16″ to 20″ Seat, 300 lb

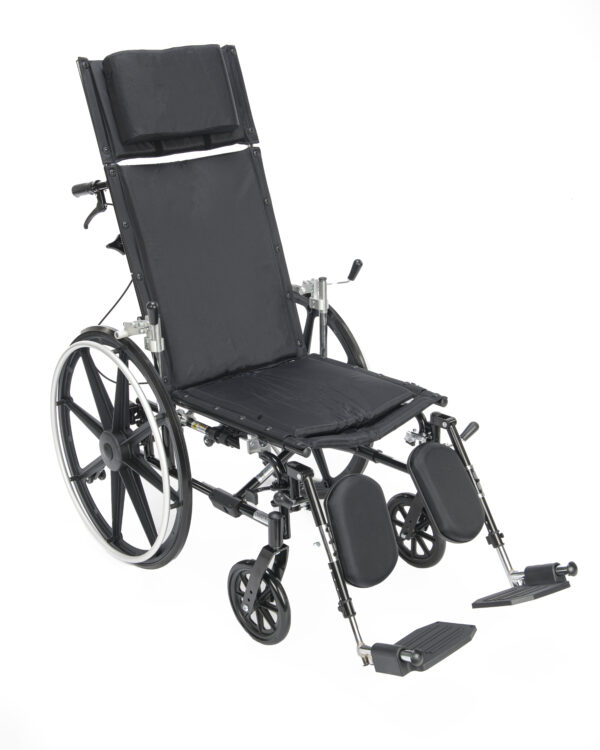

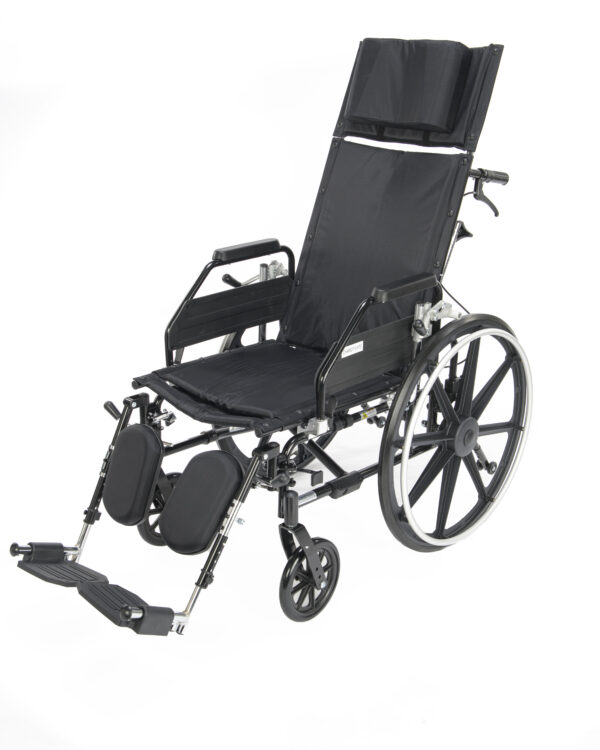

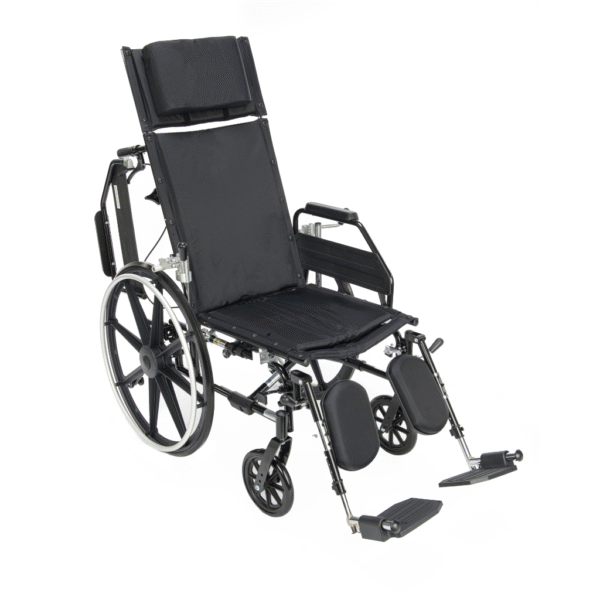

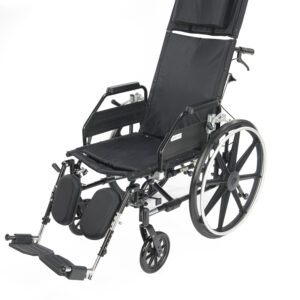

The Proactive Medical Chariot IV XTC-RC is a recline wheelchair with a hydraulic reclining mechanism that adjusts to any angle up to 180°. A padded, detachable headrest extends past the full-length back, swing-away elevating legrests come standard, and the seat depth extends from 16″ to 18″. It carries users up to 300 lb in a 16″, 18″ or 20″ seat.
Choose the seat width and removable flip-back desk-length or full-length arms in the options above. The carbon steel frame has a double-coated chrome, chip-proof finish, and the rear wheels sit offset on the frame for stability as the chair reclines.
Comparing chairs? Our most comfortable wheelchair guide shows where a reclining wheelchair like the XTC-RC fits against tilt, standard and lightweight models, and the Manual Wheelchair Knowledge Base explains recline, tilt and how to measure for fit.
Why Choose the Chariot IV XTC-RC Reclining Wheelchair?

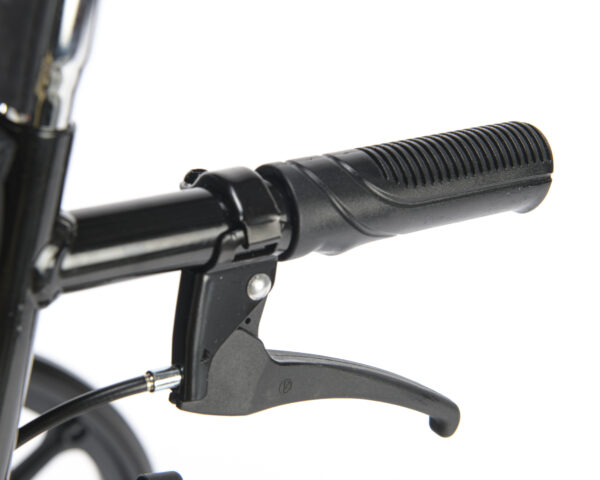

Wheelchair reclining matters most for people who spend long hours in the chair and need to rest, shift pressure, or get help with care without a transfer to bed. The XTC-RC uses a hydraulic mechanism, so the caregiver can stop the back at any angle instead of a few fixed notches. A spreader bar across the back works as a back stabilizer and a push handle, the wheel locks are pull-to-lock for the attendant, and a dual axle drops the seat from 19.5″ to a 17.5″ hemi height for users who push with their feet. For a lower-cost recliner in wider sizes (up to 24″ and 500 lb), compare the Chariot-RC recliner wheelchair.
Who Is This Recline Wheelchair Best For?
The Chariot IV XTC-RC is a good fit for:
- Users who need to recline during a long day in the chair
- Users who need head support (detachable padded headrest)
- Users who need their legs elevated (swing-away elevating legrests included)
- Users who need a 17.5″ hemi seat or a seat depth of 16″ to 18″
- Users up to 300 lb in a 16″, 18″ or 20″ seat
Choose something else if the user needs:
- A seat wider than 20″ or a capacity over 300 lb: see the Chariot-RC recliner or heavy duty wheelchairs
- Tilt in space, which keeps the hip angle while tilting the whole seat: see more high back reclining wheelchairs
- A light chair to lift into a car: see the lightweight wheelchairs
- A caregiver-pushed chair with small rear wheels: see transport chairs
Chariot IV XTC-RC Specifications
| Model numbers | WCK4XRC16, WCK4XRC18, WCK4XRC20 (16″, 18″, 20″ seat); DAELR = desk arms, FAELR = full arms, both with elevating legrests |
|---|---|
| Weight capacity | 300 lb (all widths) |
| Seat width | 16″, 18″ or 20″ |
| Seat depth | 16″, adjustable to 18″ (built-in seat rail extension) |
| Seat to floor height | 19.5″; 17.5″ hemi (dual axle) |
| Back height | 23″ / 33″ (as listed by Proactive) |
| Recline | Hydraulic, infinite positions up to 180° |
| Headrest | Padded, detachable, extends past the backrest |
| Overall width (with arms) | 24″ / 25″ / 27″ (16″ / 18″ / 20″ seat) |
| Chair weight | 47 / 49 / 51 lb (16″ / 18″ / 20″ seat) |
| Shipping weight | 49 / 51 / 53 lb |
| Arms | Padded nylon, flip-back, removable; desk length or full length |
| Legrests | Swing-away elevating legrests with composite footplates, standard |
| Rear wheels | 24″ composite mag-style, urethane tires, offset for stability, sealed bearings |
| Front casters | 8″ urethane, forks adjustable in 3 positions |

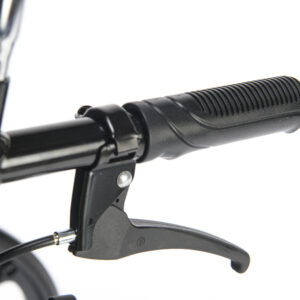

| Wheel locks | Attendant pull-to-lock |

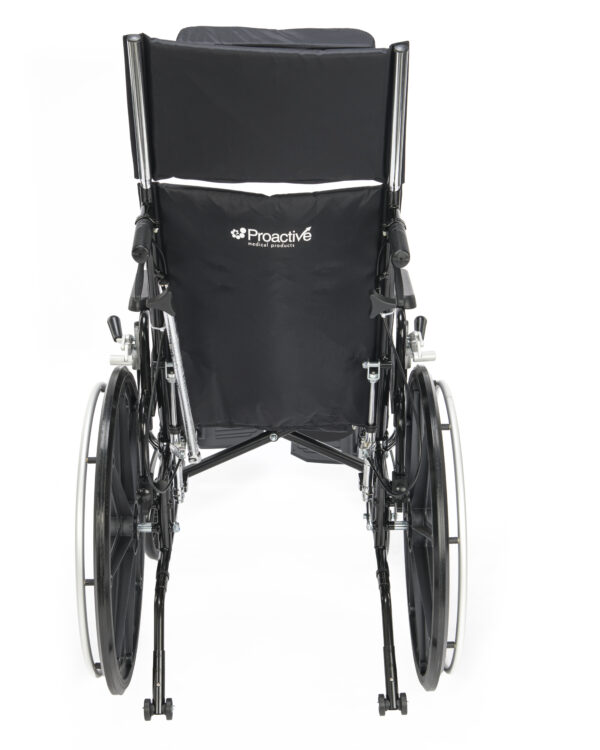

| Frame | Carbon steel, double-coated chrome, chip-proof finish; spreader bar back stabilizer and push handle |
| Upholstery | Flame retardant nylon, resists mildew and bacteria |
Specs from Proactive Medical’s Chariot IV XTC-RC product page and product sheet.
Sizing and Fit
Measure across the hips while seated and add about 2″ for the seat width. Measure from the back of the hips to the back of the knee and subtract 2″ to 3″ for seat depth; 16″ to 18″ can be matched with the seat extension. Overall width is 24″ to 27″, so all three sizes fit most 28″ to 30″ doors. Reclining makes the chair longer, so leave room behind it before you recline.
Cushions and Accessories
For long hours in a reclining wheelchair, a pressure-relief seat cushion is the most useful add-on. For a Proactive Medical chair we recommend Proactive’s Protekt cushions first: the Protekt Ultra Gel Seat Cushion, the Protekt O2 air cushion for users at risk of pressure sores, and the Protekt Supreme foam cushion (see Complete Your Chair below).
Care and Maintenance
- Wipe the nylon upholstery with mild soap and water and let it dry
- Lock the wheels before reclining and check that the recline holds its position
- Check the legrests and arms latch before each use
- Follow the Proactive owner’s manual in the Product PDF downloads tab for adjustments
❓ Reclining Wheelchair FAQ
How far does the Chariot IV XTC-RC recline?
Up to 180°, with infinite positions in between thanks to the hydraulic mechanism.
What is the weight capacity?
300 lb on the 16″, 18″ and 20″ seats, per Proactive Medical.
How much does it weigh?
47 lb (16″), 49 lb (18″) or 51 lb (20″).
Are elevating legrests included?
Yes. Swing-away elevating legrests with composite footplates come standard.
Can the seat depth and height be adjusted?
Yes. The seat depth extends from 16″ to 18″, and the dual axle sets the seat at 19.5″ or a 17.5″ hemi height.
What is the difference between the XTC-RC and the Chariot-RC?
The XTC-RC adds hydraulic recline, adjustable seat depth, a hemi height and flip-back arms. The Chariot-RC comes in wider seats up to 24″ and capacities up to 500 lb.
Do you ship nationwide?
Yes, we ship the Chariot IV XTC-RC nationwide. Call 585-505-6665 for help choosing a size.
🔗 Wheelchair Guides, Answers & Tools
Want help choosing? Start with these guides, or call us at 585-505-6665.
👉 Most Comfortable Wheelchair (2026): 22 Picks by Need
👉 Manual Wheelchair Knowledge Base
👉 Manual Wheelchair Assessment Tool
👉 Home Medical Equipment Knowledge Base
👉 High Back Reclining Wheelchairs
👉 Best Wheelchairs for Facilities
👉 Chariot-RC Recliner Wheelchair (wider sizes, up to 500 lb)
PRODUCT SPECIFICATION
| Feature | Details |
|---|---|
| Seat Width Options | 16″, 18″, 20″ |
| Seat Depth | 16″ – 18″ (Adjustable) |
| Seat-to-Floor Height | 19.5″ Standard / 17.5″ Hemi |
| Back Height | 23″–33″ High Back Recline |
| Recline Range | Hydraulic 90°–180° Infinite Recline |
| Chair Weight | 47–51 lbs (varies by size) |
| Weight Capacity | 300 lbs (all models) |
| Frame | Carbon Steel, Double-Coated Chrome Finish |
| Leg Rests | Swing-Away Elevating (Pneumatic Control) |
| Wheels | 24” Composite Mag-Style Rear, 8” Front Casters |
| Arm Options | Flip-Back Desk or Full Arm (Removable) |
| Anti-Tippers | Standard with Push Handle Spreader Bar |
| Warranty | Limited Lifetime |
