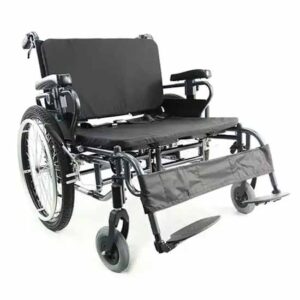

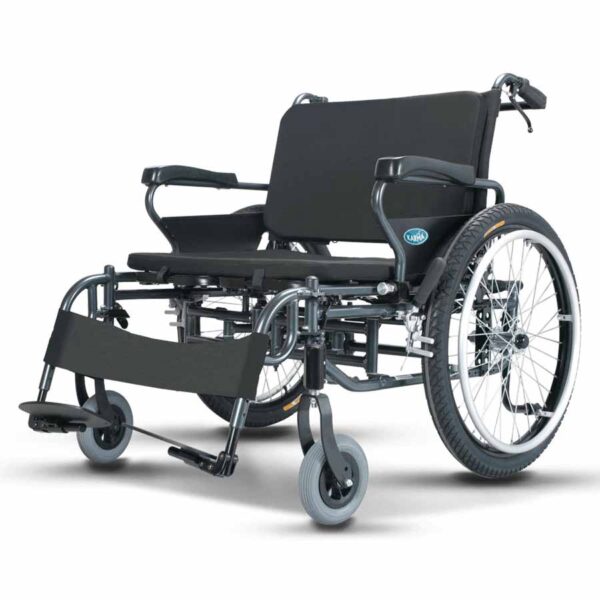

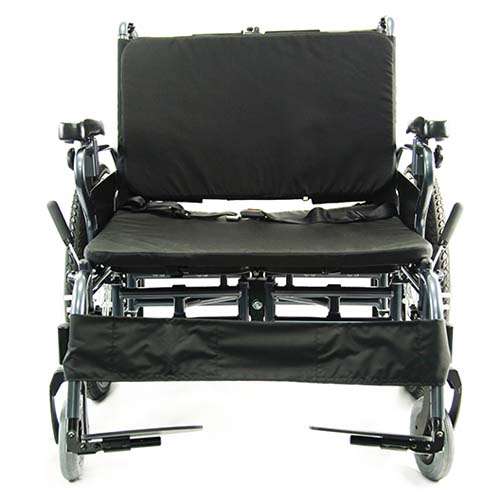

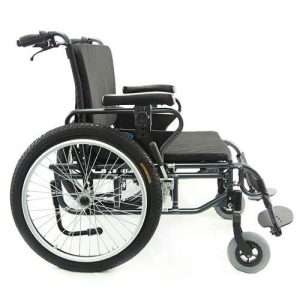

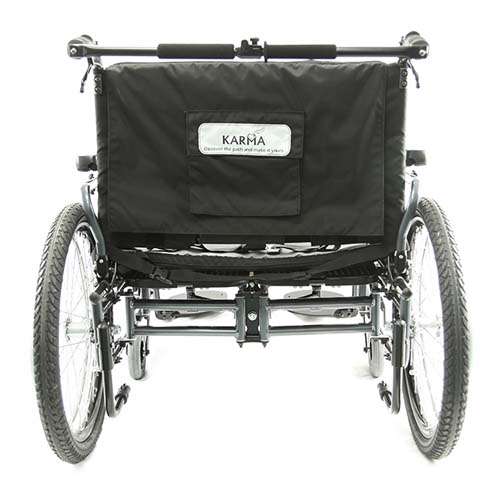

Karman KM-BT10 Heavy Duty Bariatric Wheelchair – Extra Wide Aluminum Bariatric Wheelchair, 22″ to 30″ Seat, 550 lb
$3,980.00
- Rated No. 1 in customer service
- Fast nationwide shipping, delivered to your door
- Manufacturer warranties
- Cash-back rewards on every order
Authorized dealer & provider · Huge selection · Questions? Call 585-505-6665
✔ 550 lb Weight Capacity
✔ Seats 22″ to 30″ Wide, 18″ to 24″ Deep
✔ Solid Aluminum Seat Pan
✔ Folding Curved Frame, Push Bar
✔ Adjustable Seat Height and Back Angle
✔ Swing-Away Tool-Free Footrests
-
Fast nationwide shipping, delivered to your door · 30-day returns on eligible products · Shipping & returns details
Share with Friends
One of the biggest problems customers face after buying medical and mobility equipment through marketplaces like Amazon is discovering that there is nobody to call when they actually need help. Product questions, warranty issues, replacement parts and support can quickly become difficult when there is no dedicated provider behind the purchase.
With MedCare Mobility, you buy from an authorized dealer and a real medical equipment provider — with knowledgeable people you can contact when help matters.- Description
- PRODUCT SPECIFICATION
- Shipping & Returns
- Product PDF downloads
- Videos
- Reviews (1)
Description
Karman KM-BT10 Extra Wide Bariatric Wheelchair: 550 lb, 22″ to 30″ Seat, Folding Frame
The Karman KM-BT10 is an extra wide bariatric wheelchair rated for 550 lb, with seats from 22″ up to 30″ wide and 18″ to 24″ deep. That range lets you fit larger users who sit across the full width of a standard bariatric chair, with real support under long thighs.
Instead of the usual X cross-brace, it uses a curved folding frame built to stay stable under heavy loads, and a solid aluminum seat pan that stops the hammock sag of a sling seat. Seat height, back height and back angle all adjust. Choose the seat size, axle, legrests, arms and other options above.
Not sure which width or type is right? Our most comfortable wheelchair guide matches the chair to how the user sits all day, and the Manual Wheelchair Knowledge Base shows how to measure seat width, depth and height before you buy.
Why Choose the Karman KM-BT10 550 lb Bariatric Wheelchair?
Most bariatric chairs stop at a 24″ or 26″ seat with a single 18″ depth. The KM-BT10 goes to 30″ wide and 24″ deep, so the chair can be sized to the user rather than the other way around. A seat that fits takes pressure off the hips and outer thighs and makes standing up easier. The solid pan gives a cushion a firm, flat base, the backrest angle adjusts from -5° to 15° for posture, and the folding push bar lets a caregiver steer with one hand while it also stiffens the frame. It still folds for storage and transport, which many bariatric chairs with solid seats cannot do.
Who Is This 30 Inch Wide Wheelchair Best For?
The KM-BT10 is a good fit for:
- Users up to 550 lb
- Users who need a seat wider than 26″ or deeper than 18″
- People who want a firm pan seat instead of a sagging sling
- Caregivers who still need the chair to fold (see all bariatric wheelchairs)
Choose something else if the user needs:
- A standard bariatric size at a lower price: the Graham-Field Traveler HD (500 lb) or the Karman KN-920W
- A much lighter chair for users up to 352 lb: the Karman KM-8520X
- A capacity over 550 lb: call us to talk through options
Karman KM-BT10 Specifications
| Model | Karman KM-BT10 |
|---|---|
| Type | Extra wide bariatric manual wheelchair, self-propel, folding |
| Weight capacity | 550 lb (250 kg) |
| Chair weight | About 68 lb (31 kg) total; heaviest single piece about 50 lb (22.9 kg) |
| Seat sizes (width x depth) | 22″, 24″ or 26″ wide x 18″ or 20″ deep; 26″, 28″ or 30″ wide x 22″ or 24″ deep |
| Seat height | 17″, 18″ or 19″ standard; 15.5″ or 16.5″ with a rear wheel change; 17.5″ to 19.5″ with a front caster change |
| Back height | 16″ to 18″ or 18″ to 20″ (3 positions each) |
| Backrest angle | Adjustable, -5° to 15° |
| Armrest height | About 10″ (250 mm) |
| Overall width | About 31″ to 39″, by seat width |
| Overall length | About 46.5″ to 48.5″ |
| Overall height | About 31.5″ to 40″ |
| Folded size | About 17″ wide; 35.5″ to 37.5″ long; 31.5″ to 40″ high |
| Frame | Folding curved-frame design (no X cross-brace), foldable push bar |
| Seat | Solid aluminum seat pan |
| Footrests | Swing-away, tool-free detachable; adjustable height (about 4″), angle and position |
| Rear wheels | 24″, quick-release |
| Front casters | 7″ or 8″ |
| Options | Elevating legrests, flip-back height-adjustable armrests, IV pole holder (see the options above) |
Sizing and Fit
Measure across the widest part of the hips or thighs while seated and add 1″ to 2″ for the seat width. For depth, measure from the back of the hips to the back of the knee while seated and subtract about 2″. Widths of 22″ to 26″ pair with 18″ or 20″ depth; 26″ to 30″ pair with 22″ or 24″. The chair is roughly 9″ wider than the seat, up to about 39″ overall on the 30″ model, so measure the narrowest doorway first, usually the bathroom. Call 585-505-6665 and we will help you pick the size.
Comfort Upgrades and Accessories
A pan seat needs a cushion sized to the exact seat width and depth. See the Comfort Company cushions under Complete Your Chair below (check that the size matches your seat), browse all wheelchair cushions, or ask us to match one. Many users also add a bag from our wheelchair bags and a cup holder.
Care and Maintenance
- Wipe the upholstery and frame with mild soap and water
- Check the wheel locks, arm latches and footrest releases every week
- Pull the quick-release wheels now and then and clean the axles
- Re-check seat height and back settings after any wheel change
What’s Included
KM-BT10 frame in the seat size you choose, solid seat pan, adjustable back, folding push bar and swing-away footrests, with any options you select above.
❓ Extra Wide Bariatric Wheelchair FAQ
What is the weight capacity of the Karman KM-BT10?
550 lb.
How wide can the seat be?
From 22″ up to 30″.
What seat depths are available?
18″ or 20″ on the 22″ to 26″ seats, 22″ or 24″ on the 26″ to 30″ seats.
Does it fold?
Yes. The curved frame folds to about 17″ wide.
How much does it weigh?
About 68 lb (31 kg) total. The heaviest single piece is about 50 lb.
Is the seat a sling or a pan?
A solid aluminum seat pan, which prevents sagging.
Does the seat height adjust?
Yes, from about 15.5″ to 19.5″ depending on setup and wheels.
Do you ship nationwide?
Yes. Call 585-505-6665 for sizing help.
🔗 Wheelchair Guides, Answers & Tools
Want help choosing? Start with these guides, or call us at 585-505-6665.
👉 Most Comfortable Wheelchair (2026): 22 Picks by Need
👉 Manual Wheelchair Knowledge Base
👉 Manual Wheelchair Assessment Tool
👉 Home Medical Equipment Knowledge Base
👉 Bariatric & Heavy Duty Wheelchairs
👉 Wheelchair Problems and Solutions
PRODUCT SPECIFICATION
| HCPCS Code | K0007 |
| Seat Width | 22 inch., 24 inch., 26 inch., 28 inch., 30 inch. |
| Seat Depth | 18/20 inch., 18/24 inch. |
| Armrest Height | 10 1/2 – 13 1/2 inch. |
| Seat Height | 19 inch. |
| Back Height | 17 inch. |
| Overall Height | 34-38 inch. |
| Overall Open Width | 32 inch., 34 inch., 36 inch., 38 inch., 40 inch. |
| Folded Width | 15 – 18 inch. |
| Overall Length | 47 inch. |
| Weight Without Riggings | 63 lbs., 66 lbs., 69 lbs., 70 lbs., 73 lbs. |
| Weight Capacity | 550 lbs. |
| Shipping Dimensions | 48x40x44 |
