Medacure Free Spirit FS660-L Bariatric Electric Patient Lift – 660 lb Hoyer Lift with Power Base, Dual Linak Motors
$1,869.99
- Rated No. 1 in customer service
- Fast nationwide shipping, delivered to your door
- Manufacturer warranties
- Cash-back rewards on every order
Authorized dealer & provider · Huge selection · Questions? Call 585-505-6665
✔ 660 lb Bariatric Capacity
✔ Power Base Opens 28″ to 45″
✔ Dual Linak Motors
✔ 28″ to 73″ Lifting Range
✔ 51″ Extra Long Legs for Stability
✔ 15 Year Frame Warranty
You earn 186 Points - a total of $186.00 Cashback-
Fast nationwide shipping, delivered to your door · 30-day returns on eligible products · Shipping & returns details
Share with Friends
- Description
- PRODUCT SPECIFICATION
- Shipping & Returns
- Product PDF downloads
- Reviews (0)
Description

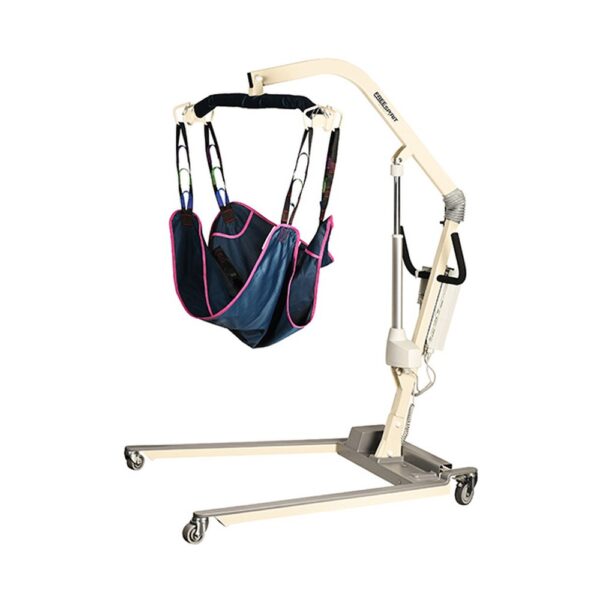

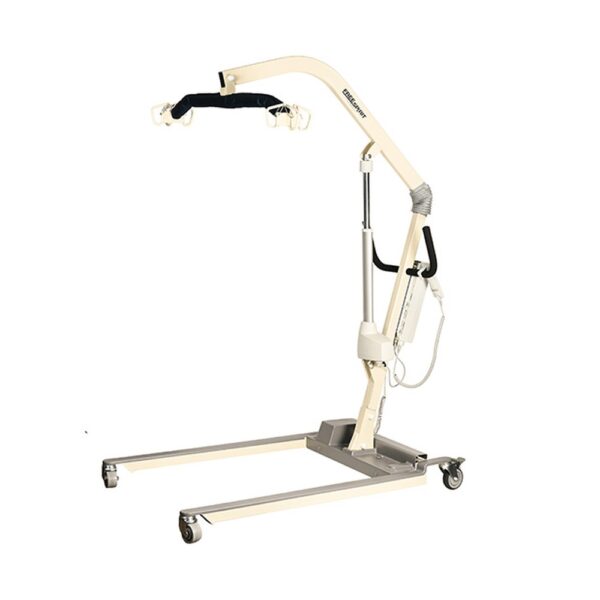

Medacure Free Spirit FS660-L – Bariatric Electric Patient Lift with Power Base
The Medacure Free Spirit FS660-L is a bariatric electric patient lift rated for 660 lbs. Dual Linak motors raise the patient and open the base, so caregivers move standard and bariatric patients safely with one lift. New to lifts? Read our patient lift buying guide and the patient lift knowledge base.
As a bariatric patient lift with power base, its legs open from 28″ to 45″ from the hand pendant, wrapping around wide wheelchairs and recliners.
For facilities and families searching for a 660 lb patient lift, it adds 51″ legs, a 28″ to 73″ lifting range, emergency stop and CPR lowering. Questions? Call us at 585-505-6665.
✅ Key Features
- ✔️ 660 lb Bariatric Capacity
- ✔️ Power Base Opens 28″ to 45″
- ✔️ Dual Linak Motors
- ✔️ 28″ to 73″ Lifting Range
- ✔️ 51″ Extra Long Legs for Stability
- ✔️ 15 Year Frame Warranty
Why a Bariatric Electric Lift?
Moving a heavy patient by hand is dangerous for everyone involved. A bariatric lift spreads the work to two motors, a wider base and longer legs, so the lift stays stable and the caregiver stays in control. The FS660-L’s power base means the legs open around a wide bariatric wheelchair at the press of a button, without the caregiver bending to work a pedal.
Who Is It Best For?
- Bariatric patients up to 660 lbs
- Facilities that serve both standard and bariatric residents with one lift
- Homes with wide bariatric wheelchairs, recliners or commodes
- Caregivers who want the base opened from the pendant
Who May Need Something Else?

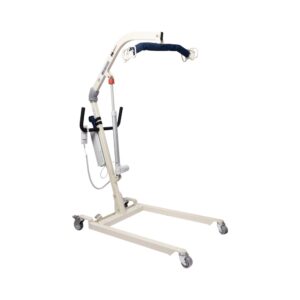

- Patients under 450 lbs: the FS450-L electric patient lift is lighter and costs less.
- Patients up to 850 lbs: the Medacure FS850 Pro true bariatric lift.
- Patients who can bear weight: the FS600STS-L bariatric sit-to-stand.

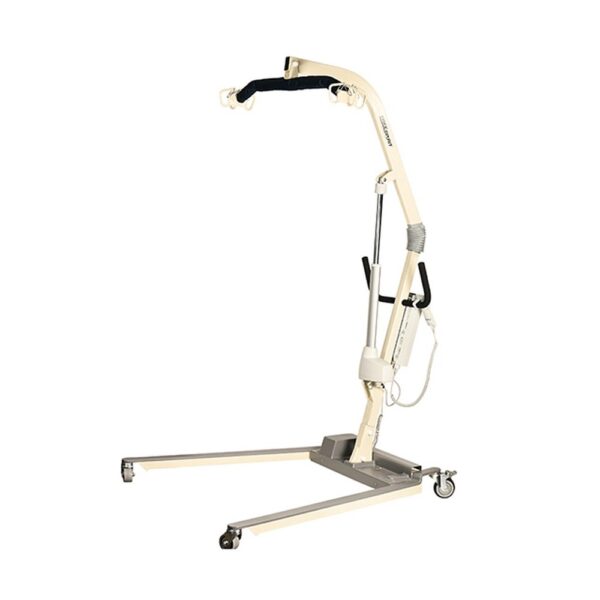

Dual Linak Motors
One motor raises and lowers the patient through a 28″ to 73″ range; the second powers the base. Linak is a leading actuator maker, and the hand pendant controls both.
One Lift for Mixed Needs
Many care facilities keep a standard lift and a separate bariatric lift, and staff lose time finding the right one. The FS660-L is a dual purpose lift: it handles everyday transfers for standard residents and still has the capacity, base width and stability for bariatric residents up to 660 lbs. One lift, one set of training, one battery system shared with the rest of the Free Spirit range.

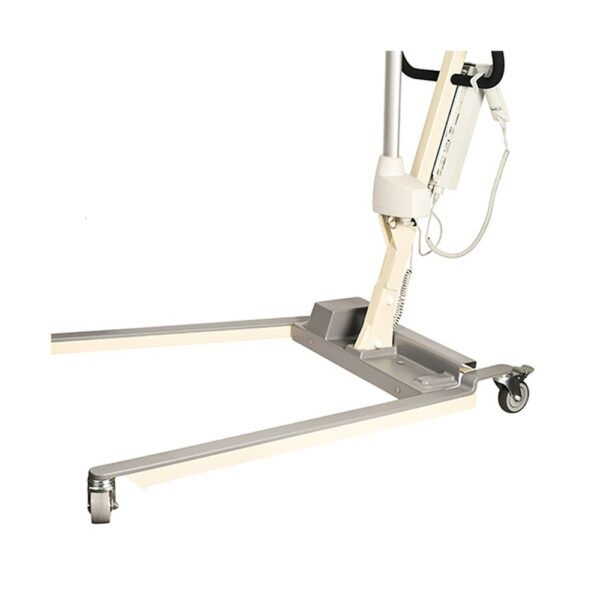

Ultra Wide Power Base
The legs expand from 28″ to 45″, wide enough to wrap around bariatric wheelchairs and equipment, and the 51″ extra long legs add stability with a heavy load. Rear 4″ casters lock; front 3″ casters swivel.
Safety Features
An emergency stop button locks the lift in place, the CPR function lowers and raises the lift when the battery is discharged, total pinch point protection guards hands, a padded swivel bar protects the resident’s head, and 3 oversized locking hooks on each side of the hanging bar secure the sling.
Battery and Charging
The long lasting Linak battery is quick release. Charge it on board with the included cord, or swap it for a spare charged in the optional external charging base to minimize downtime. The charger plug stores neatly on the lift.
Using the Lift Safely
- Pick a sling rated for the patient’s weight; see our sling buying guide.
- Open the power base around the chair or bed.

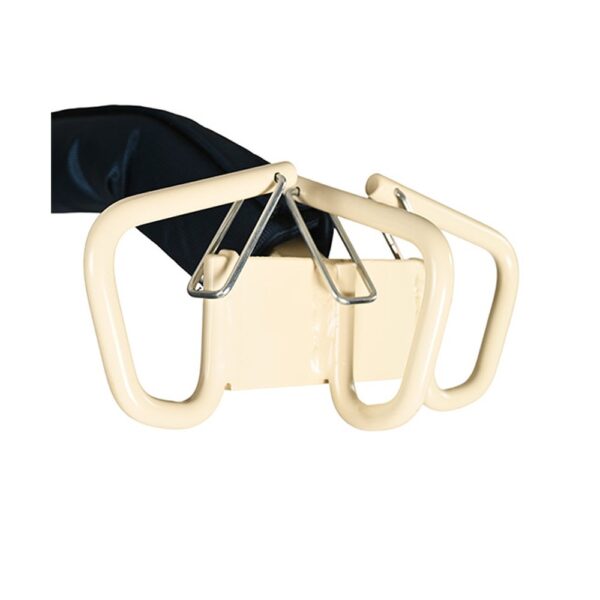

- Attach the sling loops to the hooks as trained.
- Raise slowly, check the patient, move, then lower.
- Never exceed 660 lbs or the sling’s rating, whichever is lower.
What’s Included
FS660-L bariatric patient lift with dual Linak motors, control box, dual motor hand pendant, battery and power cord. Slings, external charger and scale sold separately.
Specifications
| Brand | Medacure |
| Model | Free Spirit FS660-L |
| Type | Bariatric electric patient lift with power base |
| Weight Capacity | 660 lbs |
| Lifting Range | 28″ to 73″ |
| Base Width | Power base, 28″ closed to 45″ open |
| Base Length | 51″ |
| Bed Clearance | 4.3″ |

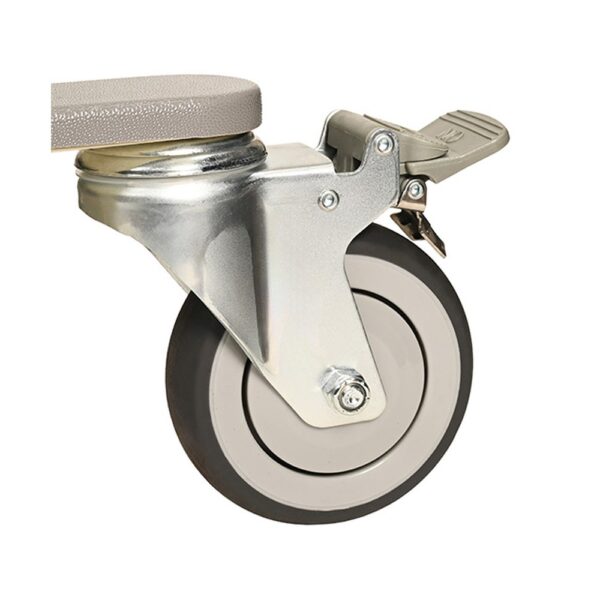

| Casters | Rear 4″ locking, front 3″ swivel |
| Motors | Dual Linak: lift + power base; dual motor hand pendant |
| Battery | Linak, quick release; on board or external charging; LED charge level |
| Safety | Emergency stop, CPR lowering, pinch point protection, padded swivel bar, 3 locking hooks per side |
| Options | DS1100 digital scale, FSC-L-EXT external charger, FSB-L spare battery |
| Warranty | 15 years frame; 3 years electronics; 1 year battery and pendant (Medacure) |
Frequently Asked Questions
What makes the FS660-L a bariatric lift?
It is rated for 660 lbs, has an ultra wide power base that opens to 45″, 51″ extra long legs for stability, and dual Linak motors. It suits both standard and bariatric patients, which is why facilities with mixed needs choose it.
What is a power base?

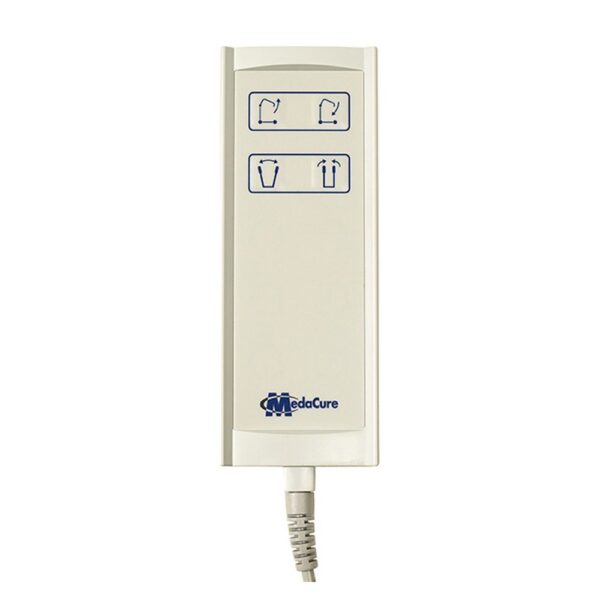

The second Linak motor opens and closes the legs from the hand pendant, from 28″ to 45″. The caregiver does not have to work a foot pedal while steadying a heavy patient.
What is the lifting range?
Medacure’s spec table and brochure list 28″ to 73″ (one product description says 70″). That covers bed, chair and commode transfers.
Will it fit under the bed?
Medacure lists 4.3″ of bed clearance. Check the space under your bed frame before ordering.
What happens if the battery dies?
The CPR emergency stop and lowering function lowers the patient safely even when the battery is discharged.
How is it charged?
On board with the included power cord, or off the lift in the optional external charging base. LEDs show the charge level, and the quick release battery swaps in seconds.
Can I weigh patients with it?
Yes, with the optional DS1100 digital scale, which reads up to 1,000 lbs.
What is the warranty?
Medacure lists 15 years on the frame, 3 years on the electronics and 1 year on the battery and hand pendant.
🔗 Patient Lift Guides, Answers & Tools
Need help with a lift, sling or accessory? Start with these pages, or call us at 585-505-6665.
👉 Patient Lift Sling Buying Guide
👉 Sit-to-Stand Lift Buying Guide
PRODUCT SPECIFICATION
| Brand: | Medacure |
| Model: | Free Spirit FS660-L |
| Type: | Bariatric electric patient lift with power base |
| Weight Capacity: | 660 lbs |
| Lifting Range: | 28″ to 73″ |
| Base Width: | Power base, 28″ closed to 45″ open |
| Base Length: | 51″ |
| Bed Clearance: | 4.3″ |
| Casters: | Rear 4″ locking, front 3″ swivel |
| Motors: | Dual Linak: lift + power base; dual motor hand pendant |
| Battery: | Linak, quick release; on board or external charging; LED charge level |
| Safety: | Emergency stop, CPR lowering, pinch point protection, padded swivel bar, 3 locking hooks per side |
| Options: | DS1100 digital scale, FSC-L-EXT external charger, FSB-L spare battery |
| Warranty: | 15 years frame; 3 years electronics; 1 year battery and pendant (Medacure) |
