Description

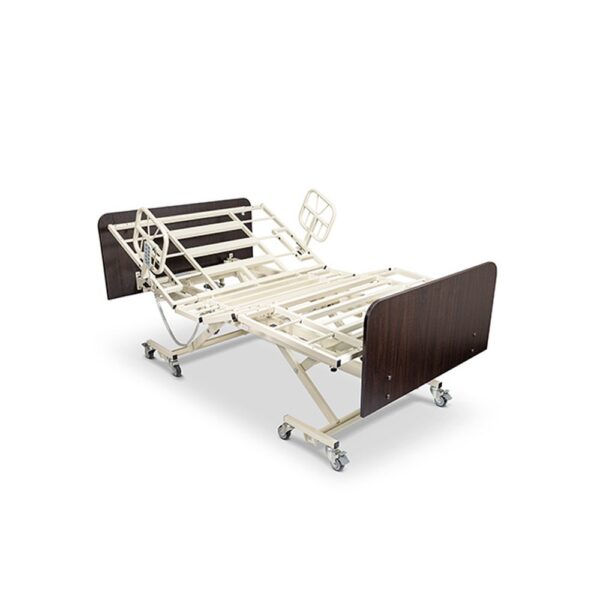

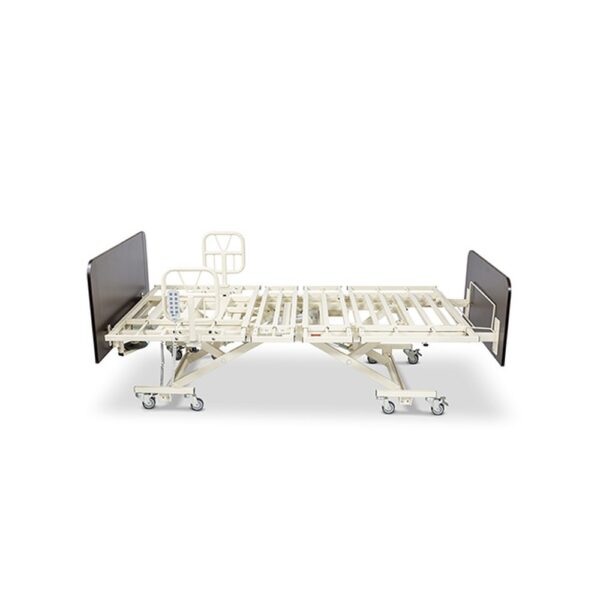

Medacure Lincoln LX-BARI – 750 lb Expandable Bariatric Bed with Trendelenburg

The Medacure Lincoln LX-BARI is a 750 lb expandable bariatric bed: a full electric long term care bed that widens from 36″ to 42″ or 48″ and lengthens from 80″ to 88″, built for bariatric residents. Read our hospital bed buying guide and the hospital bed knowledge base before you choose.

It is a bariatric bed with Trendelenburg, auto contour and a 10 function pendant, in standard, central locking and ultra low (LX-BARI-9) models.

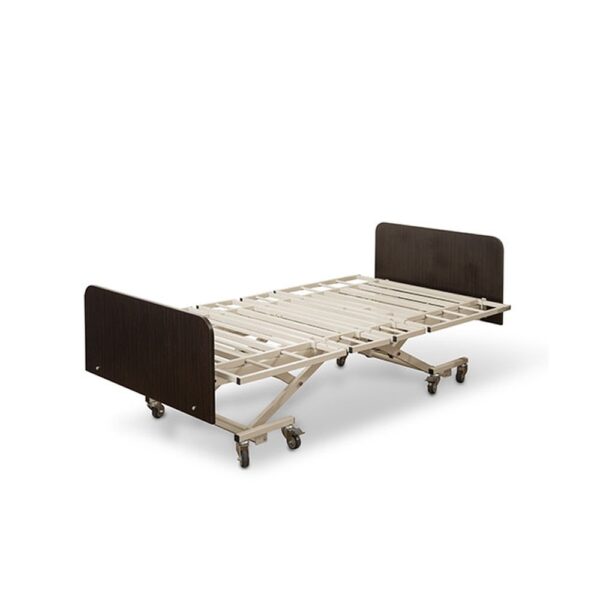

As a tool-less expandable bariatric bed, its width, length and headboard adjust without tools, with QBar assist bars included. Questions? Call us at 585-505-6665.

✅ Key Features

✔️ 750 lb Bariatric Weight Capacity
✔️ Tool-Less Width 36″, 42″, 48″
✔️ Length Extends 80″ to 88″
✔️ Trendelenburg and Auto Contour
✔️ Ultra Low LX-BARI-9 Option (9″)
✔️ Boards and QBar Assist Bars Included

Why a True Bariatric Expandable Bed?

Bariatric care needs a bed that is strong, wide and easy to adjust as a resident’s needs change. The Lincoln LX-BARI holds 750 lbs and expands from 36″ to 42″ or 48″ wide and from 80″ to 88″ long without tools, so the same bed can serve a resident through weight changes, recovery or a move to a different room.

Choose Your Model

	LX-BARI	LX-BARI-CLS	LX-BARI-9
Height Range	14″ to 30″	14″ to 30″	9″ to 25″
Locking	Locking casters	Central locking system	Locking casters
Best for	Value bariatric bed	Facilities that move beds often	Bariatric residents at fall risk

Who Is It Best For?

Bariatric residents up to 750 lbs
Facilities that want one bariatric bed for many sizes
Residents who need Trendelenburg positioning
Bariatric residents at risk of falls (LX-BARI-9)

Who May Need Something Else?

Built-in weighing: the Lincoln LX-BARI-S with digital scale.
Easier transport and storage: the Lincoln LX-BARI-SF split frame.
Home use up to 1,000 lbs: a bariatric homecare bed. See our hospital bed buying guide.

Positioning with Trendelenburg

Five functions cover bariatric care: hi/lo, head, foot, Trendelenburg and auto contour, with reverse Trendelenburg on the 10 function hand pendant. Auto contour raises head and knees together to reduce sliding and shear.

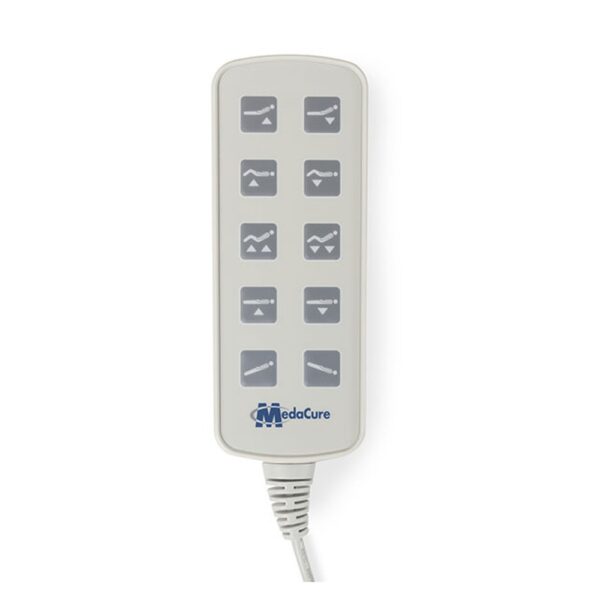

Linak Motors and Hand Pendant

Linak actuators and controls power all positions through a 10 function hand pendant. The 10 function hand pendant uses universal symbols, so residents and staff can adjust the bed without reading small labels.

Rails, Assist Bars and Mattresses

Medacure includes bed boards and QBar assist bars with this bed. For extra security, add the Medacure quarter side rails (HSR28-RV-2) or the SoftSecure swing rails (SAR-2), made to fit Medacure long term care frames. The deck takes a 42″ or 48″ bariatric mattress such as the Medacure ProEx memory foam mattress; when the length is extended, the Medacure mattress extender fills the gap at the foot. Not sure which surface fits? See our hospital bed mattress guide.

Built for Long Term Care

A heavy duty rectangle tube bed deck on a reinforced steel frame, an IV pole mount and a trapeze bracket mount on both head corners, and retractable bumper guards on the head end make it ready for daily bariatric care. Boards come in Mahogany, Amber Cherry or Maple; tell us your color in the order notes.

Bed Safety Checklist

Lock the casters before transfers and care.
Keep the bed at its lowest height when the resident is in bed and unattended, as the care plan directs.
Check that the mattress fits the deck with no gaps at the rails or boards.
Route the pendant and power cord away from moving parts.
Inspect rails, assist bars and casters weekly.

What’s Included

Lincoln LX-BARI bed (model as selected) with Linak motors, 10 function hand pendant, expandable head and foot boards and QBar assist bars. Mattress and rails are sold separately.

Specifications

Brand	Medacure
Models	Lincoln LX-BARI, LX-BARI-CLS (central locking), LX-BARI-9 (ultra low)
Type	Expandable bariatric long term care bed, full electric
Functions	Hi/lo, head, foot, Trendelenburg, reverse Trendelenburg, auto contour
Hand Pendant	10 function, universal symbols
Mattress Deck	80″ L x 36″ W, expands to 42″ and 48″
Width Expansion	Built in, tool-less: 36″, 42″, 48″
Length Extension	Built in, tool-less: 80″ to 88″
Expandable Headboard	Yes, 36″ to 42″ to 48″
Height Range	LX-BARI: 14″ to 30″; LX-BARI-9: 9″ to 25″
Weight Capacity	750 lbs
Casters	8 x 3″: 4 locking, 4 swivel
Underbed Clearance	5.7″
Actuators	Linak
Mounts	IV pole mount and trapeze bracket mount on both head corners
Included	Head and foot boards, QBar assist bars

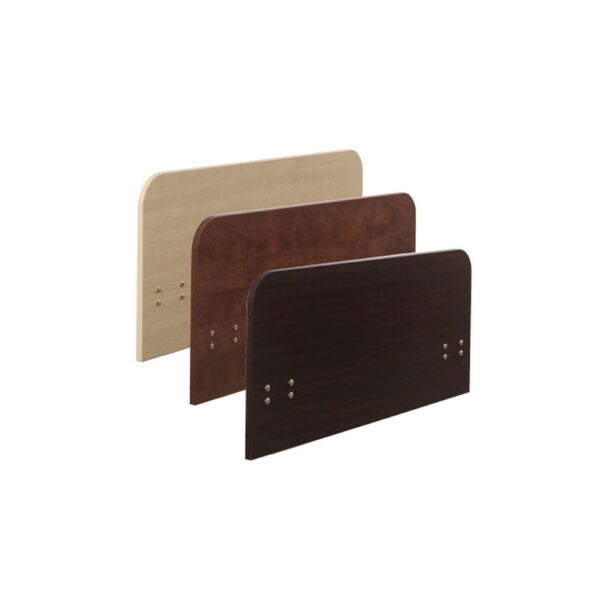

Board Colors	Mahogany, Amber Cherry, Maple
Warranty	15 years frame; 3 years electronics; 1 year pendant (Medacure)

Frequently Asked Questions

Which Lincoln model should I choose?

The LX-BARI travels from 14″ to 30″ and is the value choice. The LX-BARI-CLS adds Medacure’s central locking system. The LX-BARI-9 is the ultra low version, 9″ to 25″, for bariatric residents at risk of falls. All three hold 750 lbs and expand from 36″ to 48″.

Do I need tools to expand it?

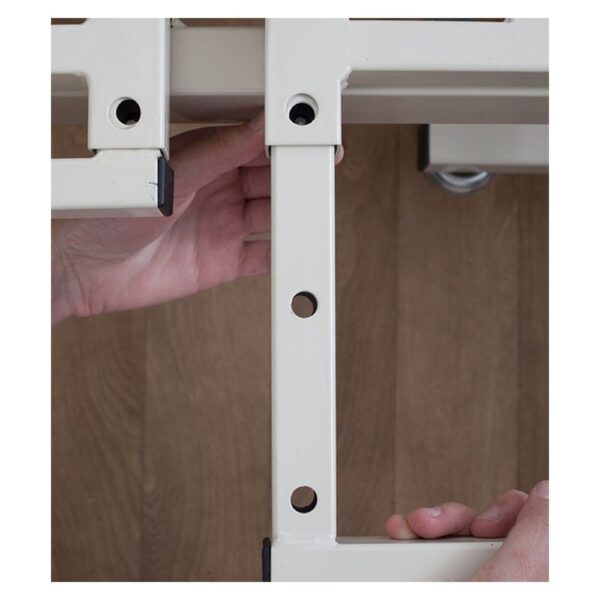

No. Medacure designed the width and length to expand and retract without tools, and the headboard expands to match.

Does it have Trendelenburg?

Yes. The 10 function pendant includes Trendelenburg and reverse Trendelenburg along with hi/lo, head, foot and auto contour.

Can I add a trapeze?

Yes. There is a trapeze bracket mount and an IV pole mount on both head corners. A floor standing trapeze such as the Medacure TR500 also works beside it.

What mattress fits?

A bariatric mattress that matches the width you set: 42″ or 48″, such as the Medacure Comfort Zone Bariatric 1,000 lb air mattress or the ProEx bariatric foam mattress.

How much underbed clearance is there?

5.7″, enough for the bases of many floor lifts, including bariatric lifts such as the Medacure FS660-L and FS850 that need at least 4.5″.

🔗 Hospital Bed Guides, Answers & Tools

Choosing a bed, mattress or rails? Start with these pages, or call us at 585-505-6665.

👉 Hospital Bed Buying Guide

👉 Hospital Bed Knowledge Base

👉 Hospital Bed Mattress Guide

👉 Bed Sores & Pressure Ulcer Prevention

👉 Shop Hospital Bed Accessories

PRODUCT SPECIFICATION

Brand:	Medacure
Models:	Lincoln LX-BARI, LX-BARI-CLS (central locking), LX-BARI-9 (ultra low)
Type:	Expandable bariatric long term care bed, full electric
Functions:	Hi/lo, head, foot, Trendelenburg, reverse Trendelenburg, auto contour
Hand Pendant:	10 function, universal symbols
Mattress Deck:	80″ L x 36″ W, expands to 42″ and 48″
Width Expansion:	Built in, tool-less: 36″, 42″, 48″
Length Extension:	Built in, tool-less: 80″ to 88″
Expandable Headboard:	Yes, 36″ to 42″ to 48″
Height Range:	LX-BARI: 14″ to 30″; LX-BARI-9: 9″ to 25″
Weight Capacity:	750 lbs
Casters:	8 x 3″: 4 locking, 4 swivel
Underbed Clearance:	5.7″
Actuators:	Linak
Mounts:	IV pole mount and trapeze bracket mount on both head corners
Included:	Head and foot boards, QBar assist bars
Board Colors:	Mahogany, Amber Cherry, Maple
Warranty:	15 years frame; 3 years electronics; 1 year pendant (Medacure)
