Split Frame Expandable Bariatric Bed

Name: Medacure Lincoln LX-BARI-SF Split Frame Bariatric Bed – 750 lb Expandable Bariatric Hospital Bed, 36" to 48" Wide, Trendelenburg
Brand: Medacure
SKU: LX-BARI-SF
Price: 2076.99 USD
Availability: InStock

Description
PRODUCT SPECIFICATION
Shipping & Returns
Product PDF downloads
Reviews (0)

Description

Medacure Lincoln LX-BARI-SF – Split Frame Expandable Bariatric Bed, 750 lb

The Medacure Lincoln LX-BARI-SF is a split frame expandable bariatric bed: a 750 lb full electric bed whose frame separates for transport and storage, then expands from 36″ to 48″ wide and 80″ to 88″ long. Read our hospital bed buying guide and the hospital bed knowledge base before you choose.

It is a practical bariatric bed for home delivery, easier to move through doors and elevators in sections.

This 750 lb split frame bed adds Trendelenburg, auto contour, Linak motors and included QBar assist bars. Questions? Call us at 585-505-6665.

✅ Key Features

✔️ Split Frame for Easy Transport
✔️ 750 lb Bariatric Weight Capacity
✔️ Tool-Less Width 36″, 42″, 48″
✔️ Length Extends 80″ to 88″
✔️ Trendelenburg and Auto Contour
✔️ Boards and QBar Assist Bars Included

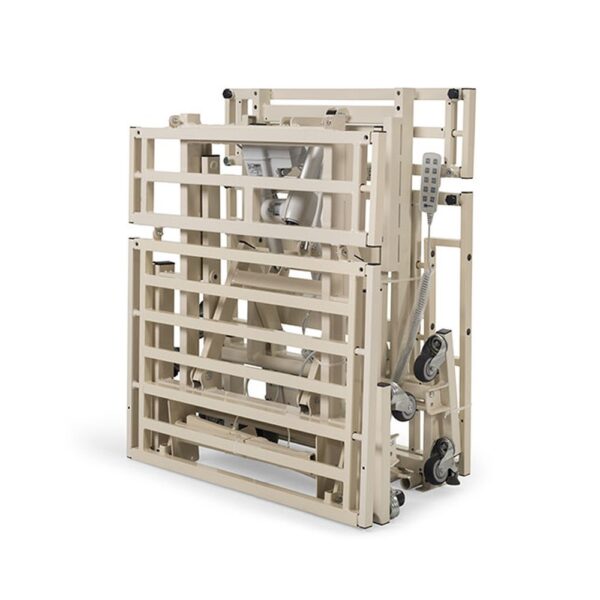

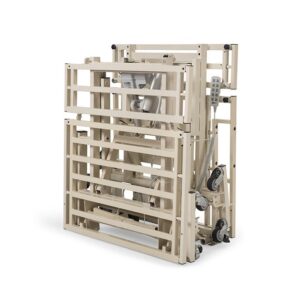

Why a Split Frame Bariatric Bed?

Bariatric beds are big and heavy, and getting them into a home or up to a facility floor can be the hardest part of the job. Medacure designed the LX-BARI-SF frame to split for easy transport and storage, so it moves more easily through doors, halls and elevators and stores compactly between uses, then sets up as a full 750 lb expandable bariatric bed.

Who Is It Best For?

Bariatric residents up to 750 lbs
Home deliveries with narrow doors and halls
Rental fleets and facilities that move beds often
Residents who need Trendelenburg positioning

Who May Need Something Else?

Built-in weighing: the Lincoln LX-BARI-S with digital scale.
Ultra low height: the Lincoln LX-BARI-9 (9″ to 25″).
Home use up to 1,000 lbs: a bariatric homecare bed. See our hospital bed buying guide.

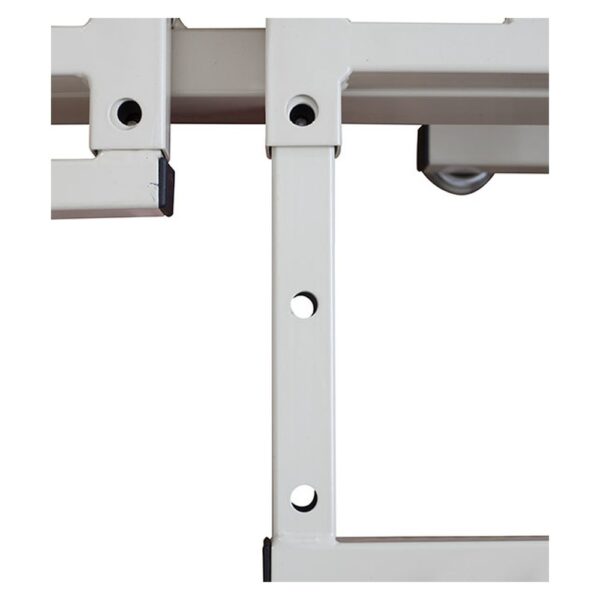

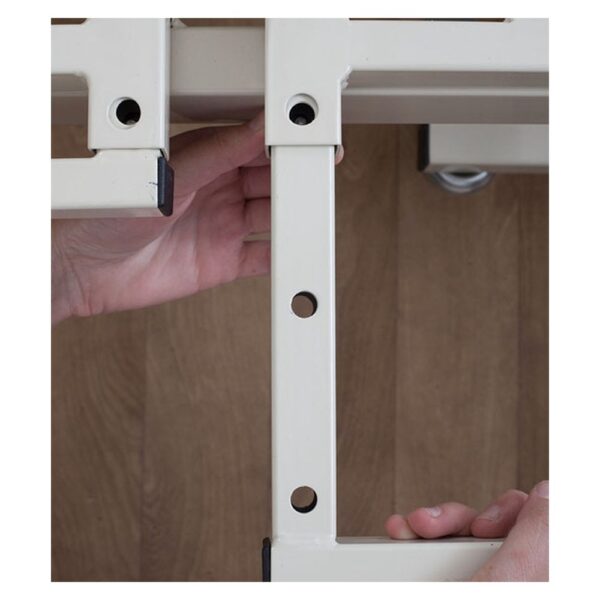

Expands Without Tools

Width expands from 36″ to 42″ or 48″ and length from 80″ to 88″ without tools, and the headboard widens to match, so one bed adapts as a resident’s needs change.

Positioning with Trendelenburg

Five functions cover bariatric care: hi/lo, head, foot, Trendelenburg and auto contour, run from a 10 position hand pendant. Auto contour raises head and knees together to reduce sliding and shear.

LX-BARI-SF vs LX-BARI

	LX-BARI-SF	LX-BARI
Frame	Split frame for transport	One piece frame
Height Range	14″ to 30″	14″ to 30″ (LX-BARI-9: 9″ to 25″)
Weight Capacity	750 lbs	750 lbs
Width	36″, 42″, 48″	36″, 42″, 48″

Linak Motors and Hand Pendant

Linak actuators and controls power all positions through a 10 position hand pendant. The 10 position hand pendant uses universal symbols, so residents and staff can adjust the bed without reading small labels.

Rails, Assist Bars and Mattresses

Medacure includes bed boards and QBar assist bars with this bed. For extra security, add the Medacure quarter side rails (HSR28-RV-2) or the SoftSecure swing rails (SAR-2), made to fit Medacure long term care frames. The deck takes a 42″ or 48″ bariatric mattress such as the Medacure ProEx memory foam mattress; when the length is extended, the Medacure mattress extender fills the gap at the foot. Not sure which surface fits? See our hospital bed mattress guide.

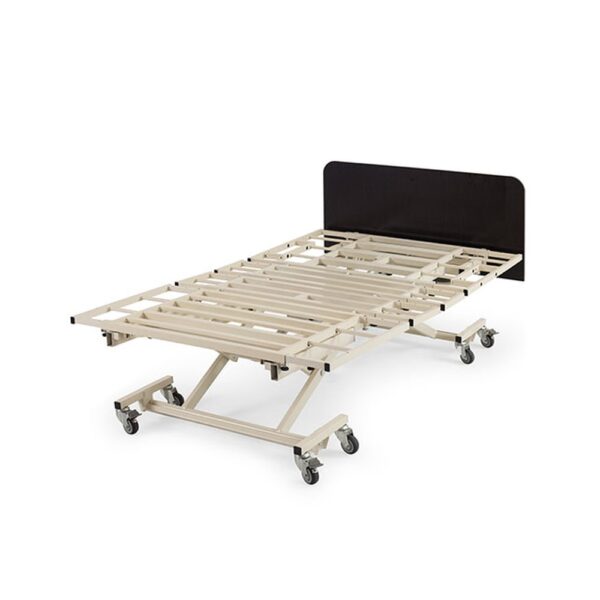

Built for Long Term Care

A heavy duty rectangle tube bed deck on a reinforced steel frame, an IV pole mount and a trapeze bracket mount on both head corners, and retractable bumper guards on the head end make it ready for daily bariatric care. Boards come in Mahogany, Amber Cherry or Maple; tell us your color in the order notes.

Bed Safety Checklist

Lock the casters before transfers and care.
Keep the bed at its lowest height when the resident is in bed and unattended, as the care plan directs.
Check that the mattress fits the deck with no gaps at the rails or boards.
Route the pendant and power cord away from moving parts.
Inspect rails, assist bars and casters weekly.

What’s Included

Lincoln LX-BARI-SF split frame bed with Linak motors, 10 position hand pendant, expandable head and foot boards and QBar assist bars. Mattress and rails are sold separately.

Specifications

Brand	Medacure
Model	Lincoln LX-BARI-SF
Type	Split frame expandable bariatric long term care bed, full electric
Functions	Hi/lo, head, foot, Trendelenburg, reverse Trendelenburg, auto contour
Hand Pendant	10 position, with Trendelenburg
Mattress Deck	80″ L x 36″ W, expands to 42″ and 48″
Width Expansion	Built in, tool-less: 36″, 42″, 48″
Length Extension	Built in, tool-less: 80″ to 88″
Expandable Headboard	Yes, 36″ to 42″ to 48″
Height Range	14″ to 30″
Weight Capacity	750 lbs
Frame	Split frame design for transport and storage; heavy duty rectangle tube deck, reinforced steel
Casters	8 x 3″: 4 locking, 4 swivel
Underbed Clearance	5.7″
Actuators	Linak

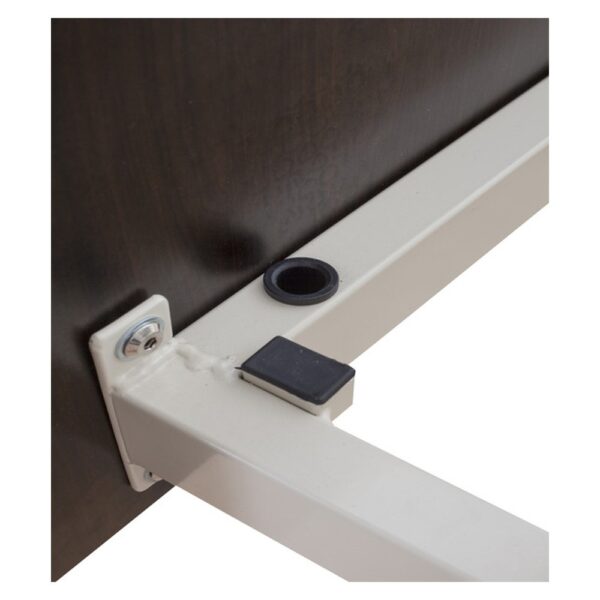

Mounts	IV pole mount and trapeze bracket mount on both head corners
Included	Head and foot boards, QBar assist bars

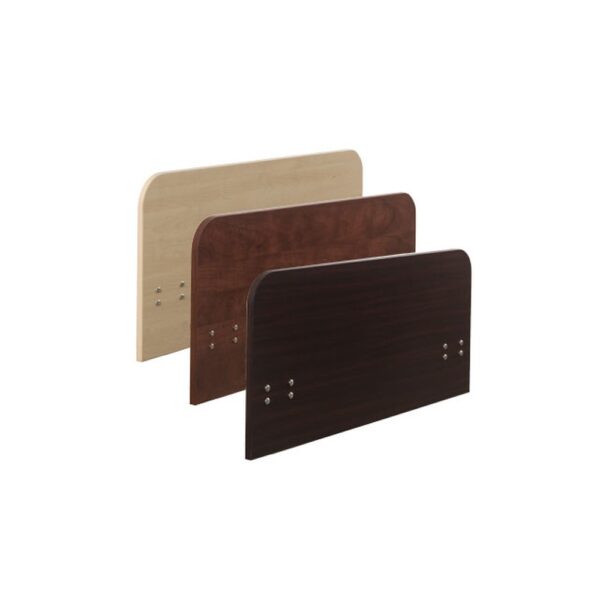

Board Colors	Mahogany, Amber Cherry, Maple
Warranty	15 years frame; 3 years electronics; 1 year pendant (Medacure)

Frequently Asked Questions

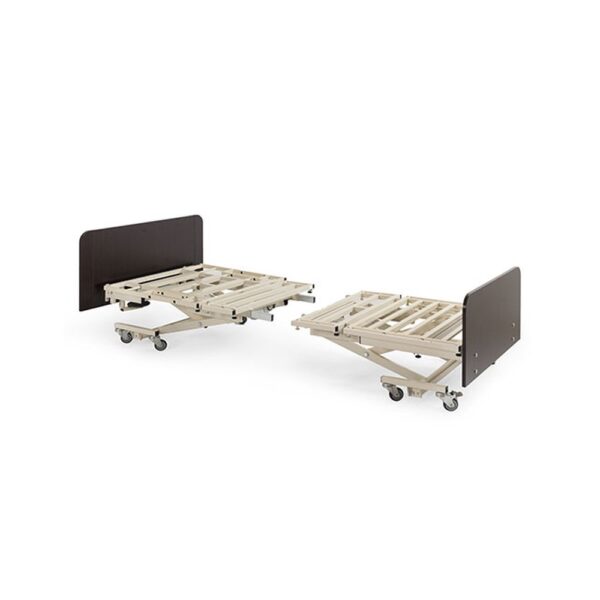

What does split frame mean?

The bed frame separates into sections, so it moves through doorways, hallways and elevators more easily and stores in less space. That makes it a good choice for rentals, home deliveries and facilities that move bariatric beds between rooms.

How wide does it go?

The deck expands without tools from 36″ to 42″ or 48″, and the length from 80″ to 88″, with a headboard that expands to match.

What is the weight capacity?

Medacure rates the LX-BARI-SF for 750 lbs.

Does it have Trendelenburg?

Yes. The 10 position hand pendant includes Trendelenburg along with hi/lo, head, foot and auto contour.

What mattress fits?

A bariatric mattress that matches the width you set, such as the Medacure Comfort Zone Bariatric 1,000 lb air mattress.

How much underbed clearance is there?

5.7″, enough for the bases of many floor lifts, including bariatric lifts such as the Medacure FS660-L and FS850.

🔗 Hospital Bed Guides, Answers & Tools

Choosing a bed, mattress or rails? Start with these pages, or call us at 585-505-6665.

👉 Hospital Bed Buying Guide

👉 Hospital Bed Knowledge Base

👉 Hospital Bed Mattress Guide

👉 Bed Sores & Pressure Ulcer Prevention

👉 Shop Hospital Bed Accessories

PRODUCT SPECIFICATION

Brand:	Medacure
Model:	Lincoln LX-BARI-SF
Type:	Split frame expandable bariatric long term care bed, full electric
Functions:	Hi/lo, head, foot, Trendelenburg, reverse Trendelenburg, auto contour
Hand Pendant:	10 position, with Trendelenburg
Mattress Deck:	80″ L x 36″ W, expands to 42″ and 48″
Width Expansion:	Built in, tool-less: 36″, 42″, 48″
Length Extension:	Built in, tool-less: 80″ to 88″
Expandable Headboard:	Yes, 36″ to 42″ to 48″
Height Range:	14″ to 30″
Weight Capacity:	750 lbs
Frame:	Split frame design for transport and storage; heavy duty rectangle tube deck, reinforced steel
Casters:	8 x 3″: 4 locking, 4 swivel
Underbed Clearance:	5.7″
Actuators:	Linak
Mounts:	IV pole mount and trapeze bracket mount on both head corners
Included:	Head and foot boards, QBar assist bars
Board Colors:	Mahogany, Amber Cherry, Maple
Warranty:	15 years frame; 3 years electronics; 1 year pendant (Medacure)

Shipping & Returns

Shipping & Return Policy

At MedCare Mobility, we understand that purchasing medical and mobility equipment is an important decision. Our goal is to make the ordering, delivery, and return process as clear and straightforward as possible.

Because many of the products we offer are large, specialized, or shipped directly from manufacturer and distributor warehouses, shipping and return requirements may vary somewhat by product and brand. The policy below explains what you can generally expect when ordering from MedCare Mobility.

Shipping & Order Processing

We ship medical and mobility equipment to customers throughout the United States. Orders are processed as quickly as possible, and tracking information is provided once available.

Processing Time

Most in-stock orders are processed within approximately 1–3 business days. Processing may include order verification, warehouse preparation, packaging, and coordination with the manufacturer or distributor.

Some specialty equipment, made-to-order products, oversized items, or products shipping directly from a manufacturer may require additional processing time. Any estimated processing or lead time shown on an individual product page should be considered part of the expected fulfillment timeframe for that item.

Transit & Delivery Time

Once shipped, many standard orders arrive within approximately 3–7 business days. Larger medical equipment, freight shipments, specialty products, and certain manufacturer-direct orders may require additional transit time.

Tracking information will generally be emailed once the shipment has been processed by the carrier. If you have questions regarding the status of your order, please contact us at info@medcaremobility.com.

Alaska, Hawaii & Special Shipping Areas

Orders shipping to Alaska, Hawaii, and certain remote or limited-access areas may be subject to additional shipping charges. If an additional charge is required after your order is reviewed, we will contact you before proceeding whenever additional payment is necessary.

Freight & Oversized Equipment

Hospital beds, patient lifts, large recliners, ramps, and other oversized medical equipment may ship by freight rather than standard parcel service. Unless a specific delivery service is stated on the product page or order, freight delivery does not automatically include inside delivery, assembly, installation, or removal of packaging.

30-Day Return Policy

We want you to feel comfortable ordering from MedCare Mobility. Most eligible products may be returned when a return is requested within 30 days of delivery, subject to the conditions and exclusions outlined below.

Eligible products generally include:

Electric and power wheelchairs
Manual and lightweight wheelchairs
Mobility scooters
Walkers and rollators
Patient lifts
Wheelchair ramps
Hospital and homecare beds
Eligible medical mattresses
Geriatric and medical recliner chairs
Overbed tables
Bathroom benches and shower chairs
Other eligible medical and mobility equipment

Return eligibility can vary by manufacturer and product type. Products specifically identified as non-returnable, custom, made-to-order, or otherwise subject to special return terms are governed by those terms.

Return Authorization

Please contact us before shipping any product back. Returns must first be approved and issued a Return Authorization (RA) and the appropriate return shipping address.

You may request a return by emailing info@medcaremobility.com or contacting our customer service team through the live chat on our website.

Please do not return merchandise to an address shown on the original shipping label unless specifically instructed to do so. Many products ship directly from manufacturer or distributor warehouses, and the correct return location may be different from the original shipping location.

Condition of Returned Merchandise

To qualify for a return and refund, the product must be returned:

In brand-new and unused condition
In its complete original manufacturer packaging
With all manuals, components, hardware, accessories, and included materials
Without damage, modification, assembly wear, stains, odors, or other signs of use
In resalable condition upon inspection by the receiving warehouse or manufacturer

We strongly recommend keeping the original box, pallet, protective materials, and packaging until you are certain that you intend to keep the equipment. Large medical equipment can be difficult or impossible to return safely without its original packaging.

Restocking Fees

Approved returns are subject to a mandatory restocking fee, generally ranging from 15% to 20% of the applicable product price. The exact restocking percentage varies depending on the manufacturer, brand, and type of equipment being returned.

These restocking charges are assessed to us by the manufacturer or distributing warehouse when merchandise is returned. MedCare Mobility does not add the fee simply as a return penalty; when the manufacturer requires the charge, we must pass the applicable amount through as part of processing the return.

If you would like to know the applicable restocking percentage for a particular product before ordering, please contact us and we will be happy to help whenever that information is available from the manufacturer.

Return Shipping & Shipping Charges

The customer is responsible for shipping charges associated with the order when making a standard return.

Customers are responsible for arranging for the approved merchandise to be returned to the return address provided with the Return Authorization. In certain cases, we may be able to provide a prepaid return label or coordinate return transportation for your convenience. When provided, the applicable shipping cost may be deducted from the final refund.

Because some medical equipment is oversized or requires freight transportation, prepaid labels or carrier call tags may not be available for every product. Our customer service team will provide the available return instructions when your return is authorized.

Non-Returnable Products

For health, hygiene, safety, customization, and manufacturer-policy reasons, certain products are not eligible for standard returns.

We currently do not accept returns on:

Parts & accessories
Wheelchair cushions and support accessories
Patient lift slings
Custom or made-to-order products
Products specifically identified as non-returnable on the product page

If a non-returnable product arrives damaged, defective, or incorrect, please contact us promptly. Non-returnable status does not prevent us from assisting with a legitimate shipping damage, defect, warranty, or fulfillment issue in accordance with the applicable manufacturer and carrier procedures.

Damaged or Incorrect Orders

We take shipping damage seriously and will work with you to help resolve legitimate delivery issues.

If your product arrives damaged, please notify MedCare Mobility within 48 hours of delivery. Whenever possible, retain the shipping carton, pallet, packaging materials, and the product exactly as received and take clear photographs of the packaging and any visible damage.

Reporting damage promptly is important because carriers and manufacturers have limited timeframes for filing freight and shipping claims.

If you receive an incorrect product or believe there is a manufacturer defect, please contact us before returning or disposing of any merchandise or packaging so that we can provide the appropriate instructions.

Refused Deliveries

Please contact us before refusing a delivery unless the shipment has obvious significant freight damage and the carrier is documenting the damage at delivery.

A shipment that is refused for reasons unrelated to verified shipping damage may be treated as a standard return. Applicable restocking and shipping charges may therefore be deducted from the refund.

Return Shipping Deadline

Once a return has been approved and return instructions or a return label have been issued, the merchandise must be shipped within 72 hours unless MedCare Mobility provides different instructions in writing.

This is particularly important when a return is approaching the end of the applicable return period. Returns shipped outside the authorized timeframe may be refused by the manufacturer or warehouse and may no longer qualify for a refund.

Refund Processing

Refunds are processed after the returned merchandise has been received and inspected by the applicable warehouse or manufacturer and the return has been confirmed to meet the return requirements.

The applicable restocking fee, shipping charges associated with the order, and any other authorized return-related charges will be deducted from the amount eligible for refund.

If returned merchandise is used, damaged, incomplete, missing original packaging or components, or otherwise returned in a condition that prevents the manufacturer or warehouse from accepting it as new and resalable merchandise, the return may be refused or the refund may be reduced in accordance with the manufacturer’s assessment.

Custom & Made-to-Order Products

Products identified as custom, configured, made-to-order, special-order, or manufactured specifically for the customer cannot generally be canceled once production or manufacturer processing has begun and are not eligible for standard returns.

For custom products, cancellation may only be possible during the initial processing period and before production or customization begins. Because production schedules vary by manufacturer, we encourage customers to contact us immediately if a change is required.

If a custom product arrives damaged or has a legitimate manufacturing defect, we will work with the manufacturer to pursue the appropriate resolution, replacement components, repair, or other available remedy under the applicable manufacturer policy or warranty.

Questions Before Ordering?

Medical equipment can vary considerably in size, configuration, compatibility, and intended use. If you are unsure whether a product will work for your needs, we strongly encourage you to contact us before placing your order.

Our team is happy to help review product specifications, dimensions, options, compatibility, and available manufacturer information so you can make a more informed purchasing decision and reduce the possibility of needing a return.

For shipping, return, or product questions, contact us at info@medcaremobility.com or speak with us through the live chat on our website.

Product PDF downloads

Medacure Lincoln LX-BARI-S and LX-BARI-SF Brochure

Reviews

There are no reviews yet

Be the first to review “Medacure Lincoln LX-BARI-SF Split Frame Bariatric Bed – 750 lb Expandable Bariatric Hospital Bed, 36″ to 48″ Wide, Trendelenburg”
