Medacure Lincoln LX-BARI-S Bariatric Bed with Built-In Scale – 750 lb Expandable Hospital Bed, Bed Exit Alarm, Central Locking
$3,656.99
- Rated No. 1 in customer service
- Fast nationwide shipping, delivered to your door
- Manufacturer warranties
- Cash-back rewards on every order
Authorized dealer & provider · Huge selection · Questions? Call 585-505-6665
✔ Built-In Digital Scale with History
✔ Bed Exit Alarm
✔ Nurse Control with Patient Lockout
✔ 750 lb Bariatric Weight Capacity
✔ Expands 36″ to 48″ Wide
✔ Backup Battery, CPR and E-Stop
You earn -
Fast nationwide shipping, delivered to your door · 30-day returns on eligible products · Shipping & returns details
Share with Friends
- Description
- PRODUCT SPECIFICATION
- Shipping & Returns
- Product PDF downloads
- Reviews (0)
Description

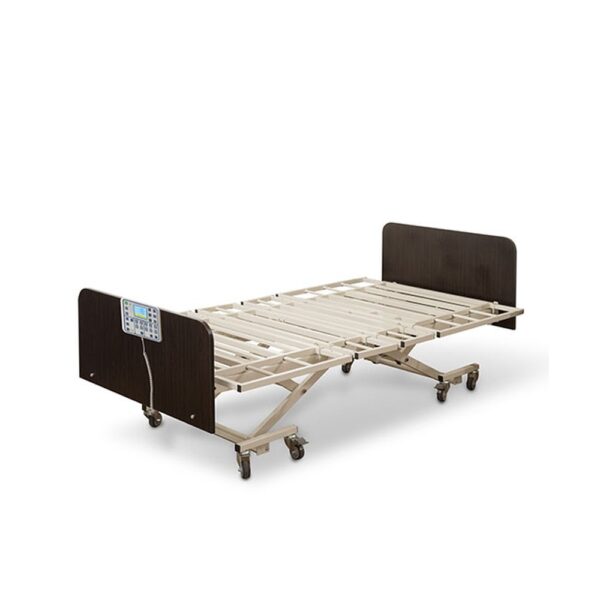

Medacure Lincoln LX-BARI-S – Bariatric Hospital Bed with Built-In Scale
The Medacure Lincoln LX-BARI-S is a hospital bed with scale: a 750 lb expandable bariatric bed that weighs the patient in bed, stores the weight history and shows the change, with a nurse control and a central locking system. Read our hospital bed buying guide and the hospital bed knowledge base before you choose.
As a bariatric bed with built in scale, it expands from 36″ to 48″ wide and 80″ to 88″ long, with Trendelenburg and auto contour.
It is also a hospital bed with bed exit alarm, a nurse lockout and a backup battery for safer care. Questions? Call us at 585-505-6665.
✅ Key Features
- ✔️ Built-In Digital Scale with History
- ✔️ Bed Exit Alarm
- ✔️ Nurse Control with Patient Lockout
- ✔️ 750 lb Bariatric Weight Capacity
- ✔️ Expands 36″ to 48″ Wide
- ✔️ Backup Battery, CPR and E-Stop
Why a Bed with a Built-In Scale?
For bariatric patients, regular weight checks are essential and difficult. Every transfer to a scale costs staff time and adds risk. The LX-BARI-S weighs the patient in bed, records the history and shows the change, so weight tracking becomes a routine glance instead of a two person job.
Choose Your Model
| LX-BARI-S-CLS | LX-BARI-9-S-CLS | |
| Height | 14″ to 30″ | Low position 9″ |
| Scale, alarm, nurse control | Yes | Yes |
| Central locking | Yes | Yes |
| Best for | Bariatric care with weight tracking | Weight tracking plus fall risk |
Who Is It Best For?
- Bariatric patients up to 750 lbs who need regular weights
- Patients on weight based medication or fluid monitoring
- Patients at risk of leaving bed unassisted (bed exit alarm)
- Facilities that want nurse lockout control
Who May Need Something Else?
- No scale needed: the Lincoln LX-BARI.

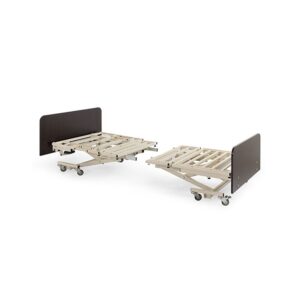

- Transport and storage: the Lincoln LX-BARI-SF split frame.
- Weighing during lift transfers: a lift scale such as the Medacure DS850. See our hospital bed buying guide.

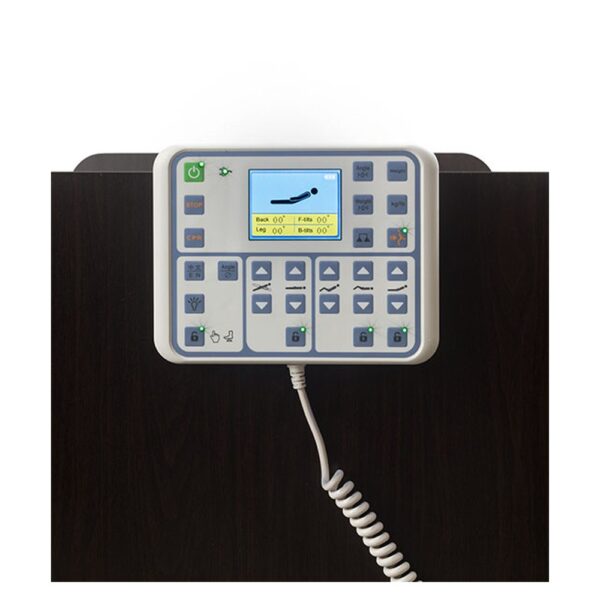

Nurse Control and Patient Pendant
Both the nurse control and the patient hand pendant run all 10 positions, including Trendelenburg and reverse Trendelenburg. The nurse control’s lockout overrides the patient pendant when needed, and two white LEDs under it light the foot end at night.
Safety and Power
The bed has a CPR and emergency stop function. It runs on AC power with a backup 12V rechargeable battery included, and a battery power indicator shows on the display.

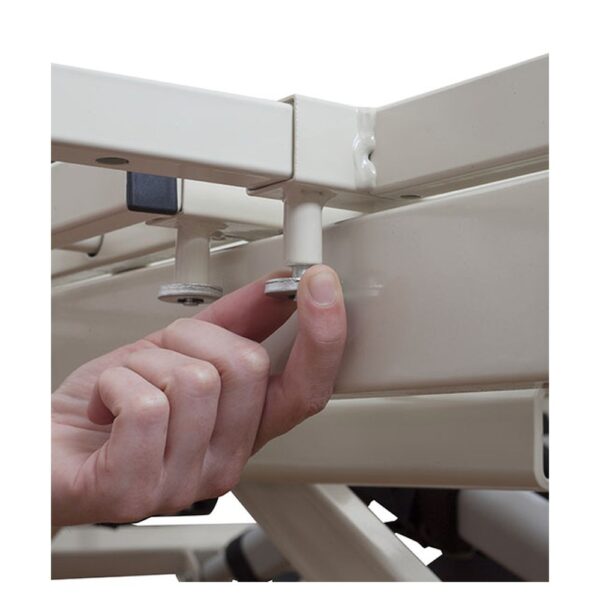

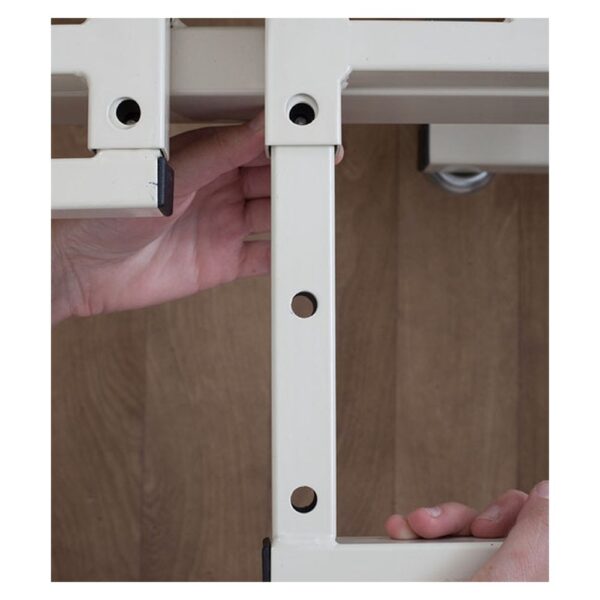

Expandable Bariatric Frame
The deck expands from 36″ to 42″ or 48″ and from 80″ to 88″, with an expandable headboard, an IV pole mount and a trapeze bracket mount on both head corners, and a central locking system to hold it in place.
Linak Motors and Hand Pendant
Linak actuators and controls power all 10 positions from the nurse control or the patient pendant. The 10 position patient hand pendant uses universal symbols, so residents and staff can adjust the bed without reading small labels.
Rails, Assist Bars and Mattresses
For extra security, add the Medacure quarter side rails (HSR28-RV-2) or the SoftSecure swing rails (SAR-2), made to fit Medacure long term care frames. The deck takes a 42″ or 48″ bariatric mattress such as the Medacure ProEx memory foam mattress; when the length is extended, the Medacure mattress extender fills the gap at the foot. Not sure which surface fits? See our hospital bed mattress guide.
Built for Long Term Care
A heavy duty rectangle tube bed deck on a reinforced steel frame and expandable head and foot boards make it ready for daily bariatric care. Boards come in Mahogany, Amber Cherry or Maple; tell us your color in the order notes.
Bed Safety Checklist
- Lock the casters before transfers and care.
- Keep the bed at its lowest height when the resident is in bed and unattended, as the care plan directs.
- Check that the mattress fits the deck with no gaps at the rails or boards.
- Route the pendant and power cord away from moving parts.
- Inspect rails, assist bars and casters weekly.
What’s Included
Lincoln LX-BARI-S bed (model as selected) with built-in digital scale, nurse control, patient hand pendant, backup battery and expandable head and foot boards. Mattress and rails are sold separately.
Specifications
| Brand | Medacure |
| Models | Lincoln LX-BARI-S-CLS; LX-BARI-9-S-CLS (low) |
| Type | Expandable bariatric bed with built-in scale and central locking, full electric |
| Functions | Hi/lo, head, foot, Trendelenburg, reverse Trendelenburg, auto contour |
| Controls | Nurse control with lockout over the patient hand pendant; both control all 10 positions |
| Scale | Digital, weighs patient in bed; large illuminated color screen; stores weight history and calculates weight change; lb/kg; pre-calibrated |
| Bed Exit Alarm | Sounds when the patient is off the bed |

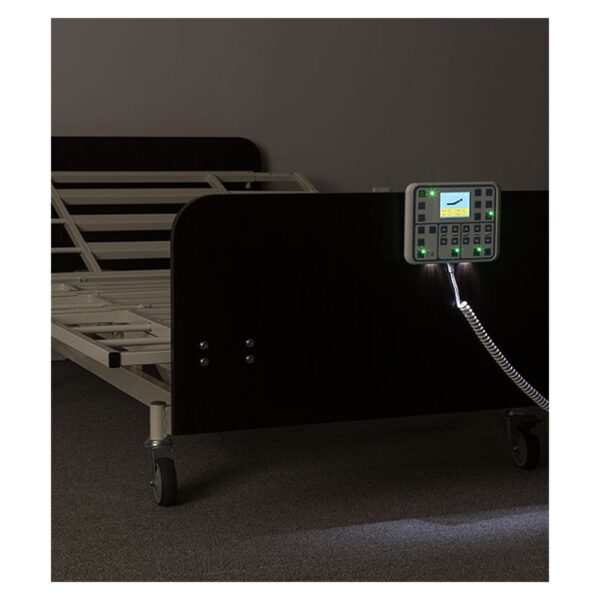

| Night Lights | 2 white LEDs under the nurse control light the foot end |
| Safety | CPR and emergency stop function |
| Power | AC, with backup 12V rechargeable battery included |
| Mattress Deck | 80″ L x 36″ W, expands to 42″ and 48″ |
| Length Extension | 80″ to 88″ |
| Expandable Headboard | Yes, 36″ to 42″ to 48″ |
| Height Range | LX-BARI-S-CLS: 14″ to 30″; LX-BARI-9-S-CLS: low position 9″ |
| Weight Capacity | 750 lbs |
| Casters | 8 x 3″: 4 locking, 4 swivel; central locking system |
| Underbed Clearance | 5.7″ |

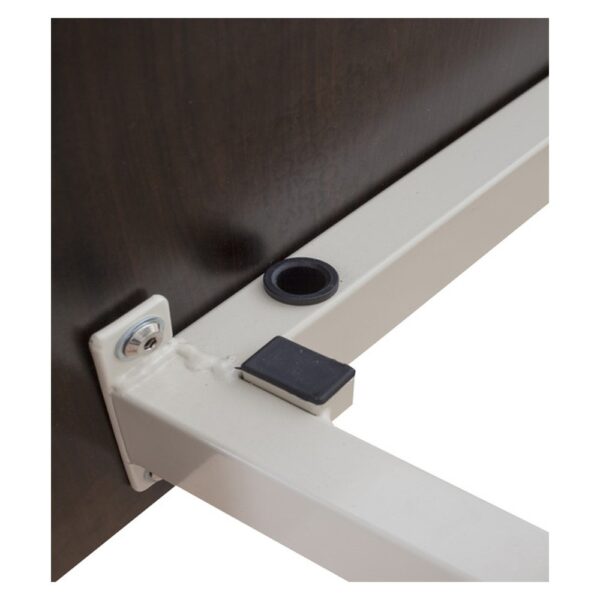

| Mounts | IV pole mount and trapeze bracket mount on both head corners |

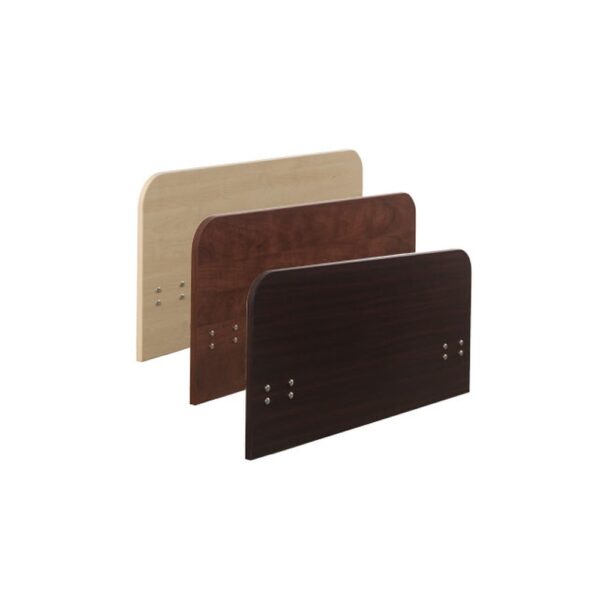

| Board Colors | Mahogany, Amber Cherry, Maple |
| Warranty | 15 years frame; 3 years electronics; 1 year pendant (Medacure) |
Frequently Asked Questions

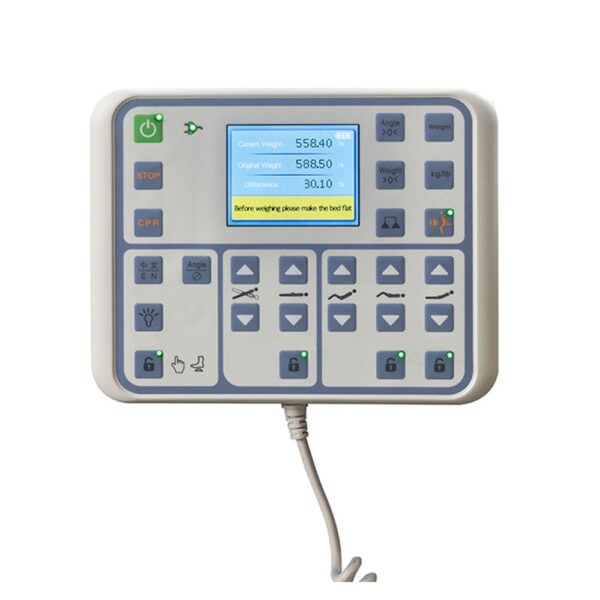

How does the built-in scale work?
The built-in digital scale weighs the patient where they lie. The large illuminated color screen shows the weight in lb or kg, stores the weight history and calculates the change since the last reading. Medacure ships it pre-calibrated.
Why weigh a bariatric patient in bed?
Moving a bariatric patient to a standing or chair scale is hard and risky. In-bed weighing lets staff track weight for medication dosing, fluid balance and nutrition without a transfer.
What does the bed exit alarm do?
It sounds when the patient leaves the bed, alerting staff to a possible fall or wandering.
What is the nurse control lockout?
The nurse control can lock out the patient’s hand pendant, so a confused patient cannot move the bed into an unsafe position.
What if the power goes out?
A backup 12V rechargeable battery is included, and the bed has a CPR and emergency stop function.
🔗 Hospital Bed Guides, Answers & Tools
Choosing a bed, mattress or rails? Start with these pages, or call us at 585-505-6665.
PRODUCT SPECIFICATION
| Brand: | Medacure |
| Models: | Lincoln LX-BARI-S-CLS; LX-BARI-9-S-CLS (low) |
| Type: | Expandable bariatric bed with built-in scale and central locking, full electric |
| Functions: | Hi/lo, head, foot, Trendelenburg, reverse Trendelenburg, auto contour |
| Controls: | Nurse control with lockout over the patient hand pendant; both control all 10 positions |
| Scale: | Digital, weighs patient in bed; large illuminated color screen; stores weight history and calculates weight change; lb/kg; pre-calibrated |
| Bed Exit Alarm: | Sounds when the patient is off the bed |
| Night Lights: | 2 white LEDs under the nurse control light the foot end |
| Safety: | CPR and emergency stop function |
| Power: | AC, with backup 12V rechargeable battery included |
| Mattress Deck: | 80″ L x 36″ W, expands to 42″ and 48″ |
| Length Extension: | 80″ to 88″ |
| Expandable Headboard: | Yes, 36″ to 42″ to 48″ |
| Height Range: | LX-BARI-S-CLS: 14″ to 30″; LX-BARI-9-S-CLS: low position 9″ |
| Weight Capacity: | 750 lbs |
| Casters: | 8 x 3″: 4 locking, 4 swivel; central locking system |
| Underbed Clearance: | 5.7″ |
| Mounts: | IV pole mount and trapeze bracket mount on both head corners |
| Board Colors: | Mahogany, Amber Cherry, Maple |
| Warranty: | 15 years frame; 3 years electronics; 1 year pendant (Medacure) |
