Everest & Jennings Traveler HTC Heavy-Duty Wheelchair – 500 lb Wheelchair With Elevating Legrests and O2/IV Holder
$493.99
- Rated No. 1 in customer service
- Fast nationwide shipping, delivered to your door
- Manufacturer warranties
- Cash-back rewards on every order
Authorized dealer & provider · Huge selection · Questions? Call 585-505-6665
✔ 500 lb Weight Capacity
✔ Reinforced Steel, Double Crossbraces
✔ 24″ Non-Marking Polyurethane Tires
✔ 20″, 22″ or 24″ x 18″ Seat
✔ Anti-Tippers & Rear Wheel Locks
✔ O2/IV Holder Included
You earn -
Fast nationwide shipping, delivered to your door · 30-day returns on eligible products · Shipping & returns details
Share with Friends
- Description
- PRODUCT SPECIFICATION
- Shipping & Returns
- Product PDF downloads
- Reviews (0)
Description

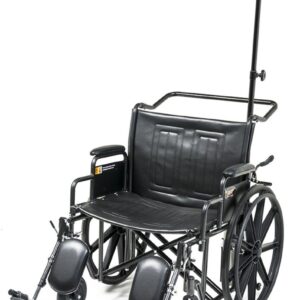

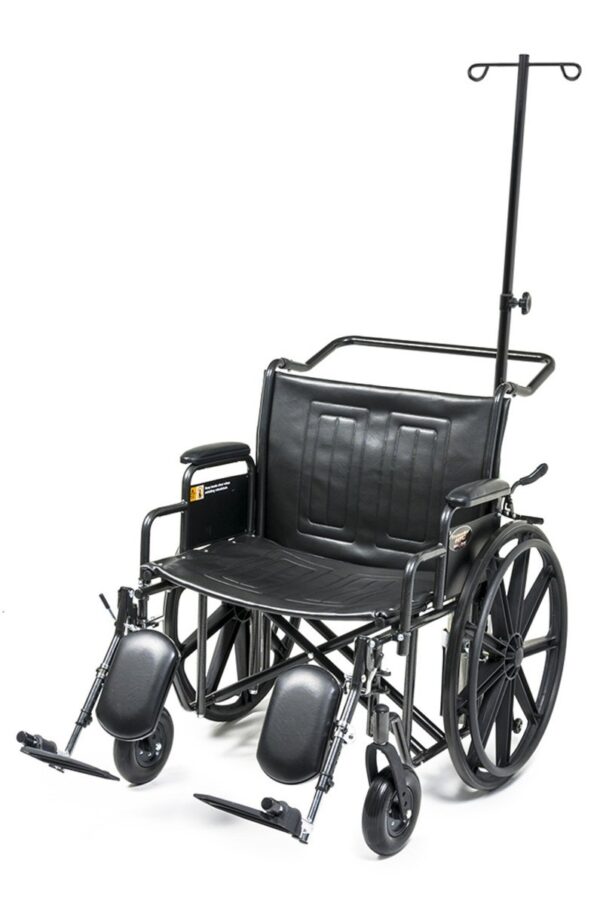

Everest & Jennings Traveler HTC – Heavy Duty 500 lb Wheelchair Built for Caregivers, Hospitals and Home
The Everest & Jennings Traveler HTC is a 500 lb wheelchair made for heavier users who are usually pushed by someone else. Graham-Field builds it with a heavy-duty reinforced carbon steel frame at the critical load-bearing points, double crossbraces and 5/8″ axles, and rates it for 500 lb, evenly distributed.
What sets the Traveler HTC wheelchair apart is how much of it is aimed at the caregiver: a fixed attendant push bar, wheel locks mounted at the back where the person pushing can reach them, anti-tippers, and a telescoping O2/IV holder that comes standard. Tool-free elevating legrests with aluminum footplates are included on every chair.
If you’ve been looking for a heavy duty wheelchair 500 lb rated, the HTC comes in 20″, 22″ and 24″ seat widths, each 18″ deep (1″ deeper than standard), with embossed black leatherette upholstery that has a double inner lining. It was designed for hospital use and patient transport, and the same features make life easier for a family caregiver at home.
Why Choose the E&J Traveler HTC?
Heavier users need more than a wider seat. They need a frame that’s reinforced where the load goes, upholstery that won’t stretch out, and a chair the caregiver can actually control. The HTC addresses all three: double crossbraces and 5/8″ axles under a reinforced frame, double-lined upholstery, and a push bar plus rear-mounted wheel locks so the person behind the chair can steer and park it without walking around to the side.
For hospitals and clinics, Graham-Field adds inventory controls: fixed desk arms, standard anti-tippers and anti-theft nuts on the front rigging, so parts stay with the chair.
Who Is the Traveler HTC Best For?
The Traveler HTC is a good fit for:
- Users up to 500 lb who need a 20″, 22″ or 24″ wide seat
- Caregivers who push the chair most of the time and want the wheel locks and push bar within reach
- People who travel with an oxygen tank or need an IV pole, since the O2/IV holder comes standard
- Anyone who needs their legs raised, because elevating legrests are included
- Hospitals, clinics and care facilities that want parts that stay put (fixed arms, anti-theft front rigging nuts)
Not sure about sizing a bariatric chair? Our Manual Wheelchair Knowledge Base covers seat widths and weight ratings, and the Manual Wheelchair Assessment Tool can help you choose.
Who May Need a Different Wheelchair?
- People who transfer sideways or use a slide board: the HTC’s desk arms are fixed and don’t come off. Compare the Graham-Field Traveler HD Heavy Duty Bariatric Wheelchair or call us about chairs with removable arms.
- Users over 500 lb: you’ll need a chair with a higher rating than this one.
- People who will push themselves full time: the HTC has handrims, but at about 60 lb and with features built around the caregiver, it’s mainly an attendant-pushed chair.
- Anyone who needs to recline: the HTC has a fixed back. Look at a reclining wheelchair instead.
500 lb Capacity: Reinforced Frame, Double Crossbraces, 5/8″ Axles
Graham-Field rates every Traveler HTC for 500 lb, evenly distributed. The carbon steel frame is reinforced at the critical load-bearing points, has double crossbraces and rides on heavy-duty 5/8″ diameter axles. The hammertone paint is made to hold up to daily use. The chair weighs about 60 lb.

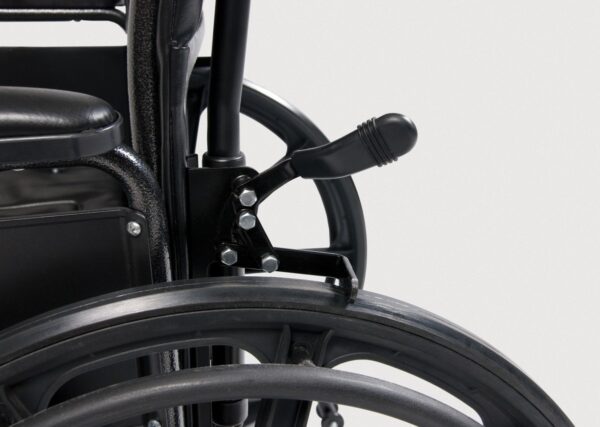

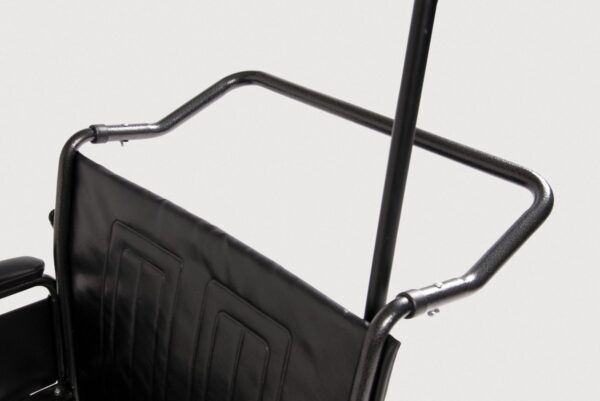

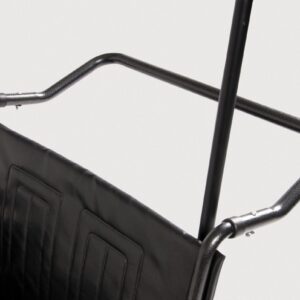

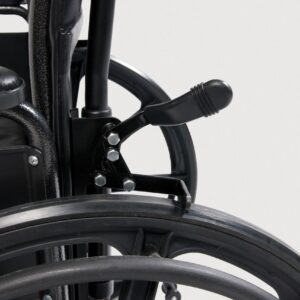

Attendant Push Bar and Rear-Mounted Wheel Locks
A fixed push bar runs across the back of the chair, so the caregiver can push with both hands in the middle instead of on two separate handles. The wheel locks are mounted at the rear wheels, within the caregiver’s reach, which Graham-Field says gives easier maneuvering and control for the person pushing.

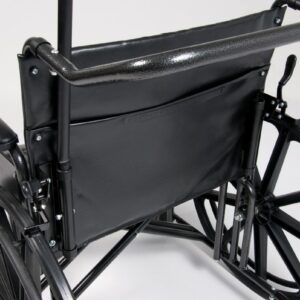

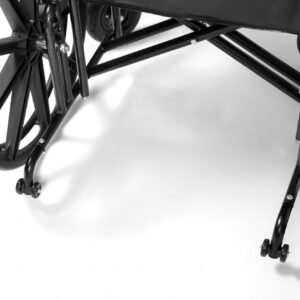

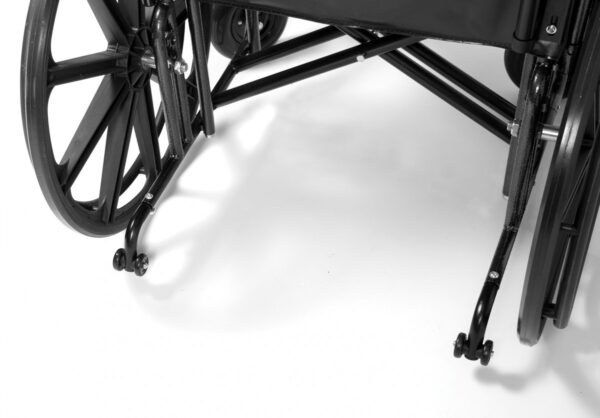

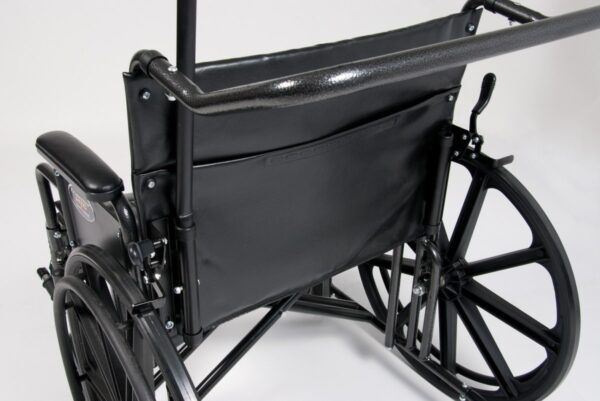

O2/IV Holder and Anti-Tippers Standard
Every HTC comes with rear anti-tippers and a black painted telescoping O2/IV holder, so an oxygen cylinder or IV can travel with the user. (Graham-Field notes the O2/IV pole is standard on chairs after serial number HYT039WC.)
Elevating Legrests With Aluminum Footplates
The tool-free, adjustable elevating legrests have durable black aluminum footplates. They raise the legs for swelling or comfort and lower for everyday sitting. Lock nuts on the front rigging keep the legrests with the chair in a facility setting.
24″ Wheels With Non-Marking Polyurethane Tires
The rear wheels are 24″ x 1″ black plastic wheels with black handrims and non-marking polyurethane tires, so there are no tubes to go flat and no scuffs on hospital or home floors. The front casters are 8″.
Double-Lined Embossed Upholstery and 18″ Deep Seat
The seat and back use embossed black leatherette upholstery with a double inner lining for durability, plus a chart pocket on the back. Every seat is 18″ deep, 1″ deeper than a standard chair, with a 20″ seat height and a 16.5″ back. A two-position axle and caster fork give a 2″ seat height adjustment for a hemi position; ask us before ordering if you need the lower setting.
Choosing Your Options
There’s one dropdown, Seat Size. Every Traveler HTC has fixed desk arms, elevating legrests, the O2/IV holder, anti-tippers and the 500 lb rating; only the seat width and overall width change.
| Seat Size | Overall width | Weight capacity | Graham-Field code |
|---|---|---|---|
| 20″ W x 18″ D | 28.5″ | 500 lb | 3J010330 |
| 22″ W x 18″ D | 30.5″ | 500 lb | 3J010430 |
| 24″ W x 18″ D | 32.5″ | 500 lb | 3J010530 |
How to pick: measure across the widest part of the hips (or thighs, if wider) while seated and add about 2 inches. A seat that’s too tight rubs and makes transfers harder; one that’s too wide is harder for the user to reach the handrims and wider to get through doors. Then measure your narrowest doorway: the chair is 8.5″ wider than the seat, so a 24″ seat needs a doorway wider than 32.5″. Call us at 585-505-6665 with your measurements if you’re between sizes.
Traveler HTC vs. a Standard Wheelchair
A standard wheelchair like the E&J Advantage LX is rated for 300 lb, comes with 16″ to 20″ seats that are 16″ deep, and puts the wheel locks at the user’s sides. The HTC is rated for 500 lb, starts at a 20″ seat, is 18″ deep, and moves the controls to the caregiver: push bar, rear-mounted wheel locks and a standard O2/IV holder. It’s heavier at about 60 lb and its arms are fixed, so it trades some portability for strength and caregiver control.
Common Problem → Traveler HTC Solution
Problem: Linda pushes her husband, who weighs about 420 lb, to his appointments. His old chair is sagging, she has to walk around to the front to set the wheel locks, and his oxygen tank rides on his lap.
Solution: A Traveler HTC with a 24″ x 18″ seat. It’s rated for 500 lb, the double-lined upholstery holds its shape, she sets the rear wheel locks from behind the chair, steers with the push bar and his oxygen tank sits in the O2/IV holder. The elevating legrests help on longer waits.
“Can he slide sideways into the car?” Not over the arm. The HTC’s desk arms are fixed, so plan on a stand-and-pivot transfer, or call us about a heavy-duty chair with removable arms.
Sizing & Fit
- Seat width: hip or thigh width seated plus about 2″. Choose 20″, 22″ or 24″.
- Seat depth: 18″ on all sizes. Leave 2 to 3 fingers between the seat edge and the back of the knee.
- Seat height: 20″ (a 2″ hemi adjustment is available through the axle and caster fork; ask us).
- Back height: 16.5″. Overall height is 36″.
- Doorways: overall width 28.5″ (20″), 30.5″ (22″) or 32.5″ (24″). Overall depth is 34″.
- Chair weight: about 60 lb.
- User weight: 500 lb maximum, evenly distributed.
Care & Cleaning
Graham-Field doesn’t print care steps on the product page. As general advice for a steel wheelchair: wipe the frame and upholstery with a soft cloth and mild soap and water, dry it if it gets wet, and avoid solvents and abrasive cleaners. Check that the wheel locks hold, the anti-tippers are in the down position and all nuts are snug. Ask us for the Traveler HTC user manual for the full maintenance schedule.
What’s Included
Graham-Field lists these as standard: fixed desk arms, tool-free elevating legrests with aluminum footplates and anti-theft lock nuts, rear anti-tippers, the telescoping O2/IV holder, the attendant push bar, rear-mounted attendant wheel locks and a chart pocket on the back. A positioning belt, a lap tray and an anti-fold bar are sold separately. Ask us to confirm the box contents.
Warranty
Graham-Field lists a five-year limited warranty on the Traveler HTC. Ask us for the full warranty terms, and call us at 585-505-6665 if you ever need help with a claim.
Key Features
✔ 500 lb Weight Capacity
✔ Reinforced Steel, Double Crossbraces
✔ 24″ Non-Marking Polyurethane Tires
✔ 20″, 22″ or 24″ x 18″ Seat
✔ Anti-Tippers & Rear Wheel Locks
✔ O2/IV Holder Included
Product Specifications
| Brand | Everest & Jennings (Graham-Field) |
| Model | Traveler HTC |
| Graham-Field Codes | 3J010330, 3J010430, 3J010530 |
| Type | Heavy-duty manual wheelchair, attendant controls, fixed back |
| Weight Capacity | 500 lb (226.8 kg), evenly distributed |
| Chair Weight | About 60 lb |
| Frame | Carbon steel, reinforced at load-bearing points, double crossbraces, hammertone finish |
| Axles | Heavy-duty 5/8″ diameter |
| Seat Width | 20″, 22″ or 24″ |
| Seat Depth | 18″ |
| Seat Height | 20″ (two-position axle and caster fork give a 2″ hemi adjustment) |
| Back Height | 16.5″ |
| Overall Width | 28.5″ (20″); 30.5″ (22″); 32.5″ (24″) |
| Overall Depth | 34″ |
| Overall Height | 36″ |
| Folded Width | Ask us |
| Rear Wheels | 24″ x 1″ black plastic, black handrims, non-marking polyurethane tires |
| Front Casters | 8″ |
| Arms | Fixed desk arms |
| Front Rigging | Tool-free adjustable elevating legrests, black aluminum footplates, anti-theft lock nuts |
| Push Handle | Fixed attendant push bar |
| Wheel Locks | Rear-mounted attendant wheel locks |
| Anti-Tippers | Standard |
| O2/IV Holder | Black painted telescoping O2/IV holder, standard (after serial number HYT039WC) |
| Upholstery | Embossed black leatherette, double inner lining, chart pocket on back |
| Warranty | Five-year limited (Graham-Field) |
Frequently Asked Questions
How much weight can the Traveler HTC hold?
Graham-Field rates it for 500 lb, evenly distributed, on all three seat sizes.
What seat sizes are available?
20″, 22″ and 24″ wide, all 18″ deep. Measure hip or thigh width while seated and add about 2 inches.
How wide is the chair overall?
28.5″ with the 20″ seat, 30.5″ with the 22″ and 32.5″ with the 24″. Measure your narrowest doorway before you order.
How much does the Traveler HTC weigh?
About 60 lb, per Graham-Field.
Do the arms come off?
No. The HTC has fixed desk arms, which keeps parts from going missing in a facility but makes sideways transfers harder. If the user needs to transfer over the side, call us about other heavy-duty chairs.
Who works the wheel locks?
The caregiver. The wheel locks are mounted at the rear wheels so the person pushing can set them without walking around the chair.
Does it come with an IV pole or oxygen holder?
Yes. A telescoping O2/IV holder is standard. Graham-Field notes it’s included on chairs after serial number HYT039WC.
Are elevating legrests included?
Yes. Every HTC has tool-free adjustable elevating legrests with aluminum footplates.
What kind of tires does it have?
24″ x 1″ rear wheels with non-marking polyurethane tires and black handrims, plus 8″ front casters. There are no tubes to go flat.
Can the user push it themselves?
Yes, it has handrims. Most users of a 60 lb heavy-duty chair are pushed by a caregiver, which is what the push bar and rear wheel locks are for.
What is the warranty?
Graham-Field lists a five-year limited warranty. Ask us for the full terms.
Does Medicare cover a heavy-duty wheelchair?
Medicare Part B may help cover a heavy-duty wheelchair as durable medical equipment when a doctor documents the need. Coverage depends on your plan and the supplier, so check with your plan before you order.
